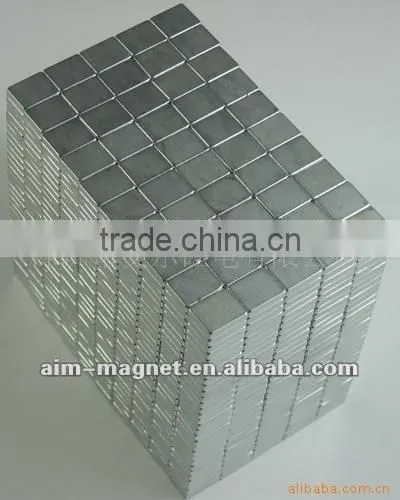

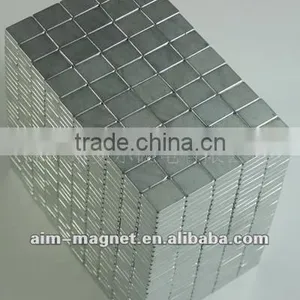

Motor Customized Neodymium Magnet Detector

Specifications

1.Safe and non-toxic
2.Stable working temperature
3.Manufactures with good price
4.Passed ISO 9001 and RoHS Certified.

           Motor Customized Neodymium  Magnet Detector

Grade	N35-N52
Various sizes	Customized
Shape	customized
Materials	Sintered Neodymium-Iron-Boron
Coating	Nikel,Znic
Technology	Application of new sintered NdFeB magnet techniques and equipment like casting, HDDR technology
Produts Tech:	Raw materials-Burdening-Melting-Crushing-Milling-Pressing-Vacuum sintering-Maching-Plating -Inspection-Packing
Magnetic properties	Super strong magnetic force and intrinsic coercive force. Good in ambient temperature. High anti-corrosion and stable performance. Can be magnetized through thickness.
Environment and recycle friendly	Meet the environment standard of RoHS issued by EU.  Electroplating uses chemical-plating processing technology without lead and chromium.
Applications	NdFeB magnets are widely used in communication, electronics, household appliances, medical apparatus many industrial area, like speakers, headphone, mobilephone, receiver, microphone, audio equipment, motors, wind generators, sensors, leather, toys, package etc.







Strong Sintered Neodymium Magnet

 Disc:Max:diameter 202mm*45mm thickness---Min:diameter 1.5mm*0.5mm thickness

Ring:Max:Od202mm*Id182mm*thickness 45mm---Min:Od 3mm*Id1mm*3mm thickness

Block:Max:L200mm*W200mm*T45mm---Min:L0.5mm*W0.5mm*T0.5mm

segment and other irregular shapes can be manufacture according to customer's sample or drawing.



Strong Sintered Neodymium Magnet grade

N35, N38, N40, N42, N45, N48, N50, N52(Max. Operational temperature: 80c)

N35M, N38M, N40M, N42M, N45M, N48M(Max. Operational temperature: 100c)

N35H, N38H, N40H, N42H, N45H, N48H, (Max. Operational temperature: 120C)

N33SH, N35SH, N38SH, N40SH, N42SH(Max. Operational temperature: 150c)

N28UH, N30UH, N33UH, N35UH, N38UH(Max. Operational temperature: Up to 180c)

N28EH, N30EH, N33EH, N35EH(Max. Operational temperature: Up to 200c)

N30AH, N33AH, N35AH(Max. Operational temperature: Up to 230c)



Strong Sintered Neodymium Magnet Outsanding product:

1)high performance:N52,N48M,48SH,42UH,38EH,33AH

2)high working temperature:the AH series with 40 k Oe super-high coervice force can replace SmCo magnets successfully.

3)high consistency:the cpk of Br and Hcj are much higher than 1.67 the consisitency of surface magnetic field and magnetic flux can be controlled with +/-1%

4)High Anti-corrosion:the sale spray test and humid heat test of the high anti-corrosion coating could be more than 1000 hours

5) low weight loss

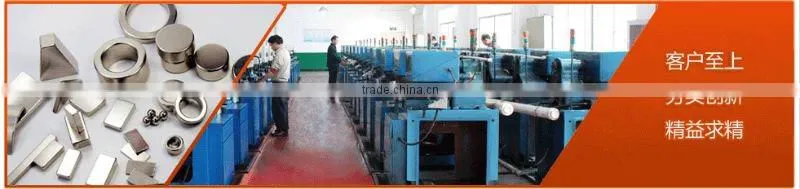

Pictures of our factory:
