Permanent Interior Magnet Motor

Specifications

Permanent Interior  Magnet Motor

 1) Material: Sintered Neodymium-Iron-Boron;

2) Temperature: the max operation temp is up to 200 degree centigrade or 380 curie temperature;

3) Grade:N35~N52,N33H~N48H,N33SH~N48SH,N33UH~N45UH,N33EH~N40EH,N30AH~N35AH

4) Shape: block;

5) Size: according to customers' request;

6) Coating: Nikel

7) Application: sensors, motors, rotors, wind turbines,wind generators, loudspeakers, magnetic hooks, magnetic holder, filters automobiles ,loudspeakers,motor assemblies,windmill,Home appliance,acousics,communication equipment,toy,car,servomotor,step motor,DC motor and linear motor,mircrophones.

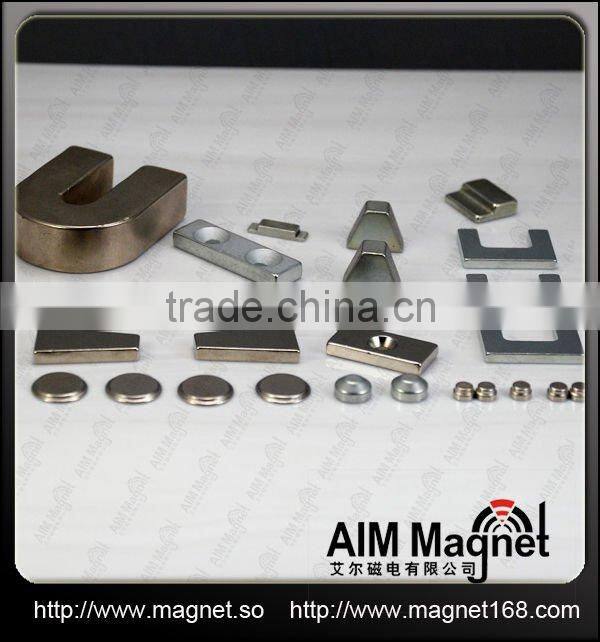

Strong Sintered Neodymium Magnet

 Disc:Max:diameter 202mm*45mm thickness---Min:diameter 1.5mm*0.5mm thickness

Ring:Max:Od202mm*Id182mm*thickness 45mm---Min:Od 3mm*Id1mm*3mm thickness

Block:Max:L200mm*W200mm*T45mm---Min:L0.5mm*W0.5mm*T0.5mm

segment and other irregular shapes can be manufacture according to customer's sample or drawing.

Strong Sintered Neodymium Magnet
 mainly comprised of neodymium ,iron and boron,is the third generation of the rare-earth permanent magnets,Sintered Ndfeb is the strongest permanent magnets in the world up to date,It has excellent properties of high remanence,coercivity,and Max.energy product.

Strong Sintered Neodymium Magnet grade

N35, N38, N40, N42, N45, N48, N50, N52(Max. Operational temperature: 80c)

N35M, N38M, N40M, N42M, N45M, N48M(Max. Operational temperature: 100c)

N35H, N38H, N40H, N42H, N45H, N48H, (Max. Operational temperature: 120C)

N33SH, N35SH, N38SH, N40SH, N42SH(Max. Operational temperature: 150c)

N28UH, N30UH, N33UH, N35UH, N38UH(Max. Operational temperature: Up to 180c)

N28EH, N30EH, N33EH, N35EH(Max. Operational temperature: Up to 200c)

N30AH, N33AH, N35AH(Max. Operational temperature: Up to 230c)

Strong Sintered Neodymium Magnet Outsanding product:

1)high performance:N52,N48M,48SH,42UH,38EH,33AH

2)high working temperature:the AH series with 40 k Oe super-high coervice force can replace SmCo magnets successfully.

3)high consistency:the cpk of Br and Hcj are much higher than 1.67 the consisitency of surface magnetic field and magnetic flux can be controlled with +/-1%

4)High Anti-corrosion:the sale spray test and humid heat test of the high anti-corrosion coating could be more than 1000 hours

5) low weight loss

PCT:130c ,humidity 100%,vapor pressure 2.7 bar.20 days,average low weight loss less than 2 mg/cm2

Pros: Very strong hold when contacting another magnet or plain iron, very difficult to pull away (easy to slide however).
Pretty strong hold between two of these even with a couple of mm in between.

Cons: Would like thicker (and more powerful) versions. Sure u can stack these together but sometimes it's not the same thing.

Other Thoughts: Good for attaching thick stacks of paper to refrigerators etc or pinching together papers or textiles.

Bottomline: This is the one if you need strong cost-effective magnets

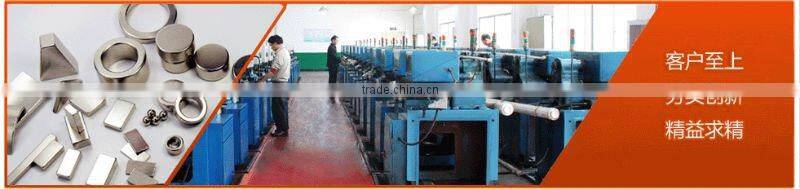

 Pictures of our factory:
