Home > Metallurgy, Mineral & Energy > Magnetic Material > NdFeB Magnet > NdFeb Rare Earth Small Disc Magnet for Bags Button

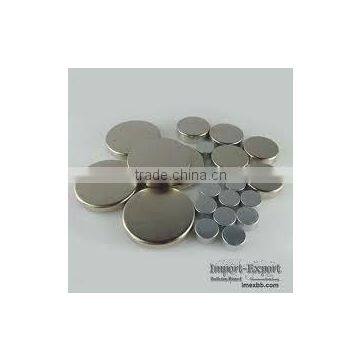

NdFeb Rare Earth Small Disc Magnet for Bags Button

NdFeb Rare Earth Small Disc Magnet for Bags Button thumbnail-1
NdFeb Rare Earth Small Disc Magnet for Bags Button photo-1
US$ 0.01 - 10 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
NdFeB
Model Number:
N35-N35AH
Contact Supplier Request Quote Chat Now
AIM Magnet Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name NdFeB
Model Number N35-N35AH
Type Permanent
Composite Neodymium Magnet
Shape Sheet
Application Industrial Magnet

Specifications

Neodymium Magnet
1.Precise dimension
2.Various shape
3.Stable performance
4.Good corrosion resistance

Magnetic material is a kind of functional material that is necessary for basic industry and frontier science. In order to keep up with the rapid developing trend of ndfeb disc magnets production and application in the world, the factory backed by its year's professional experience and convenient well-situated facility, continuously promotes the development and production in the field.
We have made it our long terms policy for our innovative ndfeb disc magnets products to be reliable in quality, preferential in price, faithful to contract and mutual beneficial in cooperation.


NdFeB magnets for motor, generator,driver in various specification
Tile-shaped and special-shaped magnet

Blocks in various specification
Products painted with epoxy resin

Circles in various specification
Cylinders in various specification
magnetic characteristics of neodymium iron boron series
trademark remanence induction intensity (Br) >coercive force (Hcb) intrinsic coercive force (Hcj) maximum magnetic energy capacity (BH)max Maximum operating temperature(°C)
N35 11.7-12.1KGs 10.8-11.5Koe ≥12Koe 33-35MGOe ≤80
N38 12.2-12.6KGs 10.8-11.5Koe ≥12Koe 36-38MGOe ≤80
N40 12.6-12.9KGs 10.5-11.0Koe ≥12Koe 38-40MGOe ≤80
N42 12.9-13.2KGs 10.5-11.0Koe ≥12Koe 40-42MGOe ≤80
N46 13.3-13.8KGs 10.5-12.5Koe ≥11Koe 43-47MGOe ≤80
N35M 11.7-12.1KGs 10.8-11.5Koe ≥14Koe 33-35MGOe ≤100
N38M 12.2-12.6KGs 10.8-11.5Koe ≥14Koe 36-38MGOe ≤100
N40M 12.6-12.9KGs 10.8-11.5Koe ≥14Koe 38-40MGOe ≤100
N42M 12.9-13.2KGs 10.8-11.5Koe ≥14Koe 40-43MGOe ≤100
N35H 11.7-12.1KGs 10.8-11.5Koe ≥17Koe 33-35MGOe ≤120
N37H 12.1-12.6KGs 11.5-12.0Koe ≥17Koe 35-37MGOe ≤120
N41H 12.5-13.3KGs 11.9-12.7Koe ≥16Ko 38-42MGOe ≤120
N33SH 11.4-11.7KGs 10.3-11.0Koe ≥20Koe 31-33MGOe ≤150
N35SH 11.7-12.1KGs 10.8-11.5Koe ≥20Koe 33-35MGOe ≤150
N38SH 12.2-12.9KGs 11.6-12.6Koe ≥21Ko 36-40MGOe ≤150
N28UH 10.4-11.0KGs 9.8-10.4Koe ≥25Koe 26-30MGOe ≤180
N33UH 11.1-11.9KGs 10.5-11.5Koe ≥25Koe 30-34MGOe ≤180
N32EH 11.1-11.9KGs 10.5-11.5Koe ≥27Koe 30-34MGOe ≤200
N28Z 10.4-10.8KGs 10.0-10.5Koe ≥30Koe 26-28MGOe ≤220


Remarks:
1,Can provide the block, the disk, the column, the ring, the tile shape, the irregular shape and other kinds of permanent magnetism components according to the request of the users.
2,Can magnetize and deliver the goods as per the drawings.
3,Can provide nickel plating, zinc plating and electrophoresis as per the request of the users.
4 ,The maximum size of magnet is 5"×5"×2.5", and the minimum size is φ1mm.
