Specifications
Thrust Roller Bearing1.Competitive price
2.High precision
3.Low noise, long life
4.Delivery on time

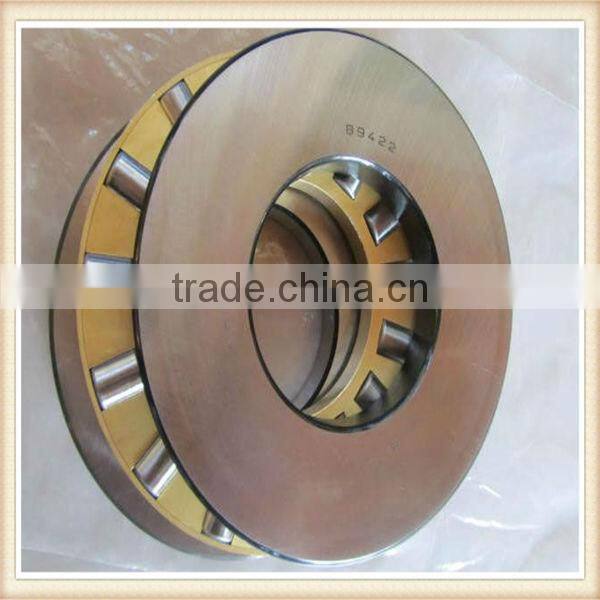

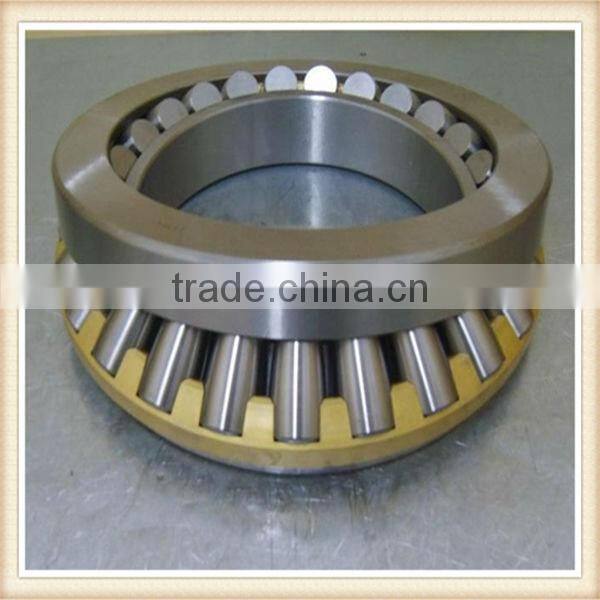

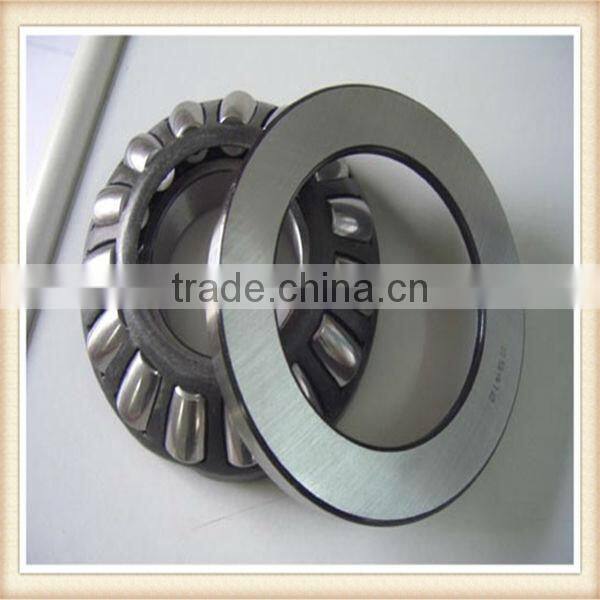

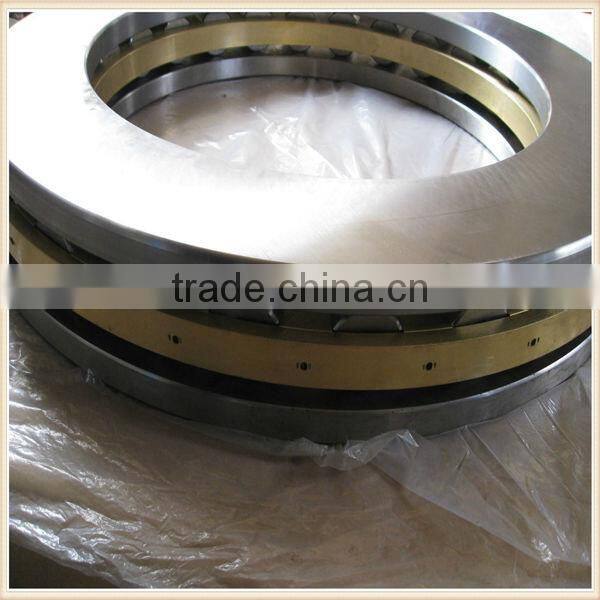

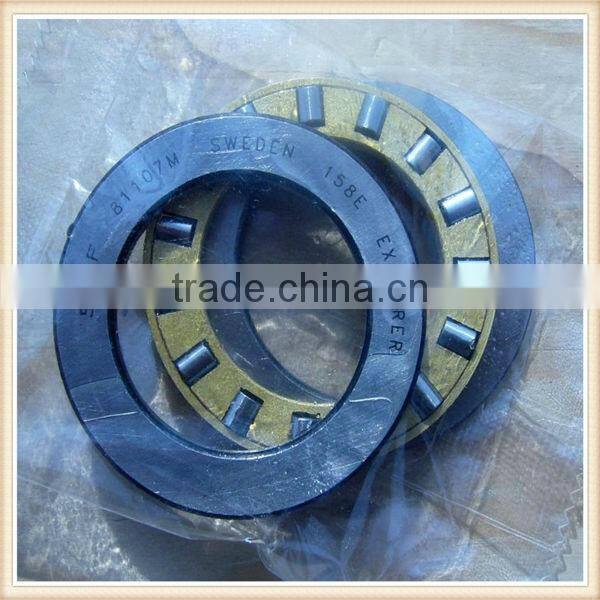

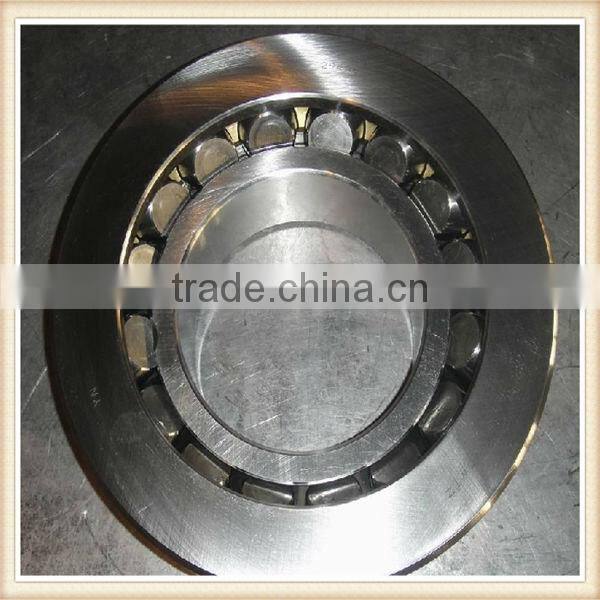

thrust cylinder roller bearing
Thrust roller bearings are separable bearings, can only withstand axial load and a slight impact, to limit the shaft (or shell) of the axial displacement in one direction, it can be used as single-axis to the position. But its carrying capacity is far greater than the thrust ball bearings
Brand name | YWS | |||||||
| Payment terms | T/T L/C | |||||||
| Delivery time | 10 days or according to quantity | |||||||
| Minimum order | 1 Piece | |||||||
| Certification | ISO9001-2000 | |||||||
| Products catalogies | Spherical roller bearings,cylindrical roller bearings,taper roller | |||||||
| bearings,rolling mill bearings,deep groove ball bearings,angular | ||||||||
| contact ball bearings,thrust ball bearings,spherical thrust roller | ||||||||
| bearings and so on. | ||||||||
| Typical applications | Spherical roller bearings:paper mill equipment,steel mill equipment,construction | |||||||
| equipment and general industrial machinery. | ||||||||
| Taper roller bearings:speed reducers,automotive application,construction equipment, | ||||||||
| pumps,printing presses,paper mill machines. | ||||||||
| Cylindrical roller bearings:electric motors,automotive applications,and drive shafts. | ||||||||
| Deep groove ball bearings:electric motors,automotive applications,home applications,and | ||||||||
| industrial equipment | ||||||||
| Thrust ball bearings:live centers in lathes,lead screws,automotive clutches,kingpin | ||||||||
| supports,and speed reducers | ||||||||
| Bore diameter | 120mm-1200m | |||||||
| Export market | America,Mid East,Europe and more than 20 countries and regions. | |||||||
| Features | Excellent quality and reasonable price,high speed but low noise | |||||||
| Package | antirust polybag+paper box, carton & pallet,wooden case | |||||||
Designation | Dimension | Rating load | Weight | ||||
New Model | Old Model | d | D | H | Dynamic | Static | kg |
29340 | 9039340 | 200 | 340 | 85 | 1610 | 5500 | 29.5 |
9069440 | 9069440 | 200 | 400 | 122 | 1740 | 6054 | 60.6 |
29440E | 9039440E | 200 | 400 | 122 | 2760 | 9000 | 71.1 |
29244 | 9039244 | 220 | 300 | 48 | 546 | 2400 | 10 |
9069344 | 9069334 | 220 | 360 | 85 | 970 | 3769 | 32.5 |
29344 | 9039344 | 220 | 360 | 85 | 1390 | 2800 | 28.6 |
9069444 | 9069444 | 220 | 420 | 122 | 1830 | 6624 | 68.7 |
29444 | 9039444 | 220 | 420 | 122 | 2880 | 9650 | 75 |
29248E | 9039248E | 240 | 340 | 60 | 799 | 3450 | 19.3 |
9069348 | 9069348 | 240 | 380 | 85 | 1320 | 4251 | 33.8 |
29348E | 9039348E | 240 | 380 | 85 | 1790 | 6550 | 35.5 |
9069448 | 9069448 | 240 | 440 | 122 | 1920 | 7158 | 70 |
29448E | 9039448E | 240 | 440 | 122 | 2990 | 10200 | 80 |
9069252 | 9069252 | 260 | 360 | 60 | 645 | 2877 | 16.9 |
29252 | 9039252 | 260 | 360 | 60 | 817 | 3650 | 18.5 |
9069352 | 9069352 | 260 | 420 | 95 | 1390 | 5793 | 45.6 |
29352E | 9039352E | 260 | 420 | 95 | 2220 | 8300 | 53.6 |
9069452 | 9069452 | 260 | 480 | 132 | 2120 | 8118 | 91.8 |
29452E | 9039452E | 260 | 480 | 132 | 3510 | 12900 | 105 |
9069356 | 9069356 | 280 | 440 | 95 | 1410 | 5980 | 48.4 |
29356E | 9039356E | 280 | 440 | 95 | 2190 | 8650 | 53 |
9069456 | 9069456 | 280 | 520 | 145 | 2550 | 9828 | 115 |
29456E | 9039456E | 280 | 520 | 145 | 4310 | 15300 | 135 |
9069360 | 9069360 | 300 | 480 | 109 | 1870 | 7640 | 61.4 |
29360 | 9039360 | 300 | 480 | 109 | 2670 | 10600 | 75 |
9069364 | 9069364 | 320 | 500 | 109 | 2030 | 7915 | 73.4 |
29364E | 9039364E | 320 | 500 | 109 | 2880 | 11200 | 78 |
9069464 | 9069464 | 320 | 580 | 155 | 2930 | 11660 | 171 |
29464E | 9039464E | 320 | 580 | 155 | 4950 | 19000 | 175 |
Payment terms:
1) 30%T/T in advance ,balance to be paid within 3days against copy of B/L.
2).100% L/C at sight
3): West Union
4): Other payment terms depend on our discussion
Delivery time:
1).Small or sample order can shipped by DHL,TNT,EMS,UPS or other ways as customer require.
2).big Quantity order shipped by sea
Advantage:
1).Excellent and high quality control
2).Prompt delivery
3).Competitive price
4).Small order accepted
5).Customers' drawing or samples accepted
6).OEM service
Quality control certificate:
