Yuki Non Standard Bearings 100x210x67mm 29420m Thrust Roller
- QINGDAO
- T/T L/C Credit Card
You May Like
-
Oil Rig 180x225x34mm 81136 Mining Machine Bearing
-
Gearbox Power 160x200x31mm 81132 Thrust Bearing
-
Power 150x190x31mm 81130 Spherical Thrust Roller Bearing
-
Heavy Machine Inner Size 140mm 81128 Thrust Needle Bearing
-
YUKI 110x145x25mm 81122 Cylindrical Roller Thrust Bearing
-
High Quality Inner Size 45mm 81109 Steel Roller Mower
Product Details
| Brand Name | YWS/OEM | Bore Size | 1120, 1120.99 | |
| Outside Diameter | 850, 850.99 | Model Number | 29420m | |
| Precision Rating | P6 P5 P4 | Seals Type | OPEN | |
| Number of Row | Other, Single Row, Single Row | Place of Origin | Shandong, China |
Product Description
Yuki non standard bearings 100x210x67mm 29420m Thrust Roller

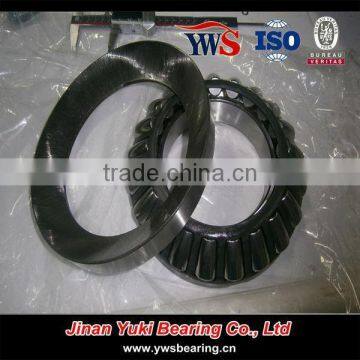

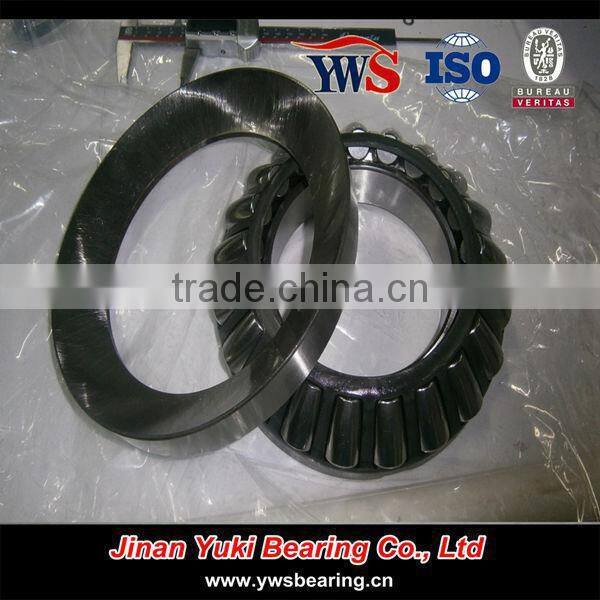

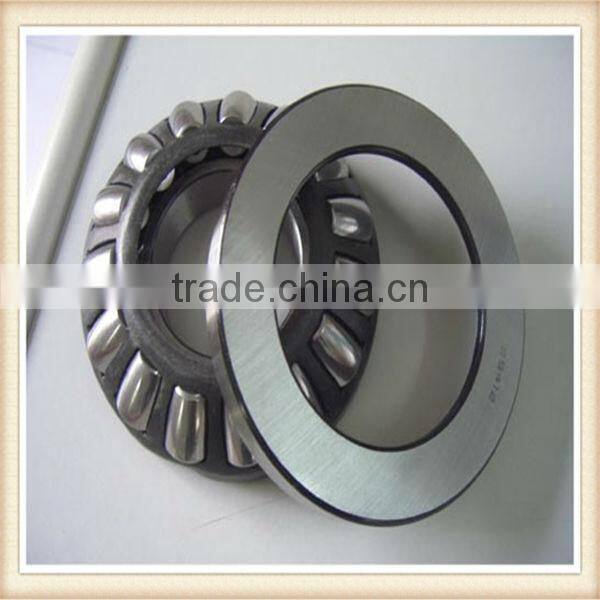

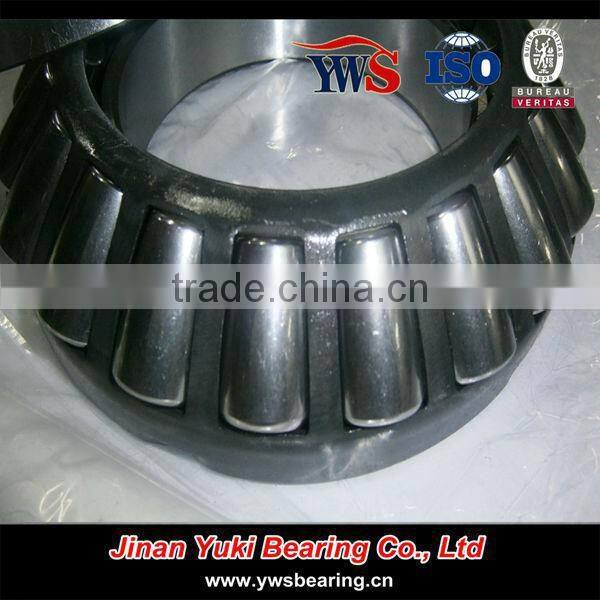

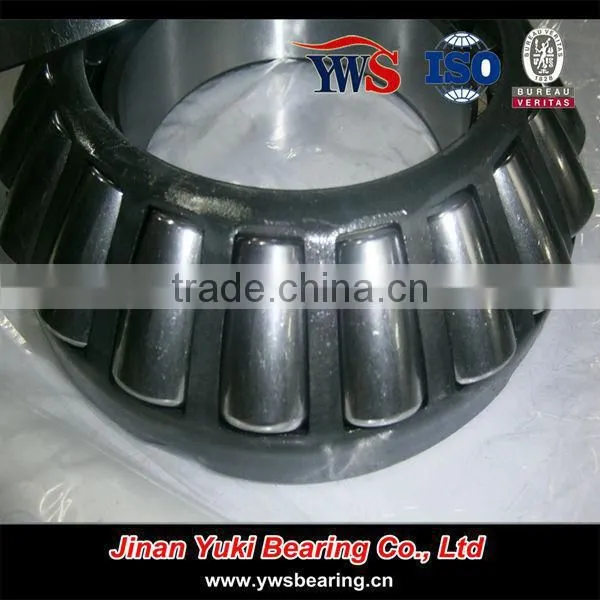

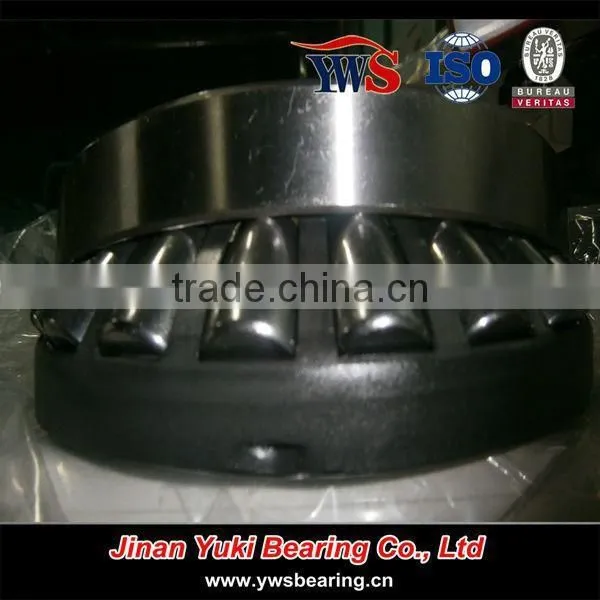

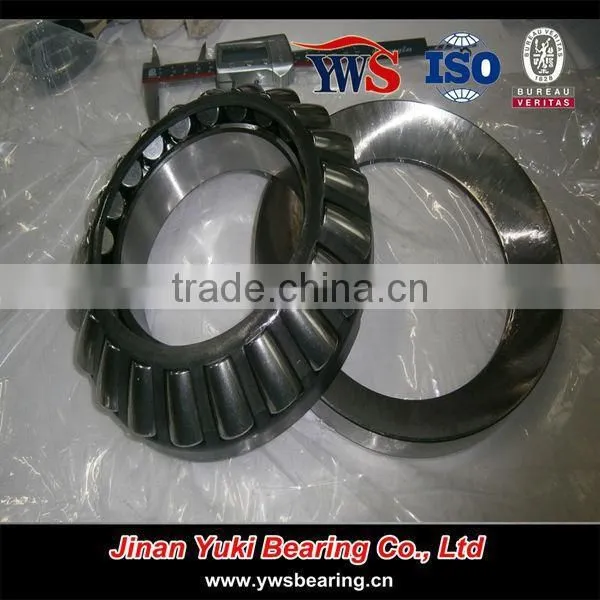

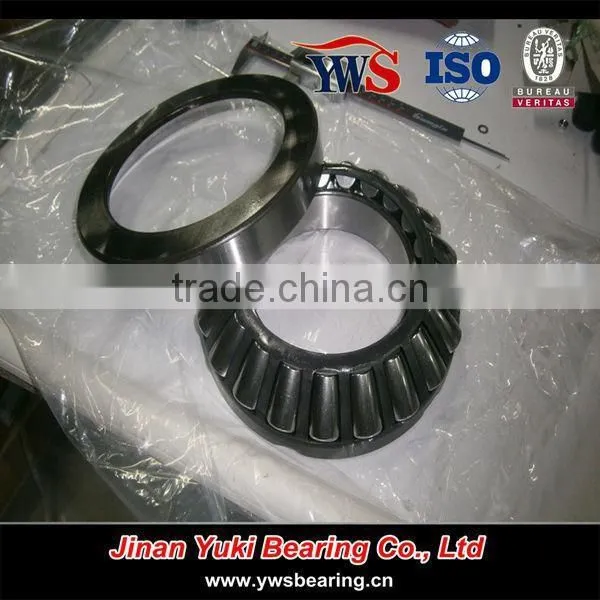

Photos of thrust roller bearing
The model name and size
| Boundary dimensions(mm) | Basic load ratings(kN) | Limiting speeds(rpm) | Mass(Kg) | Bearing Number | ||||
| d | D | T | rs min | Ca | Coa | Oil | (Approx. ) | BKL |
| 60 | 130 | 42 | 1.5 | 283 | 805 | 2, 600 | 2.78 | 29412 |
| 65 | 140 | 45 | 2 | 330 | 945 | 2, 400 | 3.44 | 29413 |
| 70 | 150 | 48 | 2 | 365 | 1, 040 | 2, 200 | 4.19 | 29414 |
| 75 | 160 | 51 | 2 | 415 | 1, 190 | 2, 100 | 5.07 | 29415 |
| 80 | 170 | 54 | 2.1 | 460 | 1, 380 | 1, 900 | 6.09 | 29416 |
| 85 | 180 | 58 | 2.1 | 490 | 1, 480 | 1, 800 | 7.2 | 29417 |
| 90 | 190 | 60 | 2.1 | 545 | 1, 680 | 1, 700 | 8.38 | 29418 |
| 100 | 210 | 67 | 3 | 685 | 2130 | 1, 500 | 11.5 | 29420 |
| 110 | 230 | 73 | 3 | 845 | 2, 620 | 1, 400 | 15 | 29422 |
| 120 | 250 | 78 | 4 | 975 | 3, 050 | 1, 300 | 18.6 | 29424 |
| 130 | 270 | 85 | 4 | 1, 080 | 3, 550 | 1, 200 | 23.7 | 29426 |
| 140 | 280 | 85 | 4 | 1, 110 | 3, 750 | 1, 200 | 25.2 | 29428 |
| 150 | 300 | 90 | 4 | 1, 280 | 4, 350 | 1, 100 | 30.5 | 29430 |
| 160 | 320 | 95 | 5 | 1, 500 | 5, 150 | 1, 000 | 37 | 29432 |
| 170 | 340 | 103 | 5 | 1, 660 | 5, 750 | 940 | 45 | 29434 |
| 180 | 360 | 109 | 5 | 1, 840 | 6, 200 | 890 | 52.9 | 29436 |
| 190 | 380 | 115 | 5 | 2, 010 | 6, 800 | 840 | 62 | 29438 |
| 200 | 400 | 122 | 5 | 2, 230 | 7, 650 | 790 | 73.3 | 29440 |
1. Single direction thrust ball bearings: consist of two washers with raceways and balls guided b a cage. Washers have flat seating surfaces, and that is why they must be supported so that all balls can be evenly loaded. Bearings carry the axial load only in one direction. They are not able to carry radial forces.
2. Double direction thrust ball bearings: have two cages with balls between the central shaft washer and two houding washers with flat seating surfaces. The shaft washer has raceways on both sides and is fixed on the journal. Bearings are able to carry only axial forces in both directions.
3.These bearing are widely used in automobile, electrical. (Home appliances, electric tools, fitness equipment, motors, medical devices, motorbikes, textile machines)
4.Material: stainless steel,chrome steel
5.Certificate: ISO9001:2008
6.Guarantee:1 year
7.Precision: P0 P6 P5
Applications
Propeller, gear box of ship, presser, petroleum rig, hydro generator, hoisting and conveying machineries,
Auto wheel hub, Auto engine, Auto axle
Agricultural machinery, Rotary plow bearings, Tractor, Water pump,
Oil engine harvester Seeder, Tricycle, Farm vehicle, Cultivator
Engineering machinery, Excavator, Dozer, Paver, Loader, Hoisting machinery, Piling soil machinery
Steel mill machinery, Oil field machinery, Motorship machinery
Hardware tool, Electric power tool, Household appliance industry
Electronic toys, Fitness equipment, Building machinery
Series Of Pumps, Antiseptic Pump, Water pump, Submersible pump, Sewage pump
Motor bearings, Generator, Hydroelectric generator
etc
Thrust Spherical features
Able to bear high axial load and moderate radial load and run at pretty high speed; Low friction and high load ratings; Self-align ability make it a ideal type of bearing used where housing was hard to keep accurate align with shaft or shaft was inflected under heavy load.
Our factory ablity:
81102 81103 81104 81105 81106 81206 89306 81107 81207 89307 81108 81208
89308 87408 81109 81209 89309 87409 81110 81210 89310 87410 89410 81111
81211 81112 81212 89312 87412 89412 81113 81213 89313 89413
87413 81114 81214 89314 87414 89414 81115 81215 89315 87415 89415 81116
81216 89316 87416 89416 81117 81217 89317 87417 89417 81118 81218 89318
87418 89418 81120 81220 89320 87420 89420 81122 81222 89322
89422 81124 81224 89324 89424 81126 81226 89326 89426 81128 81228 89328
89428 81130 81230 89330 89430 81132 81232 89432 81134 81234 89434 81136
81236 89436 81138 81238 89438 81140 81240 89440 81144 81244
29412 29413 29414 29415 29416 29417 29418 29420 29422e
29424e 29426 29428e 29430 29432 29434 29436 29438 29440
29444 29448 29452 29456 29460 29464 29468 29472e 29476
29494 29496 294/500 294/600 294/750
29318 29320 29322 29324 29326 29328 29330 29332 29334 29336 29338 29340
29344 29348 29352 29356 29360 29368 29372 29380 29388 29392
292/1060 292/500 292/530 292/670 292/710 292/750 292/800 292/850 292/900
292/95029230 29232 29234 29236 29238 29240 29244 29248 29252 29256 29260
29264 29268E 29272 29276 29280
