Home > Industrial Equipment & Components > Bearing > Needle Bearing > AXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller Bearings

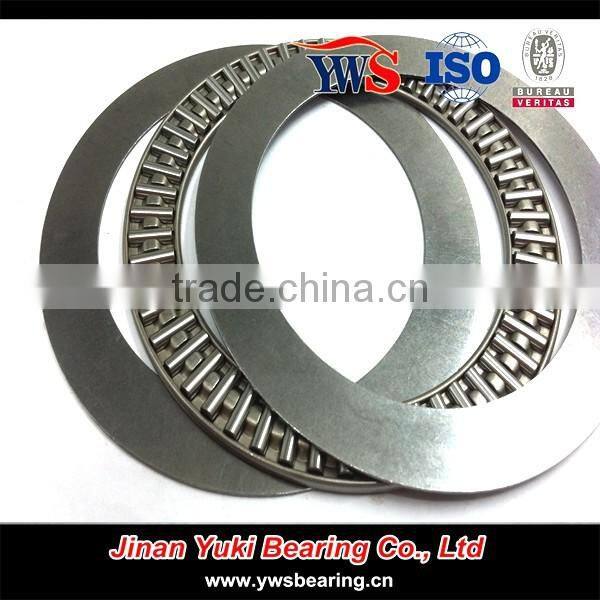

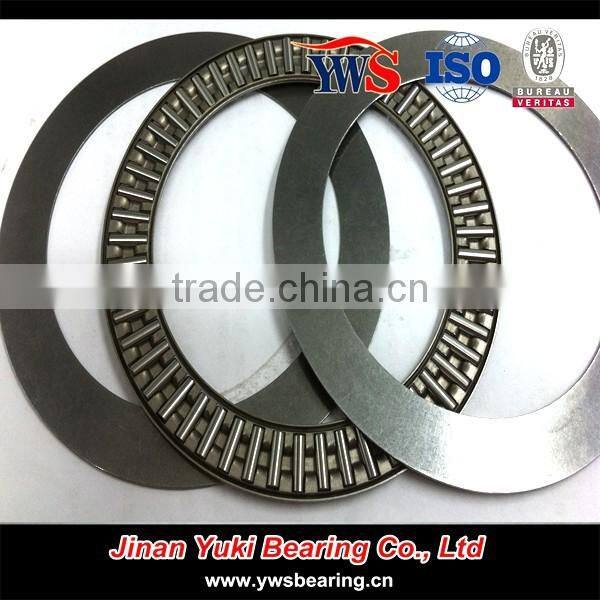

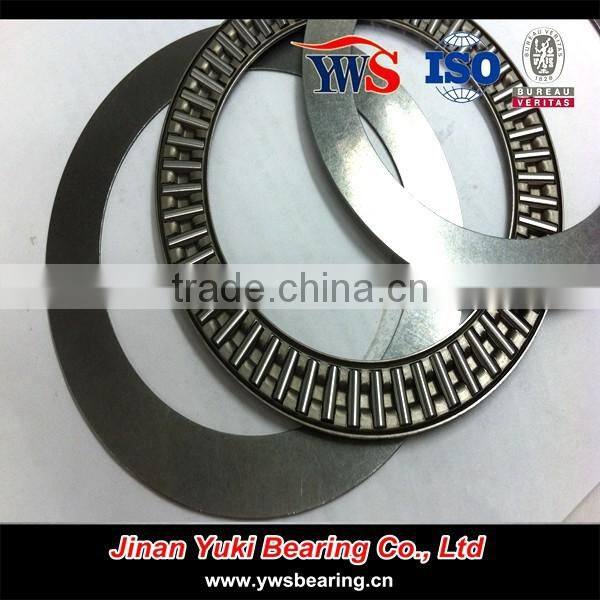

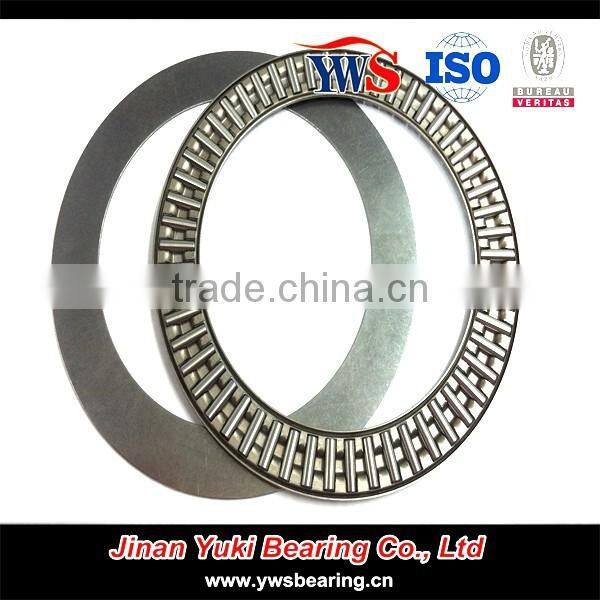

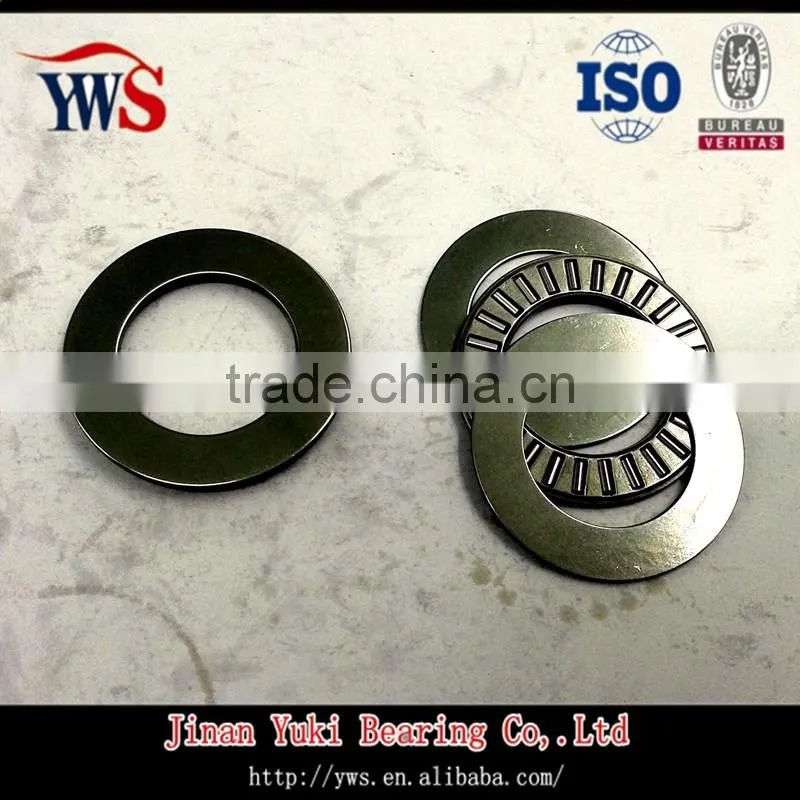

AXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller Bearings

AXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller Bearings thumbnail-1
AXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller Bearings thumbnail-2
AXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller Bearings thumbnail-3
AXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller Bearings thumbnail-4
AXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller Bearings thumbnail-5
AXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller Bearings thumbnail-6
AXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller Bearings photo-1
AXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller Bearings photo-2
AXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller Bearings photo-3
AXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller Bearings photo-4
AXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller Bearings photo-5
AXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller Bearings photo-6
US$ 0.5 - 15 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
YWS or customer's brand
Bore Size:
3, 200
Outside Diameter:
6, 500
Contact Supplier Request Quote Chat Now
Jinan Yuki Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YWS or customer's brand
Bore Size 3, 200
Outside Diameter 6, 500
Model Number AXK series
Precision Rating ABEC1/ABEC3
Seals Type open/zz /rs/2rs
Number of Row Single Row
Place of Origin Shandong, China

AXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller Bearings



Product Description







AXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller BearingsAXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller BearingsAXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller Bearings

AXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller BearingsAXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller Bearings




Related Products





If you are interested in the following pictures, please click the pictures!





NTA SERIES Thrust roller bearings with steel cage

AXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller Bearings

AXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller BearingsAXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller Bearings





Thrust ball bearings

AXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller Bearings



Needle roller bearings

AXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller Bearings



Deep groove ball bearings

AXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller Bearings





Product Uses



Features:



1. Smooth running
2. Quiet operation and a longer life
3. High reliability and high precision
4. Corrosion resistant
5. Low friction motion in rotary application
6. Competitive price with high quality
7. Can be standard and non-standard
8. Customized size
9. OEM ISO9001





Description of  Needle roller bearings :



( a smaller cross-section, higher load-carrying capacity, greater rigidity, and lower inertia forces )--OEM service are welcome.





Product Feature:



Needle bearings feature a smaller cross-section, higher load-carrying capacity, greater rigidity, and lower inertia forces that facilitate size and weight reductions in machinery. They’re designed to withstand oscillation, perform under severe conditions, and interchange with sliding bearings.



Diverse types of needle bearings are available in a wide variety of sizes and tolerances, for a multitude of applications.







Operation Note:



  • Don,t strike the bearing when installing the bearing to shaft or bearing house.
  • Discuss for chemical compatibility when used on strong acid chemical environment.





AXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller Bearings

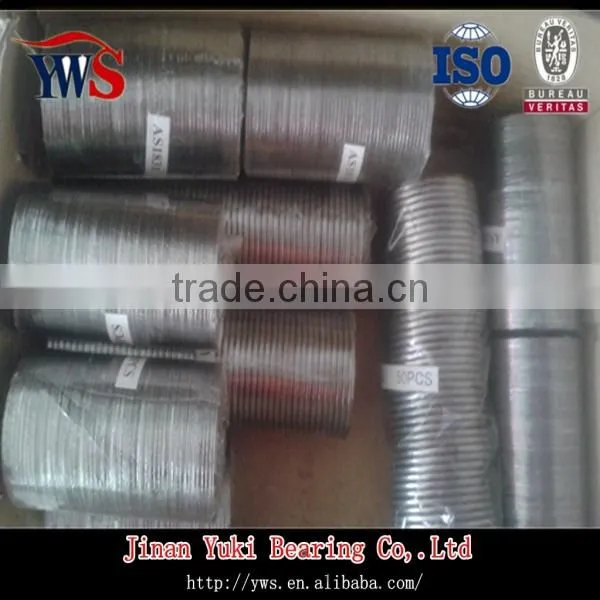

Packaging & Shipping







AXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller Bearings





Company Information





About Us



Jinan Yuki Bearing Co., Ltd. is a Sino-Japanse joint ventured company, specializing in designing and manufacturing various types of bearings including deep groove ball bearings, spherical insert bearings, tapered roller bearings, angular contact ball bearings, thrust ball bearings, self-aligning ball bearings as well as plastic bearings, ceramic bearing and so on. We could also provide OEM service according to our customers' requirements.



AXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller Bearings





Products Catalogue









Part No. ID/mm OD/mm W/mm Weight/g Load Rating(KN) Limited
Speed
(r/min)
Cr/KN Cor/KN
AXK0414 4 14 2 0.7 4.4 8 21000
AXK0515 5 15 2 0.8 4.75 9.2 21000
AXK0619 6 19 2 1 6.8 15.5 19000
AXK0821 8 21 2 2 7.8 19.4 18000
AXK1024 10 24 2 3 9.2 25.5 17000
AXK1226 12 26 2 3 9.9 29 15000
AXK1528 15 28 2 4 11.3 36 13000
AXK1730 17 30 2 4 11.9 39.5 12000
AXK2035 20 35 2 5 13.1 46.5 10000
AXK2542 25 42 2 7 14.7 58 8500
AXK3047 30 47 2 8 16.3 70 7500
AXK3552 35 52 2 10 17.8 81 6500
AXK4060 40 60 3 16 28 114 6000
AXK4565 45 65 3 18 30 128 5000
AXK5070 50 70 3 20 32 143 4800
AXK5578 55 78 3 28 38 186 4300
AXK6085 60 85 3 33 44.5 234 4000
AXK6590 65 90 3 35 46.5 255 3700
AXK7095 70 95 4 60 54 255 3500
AXK75100 75 100 4 61 55 265 3300
AXK80105 80 105 4 63 56 280 3100
AXK85110 85 110 4 67 28 290 3000
AXK90120 90 120 4 86 73 405 2700
AXK100135 100 135 4 104 91 560 2500
AXK110145 110 145 4 122 97 620 2300
AXK120155 120 155 4 131 102 680 2100
AXK130170 130 170 5 205 133 840 1900
AXK140180 140 180 5 219 138 900 1800
AXK150190 150 190 5 232 143 960 1700
AXK160200 160 200 5 246 148 1020 1600





Which size do you need? Just feel free to contact me!AXK1024 AXK1226 AXK2035 AXK4060 AXK5070 Plane Thrust Needle Roller Bearings
