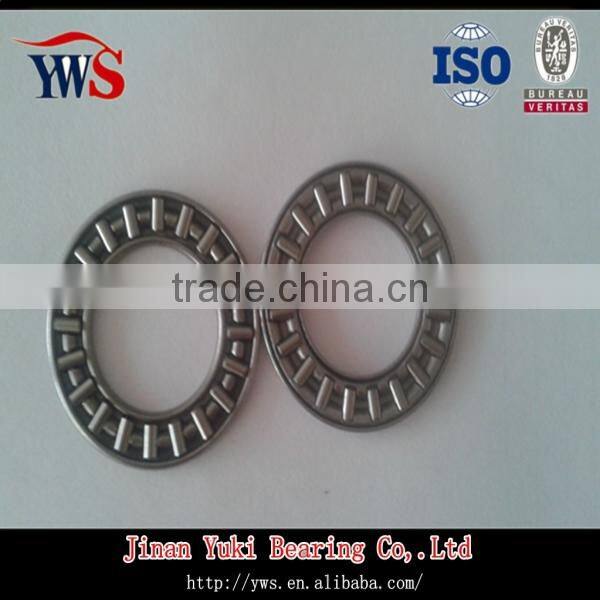

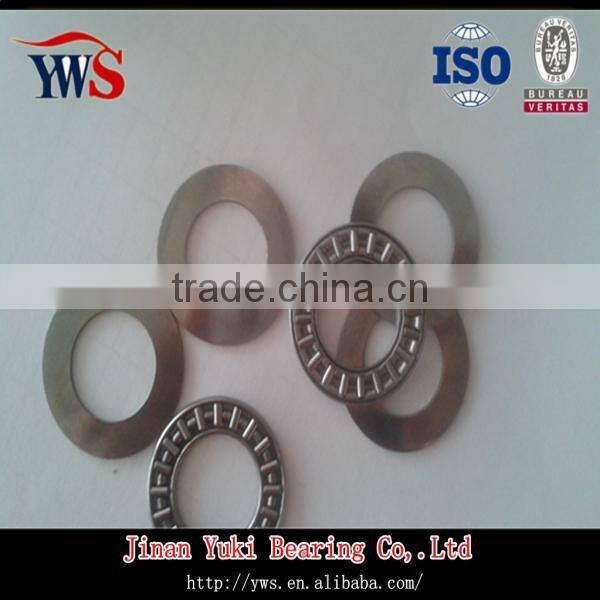

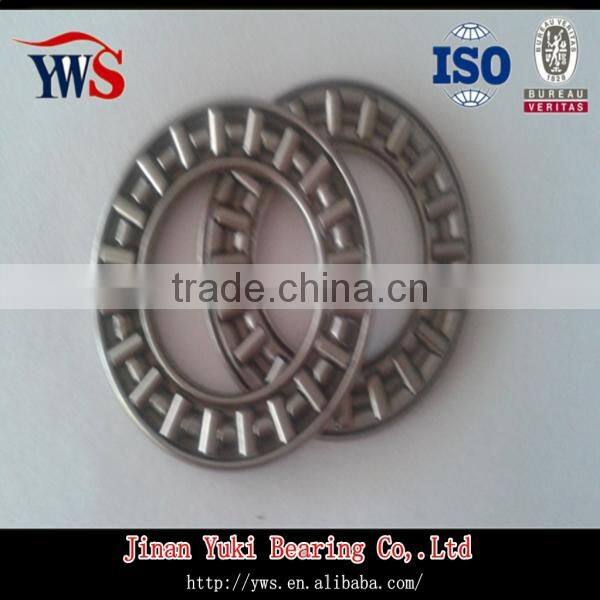

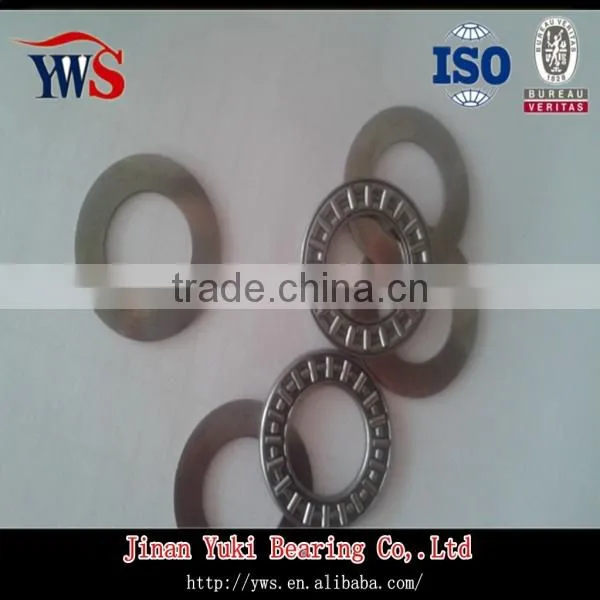

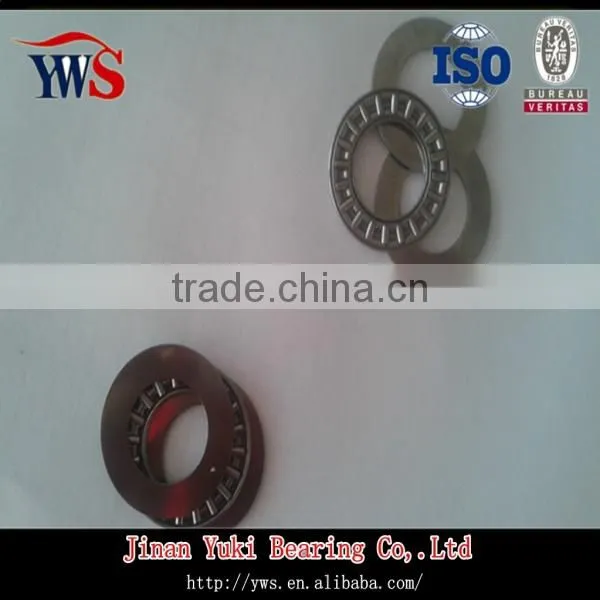

AXK series thrust needle roller bearing
You will find thrust needle roller bearings catalogue in the end of the page!
If you are interested in the following pictures, please click the pictures!
Thrust roller bearings with brass cage
Thrust ball bearings
Needle roller bearings
Deep groove ball bearings
Features:
1. Smooth running
2. Quiet operation and a longer life
3. High reliability and high precision
4. Corrosion resistant
5. Low friction motion in rotary application
6. Competitive price with high quality
7. Can be standard and non-standard
8. Customized size
9. OEM ISO9001
About Us
Jinan Yuki Bearing Co., Ltd. is a Sino-Japanse joint ventured company, specializing in designing and manufacturing various types of bearings including deep groove ball bearings, spherical insert bearings, tapered roller bearings, angular contact ball bearings, thrust ball bearings, self-aligning ball bearings as well as plastic bearings, ceramic bearing and so on. We could also provide OEM service according to our customers' requirements.
Certification
| Part No. | ID/mm | OD/mm | W/mm | Weight/g | Load Rating(KN) | Limited Speed (r/min) |
|
| Cr/KN | Cor/KN | ||||||
| AXK0414 | 4 | 14 | 2 | 0.7 | 4.4 | 8 | 21000 |
| AXK0515 | 5 | 15 | 2 | 0.8 | 4.75 | 9.2 | 21000 |
| AXK0619 | 6 | 19 | 2 | 1 | 6.8 | 15.5 | 19000 |
| AXK0821 | 8 | 21 | 2 | 2 | 7.8 | 19.4 | 18000 |
| AXK1024 | 10 | 24 | 2 | 3 | 9.2 | 25.5 | 17000 |
| AXK1226 | 12 | 26 | 2 | 3 | 9.9 | 29 | 15000 |
| AXK1528 | 15 | 28 | 2 | 4 | 11.3 | 36 | 13000 |
| AXK1730 | 17 | 30 | 2 | 4 | 11.9 | 39.5 | 12000 |
| AXK2035 | 20 | 35 | 2 | 5 | 13.1 | 46.5 | 10000 |
| AXK2542 | 25 | 42 | 2 | 7 | 14.7 | 58 | 8500 |
| AXK3047 | 30 | 47 | 2 | 8 | 16.3 | 70 | 7500 |
| AXK3552 | 35 | 52 | 2 | 10 | 17.8 | 81 | 6500 |
| AXK4060 | 40 | 60 | 3 | 16 | 28 | 114 | 6000 |
| AXK4565 | 45 | 65 | 3 | 18 | 30 | 128 | 5000 |
| AXK5070 | 50 | 70 | 3 | 20 | 32 | 143 | 4800 |
| AXK5578 | 55 | 78 | 3 | 28 | 38 | 186 | 4300 |
| AXK6085 | 60 | 85 | 3 | 33 | 44.5 | 234 | 4000 |
| AXK6590 | 65 | 90 | 3 | 35 | 46.5 | 255 | 3700 |
| AXK7095 | 70 | 95 | 4 | 60 | 54 | 255 | 3500 |
| AXK75100 | 75 | 100 | 4 | 61 | 55 | 265 | 3300 |
| AXK80105 | 80 | 105 | 4 | 63 | 56 | 280 | 3100 |
| AXK85110 | 85 | 110 | 4 | 67 | 28 | 290 | 3000 |
| AXK90120 | 90 | 120 | 4 | 86 | 73 | 405 | 2700 |
| AXK100135 | 100 | 135 | 4 | 104 | 91 | 560 | 2500 |
| AXK110145 | 110 | 145 | 4 | 122 | 97 | 620 | 2300 |
| AXK120155 | 120 | 155 | 4 | 131 | 102 | 680 | 2100 |
| AXK130170 | 130 | 170 | 5 | 205 | 133 | 840 | 1900 |
| AXK140180 | 140 | 180 | 5 | 219 | 138 | 900 | 1800 |
| AXK150190 | 150 | 190 | 5 | 232 | 143 | 960 | 1700 |
| AXK160200 | 160 | 200 | 5 | 246 | 148 | 1020 | 1600 |
Which size do you need? Just feel free to contact me!
