Home > Industrial Equipment & Components > Bearing > Thrust Ball Bearing > 51326 Large Diameter Thrust Ball Bearing
US$ 0.8 - 5.2
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
YWS or OEM
Bore Size:
24, 210
Outside Diameter:
10, 100
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Double Direction Thrust Ball Bearing 51108US$ 0.4 - 240MOQ: 1 Piece -
51201 Good Quality Low Speed Reducer Thrust Ball BearingUS$ 0.4 - 240MOQ: 1 Piece
-
51116 Thrust Ball Bearing For Speed ReducerUS$ 0.4 - 240MOQ: 1 Piece
-
Wind Electricity Equipment Bearing 53418 Thrust Ball BearingUS$ 0.4 - 240MOQ: 1 Piece
-
Steel Cage Thrust Ball Bearing 51708US$ 0.5 - 3.2MOQ: 1 Set
Brand Name
YWS or OEM
Bore Size
24, 210
Outside Diameter
10, 100
Model Number
51326
Precision Rating
ABEC-1(P0),ABEC-3(P6),ABEC-5(P5),ABEC-7(P4), ABEC-1(P0),ABEC-3(P6),ABEC-5(P5)
Seals Type
open
Number of Row
Single Row
Place of Origin
Shandong, China

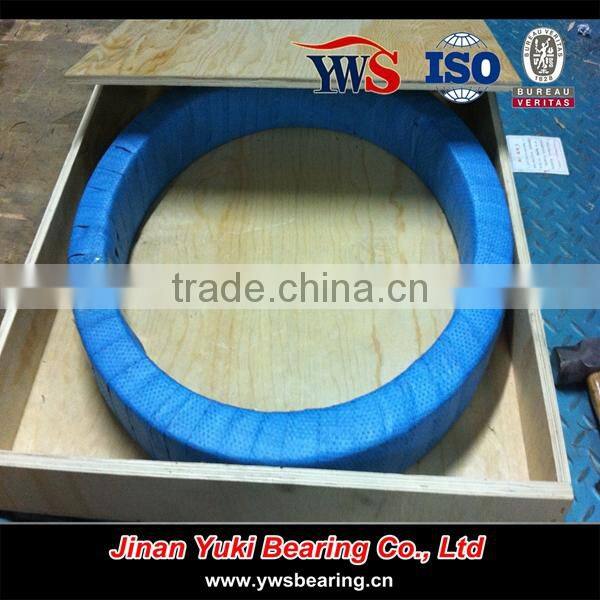

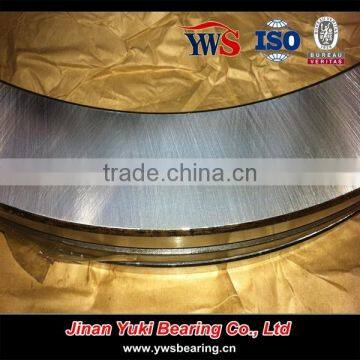

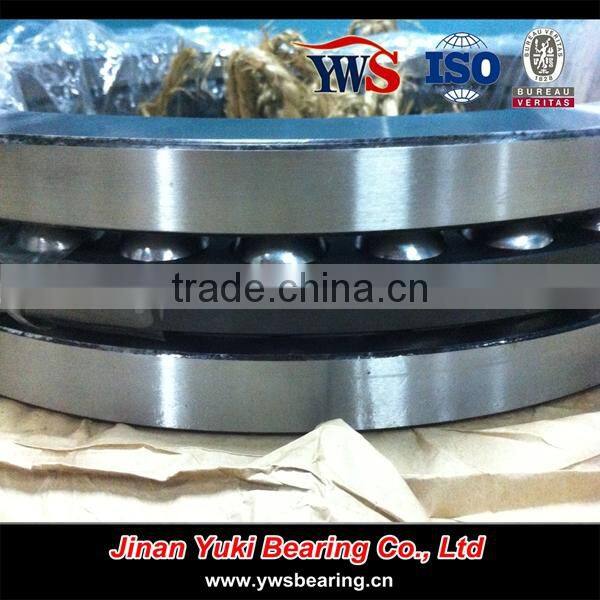

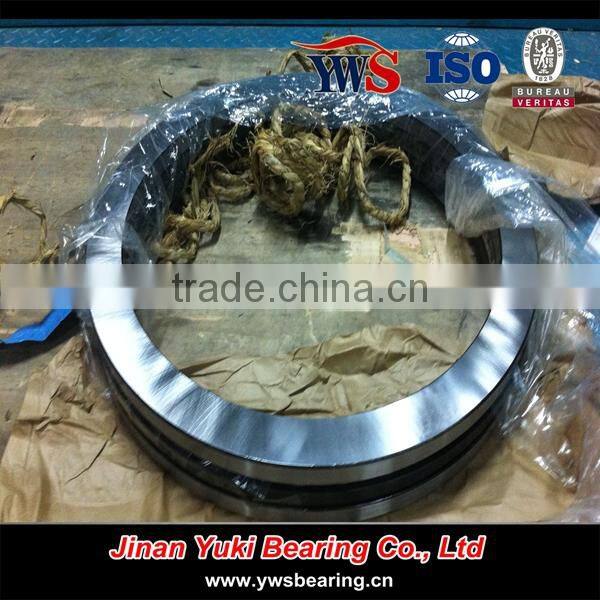

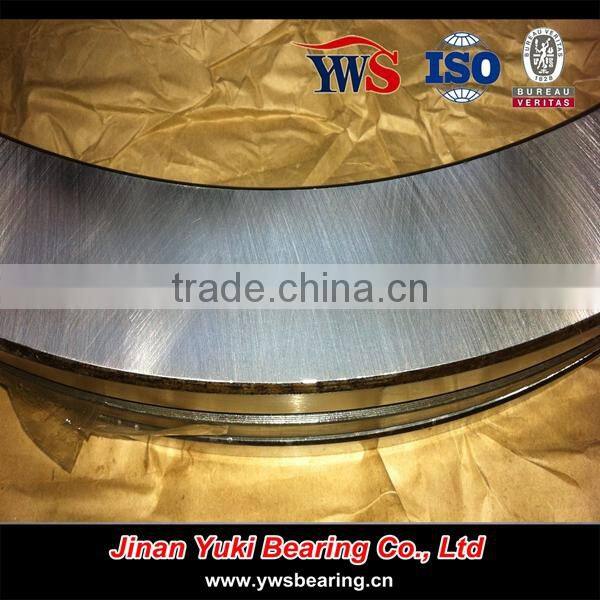

51326 Large diameter thrust ball bearing
Product Description
Related Products
brass thrust ball bearing

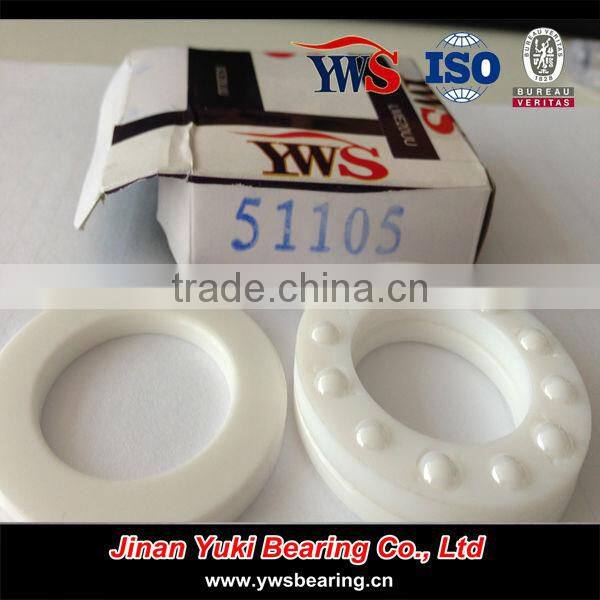

ceramic thrust ball bearing
Packaging & Shipping
Precautions
Types of thrust ball bearings
- Single direction thrust ball bearings: consist of two washers with raceways and balls guided b a cage. Washers have flat seating surfaces, and that is why they must be supported so that all balls can be evenly loaded. Bearings carry the axial load only in one direction. They are not able to carry radial forces.
- Double direction thrust ball bearings: have two cages with balls between the central shaft washer and two houding washers with flat seating surfaces. The shaft washer has raceways on both sides and is fixed on the journal. Bearings are able to carry only axial forces in both directions.
Bearing Catalog
| Model No. | Size | Load | Speed | Mass(Kg) | ||||
| mm | (kN) | (kN) | rpm | |||||
| d | D | T | Cr | Cor | Grease | oil | ||
| 51103 | 17 | 30 | 9 | 10.8 | 18.2 | 5,300 | 7,500 | 0.024 |
| 51104 | 20 | 35 | 10 | 14.2 | 24.5 | 4,800 | 6,700 | 0.036 |
| 51105 | 25 | 42 | 11 | 15.2 | 30.2 | 4,300 | 6,000 | 0.055 |
| 51106 | 30 | 47 | 11 | 16 | 34.2 | 4,000 | 5,600 | 0.062 |
| 51107 | 35 | 52 | 12 | 18.2 | 41.5 | 3,800 | 5,300 | 0.077 |
| 51108 | 40 | 60 | 13 | 26.8 | 62.8 | 3,400 | 4,800 | 0.11 |
| 51109 | 45 | 65 | 14 | 27 | 66 | 3,200 | 4,500 | 0.14 |
| 51110 | 50 | 70 | 14 | 27.2 | 69.2 | 3,000 | 4,300 | 0.15 |
| 51111 | 55 | 78 | 16 | 33.8 | 89.2 | 2,800 | 4,000 | 0.22 |
| 51112 | 60 | 85 | 17 | 40.2 | 108 | 2,600 | 3,800 | 0.27 |
| 51113 | 65 | 90 | 18 | 40.5 | 112 | 2,400 | 3,600 | 0.31 |
| 51114 | 70 | 95 | 18 | 40.8 | 115 | 2,200 | 3,400 | 0.33 |
| 51115 | 75 | 100 | 19 | 48.2 | 140 | 2,000 | 3,200 | 0.38 |
| 51116 | 80 | 105 | 19 | 48.5 | 145 | 1,900 | 3,000 | 0.4 |
| model | d | D | T |
| mm | mm | mm | |
| 51200 | 10 | 26 | 11 |
| 51201 | 12 | 28 | 11 |
| 51202 | 15 | 32 | 12 |
| 51203 | 17 | 35 | 12 |
| 51204 | 20 | 40 | 14 |
| 51205 | 25 | 47 | 15 |
| 51206 | 30 | 52 | 16 |
| 51207 | 35 | 62 | 18 |
| 51208 | 40 | 68 | 19 |
| 51209 | 45 | 73 | 20 |
| 51210 | 50 | 78 | 22 |
| 51211 | 55 | 90 | 25 |
| 51212 | 60 | 95 | 26 |
| 51213 | 65 | 100 | 27 |
| 51214 | 70 | 105 | 27 |
| 51215 | 75 | 110 | 27 |
| 51216 | 80 | 115 | 28 |
| 51217 | 85 | 125 | 31 |
| 51218 | 90 | 135 | 35 |
| 51220 | 100 | 150 | 38 |
