Steel Cage Thrust Ball Bearing 51708

Steel Cage Thrust Ball Bearing 51708 thumbnail-1
Steel Cage Thrust Ball Bearing 51708 thumbnail-2
Steel Cage Thrust Ball Bearing 51708 thumbnail-3
Steel Cage Thrust Ball Bearing 51708 thumbnail-4
Steel Cage Thrust Ball Bearing 51708 thumbnail-5
Steel Cage Thrust Ball Bearing 51708 thumbnail-6
Steel Cage Thrust Ball Bearing 51708 photo-1
Steel Cage Thrust Ball Bearing 51708 photo-2
Steel Cage Thrust Ball Bearing 51708 photo-3
Steel Cage Thrust Ball Bearing 51708 photo-4
Steel Cage Thrust Ball Bearing 51708 photo-5
Steel Cage Thrust Ball Bearing 51708 photo-6
US$ 0.5 - 3.2 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Yuki bearing/YWS
Bore Size:
10, 90
Outside Diameter:
24, 120
Contact Supplier Request Quote Chat Now
Jinan Yuki Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao / Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Yuki bearing/YWS
Bore Size 10, 90
Outside Diameter 24, 120
Model Number 51708
Precision Rating P0 P6 P5, P0 P2 P4 P5 P6
Seals Type Open, open
Number of Row Single Row
Place of Origin Shandong, China

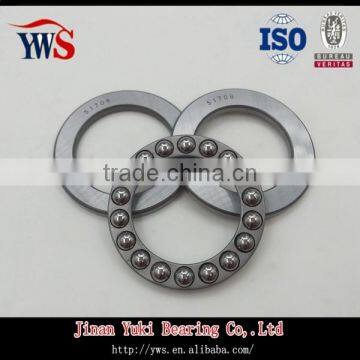

Steel cage thrust ball bearing 51708

Product Description



Steel cage thrust ball bearing 51708Steel cage thrust ball bearing 51708Steel cage thrust ball bearing 51708Steel cage thrust ball bearing 51708Steel cage thrust ball bearing 51708



Packaging & Shipping







Precautions





Types of thrust ball bearings

  • Single direction thrust ball bearings: consist of two washers with raceways and balls guided b a cage. Washers have flat seating surfaces, and that is why they must be supported so that all balls can be evenly loaded. Bearings carry the axial load only in one direction. They are not able to carry radial forces.
  • Double direction thrust ball bearings: have two cages with balls between the central shaft washer and two houding washers with flat seating surfaces. The shaft washer has raceways on both sides and is fixed on the journal. Bearings are able to carry only axial forces in both directions.



Bearing Catalog





Model No. Size Load Speed Mass(Kg)
mm (kN) (kN) rpm
d D T Cr Cor Grease oil
51103 17 30 9 10.8 18.2 5,300 7,500 0.024
51104 20 35 10 14.2 24.5 4,800 6,700 0.036
51105 25 42 11 15.2 30.2 4,300 6,000 0.055
51106 30 47 11 16 34.2 4,000 5,600 0.062
51107 35 52 12 18.2 41.5 3,800 5,300 0.077
51108 40 60 13 26.8 62.8 3,400 4,800 0.11
51109 45 65 14 27 66 3,200 4,500 0.14
51110 50 70 14 27.2 69.2 3,000 4,300 0.15
51111 55 78 16 33.8 89.2 2,800 4,000 0.22
51112 60 85 17 40.2 108 2,600 3,800 0.27
51113 65 90 18 40.5 112 2,400 3,600 0.31
51114 70 95 18 40.8 115 2,200 3,400 0.33
51115 75 100 19 48.2 140 2,000 3,200 0.38
51116 80 105 19 48.5 145 1,900 3,000 0.4



 model d D T
mm mm mm
51200 10 26 11
51201 12 28 11
51202 15 32 12
51203 17 35 12
51204 20 40 14
51205 25 47 15
51206 30 52 16
51207 35 62 18
51208 40 68 19
51209 45 73 20
51210 50 78 22
51211 55 90 25
51212 60 95 26
51213 65 100 27
51214 70 105 27
51215 75 110 27
51216 80 115 28
51217 85 125 31
51218 90 135 35
51220 100 150 38
