GE80ES GE80DS spherical plain tie curtain rod end caps bearing
Rod ends offer ease in mounting and adjustment of position in installations such as mechanisms, linkages, and control rods. Rod ends also provide a compact, lightweight, economical design alternative to a conventional housing installation.
Oscillating bearings widely used to the hydraulic oil tank, forging press machine, construction machinery and automation equipment, the vibration damper, and water conservancy machinery industries. Oscillating bearings have a big load carrying capacity and impact resistance. According to different structures and types, oscillating bearings can bear radial load, axial load and combined load.
| Model number | dimension(mm) | a ≈(°) | |||||||
| GE…ES | GE…DS | d | D | B | C | d1(min) | r1s(min) | r2s(min) | |
| GE50ES | GE50DS | 50 | 75 | 35 | 28 | 55 | 0.6 | 1 | 6 |
| GE60ES | GE60DS | 60 | 90 | 44 | 36 | 66 | 1 | 1 | 6 |
| GE70ES | GE70DS | 70 | 105 | 49 | 40 | 77 | 1 | 1 | 6 |
| GE80ES | GE80DS | 80 | 120 | 55 | 45 | 88 | 1 | 1 | 6 |
| GE90ES | GE90DS | 90 | 130 | 60 | 50 | 98 | 1 | 1 | 5 |
| GE100ES | GE100DS | 100 | 150 | 70 | 55 | 109 | 1 | 1 | 7 |
| GE110ES | GE110DS | 110 | 160 | 70 | 55 | 120 | 1 | 1 | 6 |
| GE120ES | GE120DS | 120 | 180 | 85 | 70 | 130 | 1 | 1 | 6 |
| GE140ES | GE140DS | 140 | 210 | 90 | 70 | 150 | 1 | 1 | 7 |
| GE160ES | GE160DS | 160 | 230 | 105 | 80 | 170 | 1 | 1 | 8 |
| GE180ES | GE180DS | 180 | 260 | 105 | 80 | 192 | 1.1 | 1.1 | 6 |
| GE200ES | GE200DS | 200 | 290 | 130 | 100 | 212 | 1.1 | 1.1 | 7 |
| GE220ES | GE220DS | 220 | 320 | 135 | 100 | 238 | 1.1 | 1.1 | 8 |
| GE240ES | GE240DS | 240 | 340 | 140 | 100 | 265 | 1.1 | 1.1 | 8 |
| GE260ES | GE260DS | 260 | 370 | 150 | 110 | 285 | 1.1 | 1.1 | 7 |
| GE280ES | GE280DS | 280 | 400 | 155 | 120 | 310 | 1.1 | 1.1 | 6 |
| GE300ES | GE300DS | 300 | 430 | 165 | 120 | 330 | 1.1 | 1.1 | 7 |
Applications:
Today, rod ends, can be found throughout industry in aircraft, helicopters, jet engines, military vehicles, submarines and surface ships, transportation equipment, agricultural and recreational vehicles, lawn and garden equipment, material handling, and fluid power applications.

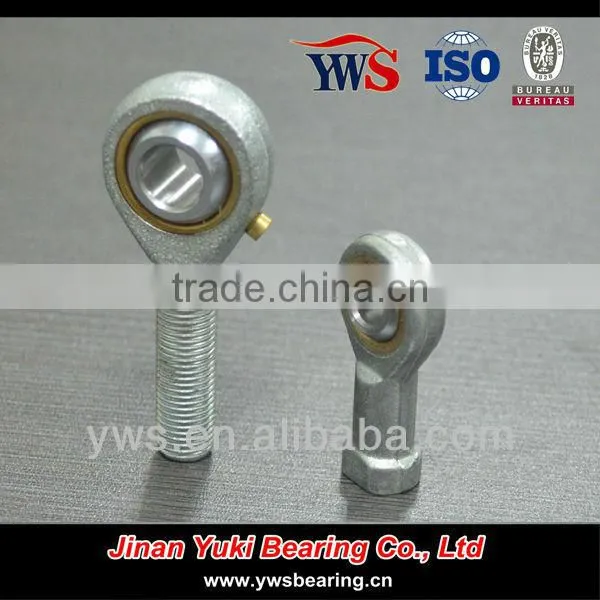

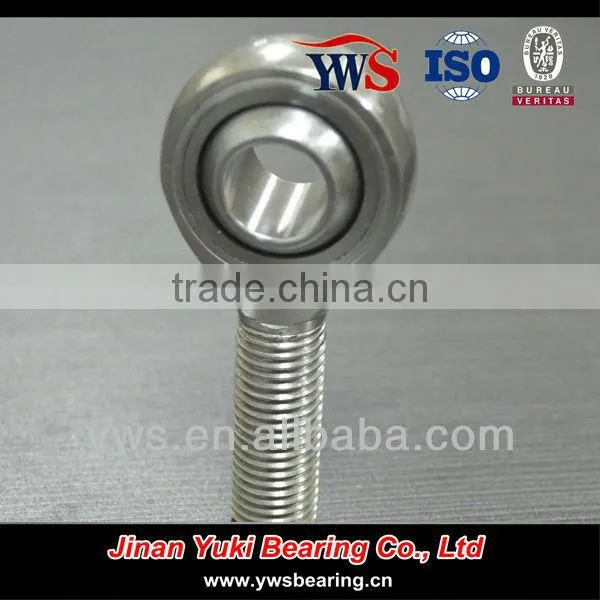

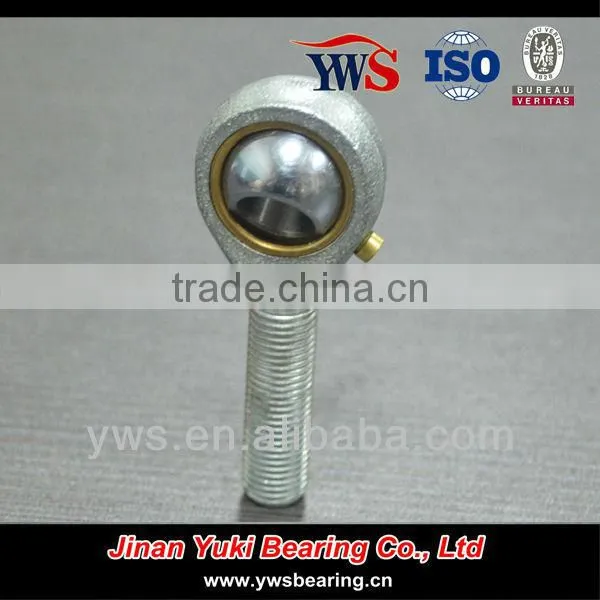

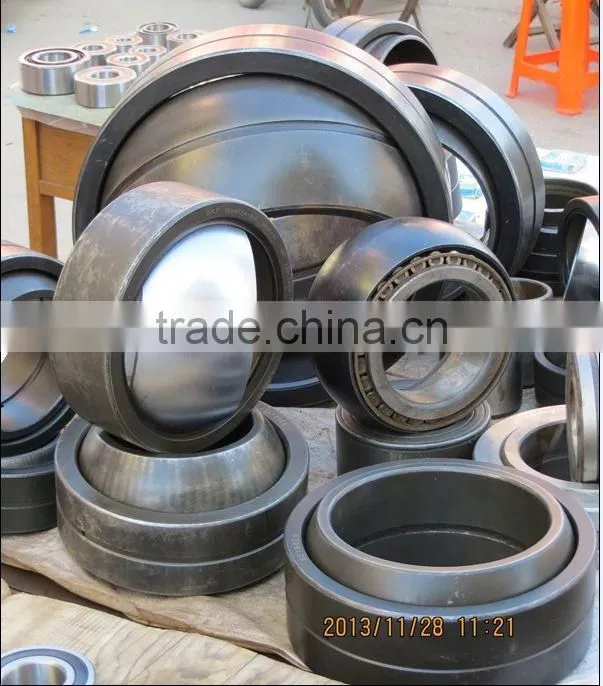

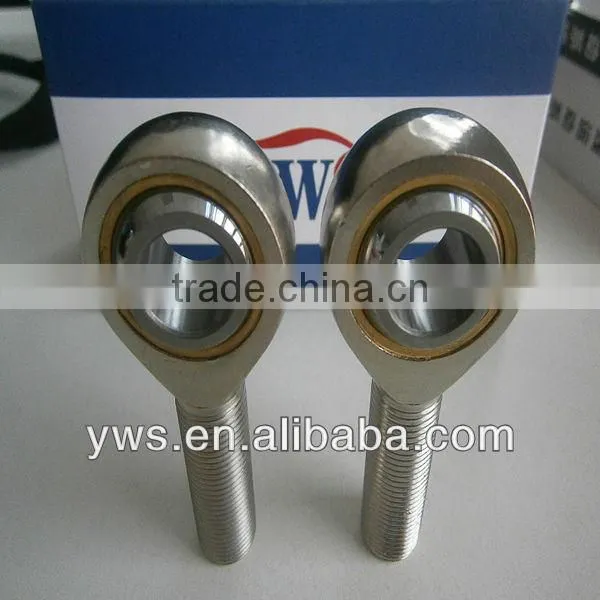

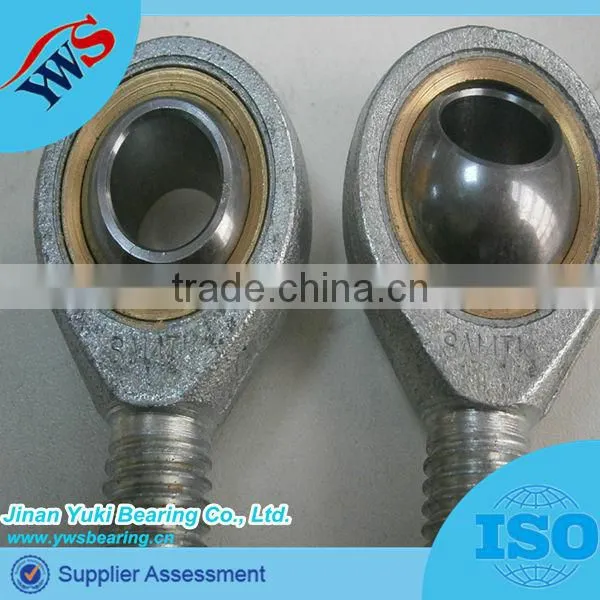

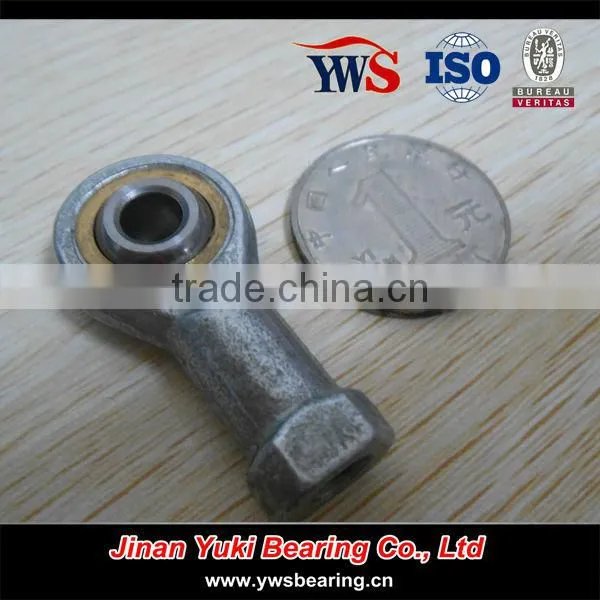

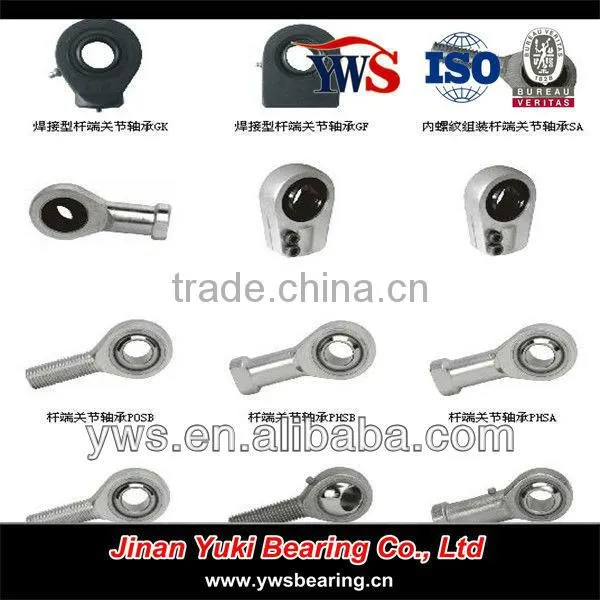

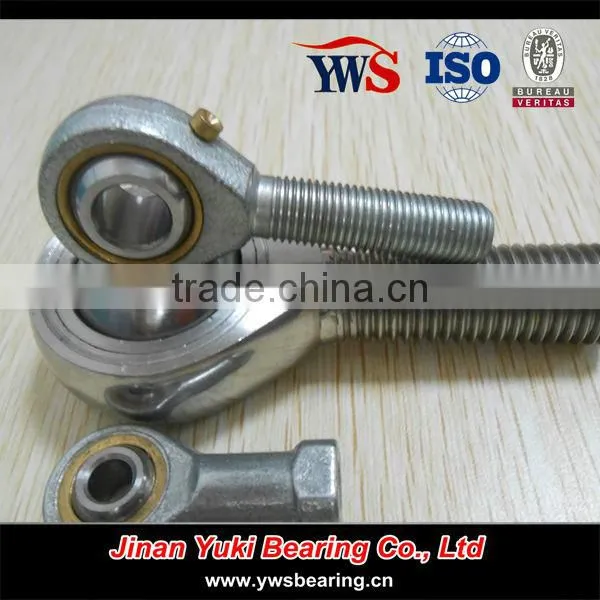

Photos and design of Rod Ends Bearings:
1. OEM service are welcome.
2. Samples order will be ok from the trial order.
3.Best service after sales.
4.Freight cost/sea freight cost are in competitive price.
