High quality linear motion bearing 8mm linear shaft

   8mm rod shaft with end machining,also we can make M4 M6..hole

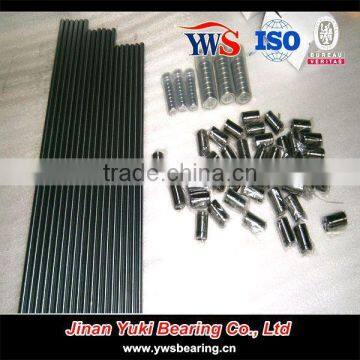

                     8mm rod and LM8UU LM8LUU bearing

    8mm rod and SHF08 support and SC8VUU block bearing and lm8uu bearing

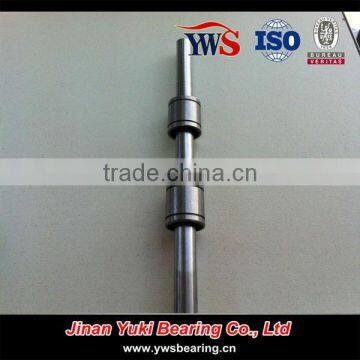

 8mm shaft and LM8UU

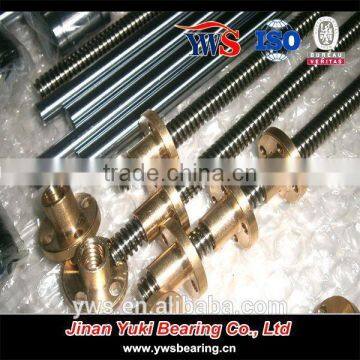

                   8mm screw and smooth rod shaft

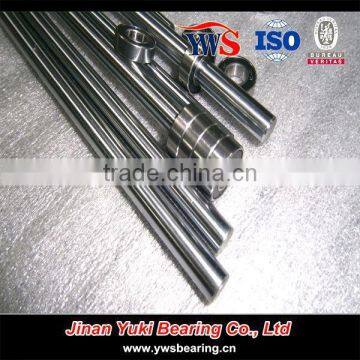

                       8mm rod and 608-2rs 688-2rs ball bearing

if you need smooth rod and bearing,please click the picture:

if you need 608 623 688 F623zz ball bearing,please click the picture:

if you need 3d printer parts-ball screw,please click the picture:

if you need MGN linear rail and block,please click the picture:

linear bearing introduction

1). Metal linear bearing and Plastic linear bearing

2). Standard, Clearance SetUp Coordinatelinear bearing, Open mouth linear bearing , The stretched linear bearing ,

General linear bearing.

3). Flange linear bearing can be divided into: round flange type, method, elliptical flange, round flange type, guidance method orchid type, orientation ellipse flange type, extended type circular flange .

4). LM and LME series. Its code LM series used in Asia, southeast Asia, Japan, South Korea, China, etc. Metric size as standard, with the straight axis diameter tolerance is usually h7. LME series is much used in Europe, the United States, Germany, Italy and other regions. Inch size as standard and metric size, with the straight axis diameter tolerance is usually g6. Two big series structure features, in addition to the different size, diameter tolerance is different, its structure is roughly the same.

    Plastic linear bearing can be divided into two major series with LIN -12 and LIN - 11 series, its code name LIN - 11 is the representative of a European standard plastic linear bearing, and LIN - 12 series is narrow type design, mainly in order to save installation space and design; Distinguishes between two major series, LIN - 11 series is using circlip limit installation, and LIN - 12 series is directly mounted with its diameter and installing seat hole tight fit.

linear bearing specification

Are you interested in these products? If so,pls send inquiry to me. :)
