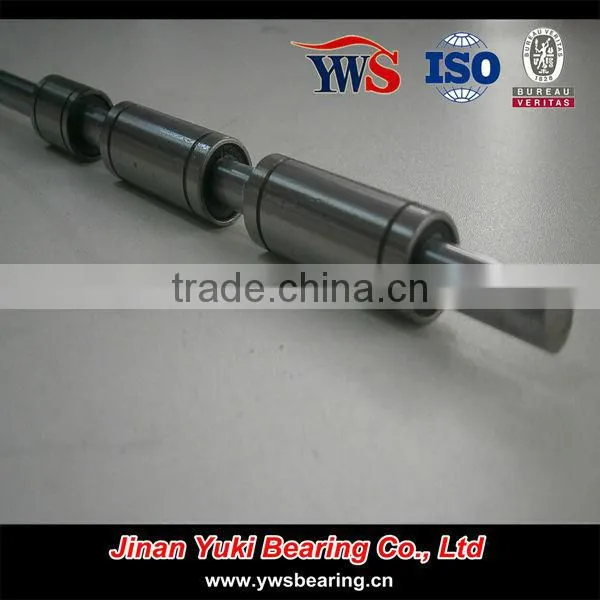

high Quality 8mm Linear ball Bearing LM8UU for 3D printer
Do you need linear bearings?
Are you manufaturer of CNC machine? Or 3D printer?
Just contact me~ I know what you need!
YWS——Your wise choice!!!

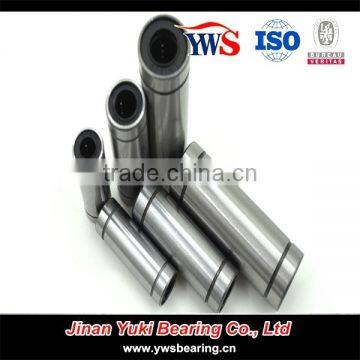

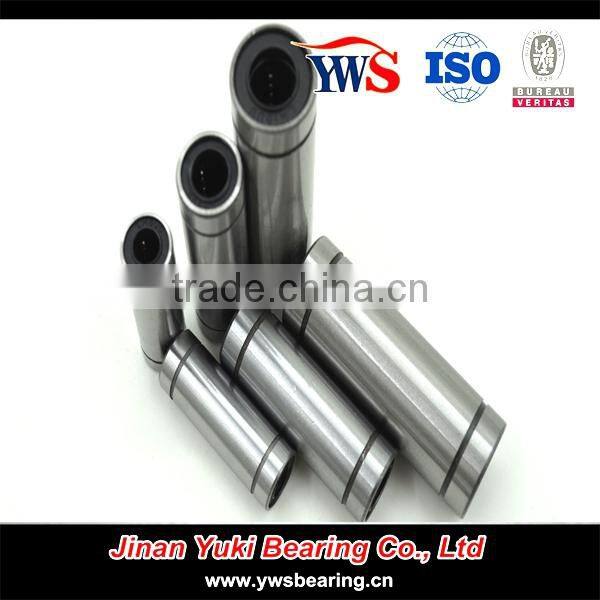

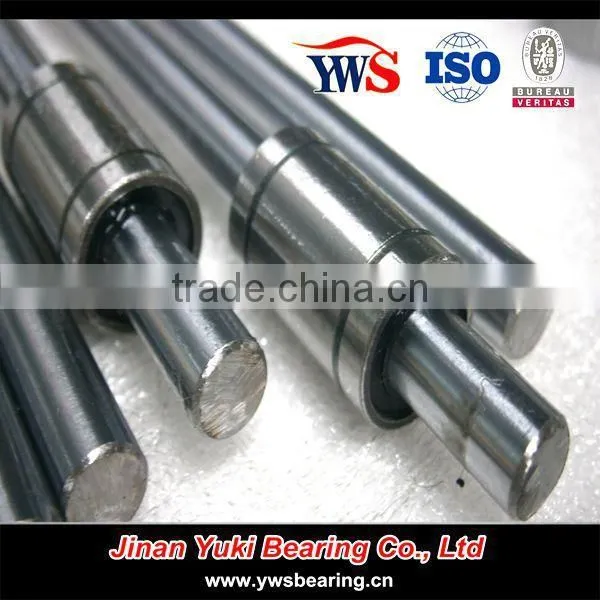

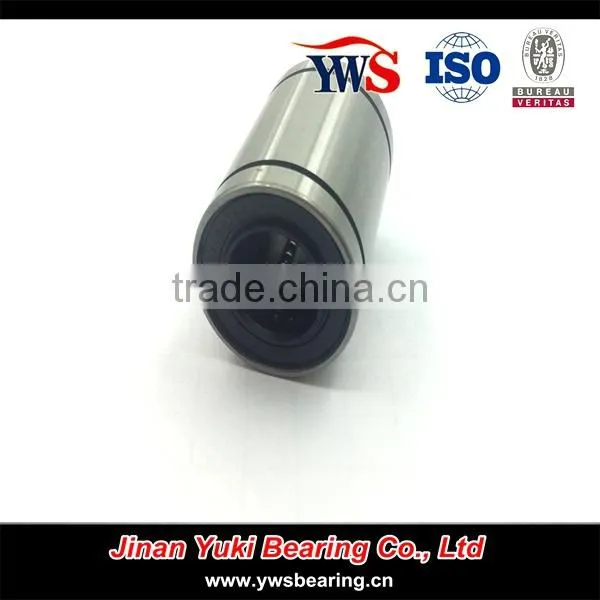

Linear Bearing
Related products
1:ball bearings

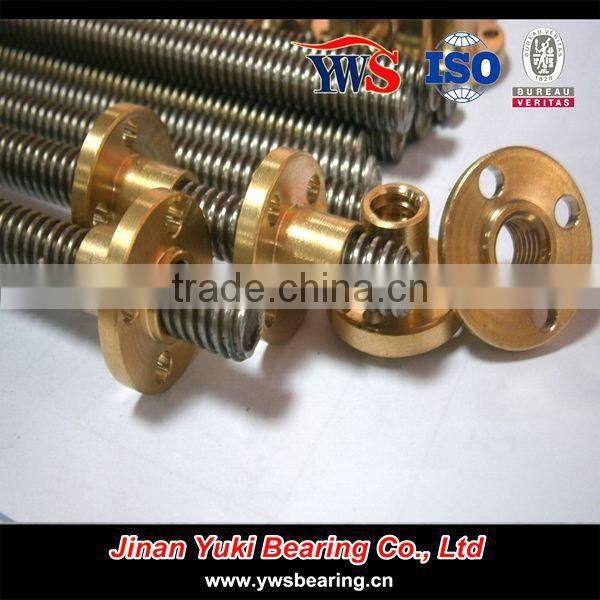

2:Lead screw
3:Linear shaft
4:Ball screw
Bearing packing
Specification:
Structure and features of linear bearing is a shell, special ball, retainer ring or a ring with
both ends of the card formed. Cage within the device in the case, from both ends of the
clasp or ring fixed to ball inthe cage track surface a repeating cycle of movement. And shell
after adequate heat treatment to a certain level of hardness, to ensure the accuracy and
stability of movement and life. Ball cage formed by the nylon resin injection pressure,
which can reduce the ball and the retainer between the noise and wear, and play the
guiding role of accurate, linear bearings allow the use of the temperature is 80 or
less.
LM8UU bearing specification
Products name | flange linear bearing |
Ring material | Chrome Steel ,Carbon steel, Stainless steel |
Material: | GCr15 GCr15SiMn |
Precision | P0,P6,P5,P4, P2 |
Clearance: | C2 ,C3, C4 |
Quality standard | BV |
Service | OEM service, Customer design service, buyer label service |
Payment terms | A:100% T/T in advance B: 30% T/T in advance .70% against copy of B/L |
Application | Industrial Segments Pumps Fans Compressors Turbines Gearboxes |
Details |
Mine machine, port hoisting machine, port transfer equipment, crane; |
other flange bearing nos
| Model | Ball circuit | Inner size | Outer size | Length | Snapring groove | ||
| dr | D | L | B | D1 | W | ||
| LM6UU | 4 | 6 | 12 | 19 | 13.5 | 11.5 | 1.1 |
| LM8UU | 4 | 8 | 15 | 17 | 11.5 | 14.3 | 1.1 |
| LM8UU | 4 | 8 | 15 | 24 | 17.5 | 14.3 | 1.1 |
| LM10UU | 4 | 1 0 | 19 | 29 | 22 | 18 | 1.3 |
| LM12UU | 4 | 1 2 | 21 | 30 | 23 | 20 | 1.3 |
| LM13UU | 4 | 1 3 | 23 | 32 | 23 | 22 | 1.3 |
| LM16UU | 5 | 1 6 | 28 | 37 | 26.5 | 27 | 1.6 |
| LM20UU | 5 | 2 0 | 32 | 42 | 30.5 | 30.5 | 1.6 |
| LM25UU | 6 | 2 5 | 40 | 59 | 41 | 38 | 1.85 |
| LM30UU | 6 | 3 0 | 45 | 64 | 44.5 | 43 | 1.85 |
| LME8UU | 4 | 8 | 16 | 25 | 16.5 | 15.2 | 1.1 |
| LME10UU | 4 | 1 0 | 19 | 29 | 22 | 18 | 1.3 |
| LME12UU | 4 | 1 2 | 22 | 32 | 22.9 | 21 | 1.3 |
| LME16UU | 5 | 1 6 | 26 | 36 | 24.9 | 24.9 | 1.3 |
| LME20UU | 5 | 2 0 | 32 | 45 | 31.5 | 30.3 | 1.6 |
Are you interested in these products? If so,pls send inquiry to me. :)
