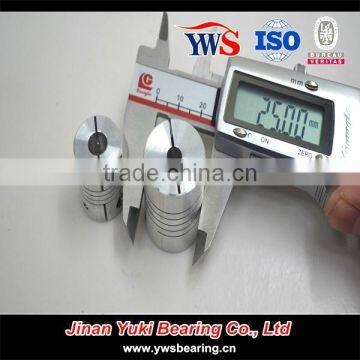

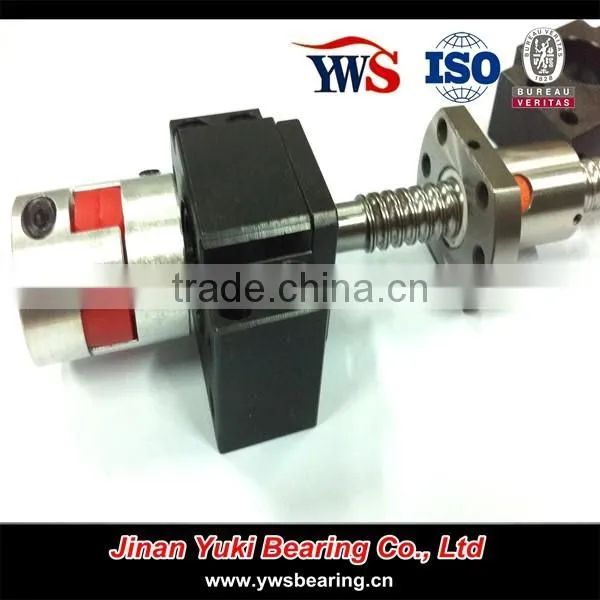

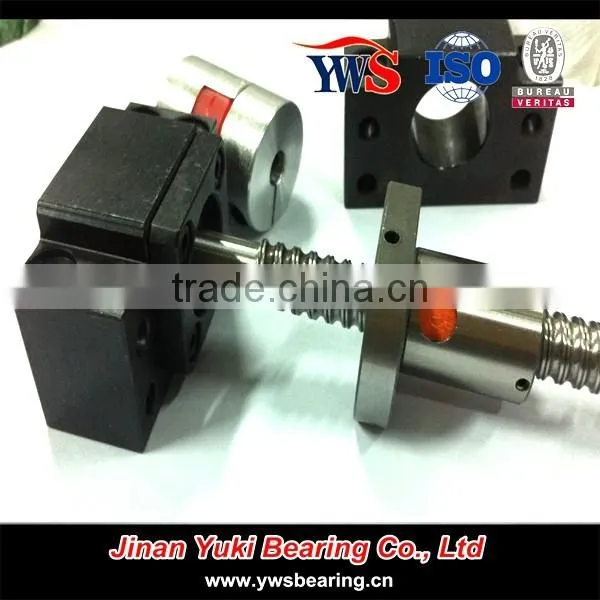

6.35*12mm ball screw coupling

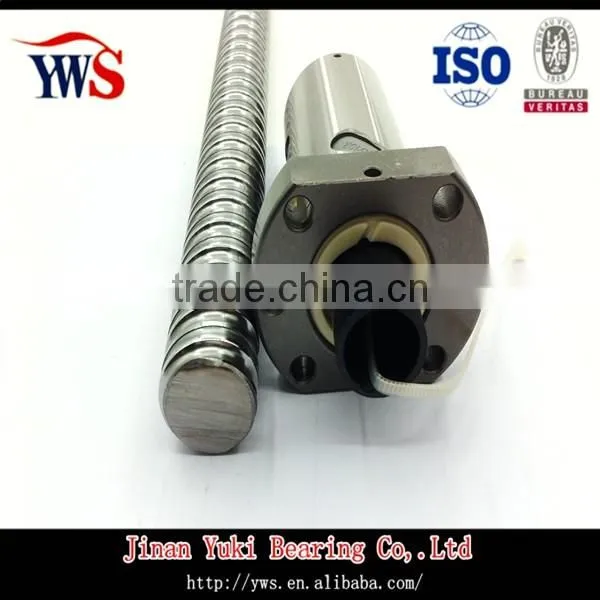

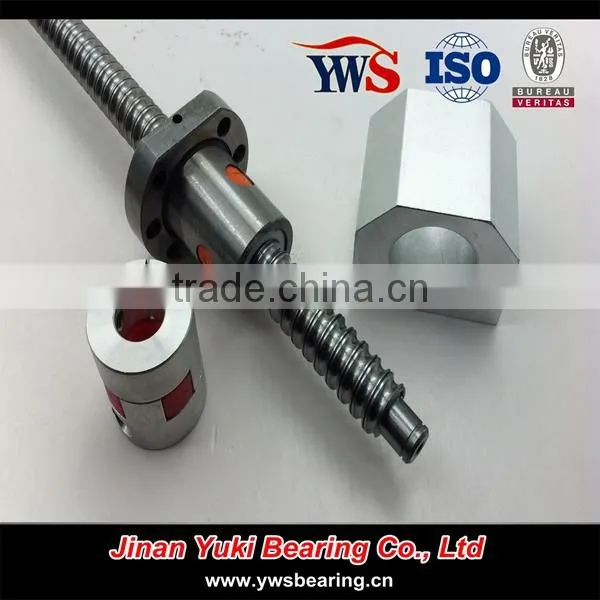

SFU Ball screw and nut. Please click the below picture to get details!
BK BF support. Please click the below picture to get details!

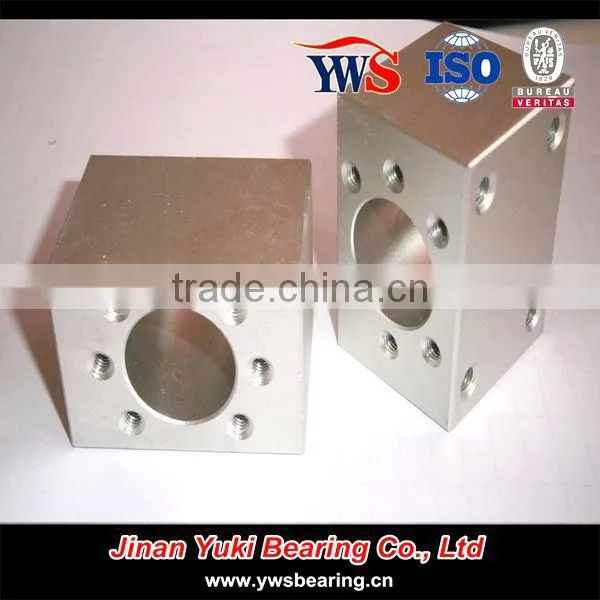

Nut holder. Please click the below picture to get details!

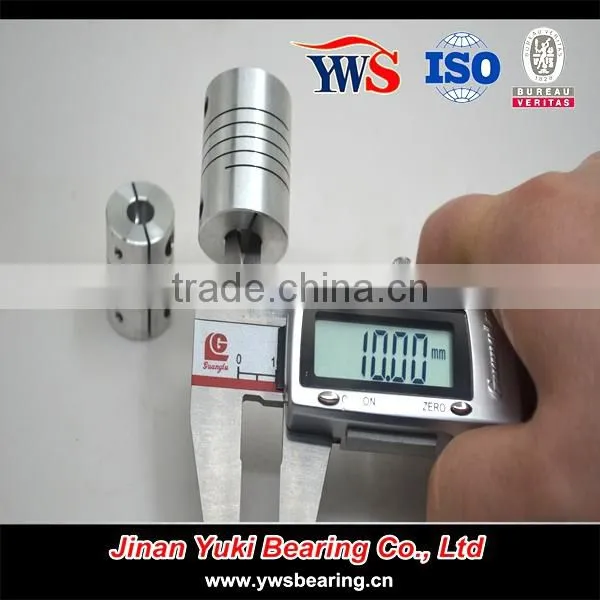

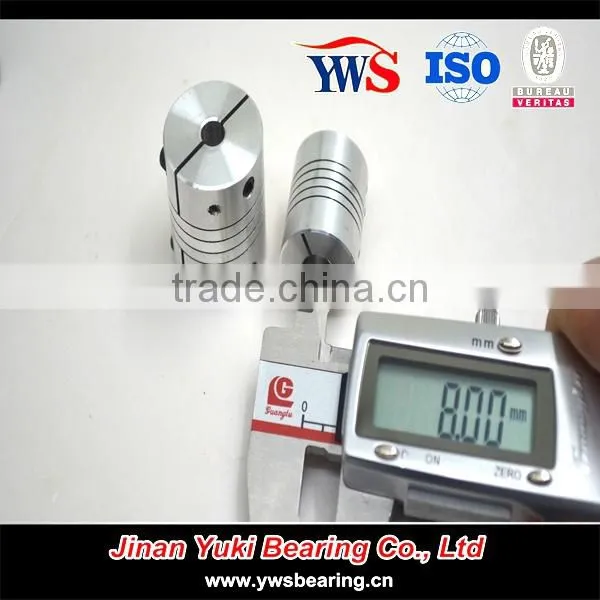

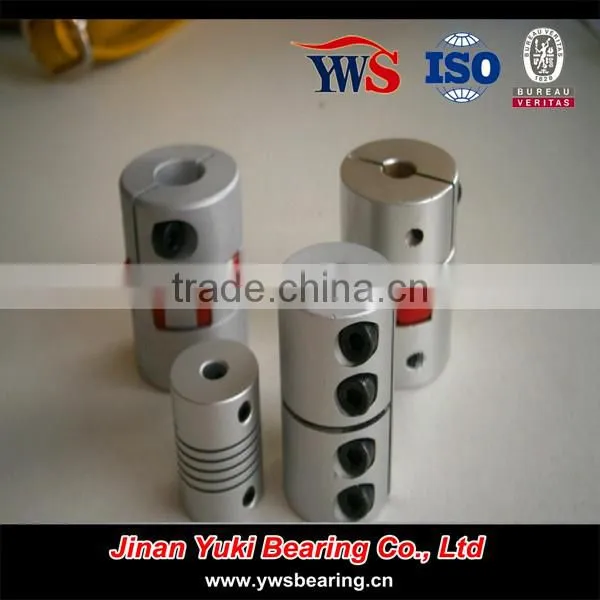

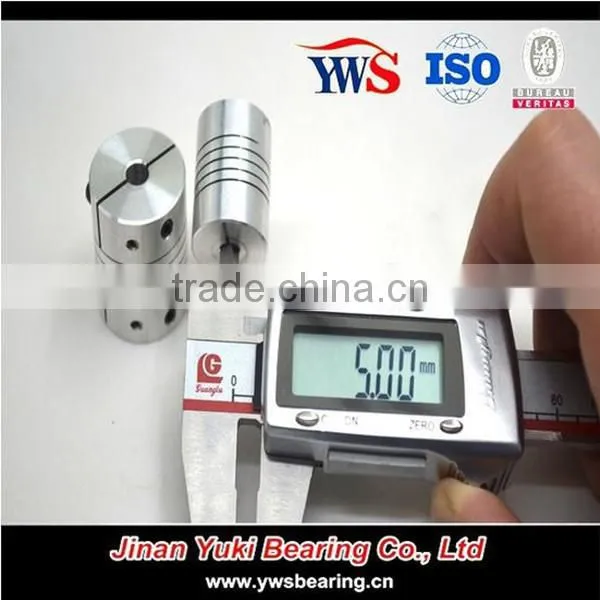

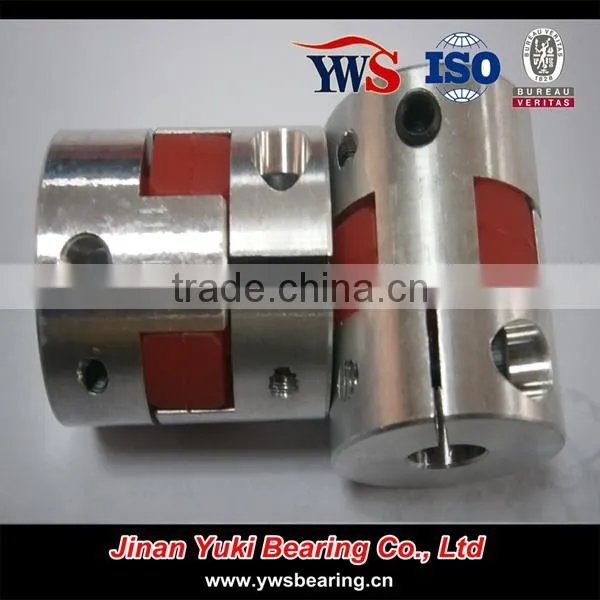

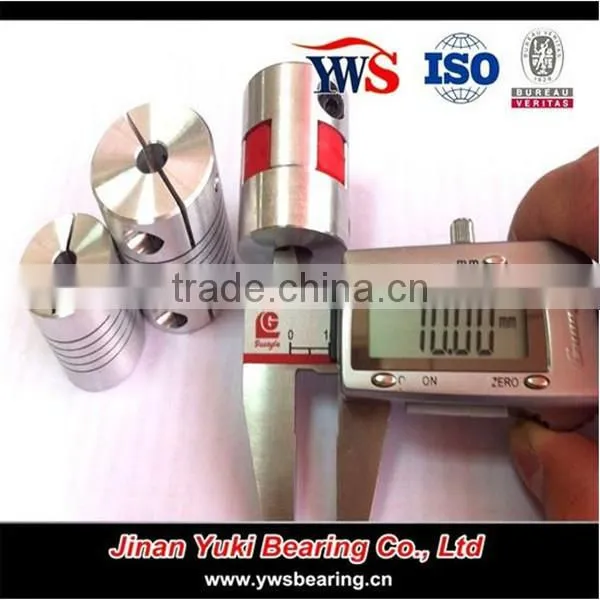

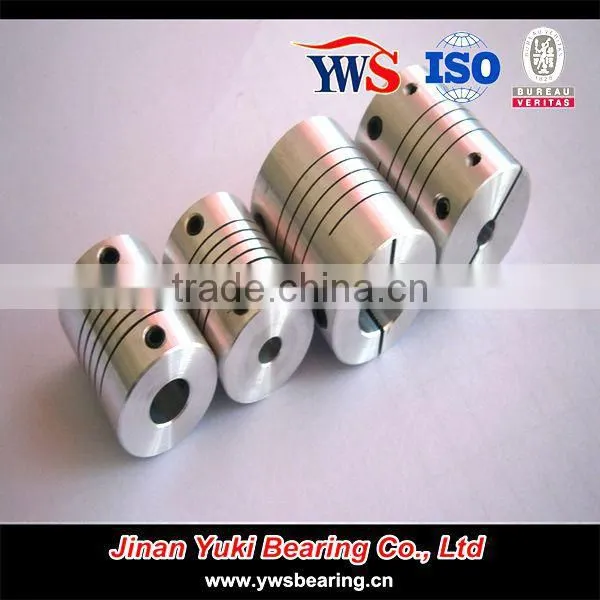

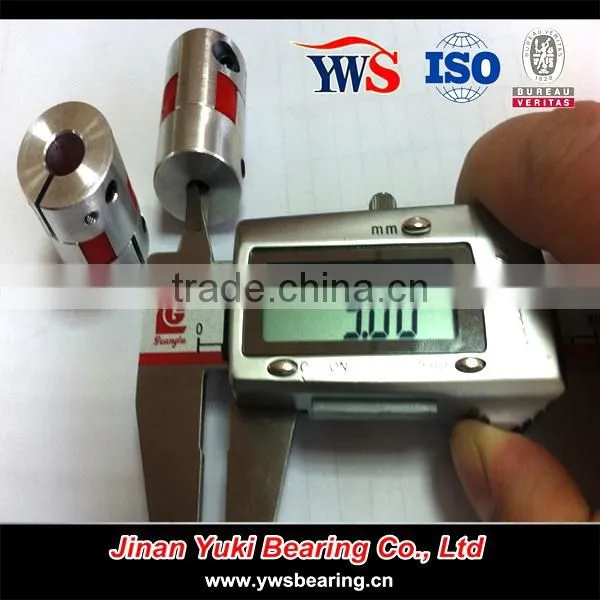

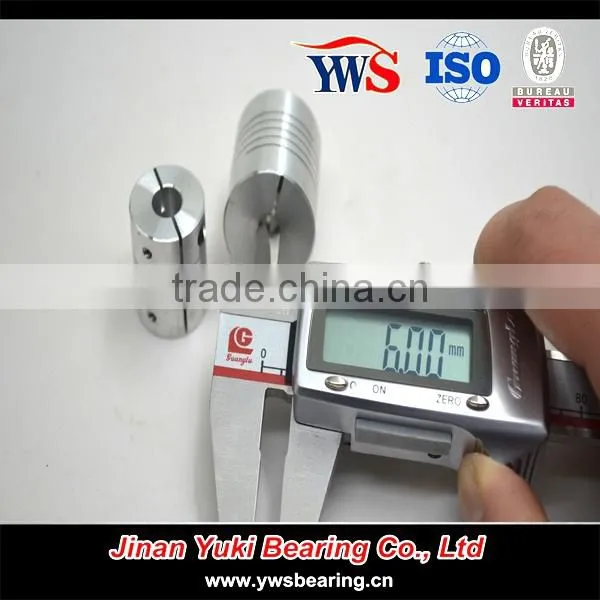

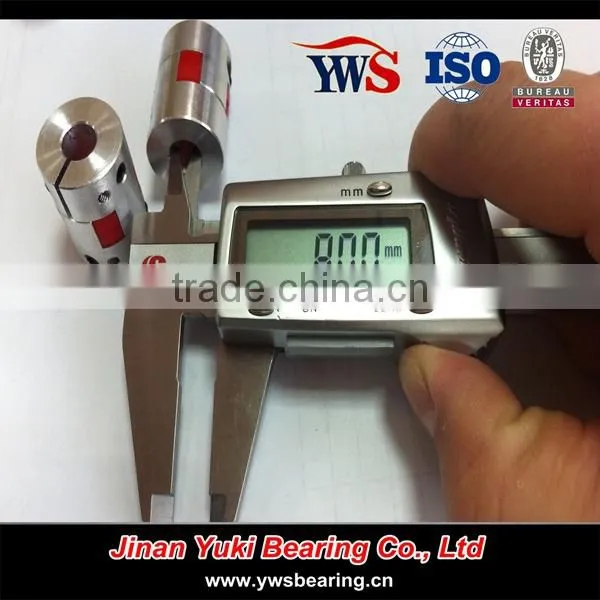

Coupling. Please click the below picture to get details!
1.systematization:
1). Metal linear bearing and Plastic linear bearing
2). Standard, Clearance SetUp Coordinatelinear bearing, Open mouth linear bearing , The stretched linear bearing ,
General linear bearing.
3). Flange linear bearing can be divided into: round flange type, method, elliptical flange, round flange type, guidance method orchid type, orientation ellipse flange type, extended type circular flange .
4). LM and LME series. Its code LM series used in Asia, southeast Asia, Japan, South Korea, China, etc. Metric size as standard, with the straight axis diameter tolerance is usually h7. LME series is much used in Europe, the United States, Germany, Italy and other regions. Inch size as standard and metric size, with the straight axis diameter tolerance is usually g6. Two big series structure features, in addition to the different size, diameter tolerance is different, its structure is roughly the same.
Plastic linear bearing can be divided into two major series with LIN -12 and LIN - 11 series, its code name LIN - 11 is the representative of a European standard plastic linear bearing, and LIN - 12 series is narrow type design, mainly in order to save installation space and design; Distinguishes between two major series, LIN - 11 series is using circlip limit installation, and LIN - 12 series is directly mounted with its diameter and installing seat hole tight fit.
2.Specifications
|
LM linear bearing: LM3UU,LM4UU,LM5UU,LM6UU,LM8UU,LM8S,LM10UU,LM12UU,LM13UU,LM16UU, LM20UU,LM25UU,LM30UU,LM35UU,LM40UU,LM50UU,LM60UU, LM80UU,LM100UU |
|
LME linear bearing: LME3UU,LME4UU,LME5UU,LME6UU,LME8UU,LME8S,LME10UU,LME12UU,LME13UU, LME16UU, LME20UU,LME25UU,LME30UU,LME35UU,LME40UU,LME50UU,LME60UU, LME80UU,LME100UU |
LMB linear bearing: LMB4UU,LMB6UU,LMB8UU,LMB10UU,LMB12UU,LMB16UU,LMB24UU,LMB32UU |
LM Open Series linear bearing: LM10OPUU,LM12OPUU,LM13OPUU,LM16OPUU,LM20OPUU,LM25OPUU, LM3OOPU,LM35OPUU,LM40OPUU,LM50OPUU,LM60OPUU,LM80OPUU,LM100OPUU |
|
KH type linear bearing: KH0622PP,KH0824PP,KH1026PP,KH1228PP,KH1630PP,KH2030PP, KH2540PP,KH3050PP,KH4060PP,KH5070PP |
|
Stell Cage Linear Bearing: LM8GA,LM10GA,LM12GA,LM16GA,LM20GA, LM25GA,LM30GA,LM35GA,LM40GA,LM50GA,LM60GA |
SDM series Steel cage linear bearing(As same as Ease SDM series):SDM16,SDM20,SDM25,SDM30,SDM35,SDM40,SDM50,SDM60,SDM80,SDM100,SDM120, SDM150 |
|
Flange Type Linear Bearing: LMF6UU,LMF8UU,LMF10UU,LMF12UU,LMF13UU,LMF16UU,LMF20UU,LMF25UU,LMF30UU, LMF35UU,LMF40UU,LMF50UU,LMF60UU,LMF80UU,LMF100UU LMK6UU,LMK8UU,LMK10UU,LMK12UU,LMK13UU,LMK16UU,LMK20UU,LMK25UU,LMK30UU, LMK35UU,LMK40UU,LMK50UU,LMK60UU,LMK80UU,LMK100UU LMT6UU,LMT8UU,LMT10UU,LMT12UU,LMT13UU,LMT16UU,LMT20UU,LMT25UU,LMT30UU. |
|

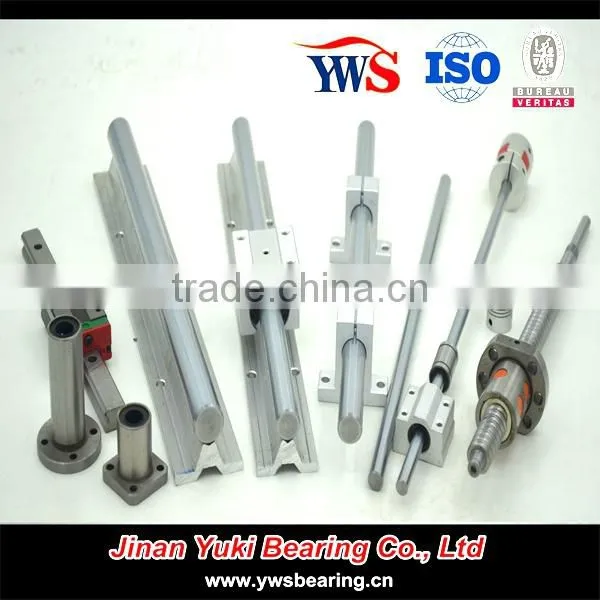

Linear Slide Unit: 1.Close Type:SC8UU,SC10UU,SC12UU,SC13UU,SC16UU,SC20UU,SC25UU,SC30UU,SC35UU,SC40UU, SC50UU,SC60UU (normal type) SC8WUU,SC10WUU,SC12WUU,SC13WUU,SC16WUU,SC20WUU,SC252UU,SC30WUU,SC35WUU, SC40WUU,SC50WUU (long type) SC8VUU,SC10VUU,SC12VUU,SC13VUU,SC16VUU,SC20VUU,SC25VUU,SC30VUU,SC35VUU, SC40VUU,SC50VUU(Short type) 2.Open Type: SBR10UU,SBR12UU,SBR13UU,SBR16UU,SBR20UU,SBR25UU,SBR30UU,SBR35UU, SBR40UU,SBR50UU(Normal type) SBR10LUU,SBR12LUU,SBR13LUU,SBR16LUU,SBR20LUU,SBR25LUU,SBR30LUU, SBR35LUU,SBR40LUU,SBR50LUU(Long type) TBR16UU,TBR20UU,TBR25UU,TBR30UU (This type with the flange at the pillow block) |
Shaft Support: SK/SHF SHAFT SUPPORT:SK8,SK10,SK12,SK13,SK16,SK20,SK25,SK30,SK35,SK40,SK50,SK60 SHF8,SHF10,SHF12,SHF13,SHF16,SHF20,SHF25,SHF30,SHF35,SHF40,SHF50, |
why choose us:
1.when only the best will do,also we can respect the customer's choice.
2.we have been in the line more than 10 year, We were founded in 2004. Time can test our quality.
3.we are Sino-japanese joint venture company. Quality is our number one goal
4.we are the world's largest 3D printers--MakerBot,fixed bearings' supplier
5.We can high copy many famous brands, such as: Sweden bearings, American bearings,Japan bearings, Germany bearing and Chinese brand bearing. same or better than original.
Are you interested in these products? If so,pls send inquiry to me. :)
