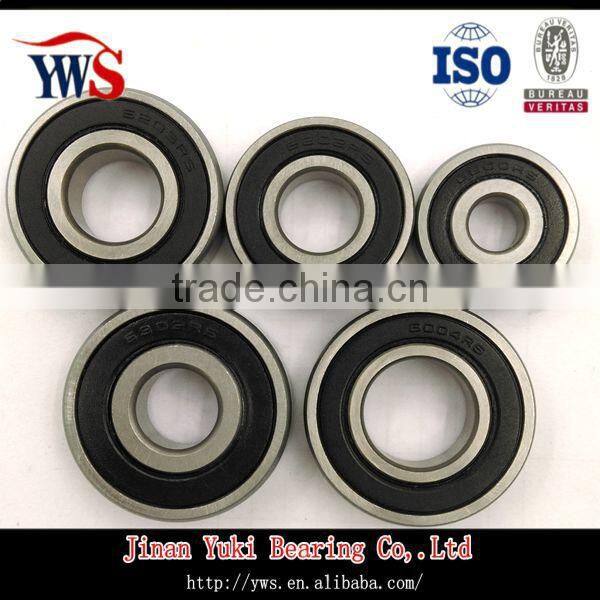

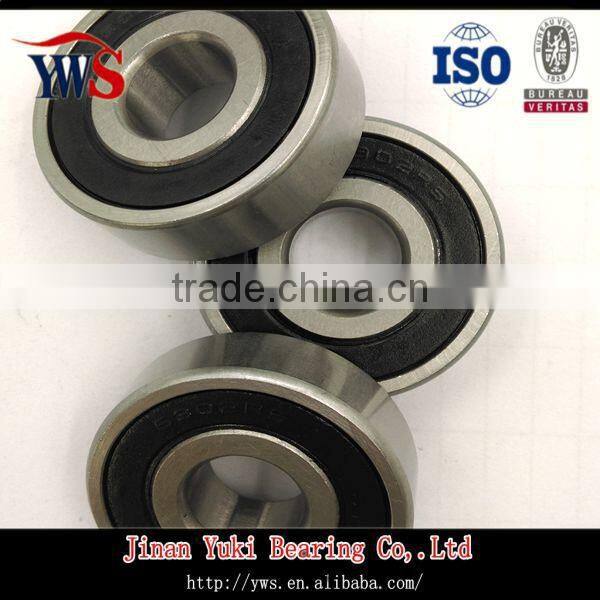

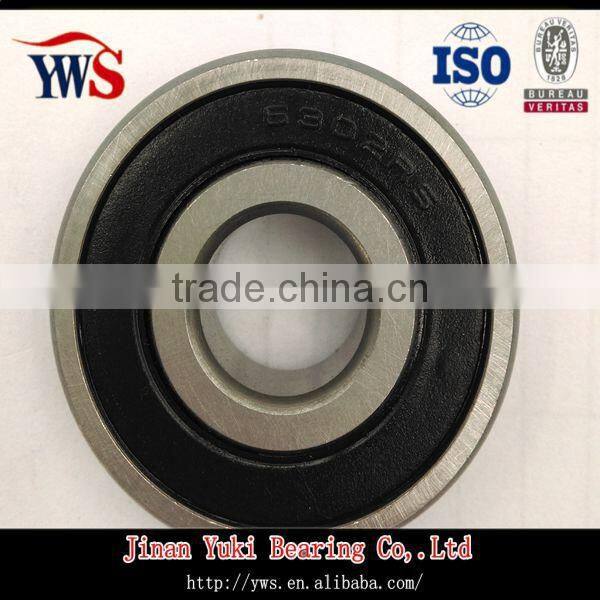

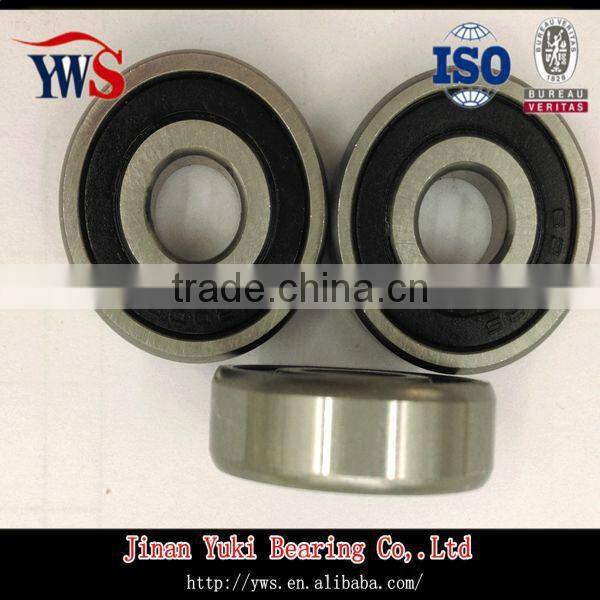

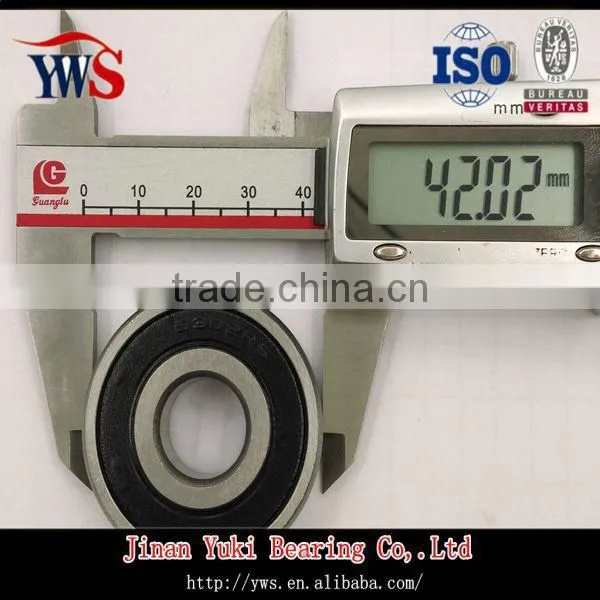

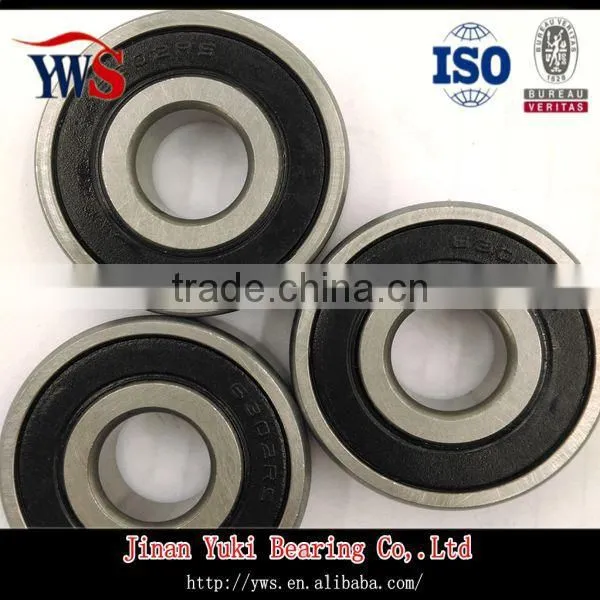

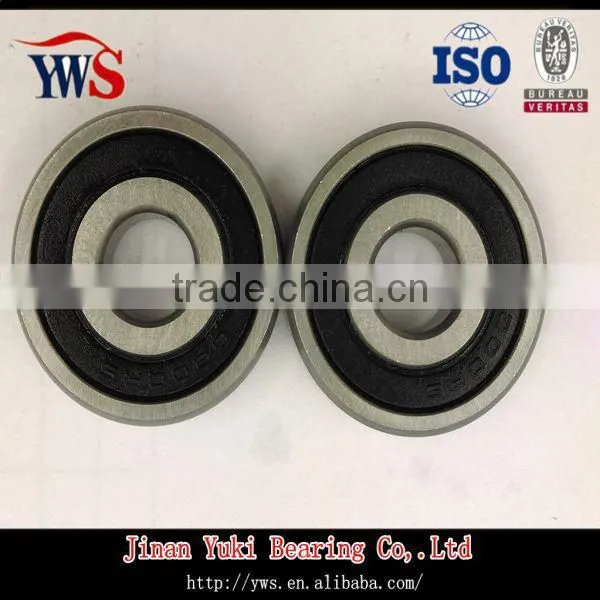

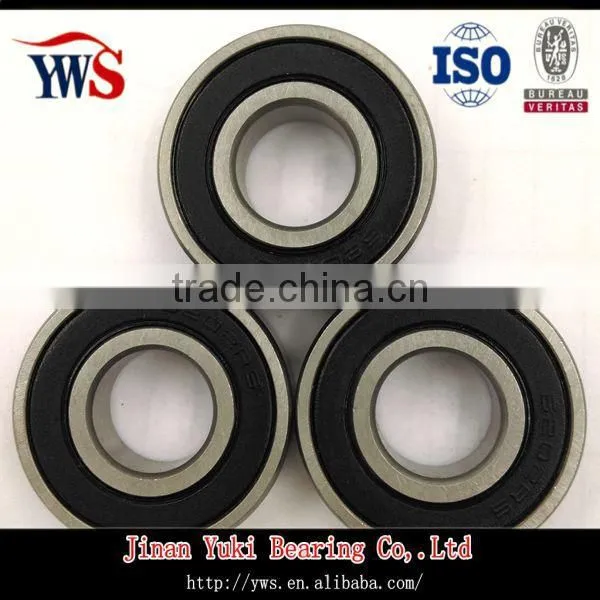

generator bearing 6302 2rs rubber sealed deep groove ball bearing
deep groove ball bearing main advantage
1, durability
2, without regular maintenance
3, low coefficient of friction
4, high limiting speed
5, simple structure
6, low noise
7, most widely used bearings in machinery industry
deep groove ball bearing specification
Brand | YWS OR OEM | ||
Item | ball bearings | ||
seals | 2rs,zz,LLU,DDU | ||
Material | GCr15 steel,carbon steel,stainless steel etc. | ||
Precision | P0,P2,P5,P6,P4 | ||
Clearance | C0,C2,C3,C4,C5 | ||
bore size | 1-1200mm | outer diameter | 3-1800mm |
cage type | brass;steel plate,nylon,aluminium alloy etc. | ||
seal type | open,sealed(ZZ,RS,2RS) | ||
features | Long-life with high quality | ||
Low-nosie with strict controlling the quality of bearings | |||
High-load by the advanced high-technical design | |||
Competitive price, which has the most valuable | |||
OEM service offered, to meet the customers'requirements | |||
application | gearbox,auto,reduction box,engine machinery,mining machinery,bicycles,etc. | ||
package | pallet,wooden case,commercial packaging or as customers' requirement | ||
price terms | FOB,CFR,CIF,EXW | delivery time | 3-15 days acccording the quantity |
6000 Series Bearing Catalogue
N0. | Bore | O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
mm | mm | mm | mm | Dynamic Cr | Static Cor | Grease r/min | Oil r/min | Kg/pcs | |
604 bearing | 4 | 12 | 4 | 0.2 | 0.97 | 0.36 | 36000 | 44000 | 0.0021 |
605 bearing | 5 | 14 | 5 | 0.2 | 1.33 | 0.505 | 32000 | 40000 | 0.0035 |
606 bearing | 6 | 17 | 6 | 0.3 | 2.19 | 0.865 | 30000 | 38000 | 0.006 |
607 bearing | 7 | 19 | 6 | 0.3 | 2.24 | 0.91 | 28000 | 36000 | 0.008 |
608 bearing | 8 | 22 | 7 | 0.3 | 3.35 | 1.4 | 26000 | 34000 | 0.012 |
609 bearing | 9 | 24 | 7 | 0.3 | 3.4 | 1.45 | 24000 | 32000 | 0.014 |
6000 bearing | 10 | 26 | 8 | 0.3 | 4.55 | 1.96 | 22000 | 30000 | 0.019 |
6001 bearing | 12 | 28 | 8 | 0.3 | 5.1 | 2.39 | 19000 | 26000 | 0.021 |
6002 bearing | 15 | 32 | 9 | 0.3 | 5.6 | 2.83 | 18000 | 24000 | 0.03 |
6003 bearing | 17 | 35 | 10 | 0.3 | 6.8 | 3.35 | 17000 | 22000 | 0.039 |
6004 bearing | 20 | 42 | 12 | 0.6 | 9.4 | 5.05 | 15000 | 19000 | 0.069 |
6005 bearing | 25 | 47 | 12 | 0.6 | 10.1 | 5.85 | 14000 | 18000 | 0.08 |
6006 bearing | 30 | 55 | 13 | 0.6 | 13.2 | 8.3 | 12000 | 15000 | 0.116 |
6007 bearing | 35 | 62 | 14 | 1.0 | 16 | 10.3 | 10000 | 14000 | 0.115 |
6008 bearing | 40 | 68 | 15 | 1.0 | 16.8 | 11.5 | 8000 | 11000 | 0.19 |
6200 Series Bearing Catalogue
Ball Beaing Part Number | Boundary Dimension(mm) | Basic Load Rating(kN) | Limiting Speed(rpm) | Mass (KG) | |||||||
Open | Shielded | Sealed | d | D | B | rsmin | Cr | Cor | Grease | Oil |
|
6200ZZ bearing | ZZ | DDU | 10 | 30 | 9 | 0.3 | 5.1 | 2.39 | 24000 | 29000 | 0.032 |
6201ZZ bearing | ZZ | DDU | 12 | 32 | 10 | 0.6 | 6.8 | 3.06 | 22000 | 27000 | 0.037 |
6202ZZ bearing | ZZ | DDU | 15 | 35 | 11 | 0.6 | 7.65 | 3.72 | 20000 | 24000 | 0.045 |
6203ZZ bearing | ZZ | DDU | 17 | 40 | 12 | 0.6 | 9.55 | 4.79 | 17000 | 21000 | 0.066 |
6204ZZ bearing | ZZ | DUU | 20 | 47 | 14 | 1 | 12.8 | 6.55 | 14000 | 18000 | 0.106 |
6205ZZ bearing | ZZ | DDU | 25 | 52 | 15 | 1 | 14.4 | 7.8 | 12000 | 16000 | 0.128 |
6206ZZ bearing | ZZ | DDU | 30 | 62 | 16 | 1 | 19.5 | 11.31 | 9500 | 1300 | 0.199 |
6207ZZ bearing | ZZ | DDU | 35 | 72 | 17 | 1.1 | 25.7 | 15.2 | 8500 | 11000 | 0.288 |
6208ZZ bearing | ZZ | DDU | 40 | 80 | 18 | 1.1 | 29.5 | 18 | 8000 | 10000 | 0.366 |
6209ZZ bearing | ZZ | DDU | 45 | 85 | 19 | 1.1 | 31.5 | 20.5 | 7000 | 9000 | 0.398 |
6210ZZ bearing | ZZ | DDU | 50 | 90 | 20 | 1.1 | 35 | 23.2 | 6700 | 8500 | 0.454 |
6300 Series Bearing Catalogue
Bearing No. | Principal dimensions (mm) | Limiting speedings (rpm) | basic load ratings (kn) | mass (kg) | |||||
Bearing Item | d | D | B | rsmin | Grease | Oil | Dynamic | Static | Approx |
6300 bearing | 10 | 35 | 11 | 0.6 | 23000 | 27000 | 8.2 | 3.5 | 0.0530 |
6301 bearing | 12 | 37 | 12 | 1.0 | 20000 | 24000 | 9.7 | 4.2 | 0.0600 |
6302 bearing | 15 | 42 | 13 | 1.0 | 17000 | 21000 | 11.4 | 5.5 | 0.0820 |
6303 bearing | 17 | 47 | 14 | 1.0 | 16000 | 19000 | 13.5 | 6.6 | 0.1096 |
6304 bearing | 20 | 52 | 15 | 1.1 | 14000 | 17000 | 15.9 | 7.9 | 0.1417 |
6305 bearing | 25 | 62 | 17 | 1.1 | 12000 | 14000 | 21.2 | 10.9 | 0.2193 |
6306 bearing | 30 | 72 | 19 | 1.1 | 10000 | 12000 | 26.7 | 15.0 | 0.3498 |
6307 bearing | 35 | 80 | 21 | 1.5 | 8800 | 10000 | 33.5 | 19.1 | 0.4542 |
6308 bearing | 40 | 90 | 23 | 1.5 | 7800 | 9200 | 40.5 | 24.0 | 0.6394 |
6309 bearing | 45 | 100 | 25 | 1.5 | 7000 | 8200 | 53.0 | 32.0 | 0.8363 |
6310 bearing | 50 | 110 | 27 | 2.0 | 6400 | 7500 | 62.0 | 38.5 | 1.0822 |
6311 bearing | 55 | 120 | 29 | 2.0 | 5800 | 6800 | 71.5 | 45.0 | 1.3676 |
6312 bearing | 60 | 130 | 31 | 2.1 | 5400 | 6300 | 82.0 | 52.0 | 1.7095 |
6313 bearing | 65 | 140 | 33 | 2.1 | 4900 | 5800 | 92.5 | 60.0 | 2.0970 |
6314 bearing | 70 | 150 | 35 | 2.1 | 4600 | 5400 | 104.0 | 68.0 | 2.5430 |
6315 bearing | 75 | 160 | 37 | 2.1 | 4800 | 5000 | 113.0 | 77.0 | 3.0460 |
6316 bearing | 80 | 170 | 39 | 2.1 | 4800 | 4700 | 123.0 | 86.5 | 3.6090 |
6317 bearing | 85 | 180 | 41 | 3.0 | 3800 | 4500 | 133.0 | 97.0 | 4.2840 |
6318 bearing | 90 | 190 | 43 | 3.0 | 3600 | 4200 | 143.0 | 107.0 | 4.9790 |
6319 bearing | 95 | 200 | 45 | 3.0 | 3300 | 3900 | 153.0 | 119.0 | 5.7400 |
6320 bearing | 100 | 215 | 47 | 3.0 | 3200 | 3700 | 173.0 | 141.0 | 7.0900 |
6321 bearing | 105 | 225 | 49 | 3.0 | 3000 | 3600 | 184.0 | 153.0 | 8.0570 |
6322 bearing | 110 | 240 | 50 | 3.0 | 2900 | 3400 | 205.0 | 179.0 | 9.5260 |
