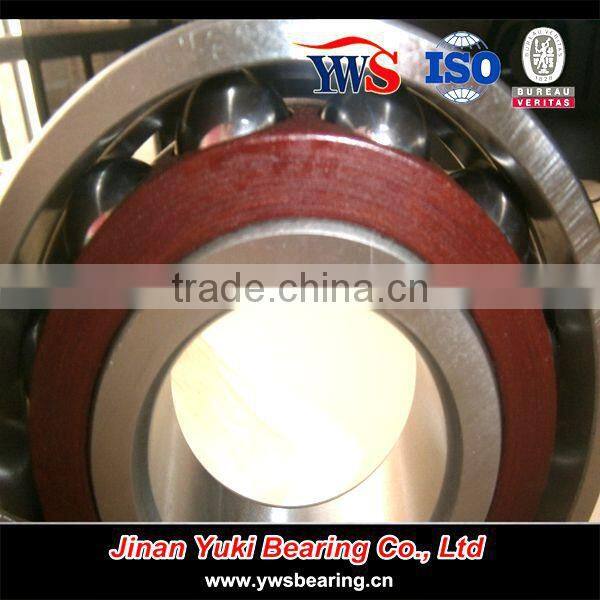

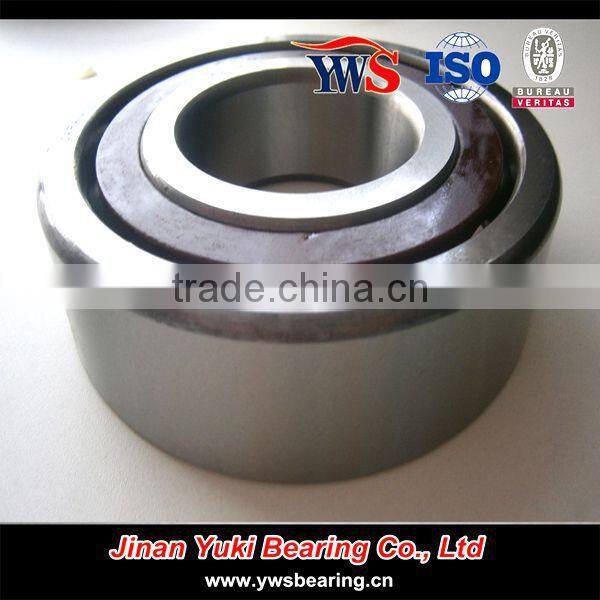

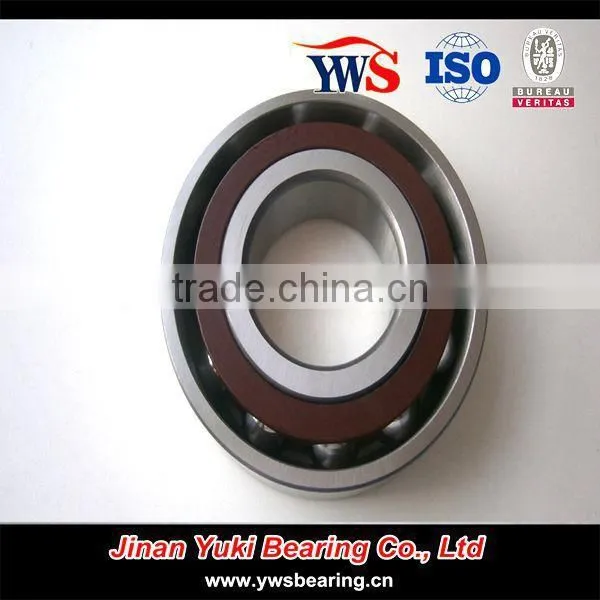

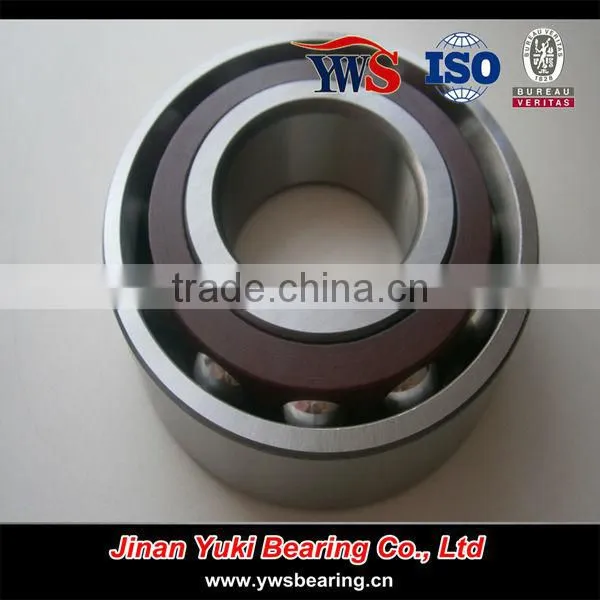

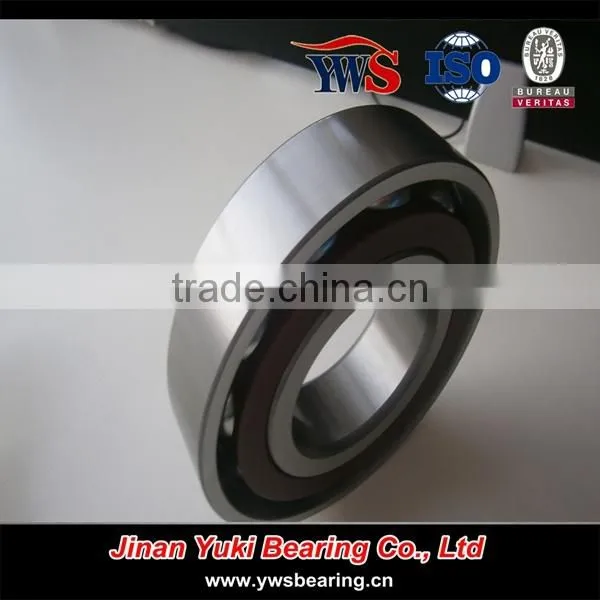

China Angular Contact Ball Bearing 7314 AC

FOB Price

USD $0.15 - $3.2 / Piece

1 Piece(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port Qingdao
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	YWS or OEM	Bore Size:	17, 100	Outside Diameter:	35, 215
Model Number:	7314 AC	Precision Rating:	P0 P6 P5	Seals Type:	OPEN,ZZ,2RS,2Z,RS,Z,2Z
Number of Row:	Other, Single Row, Single Row	Place of Origin:	Shandong, China

Product Description

China Angular Contact Ball Bearing 7314 AC

Product Description

Packaging & Shipping

Precautions

Description:

Compared with the single row angular contact ball bearings, double row angular contact ball bearing has better rigidity, can withstand the overturning moment. Bearing is not separated. There is a requirement for high rigidity is particularly suited to applications. Widely used in the car front wheel hub (some models also use same size double row tapered roller bearing).

This kind of bearing outer ring of locking in on the inner and outer rings can not be separated, can be combined radial and axial loads andaxial loads in one direction. Axial load capacity determined by the contact angle, the contact angle is large, the ability to withstand high axial loads. This kind of bearing shaft or housing to limit axial displacement in one direction.

l single row: 78XX, 79XX, 70XX, 72XX, 73XX, 74XX
2 Miniature bearings: 70X
3.double rows: 52XX, 53XX, 32XX, 33XX, LD57, LD58
4 four point contact: QJ2XX, QJ3XX

Bearing Catalog

model	model	d(mm)	D(mm)	B(mm)	model	model	d(mm)	D(mm)	B(mm)
3200	5200	10	30	14.3	3211	5211	55	100	33.3
3201	5201	12	32	15.9	3311	5311	55	120	49.2
3202	5202	15	35	15.9	3212	5212	60	110	36.5
3302	5302	15	42	19	3312	5312	60	130	54
3203	5203	17	40	17.5	3213	5213	65	120	38.1
3303	5303	17	47	22.2	3313	5313	65	140	58.7
3204	5204	20	47	20.6	3214	5214	70	125	39.7
3304	5304	20	52	25.4	3314	5314	70	150	63.5
3205	5205	25	52	20.6	3215	5215	75	130	41.3
3305	5305	25	62	25.4	3315	5315	75	160	68.3
3206	5206	30	62	23.8	3216	5216	80	140	44.4
3306	5306	30	72	30.2	3217	5316	80	170	68.3
3207	5207	35	72	27	3218	5217	85	150	49.2
3307	5307	35	80	34.9	3219	5317	85	130	73
3208	5208	40	80	30.2	3220	5218	90	160	52.4
3308	5308	40	90	36.5		5318	90	190	73
3209	5209	45	85	30.2		5219	95	170	55.6
3309	5309	45	100	39.7		5319	95	200	77.8
3210	5210	50	90	30.2		5220	100	180	60.3
3310	5310	50	110	44.4		5320	100	215	82.6
						5221	105	190	65.1
						5321	105	225	87.3
						5222	110	200	69.8
						5322	110	240	92.1

New Item	Old Item	Dimensions(mm)	Weight(kg)
3300	3056300	10×35×19	0.1
3301	3056301	12×37×19	0.12
3302	3056302	15×42×19	0.18
3303	3056303	17×47×22.2	0.22
3304	3056304	20×52×22.2	0.23
3305	3056305	25×62×25.4	0.367
3306	3056306	30×72×30.2	0.591
3307	3056307	35×80×34.9	0.823
3308	3056308	40×90×36.5	1.06
3309	3056309	45×100×39.7	1.25
3310	3056310	50×110×44.4	1.96

Angular contact ball bearings product catalogue	706C , B706C series	706C 707C 708C 709C B706C B707C B708C B709C
	724C series	724C 725C 726C 727C 728C 729C
	7000C series	7000 7001 7002 7003 7004 7005 7006 7007 7008 7009 7010 7011 7012 7013 7014 7015 7016 7017 7018 7019 7020 7021 7022 7024 7026 7028 7030 7032 7034 7036 7038 7040
	7200C series	7200 7201 7202 7203 7204 7205 7206 7207 7208 7209 7210 7211 7212 7213 7214 7215 7216 7217 7218 7219 7220 7221 7222 7224 7226 7228 7230 7232 7234 7236 7240 7244 7248
	7303C series	7303 7304 7305 7306 7307 7308 7309 7310 7311 7312 7313 7314 7315 7316 7317 7318 7319 7320 7322 7324 7328 7330 7332 7336 7340
	7406 series	7406 7407 7408 7409 7410 7411 7412 7413 7414 7415 7416 7418
	71900 series	71900 71901 71902 71903 71904 71905 71906 71907 71908 71909 71910 719011 71912 71913 71914 71915 71916 71917 71918 71919 71920 71922 71924 71926 71928 71930 71932 71934 71936 71938 71940
	3200/5200 series	3200 3201 3202 3203 3204 3205 3206 3207 3208 3209 3210 3211 3212 3213 3214 3216 3218 3219
	3302/5302 series	3302 3303 3304 3305 3306 3307 3308 3309 3310 3311 3312 3313 3314 3315 3316
	QJ208 series	QJ208 QJ212 QJ215 QJ219 QJ220 QJ222 QJ224 QJ226 QJ230 QJ232 QJ234 QJ236
	QJ307	QJ307 QJ313 QJ314 QJ315 QJ316 QJ317 QJ318 QJ319 QJ320 QJ322 QJ324 QJ326 QJ328

Are you interested in these products? If so,pls send inquiry to me. :)
