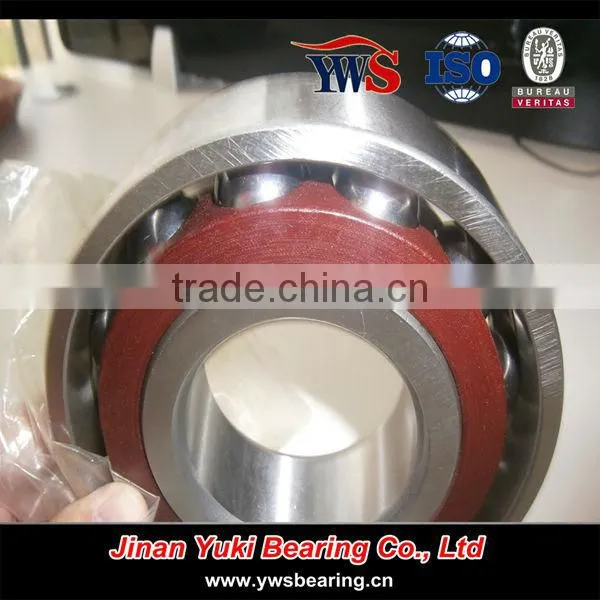

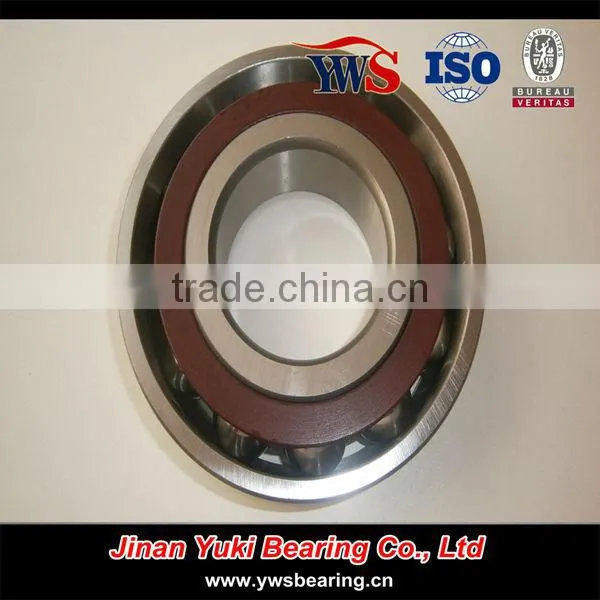

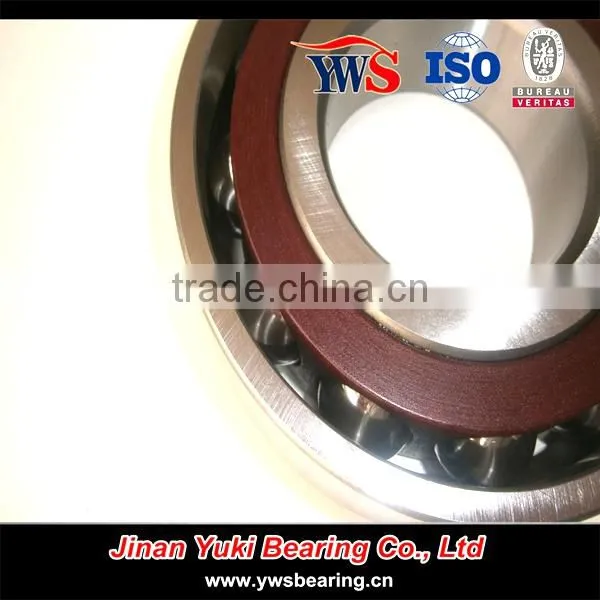

High Quality and High Speed Angular Contact Ball Bearing 7005

High Quality and High Speed Angular Contact Ball Bearing 7005 thumbnail-1
High Quality and High Speed Angular Contact Ball Bearing 7005 thumbnail-2

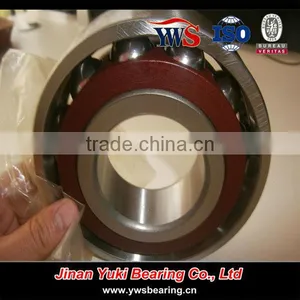

High Quality and High Speed Angular Contact Ball Bearing 7005 thumbnail-3
High Quality and High Speed Angular Contact Ball Bearing 7005 thumbnail-4
High Quality and High Speed Angular Contact Ball Bearing 7005 thumbnail-5
High Quality and High Speed Angular Contact Ball Bearing 7005 thumbnail-6
High Quality and High Speed Angular Contact Ball Bearing 7005 photo-1

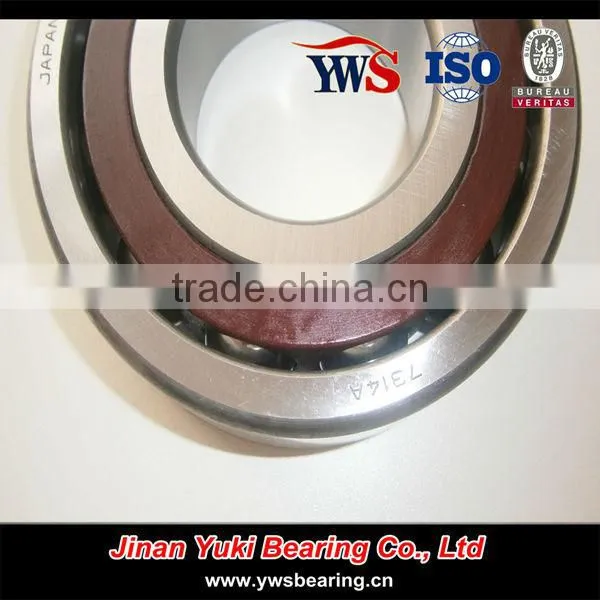

High Quality and High Speed Angular Contact Ball Bearing 7005 photo-2

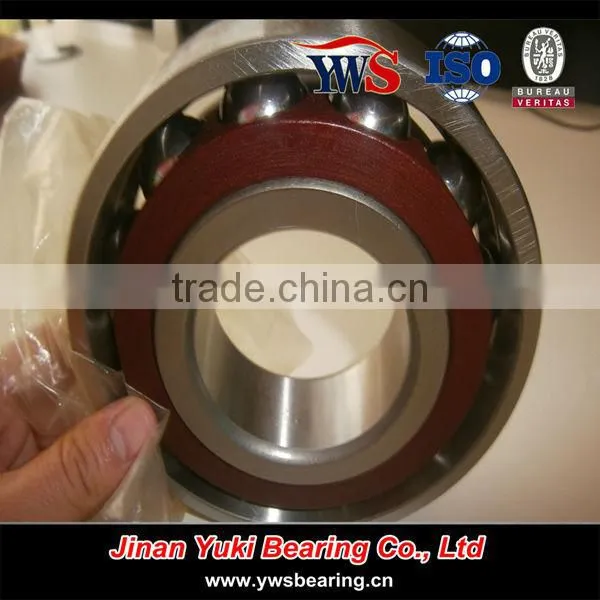

High Quality and High Speed Angular Contact Ball Bearing 7005 photo-3
High Quality and High Speed Angular Contact Ball Bearing 7005 photo-4

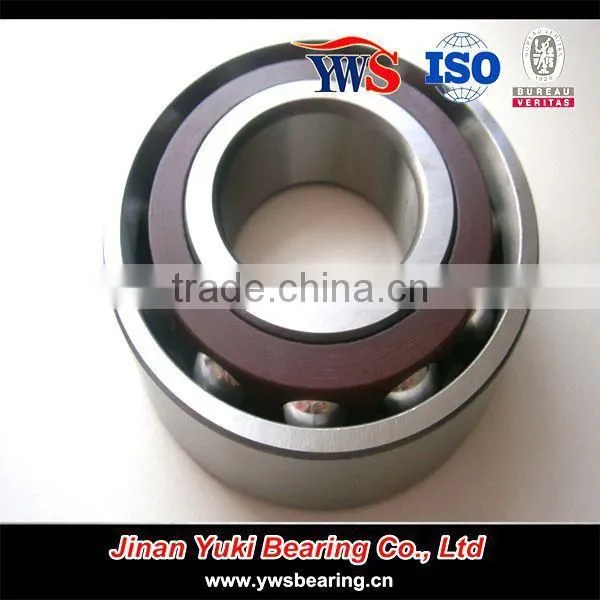

High Quality and High Speed Angular Contact Ball Bearing 7005 photo-5

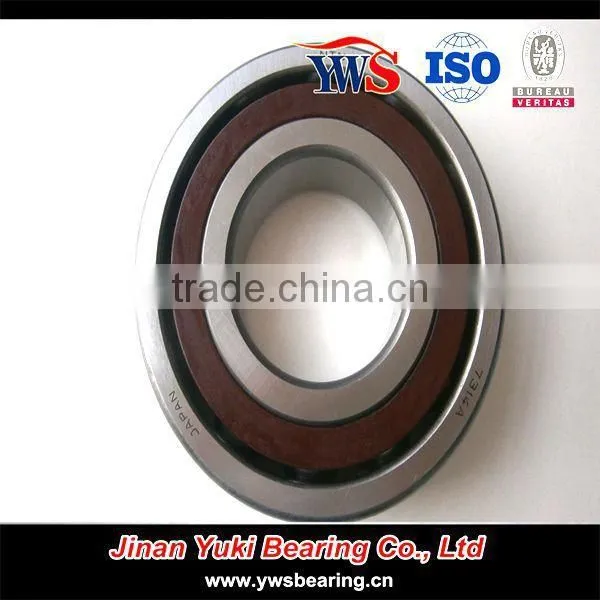

High Quality and High Speed Angular Contact Ball Bearing 7005 photo-6
US$ 0.1 - 5.2 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
YWS or OEM
Bore Size:
17, 100
Outside Diameter:
35, 215
Contact Supplier Request Quote Chat Now
Jinan Yuki Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YWS or OEM
Bore Size 17, 100
Outside Diameter 35, 215
Model Number 7005
Precision Rating P0 P6 P5
Seals Type OPEN,ZZ,2RS,2Z,RS,Z,2Z
Number of Row Other, Single Row, Single Row
Place of Origin Shandong, China





7005 High Quality and High Speed Angular Contact Ball Bearing



High Quality and High Speed Angular Contact Ball Bearing 7005

High Quality and High Speed Angular Contact Ball Bearing 7005High Quality and High Speed Angular Contact Ball Bearing 7005High Quality and High Speed Angular Contact Ball Bearing 7005





Bearing packing







Angular contact ball bearing definition

angular contact ball bearings in a tandem arrangement are used when the actual thrust

force exceeds the thrust load capacity of a single angular contact ball bearing , Single row

angular contact ball bearings in tandem arrangement must always be adjusted against

another bearing inversely arranged for shaft guidance in the opposite direction , Single

row angular contact ball bearings in spindle bearing design must not be exposed to any misalignments .



Angular contact ball bearing features:

1.Factory price

2.P0 P6 P5 P4 Precsion

3.BV Standard

4.Sample available

5.Discountable on large quantity



Our Advantages:

1. Manufacturer,the most competive price and good quality

2. Perfect group of technical engineers give you the best support

3.Well-trained group of international sales provide the best service

4.OEM brand aviliable

5.Rich stock and quick delivery





7005 angular contact ball bearing specification



Item Specifications
Name Low price and high quality 7005 bearing
Model 7005 bearing
Material Bearing steel, carburizing bearing steel, stainless steel, high temperature bearing steel, medium carbon impact resistance of bearing steel, ceramics and plastics
Bore size(mm) 25
Outer diameter(mm) 47
width(mm) 12
Precision Grade P0 P2 P4 P5 P6
Seal type Open
Inner clearance standards C2, C0, C3, C4, C5
Cage brass,steel,nylon







Angular contact ball bearings catalogue:





Bearing No. Dimension(mm)
New Old d D 2B
7000 AC/DB 246100 10 26 16
7001 AC/DB 246101 12 28 16
7002 AC/DB 246102 15 32 18
7003 AC/DB 246103 17 35 20
7004 AC/DB 246104 20 42 24
7005 AC/DB 246105 25 47 24
7006 AC/DB 246106 30 55 26
7007 AC/DB 246107 35 62 28
7008 AC/DB 246108 40 68 30
7009 AC/DB 246109 45 75 32
7010 AC/DB 246110 50 80 32
7011 AC/DB 246111 55 90 36
7012 AC/DB 246112 60 95 36
7013 AC/DB 246113 65 100 36
7014 AC/DB 246114 70 110 40
7015 AC/DB 246115 75 115 40
7016 AC/DB 246116 80 125 44
7017 AC/DB 246117 85 130 44
7018 AC/DB 246118 90 140 48
7019 AC/DB 246119 95 145 48
7020 AC/DB 246120 100 150 48
7021 AC/DB 246121 105 160 52
7022 AC/DB 246122 110 170 56
7024 AC/DB 246124 120 180 56
7026 AC/DB 246126 130 200 66
7028 AC/DB 246128 140 210 66
7030 AC/DB 246130 150 225 70
7032 AC/DB 246132 160 240 76
7034 AC/DB 246134 170 260 84
7036 AC/DB 246136 180 280 92
7038 AC/DB 246138 190 290 92
7040 AC/DB 246140 200 310 102
7044 AC/DB 246144 220 340 112
