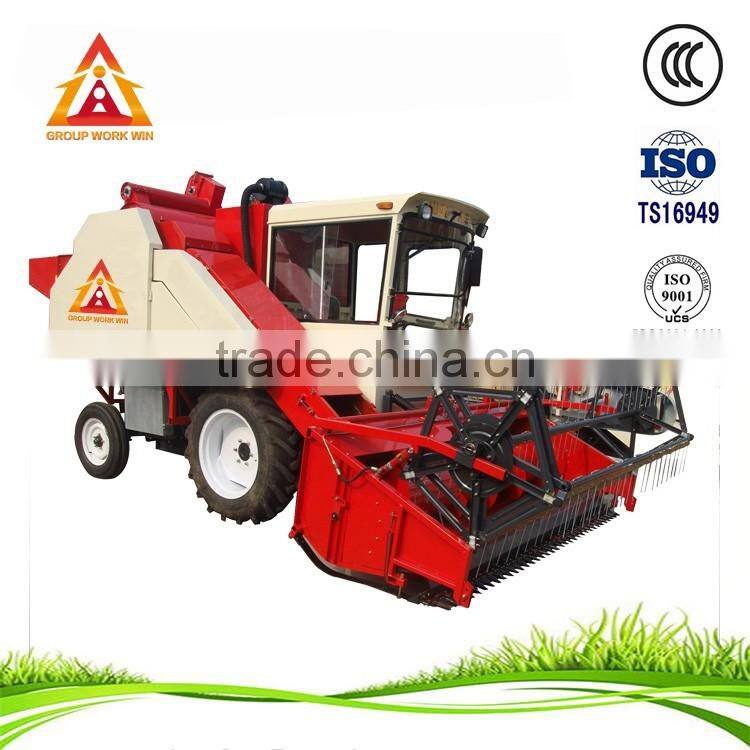

Chinese harvesting machinery

Name: Chinese harvesting machinery
Brand: Groupworkwin
Price: USD $499 - 90,000 / Set

FOB Price

USD $499 - $90,000 / Set

1 Set(Min.Order)

Supply Ability 20000 Set / Sets per Month
Port Qingdao
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Application:	Soybean Harvester	Type:	Combine Harvester
Drive Type:	Gear Drive	Usage:	Grain Harvester	Place of Origin:	Shandong, China
Brand Name:	Groupworkwin	Model Number:	GWW-Chinese harvesting machinery	Dimension(LWH):	272013001180
Weight:	1800kg	Certificate:	CE	Warranty:	1 Year
After-sales Service Provided:	Overseas service center available

Product Description

Chinese harvesting machinery

Chinese harvesting machinery

1. Use of automatic formed floating cutter to ensure lowest harvesting height.

2. Application of double rollers

3. Use of re-threshing device obtains low loss rate and high cleanliness

4. Short time in the machine and shorter threshing roller, increase the quality,color and luster.

5. Stem and skin collected separately, more systematic

Product Description

Specification

Technical specification sheet
Type			Wheel full feed self-propelled
Model			4L-1
Cutting Width		mm	2562
Feed		Kg/s	0.5-1.0
Running speed		Km/h	2.48-16
Diesel Engine	Model		4102
	Power	KW	48
	Rotate Speed	r/min	2600
Working Productivity		Hm²/h	5-10
Total Weight		kg	3050
Dimension (L×W×H)		mm	6210
			3180
			2930
Ground Clearance		mm	315
Header	Reel Type		Spring-tined
	Reel Diameter	Mm	Φ900
	Reel Bat	Piece	5
	Cross auger Type		Screw auger, eccentric extensible link
	Cross Auger Diameter	mm	Φ500
	Clearance between Auger and Bed Plate	mm	12--20
	Cutter bar Stroked	mm	76.2
	Cutter bar Type		Domestic standard II
	Type		Flat belt raked tine, forced feed
	Width	mm	500
	Type		Axial flow rasp bar
	Diameter	mm	Φ480 adjustable
	Length	mm	1190
	Type		Grid based
	Angle	(°)	212
	Separation Area	m²	0.96
	Type		Double sieves + fan + re-threshing
	above sieve	m²	0.56
	bottom sieve	m²	0.7
	Type		Retroverted straight-blade centrifugal
	Diameter	mm	Φ420
Grain Auger Diameter × Thread Pitch		mm	Φ125×115
Unloading type			Mechanical
Tank capacity		m3	0.75
Chassis	Type		4×2 wheeled
	Front-wheel tread	mm	1300 adjustable
	Trailing wheel tread	mm	1270 adjustable
	Gear box		3×2+1
	Wheelbase	mm	1985
	Front-wheel Model		9.5-24
	Trailing Wheel Model		6.0-16
	Tire Pressure	MPa	Trailing wheel
	Tire Pressure	MPa	0.36
Running speed		Km/H	2.8-1.9
Oil Tank Capacity		L	47
Operator			1 Person
Qty’/40HC		Sets	2
