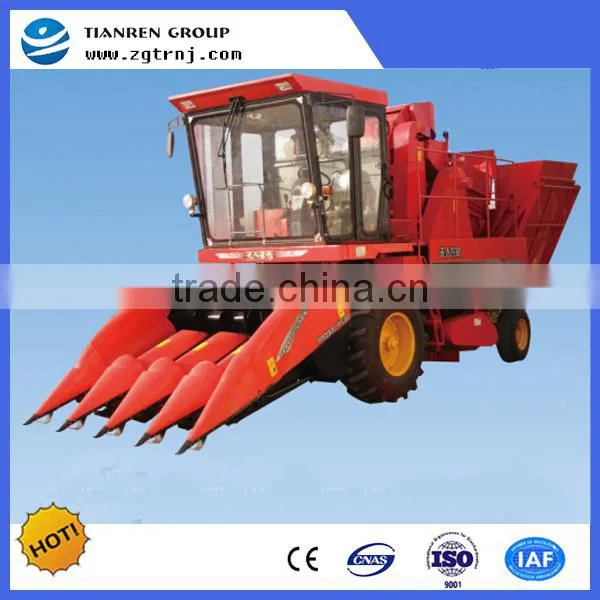

TR9988-4530 self-propelled corn harvester combines

Specifications

Corn harvester combines
low grain loss ratio high reliablity
superior down corn gathering performance
ISO 9000

TR9988-4530 self-propelled corn harvester combines



Real Pictures









Product Feature

Model	TR9988-4530
Function	picking up, peeling,cutting stalks, unloading etc
Number of rows	4
Row spacings (mm)	530
workable row spacings range (mm)	480-580
Engine Power(kw/hp)	103/140
Size(mm)	7900*2600*3550
Grain Tank Volume	2.5m³
The maximum height of unloading(mm)	2600
Breakage rate	≤1%
Total loss rate	≤3%
Peeling rate	≥85%
The minimum corn cob height from field(mm)	200
Harvesting Efficiency (Acre/hour)	0.8-1.6
NW(kg)	6200
Stubble height (mm)	≤120
flail blade attachment	optional
stalk chopper	optional
Airconditioner	optional



 Main Advantage

1. Low loss rate: industry-leading corn header,  adopt patented small tilt angle techniques to stop free grain loss, superior corn-gathering performance in harvesting standing, leaning, down corns, attached collecting tank under the vibrant sieve of husking units to minimize the field loss.



2. Advanced husking unit design: high peeling rate, good adaptability, less grain loss, high reliability.



3. Reliable and durable chassis design: equipped with quality 1000 series gearbox, stepless speed adjustment; strenthened front axel, underframe, and main frame, more durable.



4. Easy to operate with enhanced safety: combination instrument with LCD panel, easy to operate; good vision provided by the arc glass as well as equipped with the reversing and working video to improve the driving safety.



5. Leading performance dissel engine: featuring huge power reserve and less fuel consumption.



6. Patented energy saving protection of engine: using the wind from radiator fan to ensure no corn leaves and other combustible gathered around the engine, energy saving.



7. Advanced hydraulic lifting system: can lift peeled corn the second time to ensure the 6.7 m³ grain tank filled automatically, save time and manpower.



8. Stalks can be recycled by forage harvester after harvesting.



9. The corn header attached flail blade(optional): can do stubble ploughing, save 40% fuel consumption by crushing the stalks together with snapping.



Operation Scene





Please contact us for the impressive working video of our harvester and headers!
