Specifications
Harvester machine for cornlow grain loss ratio high reliablity
superior down corn gathering performance
IS09000

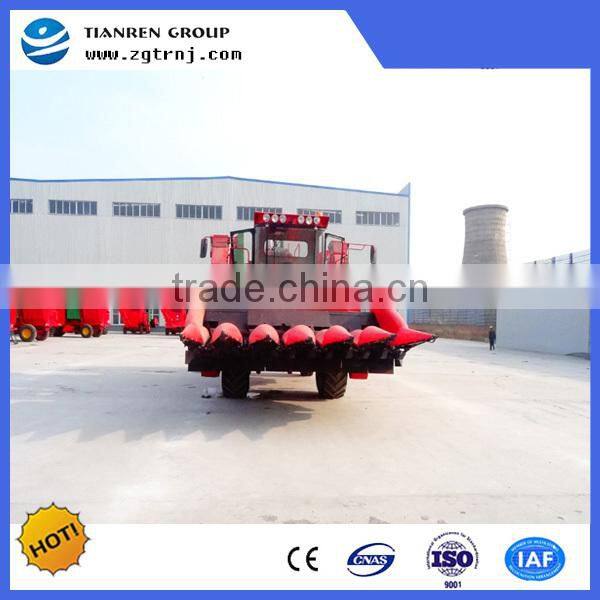

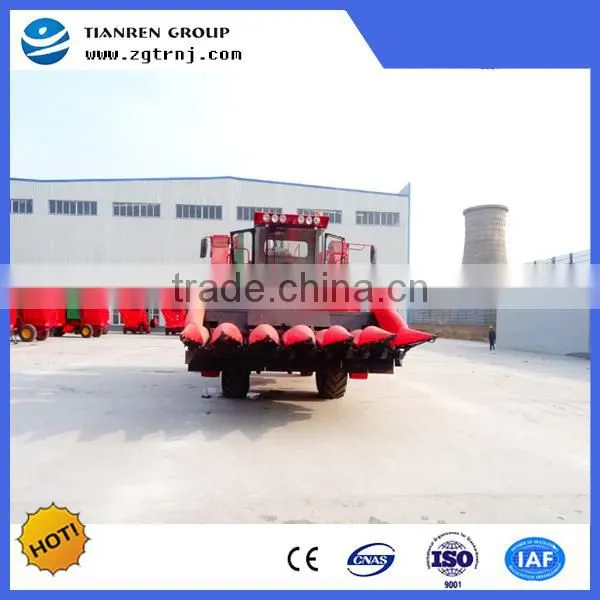

TR9988-4650 self-propelled combine harvester machine for corn
Real Pictures
Product Feature
| Model | TR9988-4650 |
| Function | picking up, peeling,cutting stalks, unloading etc |
| Number of rows | 4 |
| Row spacings (mm) | 650 |
| workable row spacings range (mm) | 600-700 |
| Engine Power(kw/hp) | 118/160 |
| Size(mm) | 9500*3300*3900 |
| Grain Tank Volume | 4.8m³ |
| The maximum height of unloading(mm) | 2600 |
| Breakage rate | ≤1% |
| Total loss rate | ≤3% |
| Peeling rate | ≥85% |
| The minimum corn cob height from field(mm) | 200 |
| Harvesting Efficiency (Acre/hour) | 1.3-2.4 |
| NW(kg) | 9300 |
| Stubble height (mm) | ≤120 |
| flail blade attachment | optional |
| stalk chopper | optional |
| Airconditioner | optional |
Main Advantage
1. Low loss rate: industry-leading corn header, adopt patented small tilt angle techniques to stop free grain loss, superior corn-gathering performance in harvesting standing, leaning, down corns, attached collecting tank under the vibrant sieve of husking units to minimize the field loss.
2. Advanced husking unit design: high peeling rate, good adaptability, less grain loss, high reliability.
3. Reliable and durable chassis design: equipped with quality 1000 series gearbox, stepless speed adjustment; strenthened front axel, underframe, and main frame, more durable.
4. Easy to operate with enhanced safety: combination instrument with LCD panel, easy to operate; good vision provided by the arc glass as well as equipped with the reversing and working video to improve the driving safety.
5. Leading performance dissel engine: featuring huge power reserve and less fuel consumption.
6. Patented energy saving protection of engine: using the wind from radiator fan to ensure no corn leaves and other combustible gathered around the engine, energy saving.
7. Advanced hydraulic lifting system: can lift peeled corn the second time to ensure the 6.7 m³ grain tank filled automatically, save time and manpower.
8. Stalks can be recycled by forage harvester after harvesting.
9. The corn header attached flail blade(optional): can do stubble ploughing, save 40% fuel consumption by crushing the stalks together with snapping.
Operation Scene
Please contact us for the impressive working video of our harvester and headers!
