Home > Products > Automotive Drive Shaft > Drive Transmission Weld Yoke 3-28-507
Drive Transmission Weld Yoke 3-28-507
- 10000 Piece / Pieces per Month
- Ningbo Shanghai
- T/T Credit Card
-
Strut Engine Mounting OE 2042405617 FOR BENZ C-CLASS W204
-
2462401209 Strut Engine Mounting for MB W246 W242 W156 W117 W176
-
2043200073 2043201273 Strut Mounting Front Left and Right for MB W204 C200 C320 C350
-
Outer CV joint Goldragon OEM for Toyota/Nissian/Opel
-
fan drive propeller shaft for bus
-
Factory Sale Intermediate drive shafts 2202ZB7A-010 shaft drives for Dongfeng
Product Details
| Type: | Other, Steering Gears/Shaft | Material: | Other, Steel, 45# steel | Size: | 97.5*51 |
| Car Make: | Ford,Mercedes Benz...Suit for various kinds of vehicles shaft use | OE NO.: | Spicer No. 3-28-507 | Place of Origin: | Zhejiang, China |
| Brand Name: | FULL WERK | Model Number: | 3-28-507 | Warranty: | 1 Years |
Product Description

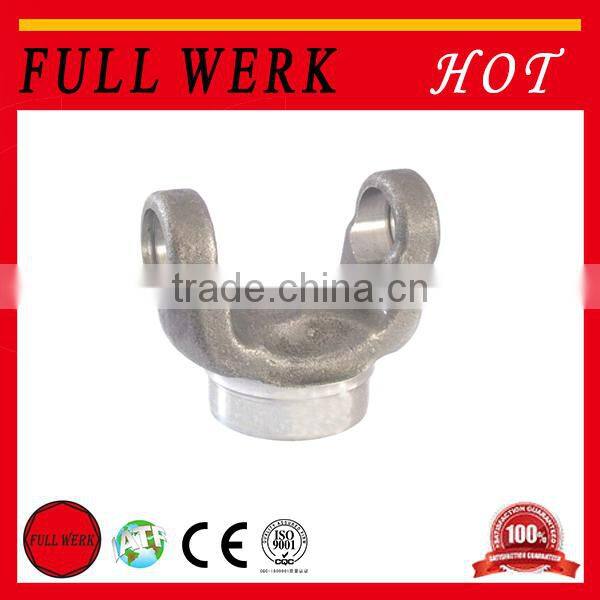

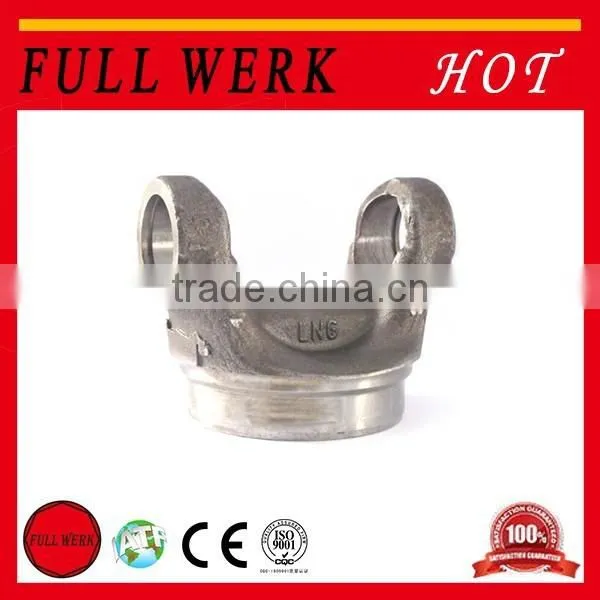

Drive Transmission Weld Yoke 3-28-507
Weld Yoke
Produc : Welded Yoke
OEM Number:3-28-507
Size Details:
Outer Diameter(mm):97.5
Height(mm):51
Universal Joint: 5-188X( 35*106.3)
Material:Steel
Weight(Kg): 2.5
| OEM | 3-28-507 |
| Size(mm) | 51*97.5 |
| Suitable U-Joint | 5-188X |
| Material | 20Cr |
| Weight(Kg) | 2.5 |
Weld yoke Specification
Drive Transmission Weld Yoke 3-28-507
1.Weld yoke Warranty: 1 year
2.Customizations: yoke Colors,yoke size,yoke drawings or sample
3.Sample welcome
4..LOW MOQ
Weld Yoke Advantages
1. High intensity and rigidity, corrosion and aging resistance, stable function, safety and long durability
2. Advanced equipments, professional &experienced designers
3. Fine quality with competitive price and timely delivery
4. Suit for various kinds of vehicles shaft use
5. Perfect after - sale service system
Weld Yoke Material
1.China:45# steel
2. US:AISI/SAE 1045
3.Germany,France/Italy:C45
| Weld Yoke | |||||||||
| ZDC No. | A | B | C | D | Spicer No.: | Similar | U-joint | Vehicle | Seires |
| 862-01 | 67 | 98 | Φ38 | Φ64.10 | 26-118 | GR1337 | 5-12213X 62*38 | Mercedes Benz 1113 a 2213 | 1410 1480 1510 |
| 862-02 | 44.5 | 88 | Φ27 | Φ72.3 | 2-28-1697 | GR1031 | 5-273X 94.9*27 | GM D-10/ D-20, Ford F-1000 / F-4000 | 1330 SPL25 |
| 862-03 | 53 | 113 | Φ34.90 | Φ84.9 | 3-28-537 | GR1033 | 5-263X SPL55-1X 109.05*34.9 | Ford Cargo 1415, Ford F7000 a F14000, VW 9.140 | 1410 1480 SPL55 |
| 862-05 | 56.4 | 134 | Φ34.90 | Φ84.30 | 4-28-307 | GR1035 | 5-275X 5-155X 129*34.9 | Ford Cargo 2218 /F 14000/VW 12-140T / 12-170BT 12-190E | 1410 1550 SPL70 |
| 862-06 | 77.9 | 134.9 | Φ47.65 | Φ95 | 5-28-327 | GR1036 | 5-438X 134.85*47.65 | Mercedes Benz 1618,Equivalentes VW 14.200 a 26.300,Ford 2425 | 1610 |
| 862-07 | 76 | 159 | Φ44 | Φ81.4 | 26-135 | GR1430 | 5-12276X 152.45*44 | Scania 111,Agco Maxion (Modelo 285) | T60 |
| 862-08 | 86 | 171.6 | Φ49.98 | Φ85.5 | 26-163 | GR1431 | 5-12278X 167.95*49.98 | Scania 112/113,T70 Agco Maxion | 1780 T70 |
Packing detail:
each product will be packed in individual box with label of all information on it, and boxes will be packed in carton, cartons will be packed in wooden cases. Heavy parts, light parts and fragile parts will be packed separately
Delivery Detail:
30-35 days for sea order based on containers.
Why Speedway?
1. Customized and designed according to the customers' sample, drawing or requirements.
2. Following the customers' requirements or as our usual packing.
3.Quick reply for Emails and messages within 24 hours
4. Customer-First, Price-Competitive, Quality- High, Services- Professional.
5. Flexible minimum order quantity
6. 20 years of rich bearing industry export experience
7. ISO & MPA & CE & SGS & BV certified
Q1: Can I buy one of your products for Sample?
A: Yes, we can provide you sample, and will send you by DHL or according to your requirements, or find the cheapest forwards for you.
Q2: How could I know if the product suitable for my machine or not?
A: Pls tell us which product you are interested in, We will give you the main sizes, or you can provide your drawings or samples, we will make according to your drawings.
Q3: I want to find a supplier for my new products, can you help me ?
A: Yes, kindly offer us your drawings or samples. We will quote you the cost.
Q4: How long for your to make a new products?
A: Usually 20-35days for the drawing ones and 35-60 days for the sampled ones.
Q5: What is the payment method?
A: Our payment method: T/T, WEST UNION, PAYPAL.
Q6: How is the quality?
A: Strict control before shipment.
Q7: What are our major market?
A: Our main markets are Middle east, Africa, Southeast Asia and South America, European…
