China High Precision Auto Drive Shaft End Yoke for Auto Parts,U-joint SPL250-1X

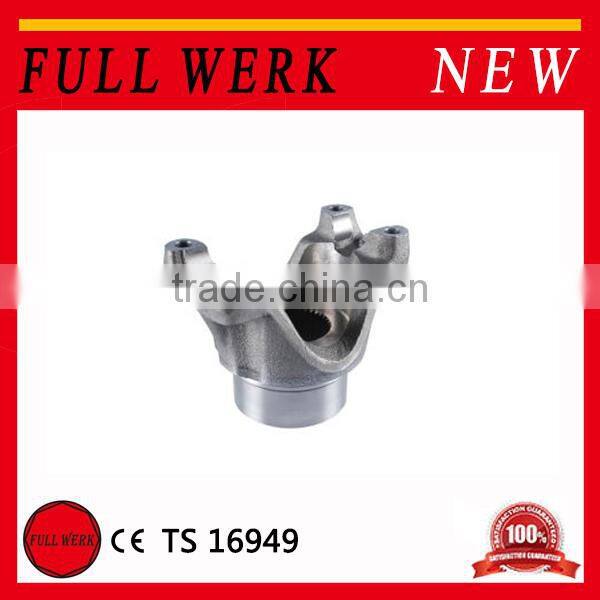

End Yoke

End Yoke  Specification

 1.End yoke Warranty: It depends

 2.Customizations: yoke Colors,yoke size,yoke drawings or sample

 3.Part series: SPL 250


End Yoke  Advantages

 1. High intensity and rigidity, corrosion and aging resistance, stable function, safety and long durability

 2. Advanced equipments, professional &experienced designers

 3. Fine quality with competitive price and timely delivery

 4. Suit for various kinds of vehicles shaft use

 5. Perfect after - sale service system

End Yoke  Material

 1.China:45# steel

 2. US:AISI/SAE 1045

 3.Germany,France/Italy:C45

End Yoke
ZDC No.	A	B	C	D	Spicer No.:	Similar	U-joint	Vehicle	Series
861-01	114.0	121.7	UNF3/8″-24	Φ55.60	04-852-1	FL1370	5-438X          134.85*47.6	Benz 1218 /2318, Ford Cargo / F14000/ F-22000, VW 13.210                Iveco Eurocargo	1610
861-02	155.0	135.2	M12×1.25	Φ73.00	250-4-871-1		SPL250-1X         162.93*59.97	Mercedes Benz 1938 / 2638, Volvo	SPL250
861-03	103.4	93.7	Φ10.2	Φ49.30	3-4-3091-2	FL1088	5-263X          106.12*34.89	Ford F750,F11000         GM/M.B 809-912           Agrale	1410  1480
861-04	103.4	93.7	UNF3/8″-24	Φ49.30	3-4-3091-1		5-263X          106.12*34.89	Agrale 6.OTCA    Ford F-12000      M.B 709,812	1410  1480
861-05	100.0	113.5	Φ10.2	Φ55.70	4-4-6031-2	FL1085	5-155X               126.06*34.89	Ford Cargo 2217 / 2218, VW 14.170 / 16.170, Fiat	1550
861-06	100.0	113.5	UNF3/8″-24	Φ55.70	4-4-6031-1	FL1083	5-155X               126.06*34.89	M.B 712C,LO914      Ford F-12000    VW 12-140	1550
861-07	115.0	121.8	UNF3/8″-24	Φ55.60	5-4-7171-1	FL1086	5-438X              134.85*47.6	Fiat /GM/VW/M.BENZ         Ford CB1419	1610
861-08	113	125	4*M12	Φ85	1319645        1422430       385984		CR1402	Scania P/R/T  114/124-R/T113/T143/P500/R660 10 speed
861-09	110	115	UNF3/8″-24	Φ55.5	04-898-1	FL1372	SPL90-1X	Mercedes Benz L620/L1720,       AGRALE 13000 E
861-09B					90-4-11-1
861-11	96	113.5	UNF3/8″-24	Φ49.30	4-4-2051-1	FL1084	2-275X	CHEVROLET,GM 64 a 98,Perkins CH41,WH41,Silverado Brazilian pick up since 68 until 1995	1550
861-12	96	113.5	10.2	Φ49.30	4-4-2051-2		2-275X	GM,Perkins AC64-AC98,A68,D64-D98	1550
861-13	104.5	126.2	UNF3/8″-24	Φ63.5	4-4-6151-1		2-275X	Ford cargo 1617         VW 16.170	1550
861-14	104.5	113.5	10.2	Φ63.5	4-4-6151-2		2-275X		1550
861-15	119	113.5	UNF3/8″-24	Φ63.5	4-4-6181-2		2-275X	Ford Cargo 1117 / 1317 / 2217 / 1218 / 1418 / 2217 / F-11000
861-24	135	157.1	1/2-20UNF	62	6-4-7141-1	FL1091	5-515X	VW,Ford,MB	1710
861-27	105	106.3	10	49.2	3-4-11831-2	FL1090	5-160X	Mercedes Benz L709,L710   Agrale 1800MA,6000D	1410
861-28	101.5	126.2	M10x1	55.6	04-887-1		5-155X	Mercedes Benz 1214C / 1214K / 712C / 914C / LO914(94-99)	1510

Production Process

Brief  Introduction

Our  Photos

Our certificates:

Contact information:

A: Our main products are cardan shaft,universal coupling,universal joints and center support bearing.

Q2. What is the MOQ?

A: Usually our MOQ is 100pcs.

Q3. What is the delivery date?

A: It takes 5~7 days if there is stock, but takes 30 days if there is no stock.

Q4. What is the packet?

A: Neutral packing or customer made packing.

Q5. What is the payment method?

A: Our payment method:T/T, WEST UNION, PAYPAL.

Q6.How is the quality?

A: Strict control before shipment.

Q7.What are our major market?

A: Our main markets are middle east, Africa, southeast Asia and south America,European..
