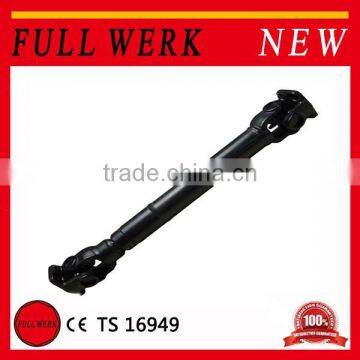

New product stainless Steel Driving Cardan Shafts for Automobile with TS/ISO certificate
Drive Shaft for Car,Drive axle for Auto Transmission shaft.Meet TS/ISO16949 quality certification.High intensity and rigidity ,competitive price, excellent performance and long using life.
| Material: | 1045 steel /C45 or as per customer's requirement |
| Manufacture method: | Forging or casting |
| Surface finish: | Heat treatment & rust prevention |
| LOGO on product & package: | Neutral with no LOGO or as per customer's requirement |
| Package: | PVC bag + Plywood box , or as per customer's requirement. |
1.OEM are welcome.
2.Your sample or drawing request are welcome.

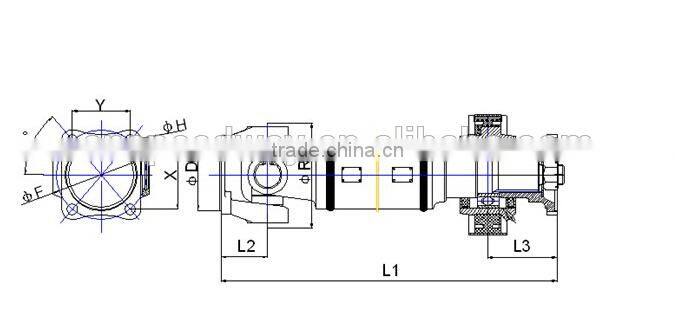

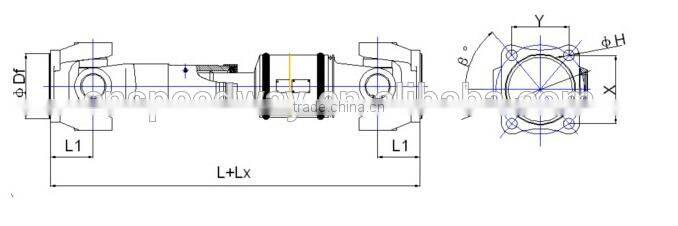

------Drawing of Drive Shaft as follows
| NO. | PART NO. | L+Lx | L1 | ΦDf | X-Y(ΦF-β) | ΦH | CROSS |
| 1 | Isuzu | 1123-46 | 46 | 65 | Φ85-36° | 10.2 | 29×50 |
| 2 | EQ140 | 1418+48 | 62 | 95 | Φ120-40° | 14.5 | 39×118 |
| 3 | EQ1060 | 1342-33 | 55 | 70 | Φ108-39° | 12.4 | 36×104 |
| 4 | XMQ67A20 | 1280+50 | 62 | 95 | Φ120-40° | 14.5 | 39×118 |
| 5 | CK23 | 1034+30 | 47 | 42 | 36-60 | 8.2 | 25×77 |
| 6 | CK20B | 766+37 | 37 | 34 | 50-25 | 8.2 | 20×55 |
| 7 | HFC1061 | 1326.2+40.8 | 55 | 80 | 58.778-80.902 | 12.2 | 33×93 |
| 8 | HFC1048 | 1134.2+40.8 | 55 | 80 | 58.778-80.902 | 12.2 | 33×93 |
| 9 | HFC1058K | 1797+40.8 | 55 | 80 | 58.778-80.902 | 12.2 | 33×93 |
| 10 | HFC6700 | 1219.2+40.8 | 55 | 80 | 58.778-80.902 | 12.2 | 33×93 |
| 11 | 2201000Z8-Nm | 1047.2+40.8 | 55 | 80 | 58.778-80.902 | 12.2 | 33×93 |
| 12 | 93R105-2201010 | 400+70 | 65 | 95 | Φ150-35° | 14.1 | 47×156 |
| NO. | PART NO. | L1 | L2 | L3 | ΦDf | X-Y(ΦF-β) | Φ H | CROSS |
| 1 | Isuzu | 690 | 88 | 46 | 65 | Φ85-36° | 10.2 | 29×50 |
| 2 | EQ140A | 1335 | 92 | 62 | 95 | Φ120-40° | 14.5 | 39×118 |
| 3 | EQ140 | 1205 | 92 | 62 | 95 | Φ120-40° | 14.5 | 39×118 |
| 4 | XMQ6720C | 666 | 92 | 62 | 95 | Φ120-40° | 14.5 | 39×118 |
| 5 | XMQ6720G | 969 | 92 | 62 | 95 | Φ120-40° | 14.5 | 39×118 |
| 6 | CA141 | 1010 | 85 | 62 | 95 | Φ120-40° | 14.5 | 39×118 |
| 7 | EQ1060 | 552 | 74 | 55 | 70 | Φ108-39° | 12.4 | 36×104 |
| 8 | HFC1061 | 1000 | 88 | 55 | 80 | 58.778-80.902 | 12.2 | 33×93 |
| 9 | HFC1048 | 688 | 88 | 55 | 80 | 58.778-80.902 | 12.2 | 33×93 |
| 10 | HFC1058K | 915 | 88 | 62 | 95 | Φ120-40° | 14.5 | 39×118 |
| 11 | HFC6700 | 900 | 88 | 55 | 80 | 58.778-80.902 | 12.2 | 29×50 |
| 12 | 2204000Z16-OM | 660 | 88 | 55 | 80 | 58.778-80.902 | 12.2 | 39×118 |
| 13 | 2204000Z16-OM | 558 | 88 | 55 | 80 | 58.778-80.902 | 12.2 | 39×118 |
| 14 | 2204000Z8-Nm | 572 | 88 | 55 | 80 | 58.778-80.902 | 12.2 | 39×118 |
Packing detail:
each product will be packed in individual box with label of all information on it, and boxes will be packed in carton, cartons will be packed in wooden cases. Heavy parts, light parts and fragile parts will be packed separately
Delivery Detail:
30-35 days for sea order based on containers.
Why Speedway?
1. Customized and designed according to the customers' sample, drawing or requirements.
2. Following the customers' requirements or as our usual packing.
3.Quick reply for Emails and messages within 24 hours
4. Customer-First, Price-Competitive, Quality- High, Services- Professional.
5. Flexible minimum order quantity
6. 20 years of rich bearing industry export experience
7. ISO & MPA & CE & SGS & BV certified
Q1. What is your company major products?
A: Our main products are cardan shaft,universal coupling,universal joints and center support bearing.
Q2. What is the MOQ?
A: Usually our MOQ is 100pcs.
Q3. What is the delivery date?
A: It takes 5~7 days if there is stock, but takes 30 days if there is no stock.
Q4. What is the packet?
A: Neutral packing or customer made packing.
Q5. What is the payment method?
A: Our payment method:T/T, WEST UNION, PAYPAL.
Q6.How is the quality?
A: Strict control before shipment.
Q7.What are our major market?
A: Our main markets are middle east, Africa, southeast Asia and south America,European..
