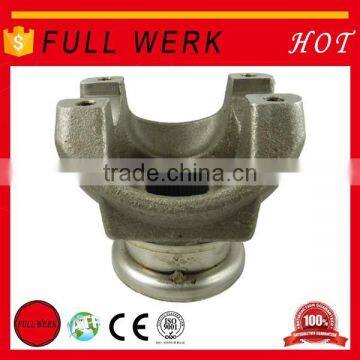

Forged steel drive shaft spicer 5 End yoke with Splined Holes for Benz
End yoke with splined holes (Driveshaft). Meet TS/ISO16949 quality certification.High intensity and rigidity ,competitive price, excellent performance and long using life.
| Material: | 1045 steel/C45 or as per customer's requirement |
| Manufacture method: | Forging or casting parts |
| Surface finish: | Heat treatment & rust prevention |
| LOGO on product & package: | Neutral with no LOGO or as per customer's requirement |
| Package: | PVC bag + Plywood box , or as per customer's requirement |
OEM are welcome.
Your sample or drawing request are welcome.

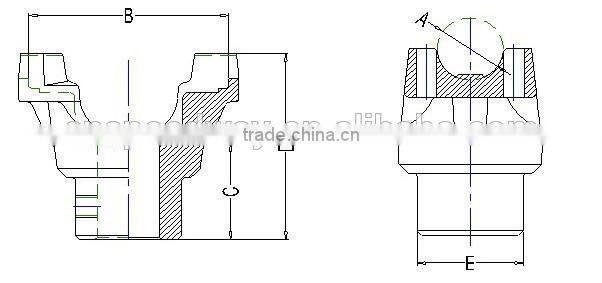

Drawing of End yoke with splined holes (Driveshaft)
| Spline | D | E | Joint Angle | Flinger | End yoke | ||
| Major Diameter | Minor Diameter | C Length | C/L to End of Hub | Seat Flinger | |||
| 1410 Series B=106.4 A=30.2 USE KIT 5-10X & 5-462X & 5-641X | |||||||
| USE Strap Assy 3-70-28X | |||||||
| 38.1 X 10 Spline | |||||||
| 38.15 | 34.77 | 51 | 98.5 | 58.8 | 30 | 230124 | 3-4-11831-1 |
| USE Strap Assy 3-70-89 | |||||||
| 38.1 X 10 Spline | |||||||
| 38.15 | 34.77 | 51 | 98.5 | 58.8 | 30 | 230124 | 3-4-11831-2 |
| 1480 Series B=106.4 A=34.8 USE KIT 5-188X & 5-263X & SPL55-1X | |||||||
| USE Strap Assy 3-70-38X | |||||||
| 38.1 X 10 Spline | |||||||
| 38.15 | 34.77 | 51 | 102.6 | 58.8 | 22 | 230124 | 3-4-3091-1 |
| USE Strap Assy 3-70-99 | |||||||
| 38.1 X 10 Spline | |||||||
| 38.15 | 34.77 | 51 | 102.6 | 58.8 | 22 | 230124 | 3-4-3091-2 |
| USE Strap Assy 3-70-88XM(M10X1) | |||||||
| 38.1 X 10 Spline | |||||||
| 38.15 | 34.77 | 51 | 102.6 | 58.8 | 22 | 230124 | 3-4-13231-2M |
| 1550 Series B=126.2 A=34.8 USE KIT 5-155X & 5-275X & SPL70-1X | |||||||
| USE Strap Assy 3-70-38X | |||||||
| 38.1 X 10 Spline | |||||||
| 38.15 | 34.77 | 51 | 96.2 | 58.8 | 22 | 230124 | 4-4-2051-1 |
| 44.4 X 10 Spline | |||||||
| 44.5 | 39.57 | 51.5 | 97 | 65.1 | 22 | 230151 | 4-4-6031-1 |
| USE Strap Assy 3-70-99 | |||||||
| 38.1 X 10 Spline | |||||||
| 38.15 | 34.77 | 51 | 96.2 | 58.8 | 22 | 230124 | 4-4-7901-2 |
| 44.4 X 10 Spline | |||||||
| 44.5 | 39.57 | 51.5 | 97 | 65.1 | 22 | 230151 | 4-4-6031-2 |
| USE Strap Assy 3-70-88XM(M10X1) | |||||||
| 38.1 X 10 Spline | |||||||
| 38.15 | 34.77 | 51 | 96.2 | 58.8 | 22 | 230124 | 4-4-7901-1M |
| 44.45 X 34 Involute Spline | |||||||
| 45.47 | 42.29 | 55.4 | 100.7 | 65.1 | 22 | 230151 | 04-887-1 |
| SPL90 Series B=125.7 A=41.2 USE KIT SPL90-1X & SPL100X | |||||||
| USE Strap Assy 90-70-28X | |||||||
| 44.45 X 34 Involute Spline | |||||||
| 45.47 | 42.29 | 57.4 | 103 | 65.1 | 15 | 230151 | 90-4-11-1 |
| USE Strap Assy 100-70-18XM(M10X1) | |||||||
| 45.47 | 42.29 | 57.4 | 103 | 65.1 | 15 | 230151 | 04-898-1 |
| 1610 Series B=135.0 A=47.7 USE KIT 5-438X & 5-674X | |||||||
| USE Strap Assy 5-70-28X | |||||||
| 44.45 X 34 Involute Spline | |||||||
| 45.47 | 42.29 | 57.4 | 104.6 | 65.1 | 22 | 230151 | 5-4-7171-1 |
| USE Strap Assy 5-70-38XM(M10X1) | |||||||
| 45.47 | 42.29 | 57.4 | 104.6 | 65.1 | 22 | 230151 | 04-852-1 |
| 1710 Series B=154.7 A=49.3 USE KIT 5-515X & 5-675X | |||||||
| USE Strap Assy 6.5-70-18X | |||||||
| 49.5 X 38 Involute Spline | |||||||
| 50.75 | 47.37 | 76.5 | 127 | 71.5 | 25 | 230166 | 6-4-7141-1 |
| 1810 Series B=191.8 A=49.3 USE KIT 5-510X & 5-676X | |||||||
| USE Strap Assy 6.5-70-18X | |||||||
| 59.9 X 16 Spline | |||||||
| 59.73 | 54.43 | 70.1 | 139.7 | 84.3 | 30 | 230746 | 6.5-4-1891-1 |
| SPL140 Series B=127.7 A=49.1 USE KIT SPL140-1X & SPL140X | |||||||
| USE Strap Assy 140-70-18X | |||||||
| 49.5 X 38 Involute Spline | |||||||
| 50.75 | 47.37 | 70.1 | 136.5 | 71.4 | 25 | 230166 | 140-4-1381-1 |
| SPL250 Series B=152.0 A=59.9 USE KIT SPL250-1X & SPL250X | |||||||
| USE Strap Assy 250-70-18X | |||||||
| 59.9 X 46 Involute Spline | |||||||
| 60.71 | 57.53 | 70.2 | 146 | 84.3 | 25 | 230746 | 250-4-871-1 |
| T60 Series (Scania) B=152.5 A=44.0 USE KIT 5-12276X | |||||||
| 54.8 X 22 Involute Spline | |||||||
| 54.84 | 51.33 | 58 | 112.3 | 80 | 22 | 08-455 | 04-178C |
| T70 Series (Scania) B=168.0 A=50.0 USE KIT 5-12278X | |||||||
| 54.8 X 22 Involute Spline | |||||||
| 54.84 | 51.33 | 65 | 121.3 | - | - | - | 04-360C |
Specification
1.Drive Shafts Warranty: It depends
2.Customizations: Shafts Colors,shafts size,shafts drawings or sample
3.Shafts OEM NO.: spicer 5
Advantage
1. High intensity and rigidity, corrosion and aging resistance, stable function, safety and long durability
2. Advanced equipments, professional &experienced designers
3. Fine quality with competitive price and timely delivery
4. Suit for various kinds of vehicles use
5. Perfect after - sale service system
Automotive Drive Shafts Material
1.China :45# steel
2. US:AISI/SAE 1045
3.Germany,France/Italy:C45
Why Speedway?
1. Customized and designed according to the customers' sample, drawing or requirements.
2. Following the customers' requirements or as our usual packing.
3.Quick reply for Emails and messages within 24 hours
4. Customer-First, Price-Competitive, Quality- High, Services- Professional.
5. Flexible minimum order quantity
6. 20 years of rich bearing industry export experience
7. ISO & MPA & CE & SGS & BV certified
Packing detail:
each product will be packed in individual box with label of all information on it, and boxes will be packed in carton, cartons will be packed in wooden cases. Heavy parts, light parts and fragile parts will be packed separately
Delivery Detail:
30-35 days for sea order based on containers.
Q1: Can I buy one of your products for Sample?
A: Yes, we can provide you sample, and will send you by DHL or according to your requirements, or find the cheapest forwards for you.
Q2: How could I know if the product suitable for my machine or not?
A: Pls tell us which product you are interested in, We will give you the main sizes, or you can provide your drawings or samples, we will make according to your drawings.
Q3: I want to find a supplier for my new products, can you help me ?
A: Yes, kindly offer us your drawings or samples. We will quote you the cost.
Q4: How long for your to make a new products?
A: Usually 20-35days for the drawing ones and 35-60 days for the sampled ones.
Q5: What is the payment method?
A: Our payment method: T/T, WEST UNION, PAYPAL.
Q6: How is the quality?
A: Strict control before shipment.
Q7: What are our major market?
A: Our main markets are Middle east, Africa, Southeast Asia and South America, European…
