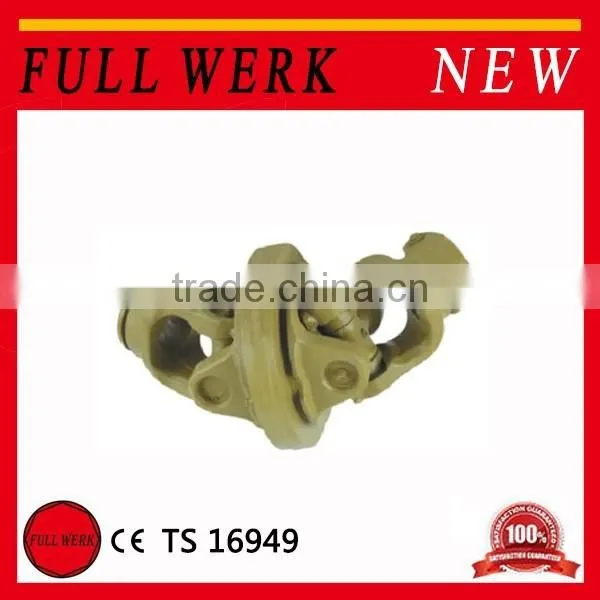

High quality double cardan joint pto shaft friction clutch
Specifications
1. High qulaity double cardan joint, drive shaft parts,cardan pto drive shaft,pto shaft friction clutch
2. All parts are forged.
3. Sample welcome
4.LOW MOQ
5. Warranty:1 Years
6. Sample: available
7. OEM: accepted
Application:
1. For Tractor, Rotary Cultivator, Planter Machine, Farm and etc.
2. Wide Angle Joint, Shear Bolt Torque Limiter, Friction Torque Limiter.
3. Cross Journal Size: Series 1# to Series 8#
4. Splined Yokes: Push Pin, Ball Attachment, Collar Yoke
5. CE Certificate.
Technical data:

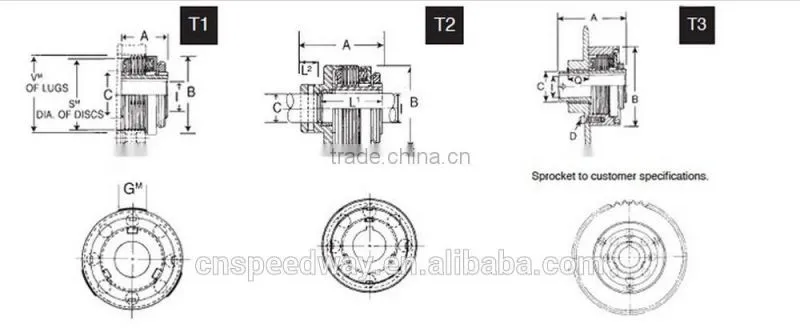

Agriculture PTO Drive Shaft Friction torque limiters clutche
| TL1 Torque Limiter Clutch / Brake Chart A | ||||||||
| Model | Torque Adj. Range(lb. ft.) | Std. Bores(+.001) | Std. Bores(-.001) | Keyway | A | B | C | Q |
| TL1-0020 | 0-10 | 1/2 | 5/8 | 1/8 x 1/16 | 1.250 | 2.188 | 1.438 | 0.188 |
| TL1-0021 | 10-25 | 3/4 | 7/8 | 3/16 x 3/32 | 1.625 | 2.188 | 1.250 | 0.125 |
| TL1-0022 | 25-50 | 1 | 1 1/8 | 3/16 x 3/32 | 2.125 | 2.625 | 1.594 | 0.125 |
| TL1-0023 | 50-100 | 1 1/4 | 1 3/8 | 1/4 x 1/8 | 2.125 | 3.500 | 1.063 | 0.188 |
| TL1-0024 | 100-175 | 1 1/2 | 1 5/8 | 5/16 x 5/32 | 2.125 | 4.000 | 2.344 | 0.188 |
| TL1-0025 | 175-300 | 1 3/4 | 1 7/8 | 3/8 x 3/16 | 2.750 | 4.500 | 2.688 | 0.188 |
| TL1-0026 | 300-500 | 2 | 2 1/4 | 7/16 x 7/32 | 3.250 | 5.500 | 3.250 | 0.188 |
| TL1-0027 | 500-1000 | 2 1/2 | 2 3/4 | 9/16 x 9/32 | 4.000 | 7.000 | 5.125 | 0.063 |
| TL1-0028 | 1000-1500 | 2 3/4 | 3 | 9/16 x 9/32 | 4.625 | 8.000 | 5.500 | 0.000 |
| TL1 Torque Limiter Clutch / Brake Chart B | |||||||
| Model | Driving Lugs GM | Driving Lug Width GM | SM | VM | Cup I.D. | Cup O.D. | Cup Screws Bolt Circle |
| TL1-0020 | 3 | .615 | 1.984 | 2.188 | 2.017 - 2.015 | 3.125 - 3.123 | 3 1/4 x 2 9/16 |
| TL1-0021 | 3 | .615 | 1.984 | 2.188 | 2.017 - 2.015 | 3.125 - 2.123 | 3 1/4 x 2 9/16 |
| TL1-0022 | 3 | .740 | 2.484 | 2.750 | 2.517 - 2.515 | 3.625 - 3.623 | 3 1/4 x 3 1/16 |
| TL1-0023 | 3 | .990 | 3.234 | 3.563 | 3.627 - 3.625 | 4.625 - 4.623 | 3 5/16 x 4 7/16 |
| TL1-0024 | 3 | .990 | 3.734 | 4.063 | 3.767 - 3.765 | 5.125 - 5.123 | 3 5/16 x 4 7/16 |
| TL1-0025 | 8 | .740 | 4.484 | 4.875 | 4.517 - 4.515 | 6.125 - 6.123 | 4 3/8 x 5/16 |
| TL1-0026 | 12 | .615 | 5.484 | 5.875 | 5.517 - 5.515 | 7.125 - 7.120 | 6 3/8 x 6 1/4 |
| TL1-0027 | 12 | .740 | 6.984 | 7.500 | 7.017 - 7.015 | 9.125 - 9.120 | 6 1/2 x 8 1/16 |
| TL1-0028 | 12 | .740 | 7.984 | 8.500 | 8.017 - 8.015 | 10.125 - 10.120 | 6 1/2 x 9 1/16 |
| TL2 Torque Limiter Clutch / Brake Chart A | ||||||||||
| Model | Torque Adj. Range(lb. ft.) | Bores(+.001) | Bores(-.001) | Keyway | A | B | Hub Bore Min. C | Hub Bore Max. C | L1 | L2 |
| TL2-0020 | 0-10 | 1/2 | 5/8 | 1/8 x 1/16 | 2.125 | 2.188 | .375 | .750 | 1.625 | .438 |
| TL2-0021 | 10-25 | 3/4 | 7/8 | 3/16 x 3/32 | 2.625 | 2.188 | .500 | 1.000 | 11.313 | .563 |
| TL2-0022 | 25-50 | 1 | 1 1/8 | 3/16 x 1/16 | 3.375 | 2.781 | .625 | 1.250 | 2.688 | .563 |
| TL2-0023 | 50-100 | 1 1/4 | 1 3/8 | 1/4 x 1/8 | 3.500 | 3.563 | .875 | 1.500 | 2.688 | .688 |
| TL2-0024 | 100-175 | 1 1/2 | 1 5/8 | 5/16 x 5/32 | 3.750 | 4.063 | 1.000 | 1.750 | 2.813 | .813 |
| TL2-0025 | 175-300 | 1 3/4 | 1 7/8 | 3/8 x 3/16 | 4.625 | 4.875 | 1.250 | 2.000 | 3.563 | .938 |
| TL2-0026 | 300-500 | 2 | 2 1/4 | 7/16 x 7/32 | 5.625 | 5.875 | 1.750 | 2.500 | 4.188 | 1.375 |
| TL2-0027 | 500-1000 | 2 1/2 | 2 3/4 | 9/16 x 9/32 | 7.500 | 7.500 | 2.000 | 3.250 | 5.375 | 2.000 |
| TL2-0028 | 1000-1500 | 2 3/4 | 3 | 9/16 x 9/32 | 8.500 | 8.500 | 2.000 | 3.500 | 6.125 | 2.250 |
| TL3 Torque Limiter Clutch / Brake Chart A | ||||||||
| Model | Torque Adj. Range(lb. ft.) | Std. Bores(+.001) | Body Bores(-.001) | Keyway Bores | A | B | C | Screws |
| TL3-0020 | 0-10 | 1/2 | 5/8 | 1/8 x 1/16 | 2.438 | 3.125 | 1.000 | 3 |
| TL3-0021 | 10-25 | 3/4 | 7/8 | 3/16 x 3/32 | 3.000 | 3.125 | 1.250 | 3 |
| TL3-0022 | 25-50 | 1 | 1 1/8 | 3/16 x 3/32 | 4.000 | 3.625 | 1.625 | 3 |
| TL3-0023 | 50-100 | 1 1/4 | 1 3/8 | 1/4 x 1/8 | 4.000 | 4.625 | 1.750 | 3 |
| TL3-0024 | 100-175 | 1 1/2 | 1 5/8 | 5/16 x 5/32 | 4.125 | 5.250 | 2.000 | 3 |
| TL3-0025 | 175-300 | 1 3/4 | 1 7/8 | 3/8 x 3/16 | 4.625 | 6.500 | 2.313 | 4 |
| TL3-0026 | 300-500 | 2 | 2 1/4 | 7/16 x 7/32 | 5.750 | 7.125 | 2.813 | 6 |
| TL3-0027 | 500-1000 | 2 1/2 | 2 3/4 | 9/16 x 9/32 | 7.125 | 9.125 | 4.000 | 6 |
| TL3-0028 | 1000-1500 | 2 3/4 | 3 | 9/16 x 9/32 | 7.500 | 10.125 | 4.500 | 6 |
| TL3 Torque Limiter Clutch / Brake Chart B | ||||||
| Model | Screw Size | B.C. D | Max. Q | Sprocket Min. Pitch Dia. | Cup Locating Dia. I.D. J | Dim. Cup-Body Shoulder S |
| TL3-0020 | 1/4 | 2 9/16 | .750 | 4.000 | 2.017 - 2.015 | 0.094 |
| TL3-0021 | 1/4 | 2 9/16 | 1.000 | 4.250 | 2.017 - 2.015 | 0.063 |
| TL3-0022 | 1/4 | 2 1/16 | 1.250 | 4.750 | 2.517 - 2.515 | 0.063 |
| TL3-0023 | 1/4 | 3 5/16 | 1.250 | 5.625 | 3.267 - 3.265 | 0.063 |
| TL3-0024 | 1/4 | 4 7/16 | 1.250 | 6.250 | 3.767 - 3.765 | 0.063 |
| TL3-0025 | 3/8 | 5 1/2 | 1.250 | 7.500 | 4.517 - 4.515 | 0.063 |
| TL3-0026 | 3/8 | 6 1/4 | 1.750 | 8.500 | 5.517 - 5.515 | 0.125 |
| TL3-0027 | 1/2 | 8 1/16 | 2.000 | 10.000 | 7.017 - 7.015 | 0.063 |
| TL3-0028 | 1/2 | 9 1/16 | 2.000 | 11.250 | 8.015 - 8.015 | 0.063 |
Friction torque limiters clutche
Cross journal specifications:
| Item | Cross journal size | 540dak-rpm | 1000dak-rpm | |||
| Series 1 | 22mm | 54mm | 12KW | 16HP | 18KW | 25HP |
| Series 2 | 23.8mm | 61.3mm | 15KW | 21HP | 23KW | 31HP |
| Series 3 | 27mm | 70mm | 26KW | 35HP | 40KW | 55HP |
| Series 4 | 27mm | 74.6mm | 26KW | 35HP | 40KW | 55HP |
| Series 5 | 30.2mm | 80mm | 35KW | 47HP | 54KW | 74HP |
| Series 6 | 30.2mm | 92mm | 47KW | 64HP | 74KW | 100HP |
| Series 7 | 30.2mm | 106.5mm | 55KW | 75HP | 87KW | 18HP |
| Series 8 | 35mm | 106.5mm | 70KW | 95HP | 110KW | 150HP |
| Series 38 | 38mm | 102mm | 70KW | 95HP | 110KW | 150HP |
