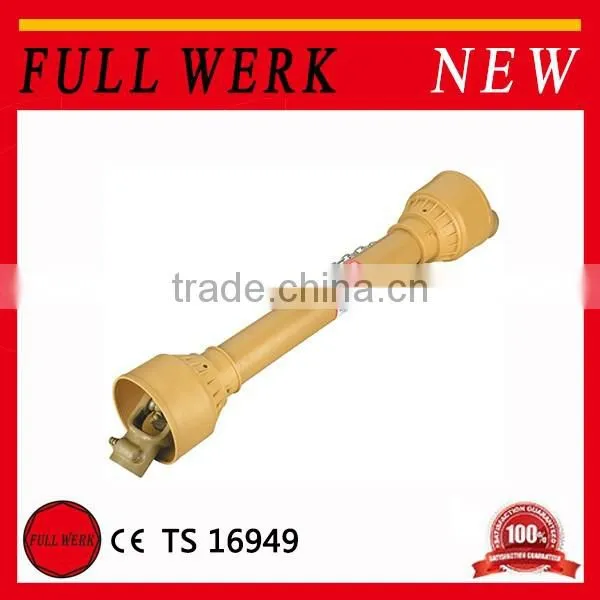

AQ110 PTO drive shaft of farm tractor for sale philippines
Specifications
Part Number: AQ110
Series : 1
Power Rating: 16hp / 12kw
Closed Length: 1000mm between UJ centres, 1200mm Overall
Open Length: 1600mm between UJ centres, 1800mm Overall
PTO shaft structure:
Technical data:
Item | Cross journal size | 540dak-rpm | 1000dak-rpm | |||
Series 1 | 22mm | 54mm | 12KW | 16HP | 18KW | 25HP |
Series 2 | 23.8mm | 61.3mm | 15KW | 21HP | 23KW | 31HP |
Series 3 | 27mm | 70mm | 26KW | 35HP | 40KW | 55HP |
Series 4 | 27mm | 74.6mm | 26KW | 35HP | 40KW | 55HP |
Series 5 | 30.2mm | 80mm | 35KW | 47HP | 54KW | 74HP |
Series 6 | 30.2mm | 92mm | 47KW | 64HP | 74KW | 100HP |
Series 7 | 30.2mm | 106.5mm | 55KW | 75HP | 87KW | 18HP |
Series 8 | 35mm | 106.5mm | 70KW | 95HP | 110KW | 150HP |
Series38 | 38mm | 102mm | 70KW | 95HP | 110KW | 150HP |
Product advantages:
1.All parts are forged.
2. Use vertical broacher machine,this will produce good centric degree.
3. Plastic cover can work normally between -35 °C to 80 °C .
4. All torque limiter are torque set ready before transportation.
5. The highest power transmission can reach 95HP (series 8).
PTO shaft
Operating angle5 Degree
540 RPM 12kW. 210Nm
1000 RPM 18kW. 172Nm
Life span 1000 hours
Profile Tube inner(mm) 26, 5 x 3, 5
Profile Tube outer (mm) 32, 5 x 2, 6
Max. Static Torque (Nm) 320
T1: Operating angle 5° 540 RPM 12kW. 210Nm 1000 RPM18kW.172Nm
Profile Tube inner (mm) 26, 5 x 3, 5 Profile Tube outer (mm) 32, 5 x 2, 6
T2: Operating angle 5° 540 RPM 15kW. 270Nm 1000RPM23kW.220Nm
Profile Tube inner (mm) 29, 0 x 4, 0 Profile Tube outer (mm) 36, 0 x 3, 2
T3: Operating angle 5° 540 RPM 26kW. 460N 1000 RPM 40kW. 380Nm
Profile Tube inner (mm) 36, 0 x 4, 5 Profile Tube outer (mm) 43, 5 x 3, 4
T4: Operating angle 5° 540 RPM 35kW. 620Nm 1000 RPM 54kW. 520Nm
Profile Tube inner (mm) 36, 0 x 4, 5 Profile Tube outer (mm) 43, 5 x 3, 4
T5: Operating angle 5° 540 RPM 35kW. 620Nm 1000 RPM 54kW. 520Nm
Profile Tube inner (mm) 45, 0 x 4, 0 Profile Tube outer (mm) 51, 6 x 3, 0
T6: Operating angle 5° 540 RPM 47kW. 830Nm 1000 RPM 74kW. 710Nm
Profile Tube inner (mm) 45, 0 x 4, 0 Profile Tube outer (mm) 54, 0 x 4, 0
Production process:
Why Speedway?
1. Customized and designed according to the customers' sample, drawing or requirements.
2. Following the customers' requirements or as our usual packing.
3. Customer-First, Price-Competitive, Quality- High, Services- Professional.
4. Flexible minimum order quantity.
For more information about us, contact us right away.
Q1: Can I buy one of your products for Sample?
A: Yes, we can provide you sample, and will send you by DHL or according to your requirements, or find the cheapest forwards for you.
Q2: How could I know if the product suitable for my machine or not?
A: Pls tell us which product you are interested in, We will give you the main sizes, or you can provide your drawings or samples, we will make according to your drawings.
Q3: I want to find a supplier for my new products, can you help me ?
A: Yes, kindly offer us your drawings or samples. We will quote you the cost.
Q4: How long for your to make a new products?
A: Usually 20-35days for the drawing ones and 35-60 days for the sampled ones.
Q5: What is the payment method?
A: Our payment method: T/T, WEST UNION, PAYPAL.
Q6: How is the quality?
A: Strict control before shipment.
Q7: What are our major market?
A: Our main markets are Middle east, Africa, Southeast Asia and South America, European…
