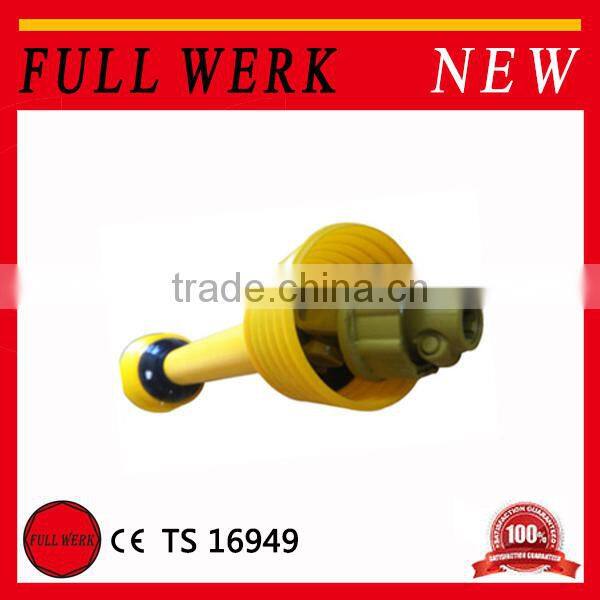

Pto Cardan Shafts Transmission pto shaft tube
Specification OF PTO Drive Shaft ---FULL WERK:
We developed and produced many tractor spare parts for Japanese Tractors.
The parts for example: Tyres, rim Jante, Kit coupling KB-TX 3 point linkage. Exhaust pipe Steering wheel. Kit coupling YM F14/F15 ect.
Most of the spare parts are with stock. If you are interested in, please feel easy to contact me.
PTO SHAFT DETAILS
Minimal closed length (measured between end points): 720mm
Minimal closed length (measured between crosses): 500mm
Miximum legth during operation (measured between end points): 870mm
Miximum legth during operation (measured between crosses): 650mm
Maximum transmittable horse power:
At 540RPM 16HP
At 1000RPM 24HP
Tube type: Triangular tube type
Dimension of the universal joint: 22x54
Weight: 5, 6kg
Other relevant parts for cars or machinery we have made in our workshop are as follows:
Drive shaft parts and assemblies,
Universal joint parts and assemblies,
PTO drive shafts,
Spline shafts,
Slip yokes,
Weld yokes,
Flange yokes,
Steering columns,
Connecting rods,
etc.
Pto Drive Shaft Item:
| Item | Cross journal size | 540dak-rpm | 1000dak-rpm | |||
| Series 1 | 22mm | 54mm | 12KW | 16HP | 18KW | 25HP |
| Series 2 | 23.8mm | 61.3mm | 15KW | 21HP | 23KW | 31HP |
| Series 3 | 27mm | 70mm | 26KW | 35HP | 40KW | 55HP |
| Series 4 | 27mm | 74.6mm | 26KW | 35HP | 40KW | 55HP |
| Series 5 | 30.2mm | 80mm | 35KW | 47HP | 54KW | 74HP |
| Series 6 | 30.2mm | 92mm | 47KW | 64HP | 74KW | 100HP |
| Series 7 | 30.2mm | 106.5mm | 55KW | 75HP | 87KW | 18HP |
| Series 8 | 35mm | 106.5mm |
70KW | 95HP | 110KW | 150HP |
| Series 38 | 38mm | 102mm | 70KW | 95HP | 110KW | 150HP |

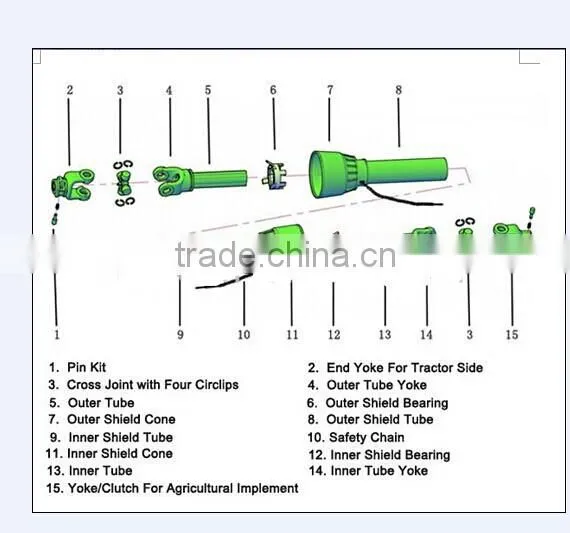

PTO shaft structure:
Packing detail:
each product will be packed in individual box with label of all information on it, and boxes will be packed in carton, cartons will be packed in wooden cases. Heavy parts, light parts and fragile parts will be packed separately
Delivery Detail:
30-35 days for sea order based on containers.
The products are manufactured to the same high standards as Original Equipment parts. It works reliable and stable without any shake and abnormal noise. Meet ISO/TS 16949 quality certification. Higher torque capacity, extended lube interval, and industry-leading performance.
We can develop the products according to your samples and drawings in strict accordance with the requirements of production. We're committed to continually advancing our technology, so that you can enjoy lower operating costs, better performance, and longer life.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.
Export Support
We will assist you in the shipment , insurance and Clearance documents such as Form A, CO, Embassy Certify, Inspection Certificate,etc.
Hangzhou Speedway Import and Export Co.,Ltd, specialized in all kinds of Center bearings , Universal joints , Transmission shaft ,Drive shaft,etc., for automotive and industrial area. We mainly export our products to Norht America , South America , Europe , Southeast Asia, the Middle East, Africa. And these products are widely used for Ford, Iveco, Mercedes-Benz, Fiat, BMW, Renault, Volvo, Scania, Man , Hino, Toyota, Mitsubishi, Isuzu, Nissan, Hyundai and so on kinds of brands light and heavy Vehicles , Trucks , Tractors , Construction machinery , Agriculture machinery etc.
Q1: Can I buy one of your products for Sample?
A: Yes, we can provide you sample, and will send you by DHL or according to your requirements, or find the cheapest forwards for you.
Q2: How could I know if the product suitable for my machine or not?
A: Pls tell us which product you are interested in, We will give you the main sizes, or you can provide your drawings or samples, we will make according to your drawings.
Q3: I want to find a supplier for my new products, can you help me ?
A: Yes, kindly offer us your drawings or samples. We will quote you the cost.
Q4: How long for your to make a new products?
A: Usually 20-35days for the drawing ones and 35-60 days for the sampled ones.
Q5: What is the payment method?
A: Our payment method: T/T, WEST UNION, PAYPAL.
Q6: How is the quality?
A: Strict control before shipment.
Q7: What are our major market?
A: Our main markets are Middle east, Africa, Southeast Asia and South America, European…
