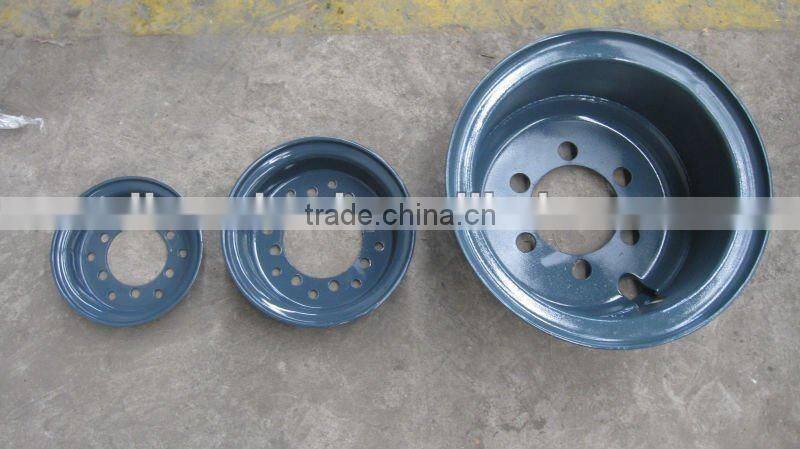

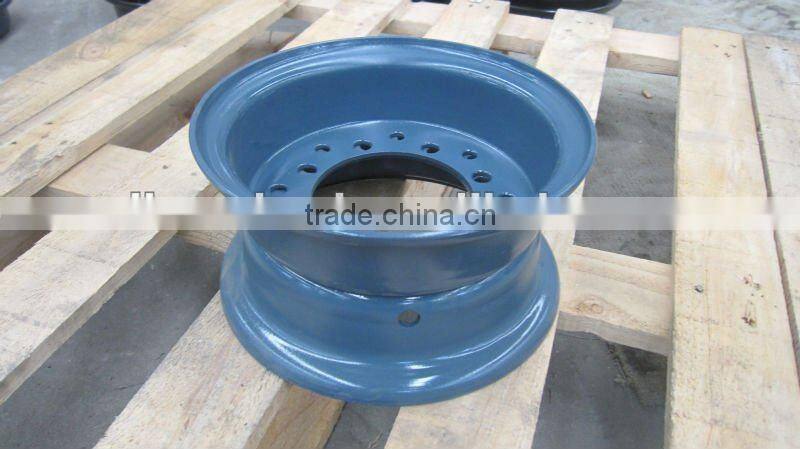

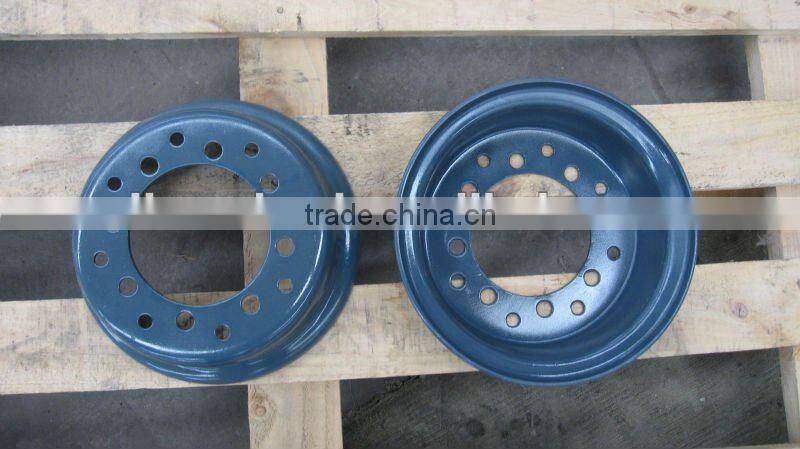

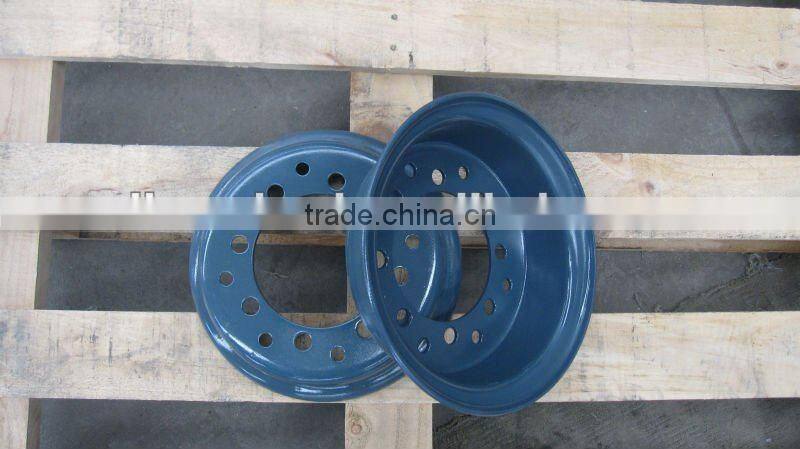

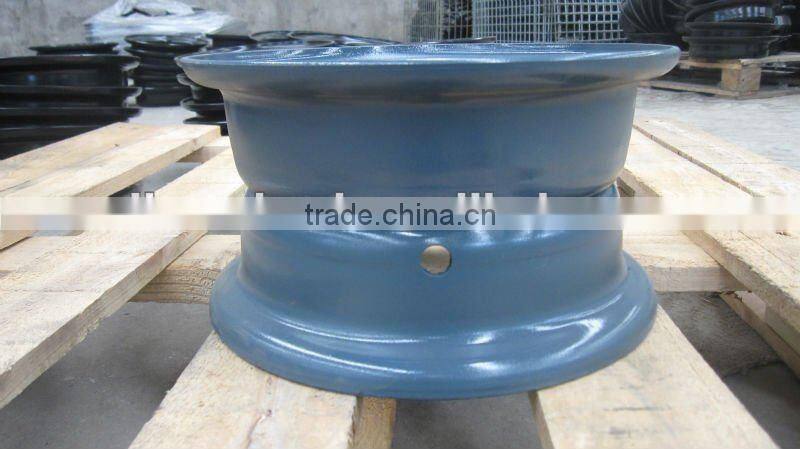

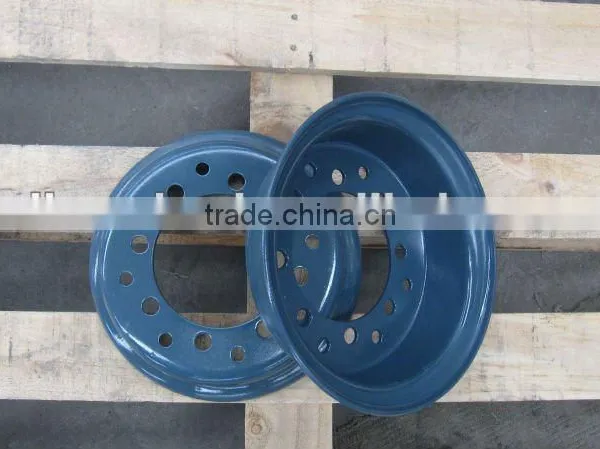

forklift part split rim wheel 3.00D-8

Specifications

good quality and competitive price
minimal abnormal abrasion
high stability
have a good appearance

Specifications of Split wheel
	Wheel	Marked	Marked	B.C.D.	Bolt			Assembly hole			Thickness	REC.
No.	Size	Width	Size	(mm)	No.	Dia.(mm)	P.C.D.(mm)	No.	Dia.(mm)	P.C.D.(mm)	(mm)	Type
1	2.50C-8	63.5	202.4	70	4	10.5	110	4	10.5	110	3	4.00-8
2	3.00D-8	76	202.4	106	6	14.5	148	6	10.5	156	4	4.00-8
3		76	202.4	100	6	15	125	6	13	150	5	4.00-8
4		76	202.4	110	6	14.5	148	6	11	165	5	5.00-8
5	3.50D-8	89	202.4	100	6	15	125	6	12	160	5	5.00-8
6	3.50W-9	90	230	130	6	16.8	166	6	12.5	166	6
7	3.70R-9	94	228	140	6	17	175	6	15	175	5



we are a manufacturer in china,and specilized in making steel wheels tubeless and tube ones for light or heavy trucks,forklifts and agricultural trucks with more than 200 sizes as below:

    3.00-8 , 3.50-9 , 3.70R-9 , 4.00E-9 , 4.33R-8 , 5.00F-10 , 5.00S-12 , 6050F-10 , 8.00G-12          (SPLIT  WHEEL);                       6.00GS-15, 6.50-15 ,7.00T-15 , 7.00T-16 , 8.00V-15 , 7.00T-20 , 8.50-20 , 9.00-15 , 10.00-20 , 11.00-15 , 11.00-20  (FORKLIFT    TRUCK WHEEL);



Now,we have the production capacity of 3,000 sets per day.we can also offer up-to-you designs and develop specific wheels for you.



Just tell us your requirement,and we would like to give you our best quotation and service.
