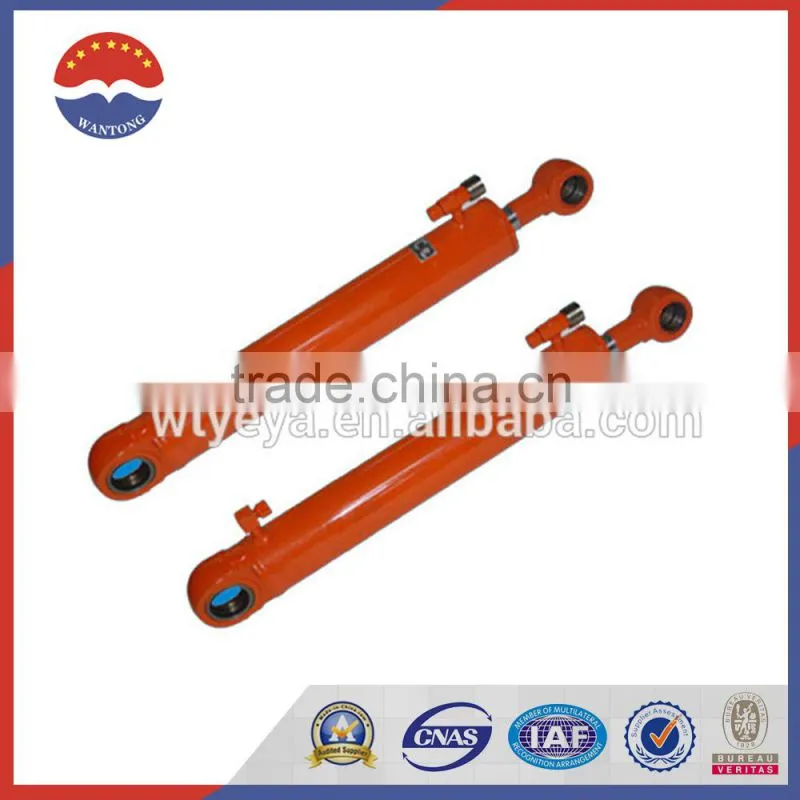

small steel lift ram hydrualic cylinder
Product Description:
Tube Seal | O-Ring with anti-exthusion backup washer |
Tie Rod | High tensile steel |
Piston Rod | chrome plated C45 steel |
Rod Clevis | Ductile iron |
End Caps | High Grade Iron/ Casting Seel |
Piston | High grade ductile iron, precision machined |
Piston Wear Ring | Glass filled nylon Wear Ring/ Urethane Seal |
Rod Wiper | Metal encased nitrile rubber/Polyurethane Snap In |
Rod Seal | Urethane/Customers Specified |
Ports | Nptf for 2T, SAE ORB 3T |
Paint Color | Seni-gloss black, Grey, Red or other customized colors |
Mounting Style | Pins And Clips Included/ Pin eye mounting on both ends/ Cross Tube |
Why choose us?
1.Above 30 years experiences professional In hydraulic Industry.
2.Factory Manufacturing Enterprise Provide with you Competitive Price and superior quality.
3. Have stable supply chain which can gurante our product quality and prompt delivery.
4.All our products provide at least 1 years warranty guarantee.
5.Trial Order small quantity for both retail and wholesale are accepted.
6. Fully equipped with advanced machines and experienced workers.
7.Meeting ISO9001 -2008 International standard and Passed SGS&BV certification.
8.Sincere Service!(Effective pre-sale communication+Good after sale service
DIMENSION:
2T series
| Dimension | (Unit: inch) | ||||||||||||||
| Non-ASAE Models | |||||||||||||||
| Bore | A | B | C | D | E | F | G | H | J | K | P | Q | Port | Tie Rod | Rod Thread |
| 2" | 10 1/4" | 2 3/4" | 1 1/64" | 2.0" | 2.0" | 2 1/16" | 4 3/16" | 1 1/8 | 2 1/2 | 2 1/2 | 1 1/8 | 2 1/8 | 3/8"NPTF | 3/8" | 1 1/8-12UNF |
| 2.5" | 10 1/4" | 3 1/8" | 1 1/64" | 2.0" | 2.0" | 2 1/16 " | 4 3/16" | 1 1/8 | 2 1/2 | 2 1/2 | 1 1/8 | 2 1/8 | 3/8"NPTF | 3/8" | 1 1/8-12UNF |
| 3" | 10 1/4" | 3 3/4" | 1 1/64" | 2.0" | 2.0" | 2 1/16 | 3 15/16" | 1 1/8 | 2 5/8 | 2 5/8 | 1 1/8 | 2 1/8 | 1/2"NPTF | 1/2" | 1 1/4-12UNF |
| 3.5" | 10 1/4" | 4 1/2" | 1 1/64" | 2.0" | 2 1/4" | 2 1/16 | 3 15/16" | 1 1/8 | 2 5/8 | 2 5/8 | 1 1/8 | 2 1/8 | 1/2"NPTF | 5/8" | 1 1/4-12UNF |
| 4" | 10 1/4" | 5 1/8" | 1 1/64" | 2 1/4" | 2 1/4" | 2 1/16" | 3 7/8 " | 1 1/8 | 2 5/8 | 2 5/8 | 1 1/8 | 2 1/8 | 1/2"NPTF | 5/8" | 1 1/4-12UNF |
| 4.5" | 10 1/4" | 5 1/4" | 1 1/64" | 2 1/4" | 2 5/8" | 2 1/16" | 3 7/8" | 1 1/4 | 3 | 3 1/2 | 1 1/4 | 2 1/8 | 1/2"NPTF | 5/8" | 1 1/4-12UNF |
| 5" | 12 1/4" | 6.0" | 1 1/64" | 2 7/8" | 2 5/8" | 2 1/4" | 4 11/16" | 1 1/4 | 3 | 3 1/2 | 1 1/4 | 2 1/8 | 1/2"NPTF | 3/4" | 1 1/4-12UNF |
| ASAE Models (The dimensions listed below are different from non-ASAE cylinders) | ||||||
| Bore | A | A | C | C | G | G |
| (ASAE-8) | (ASAE-16) | (ASAE-8) | (ASAE-16) | (ASAE-8) | (ASAE-16) | |
| 2" | 12 1/4" | 15 1/2" | 1 1/64" | 1 17/64" | 6 3/16" | 9 7/16" |
| 2.5" | 12 1/4" | 15 1/2" | 1 1/64" | 1 17/64" | 6 3/16" | 9 7/16" |
| 3" | 12 1/4" | 15 1/2" | 1 1/64" | 1 17/64" | 5 15/16" | 9 3/16" |
| 3.5" | 12 1/4" | 15 1/2" | 1 1/64" | 1 17/64" | 5 15/16" | 9 3/16" |
| 4" | 12 1/4" | 15 1/2" | 1 1/64" | 1 17/64" | 5 7/8" | 9 1/8" |
| 4.5" | 12 1/4" | 15 1/2" | 1 1/64" | 1 17/64" | 5 5/8" | 8 7/8" |
| 5" | 12 1/4" | 15 1/2" | 1 1/64" | 1 17/64" | 4 11/16" | 7 15/16" |
OUR HISTORY:
We are established in 1985year,our company holds the business tenet of 'talents as motivation ,technology as basis,management for benefits and quality for market',with the quality principle of 'satisfying and exceeding clinets' requirements'and enterprise spirit of 'working hard,competition,unity&corporation,dedication'.with abundant production experience,advanced business tenet,standard management system and high technology,our company is a specializing designer and manufacturer of hydraulic power unit and hydraulic pressure cyliner of varieties of specifications.
Welcome you visit our factory,we can design the product based on your drawing.
Or call me;008615966901802
below is our factory pic.for your ref:
FOR USING:
OUR WORKING ROOM:
OUR FACTORY OUTLOOK:
OUR SHOW ROOM:
Delivery pic:
