Product Description:
Structure: hydraulic cylinder
Power : Hydraulic
Body material : Steel
Place of Origin : Shandong , China
Brand Name : Wantong
Non-standard and OEM available
Material:
Gland--HIgh Grade Ductile Iron
Piston--High Grade Ductile IRON
Tube--Cold drawn Honed Tubing
Rod--Chrome Plated C1045 Steel
End Caps--C1045 Steel
Gland Seals--Polyurethane U-c
Rod Wiper--Urethane Snap In
Piston Seal--Urethane Seal Rubber
Mounting-Cross Tube
Paint colour:Black ,Grey,Safety Red
100 ton hydraulic cylinder manufacturer, high pressure and high quality, OEM provided
Application:
Our hydraulic cylinder is widely used in snowplow,dump truck,car lift,oil press,etc.
Relevant industries: metallurgy, engineering, vehicles, plastic machinery,coal and other fields.
Quality grantee and service:
We garantee to provide high grade hydraulic cylinder, and the price is also competitive !
With professional and experienced engineers,rigid managements and good after-sale services, our company has established a long term business cooperation with customers around the world. More than 90 percent of our products are exporter to other countries each years.
| Model No. | Bore Size | Stroke | Rod | Pin to Pin Dimension | Column Load | Estimate Ship Wt. (lbs.) | |
| Retracted | Extended | ||||||
| 2T2008A | 2.0" | 8" | 1 1/8" | 20 1/4" | 28 1/4" | Full PSI | 19.1 |
| 2T2508A | 2.5" | 8" | 1 1/8" | 20 1/4" | 28 1/4" | Full PSI | 22.5 |
| 2T3008A | 3.0" | 8" | 1 1/4" | 20 1/4" | 28 1/4" | Full PSI | 26.7 |
| 2T3016A | 3.0" | 16" | 1 3/8" | 31 1/2" | 47 1/2" | Full PSI | 24.5 |
| 2T3508A | 3.5" | 8" | 1 1/4" | 20 1/4" | 28 1/4" | Full PSI | 36 |
| 2T3516A | 3.5" | 16" | 1 1/2" | 31 1/2" | 47 1/2" | Full PSI | 46.1 |
| 2T4008A | 4.0" | 8" | 1 1/2" | 20 1/4" | 28 1/4" | Full PSI | 38 |
| 2T4016A | 4.0" | 16" | 1 3/4" | 31 1/2" | 47 1/2" | Full PSI | 55.2 |
| 2T5008A | 5.0" | 8" | 1 1/2" | 22 1/2" | 30 1/4" | Full PSI | 48.5 |
| 2T5016A | 5.0" | 16" | 2.0" | 33 1/2" | 49 1/2" | Full PSI | 63.8 |
| Product Name | 100 ton Hydraulic cylinder |
| Standard or Nonstandard | Nonstandard |
| Structure | Hydraulic Cylinder |
| Power | Hydraulic |
| Body Material | Steel |
| Maximum Stroke | According to your requirements |
| Shaft Diameter | According to your requirements |
| Place of Origin | Shandong, China (Mainland) |
| Brand Name | Wantong |
| life | 3 million times |
| pressure | 2500PSI(21Mpa)~4000PSI(28Mpa) |
| Payment & Shipping: | |
| Price: | Get Latest Price |
| Minimum Order Quantity | 5 Piece/Pieces |
| Port: | QingDao |
| Packaging Details: | Each packed in carton with plastic film,then put in wooden case |
| Delivery Time: | 30 Days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 Piece/Pieces per Month |

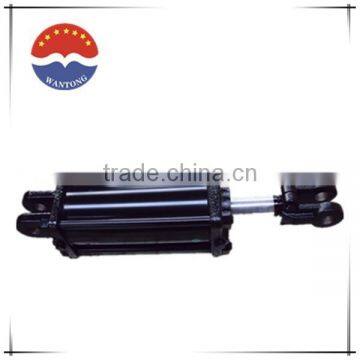

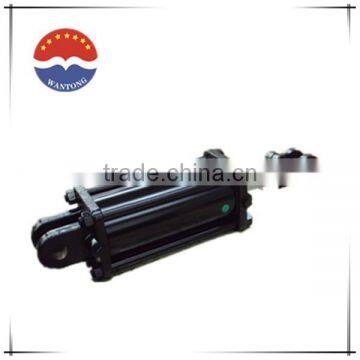

Hydraulic cylinder:
Hydraulic cylinder workshop:
Painting process:
Hydraulic cylinder cleaning:
Hydraulic cylinder assembly:
Hydraulic cylinder testing:
Package:
Our company:
