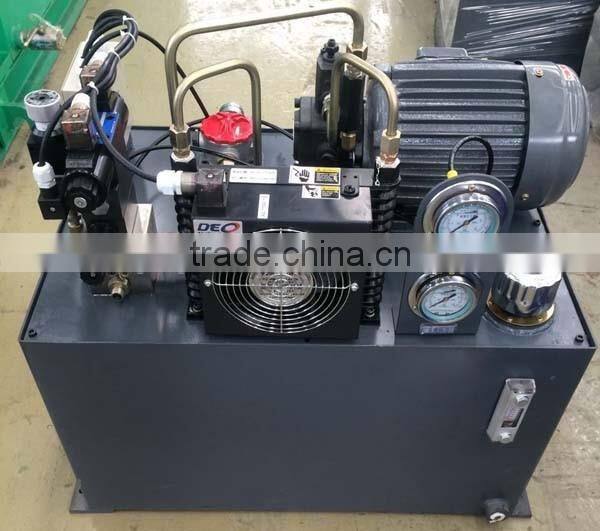

This hydraulic system is designed for the CNC Lathe machines. It is professional designed, reliable and stable to operate, and easy to adjust and maintain. The system uses high-quality hydraulic components, with high machining and assembling accuracy. It is an ideal choice for the common CNC Lathes and CNC Turning Centers.
Specifications:
Tank Capacity: 140L
Rated Pressure: 4MPa
Rated Flow: 16L/min
Oil Pump parameter:
rated pressure: 7MPa
folw speed: 16L/min
speed range: 800~1800rpm
Motor: 380V, 50HZ, 1450r/min, 2.2KW
Electromagnetic Selector Valve:
DC24V, 50HZ,
rated pressure 31.5MPa,
rated flow 40L/min
Oil Port: M16*1.5
Hydraulic Oil: HL46 or HL32 hydraulic oil
Applications:
For CNC Lathe, CNC Turning Center.
We can also design and make the special system as your requirements.
WINTIN Hydraulic is an international supplier of Hydraulic parts main including Hydraulic Cylinder,Power Unit and Hydraulic System since 1986. We can design and make the Power Unit as your requirements.
