300HP Hydraulic Outboard Steering Kit

300HP Hydraulic Outboard Steering Kit thumbnail-1
300HP Hydraulic Outboard Steering Kit thumbnail-2
300HP Hydraulic Outboard Steering Kit thumbnail-3
300HP Hydraulic Outboard Steering Kit thumbnail-4
300HP Hydraulic Outboard Steering Kit photo-1
300HP Hydraulic Outboard Steering Kit photo-2
300HP Hydraulic Outboard Steering Kit photo-3
300HP Hydraulic Outboard Steering Kit photo-4
US$ 400 - 435 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
WINTIN
Model Number:
WYD-33
Contact Supplier Request Quote Chat Now
Qingdao Wantong Hydraulic Power Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name WINTIN
Model Number WYD-33
Part Other, Steering

 Outboard Hydraulic Steering System 33c.c.


Manual hydraulic steering system is our newly developed maritime yacht products. It applies high-quality & high-precision piston pump technology to design and manufacturing. So it ensures the steering system more reliable and effective - still, light, stable and sensitive.

300HP Hydraulic Outboard Steering Kit



The main parts of Hydraulic Steering System include Helm Pump, Double-side Cylinder, supported by optional Tie-bar rod, Hose, Fitting and key. It will give you good convenience when you enjoying your yacht journey.

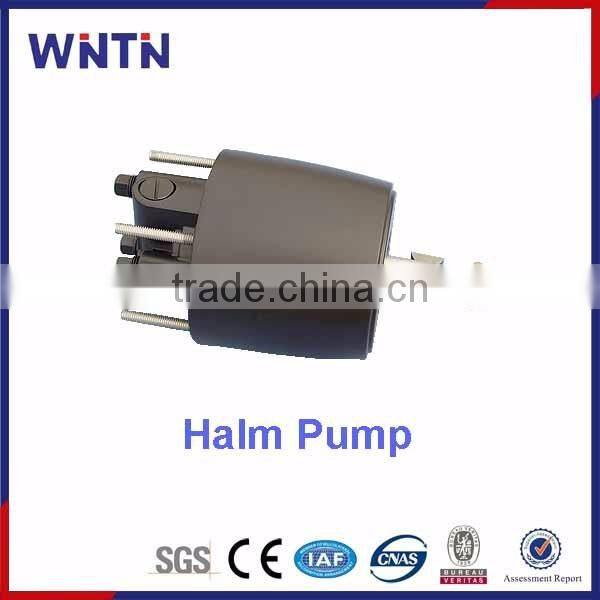

Halm Pump
The 7 plungers of the Helm pump is precision machined by high accuracy standards and restrict
tolerances. With built-in hydraulic lock valve to eliminate the torque feedback force. Makes the steering
wheel light, smooth and can stay in any position.

300HP Hydraulic Outboard Steering Kit
Features:
* Compact design.
* Ball bearing piston race.
* Built-in lock valve for positive rudder lock.
* 3/4 tapered stainless helm shaft.
* Cast iron rotor for greater durability and longer life.
* 1/4 NPT fi tting for 3/8 tube.





MODEL

MOUNTING

DISPLACEMENT/ REVOLUTION

No. OF PISTONS

RELIEF VALVE SETTING

MAXIMUM WHEEL DIA.

WEIGHT

WYP33

Front mount

33 cc - 2.0 cu.in

7

70 Bar -1000 PSI

710 mm-28"

5 kg - 11 lbs

WYP39

Front mount

39 cc - 2.4 cu.in

7

70 Bar -1000 PSI

710 mm-28"

5 kg - 11 lbs

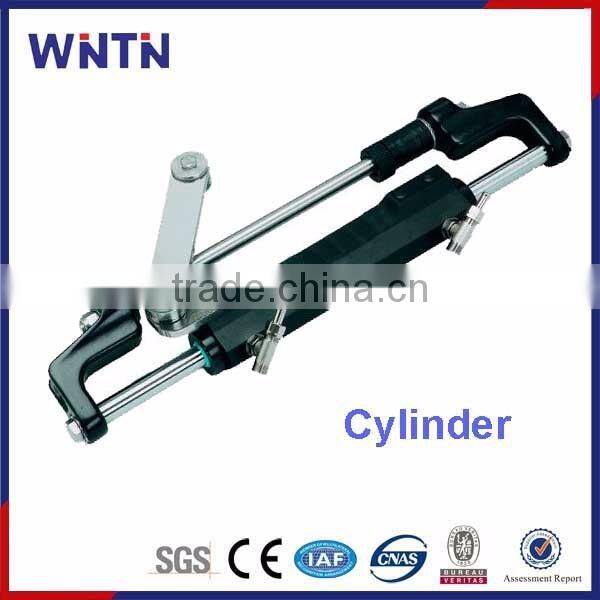

Cylinder
Compatible with helm pump, hoses and oil, this Double Acting Cylinder is built to last with heavy duty
stainless steel cylinder rod, seals and link assemblies. Constructed of top grade materials this cylinder is
simple to install and fi ts almost every two and four stroke outboard engine in the market.



Specification

WYC137

Volume

137 cc – 8.4 cu.in

Output force

470 kg - 1036 lbs

Inside diameter

35 mm - 1.375"

Bore shaft length

550mm – 21.6”

Stroke

204 mm – 8"

3/8" (9,5 mm) fittings

For high pressure flex hose

Bleed fittings

DN5 quick connect



300HP Hydraulic Outboard Steering Kit

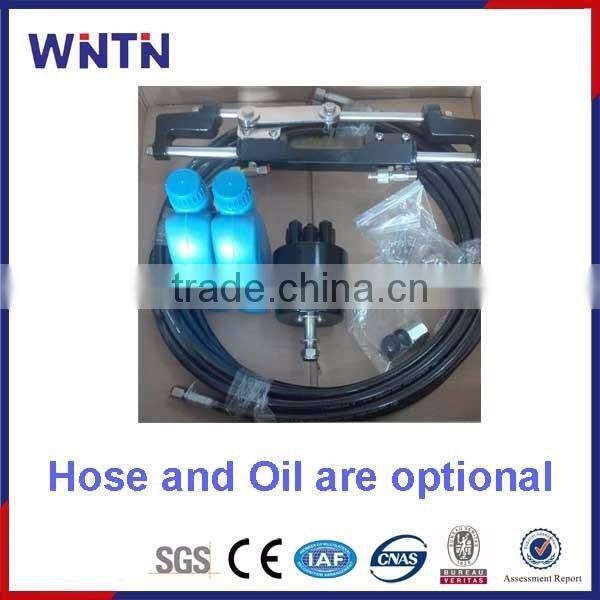

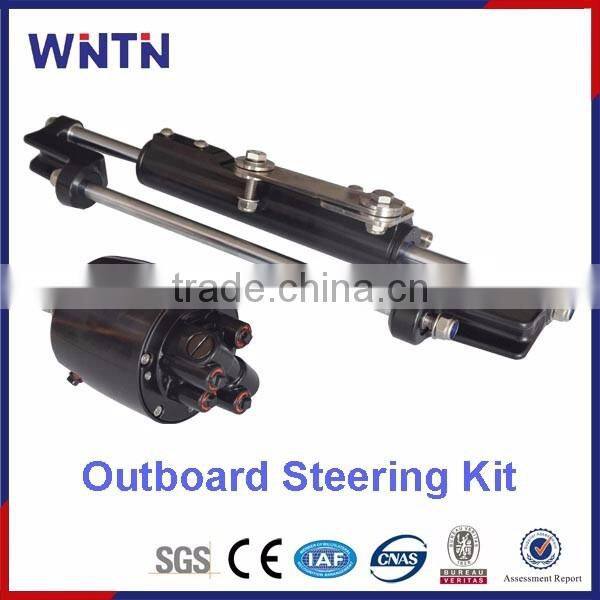

Steering Kit (Oil and Hose are optional.)300HP Hydraulic Outboard Steering Kit
