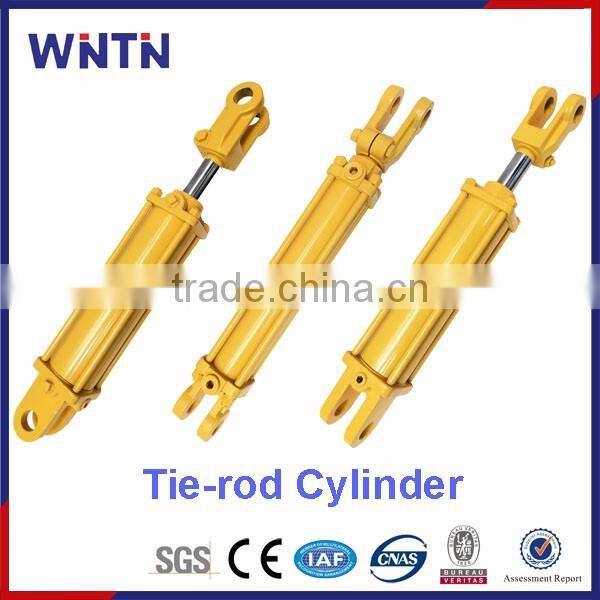

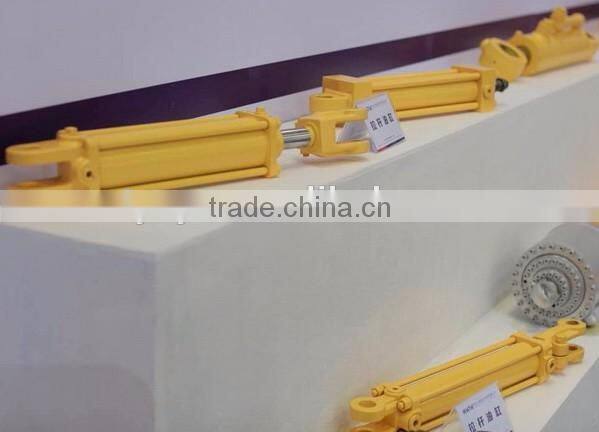

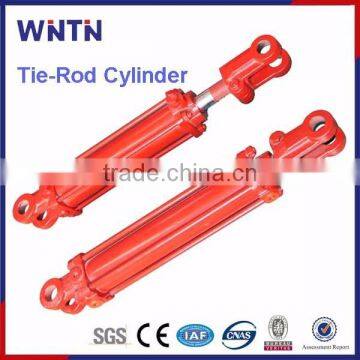

This Double Action Hydraulic Cylinder is with Tie Rod structure and NON-ASAE standard.
Features:
* Standard ASAE connecting dimensions.
* 3000PSI Rated pressure, 6000PSI testing pressure.

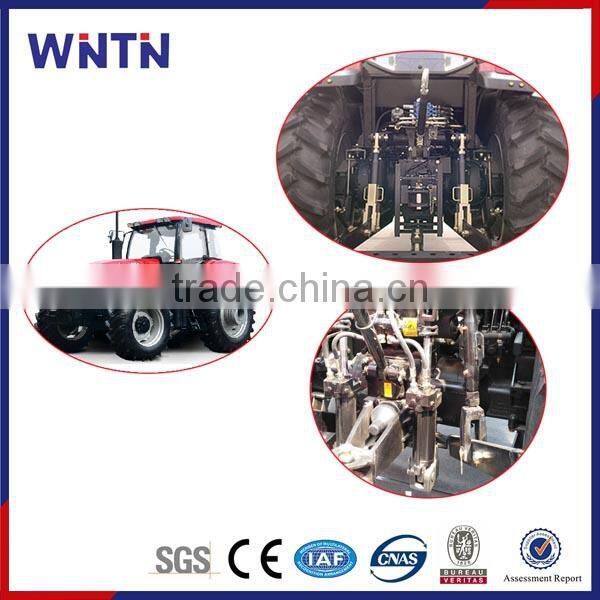

* Widely used in Agricultural machinery and other similar machines.
* Imported world famous brands and Chinese top brands sealing system.
* High quality Cold Drawn steel tube, with good regidity.
* CNC Rolled tube inner surface, with roughness of 0.2~0.4um.
* Superior strength chrome-plated rod, anticorrosion for a long life.
* High grade Ductile Iron bar directly machined Gland and Piston, with high strength.
* High tensile strength tie rods with rolled threads for durability.
* Dual base-plate oil ports
* 100% factory tested under at least 1.5 times of the rated pressure.
Materials:
* GLAND - High grade ductile iron
* TUBE - High quality Steel tube, precision skived and rolled
* TUBE SEAL - O-Ring with anti-extrusion backup washer
* TIE ROD - High tensile hardened steel
* ROD - Chrome Plated C1045 Steel
* ROD CLEVIS - High grade Ductile iron
* END CAP - High grade Ductile iron
* PISTON - High grade ductile iron, precision machined
* PISTON SEAL - CROWN SEAL or Glass fi lled nylon wear ring
* ROD WIPER - Metal encased nitrile rubber
* ROD SEAL - Urethane
* PORTS - NPT (SAE optional)
* COLOR - Red, Gloss black, or as required
Specifications:
| MODEL NO. | STROKE | ROD DIA. | RETRACTED | EXTENDED | PORTS | PINS |
| 3T2004 | 4" | 1 1/8" | 14 1/4" | 18 1/4" | 3/8 NPT | 1" |
| 3T2006 | 6" | 1 1/8" | 16 1/4" | 22 1/4" | 3/8 NPT | 1" |
| 3T2008 | 8" | 1 1/8" | 18 1/4" | 26 1/4" | 3/8 NPT | 1" |
| 3T2010 | 10" | 1 1/8" | 20 1/4" | 30 1/4" | 3/8 NPT | 1" |
| 3T2012 | 12" | 1 1/8" | 22 1/4" | 34 1/4" | 3/8 NPT | 1" |
| 3T2014 | 14" | 1 1/8" | 24 1/4" | 38 1/4" | 3/8 NPT | 1" |
| 3T2016 | 16" | 1 1/8" | 26 1/4" | 42 1/4" | 3/8 NPT | 1" |
| 3T2018 | 18" | 1 1/8" | 28 1/4" | 46 1/4" | 3/8 NPT | 1" |
| 3T2020 | 20" | 1 1/8" | 30 1/4" | 50 1/4" | 3/8 NPT | 1" |
| 3T2024 | 24" | 1 1/8" | 34 1/4" | 58 1/4" | 3/8 NPT | 1" |
| 3T2030 | 30" | 1 1/8" | 40 1/4" | 70 1/4" | 3/8 NPT | 1" |
| 3T2036 | 36" | 1 1/8" | 46 1/4" | 82 1/4" | 3/8 NPT | 1" |
Applications:
Non-ASAE Standard Tie Rod Hydraulic Cylinders
Rated pressure: 3000PSI
Bore diameter range: 2" to 5"
We can design and make Cylinders as customers's requirements and drawings.
WINTIN Hydraulic is an international supplier of Hydraulic parts main including Hydraulic Cylinder, Power Unit and Hydraulic System since 1986. We can design and make the Power Unit as your requirements.
