Help CenterHot Sale Quality Assured Rubber Solid Skid Steer Tires With Holes and Rims16/70-20 for Bobcat
Related Products
-
Aerial Working Platform Solid Tires With Holes 33x12-20US$ 200 - 500MOQ: 1 Piece -
Aerial Working Platform Solid Tires With Holes 30x10-16US$ 200 - 500MOQ: 1 Piece
-
Aerial Working Platform Solid Tires With Holes 385/65-d22.5US$ 200 - 500MOQ: 1 Piece
-
Aerial Working Platform Solid Tires With Holes 445/65-d22.5US$ 200 - 500MOQ: 1 Piece
-
Aerial Working Platform Solid Tires With Holes 445//65-24US$ 200 - 500MOQ: 1 Piece

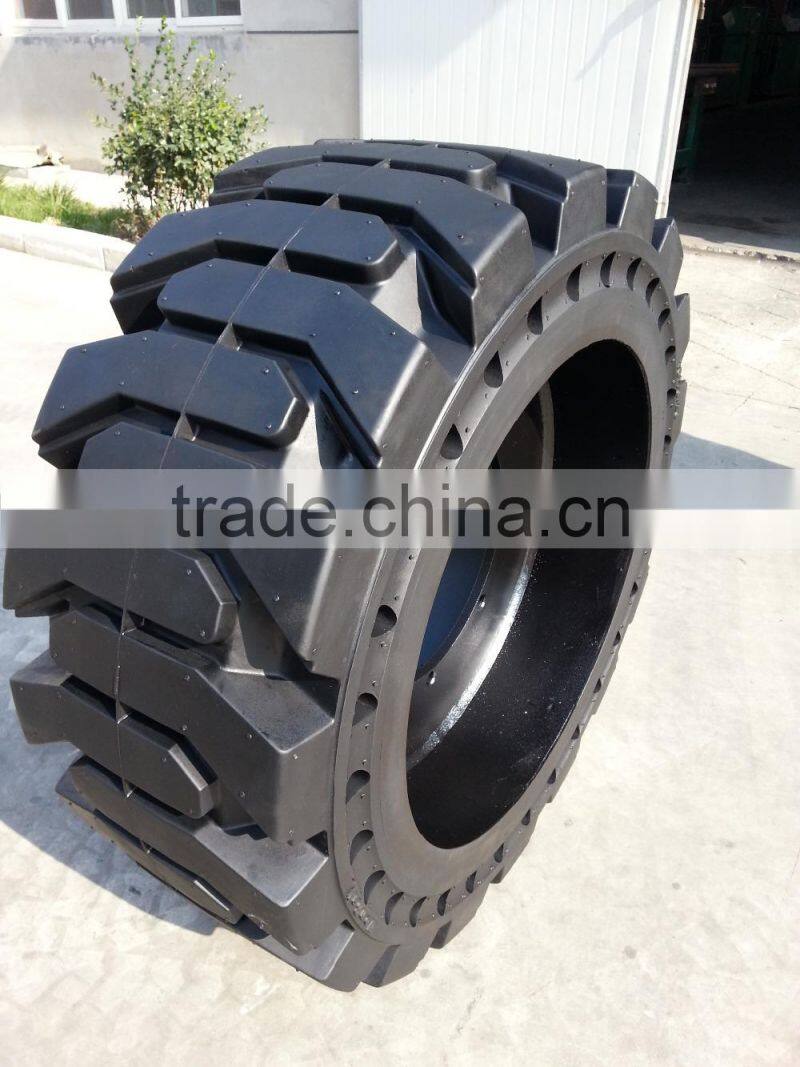

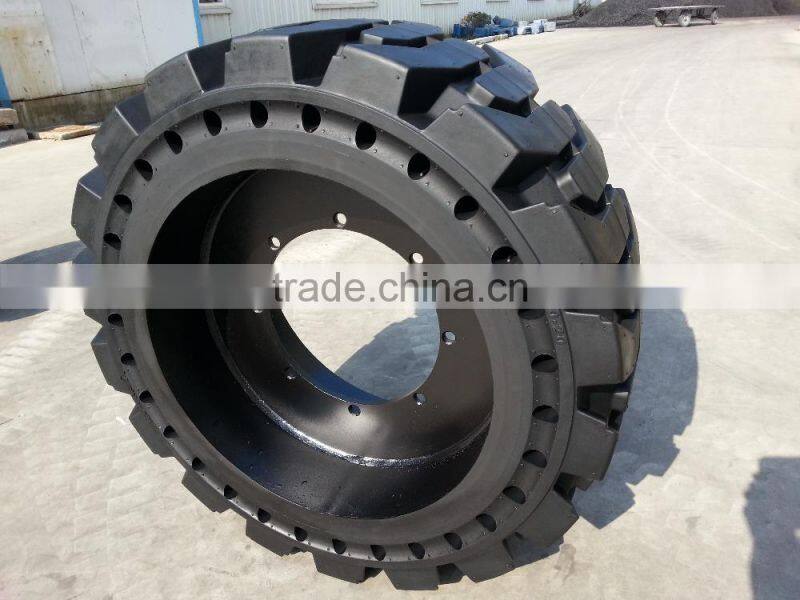

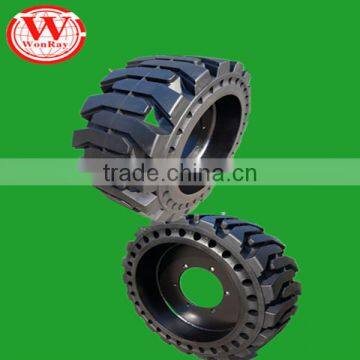

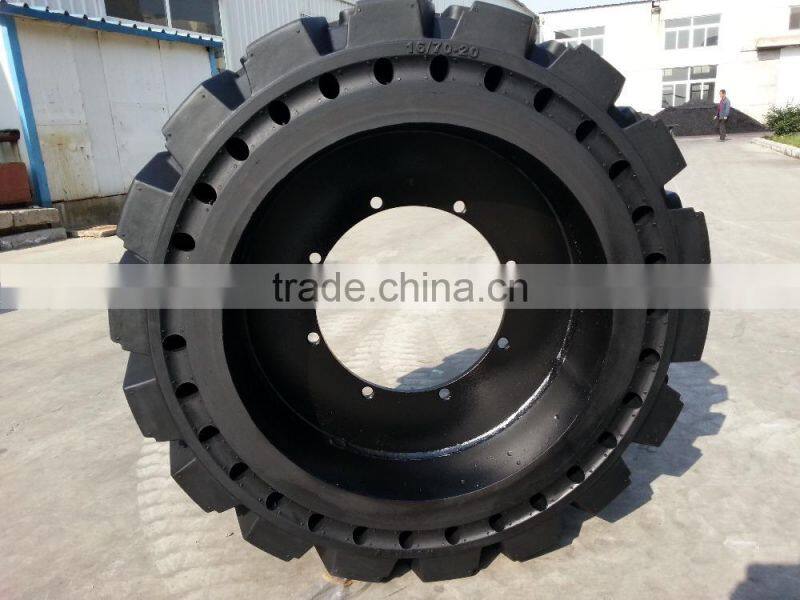

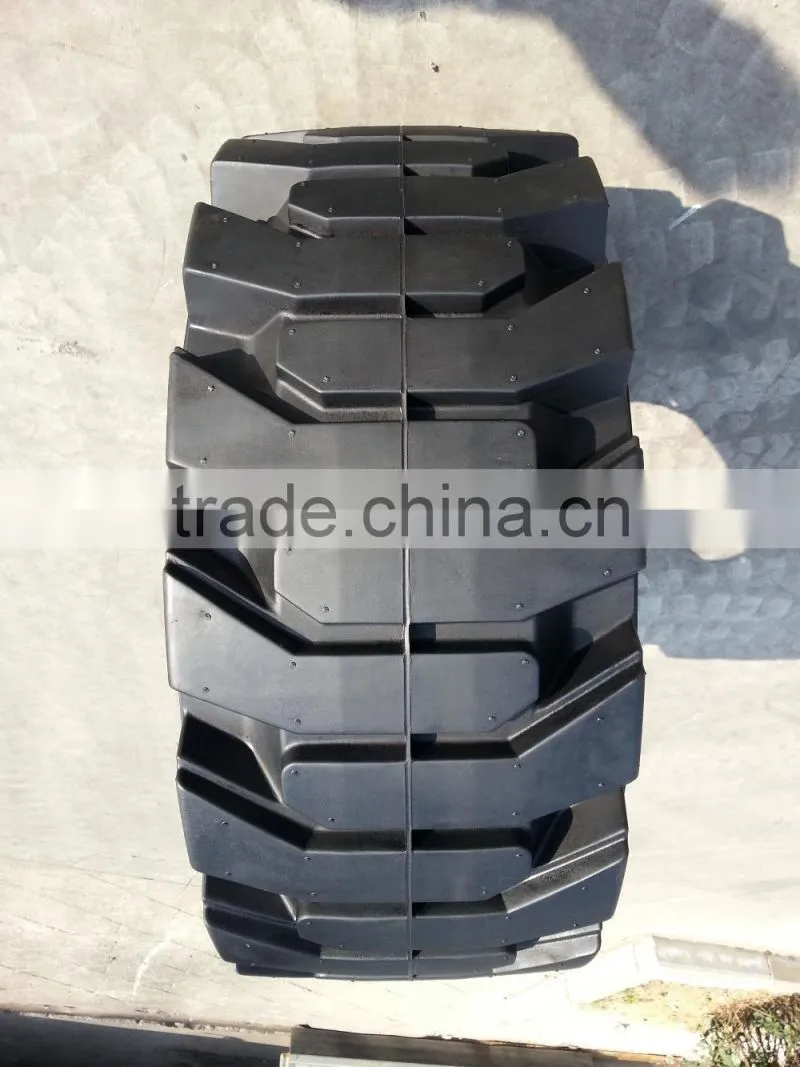

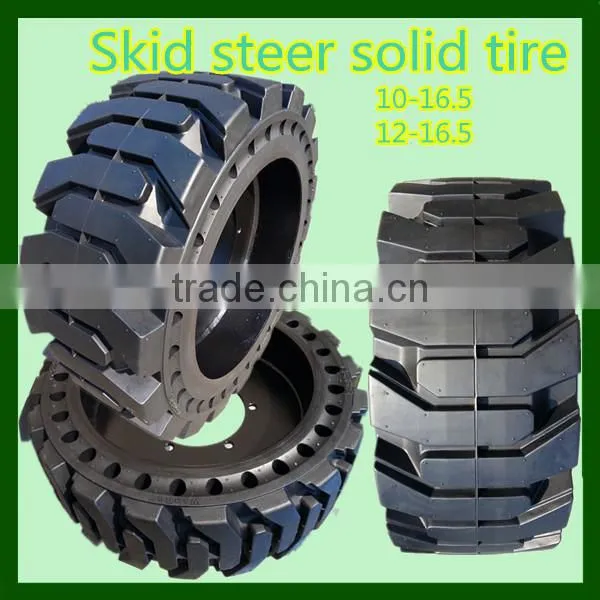

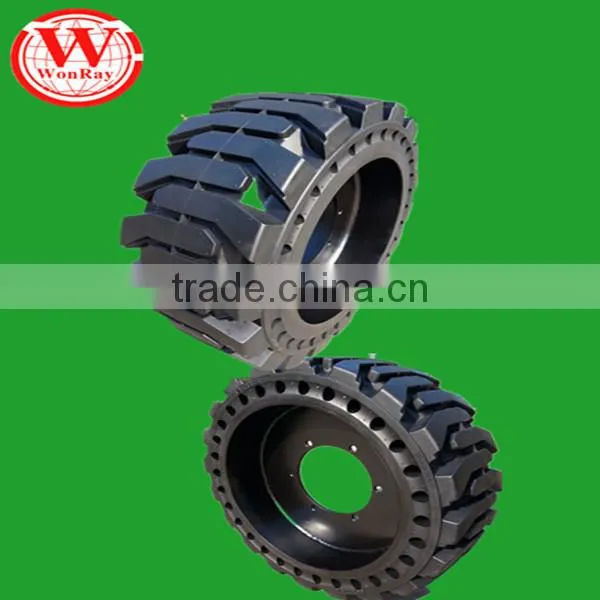

Hot sale quality assured rubber solid skid steer tires with holes and rims 16/70-20 for bobcat.
Clip.Linde, non marking type are available upon your requirement.
Skid steer tires:
It fits the following models: 863, 864, 873, 883, 963, A220, A300, S220, S250, S300, S650, S750, S770. and more. If you are not sure if this Tire will fit your machine, call with your model and serial number and we will let you know. Alibaba Trade Assured.
Advantages:
EXTRA-DEEP TREAD
l Provides superior life and eases tire management
CONTINUOUS CENTER LUG
l Reduces vibration and tire noise
l Increased operator comfort
l Slows wear on driveline components
l Lower maintenance and replacement costs
WIDE TREAD PROFILE
l Increases lateral load stability by 20%
l Safer in high-lift and cornering situations
WIDE PROFILE AND FLAT FOOTPRINT
l Increases stability and grip
Specification:
| SIZE/RIM | Outside Diameter (mm) |
Section Width (mm) |
Net Weight of WonRay (Kg) |
Net Weight of WRST (Kg) |
Q'TY for 1*20 CTN (PC) |
| 10x16.5(30x10-16/6.00)with hole | 788 | 250 | 85 | 85 | 150 |
| 12x16.5(33x12-20/8.00) with hole | 840 | 275 | 95 | 95 | 120 |
| 385/65-24(385/65-22.5)with hole | 1062 | 356 | 208 | 208 | 60 |
| 445/65-24(445/65-22.5)with hole | 1152 | 428 | 312 | 312 | 40 |
| 14.00-20/10.00 W/O hole | 1250 | 316 | 359 | 359 | 24 |
| 17.5-25/14.00 W/O hole | 1368 | 458 | 580 | 580 | 16 |
| 18.00-25/13.0(23.5-25/19.5) W/O hole | 1620 | 500 | 928 | 928 | 15 |
| 20.5-25/17.00 W/O hole | 1455 | 500 | 750 | 750 | 16 |
| 23.5-25/19.5 W/O hole | 1620 | 580 | 1075 | 1075 | 12 |
| 26.5-25/22.00 W/O hole | 1736 | 650 | 1460 | 1460 | 12 |
| 38.5×14-20 (14X17.5) (385/65D-19.5) with hole | 966 | 350 | 180 | 180 | 72 |
| 38.5×14-20(14X17.5) (385/65D-19.5) W/O hole | 966 | 350 | 224 | 224 | 72 |
| FB10x16.5(30x10-16/6.00) with hole | 788 | 250 | 117 | 117 | 150 |
| FB12x16.5(33x12-20/8.00) with hole | 840 | 275 | 132 | 132 | 120 |
| FB16/70-20(Standard)with hole | 1060 | 400 | 324 | 324 | 50 |
| FB16/70-20 with hole | 940 | 330 | 230 | 230 | 84 |
| FB385/65-24(385/65-22.5)with hole | 1062 | 356 | 318 | 318 | 60 |
| FB445/65-24(445/65-22.5)with hole | 1152 | 428 | 429 | 429 | 40 |
| FB14.00-20 W/O hole | 1250 | 316 | 392 | 392 | 24 |
| FB14.00-24 W/O hole | 1340 | 328 | 461 | 461 | 24 |
| FB17.5-25/14.00 with hole | 1368 | 458 | 643 | 643 | 16 |
| FB17.5-25/14.00 W/O hole | 1368 | 458 | 653 | 653 | 16 |
| FB18.00-25/13.0(23.5-25/19.5) with hole | 1620 | 500 | 955 | 955 | 12 |
| FB18.00-25/13.0(23.5-25/19.5) W/O hole | 1620 | 500 | 966 | 966 | 12 |
| FB20.5-25 W/O hole | 1455 | 500 | 960 | 960 | 12 |
| FB23.5-25/19.5 with hole | 1620 | 580 | 1040 | 1040 | 12 |
| FB26.5-25 W/O hole | 1736 | 650 | 1395 | 1395 | 12 |
| FB38.5×14-20 (14X17.5) (385/65D-19.5) with hole | 966 | 350 | 240 | 240 | 72 |
| FB38.5×14-20(14X17.5) (385/65D-19.5) W/O hole | 966 | 350 | 252 | 252 | 72 |
| FB300×125 SM | 302 | 125 | 11.3 | 11.3 | 1800 |
| FB350×100 SM | 352 | 100 | 12.3 | 12.3 | 1600 |
| FB1098*500(with hole) | 1098 | 500 | 500 | 500 | 20 |
| FB1098*500(W/O hole) | 1098 | 500 | 504 | 504 | 20 |
2. Warranty and claim policy to protect customer's profit.
3. If needed, we can supply the correct rims and press the rims into the tires.
Yantai Wonray Rubber Tire Co., Ltd. is a comprehensive enterprise engaged in researching, producing and selling industrial tires with high performance at low costs. Our annual production capacity is 300,000 pieces, among which 40% products are exported to oversea markets like North America, Europe, Southeast Asia, Oceania, Africa, etc. Our sales network spreads all over China, and we can provide excellent and complete after-sales services for all customers.
Attention:
We have rims with different installing bolt holes. When ordering these tires with rims, please let us know how many bolt holes your current rims have!
To get more detailed information about our product, please leave message at below blank↓↓↓↓or call us:
Ms Lucy Liu 24 hours service phone +86 15098688968 Skype:wonray03 QQ:2954103502
