Characteristic:
1. Low rolling resistance
2. Puncture-free
3. Good stability
4.This kind of tires are widely used on the special vehicle of port, mine, metallurgical industry.
5. Strengthen wear resistance
6. High loading capacity
7. OEM
Specification:
| SIZE/RIM | Outside Diameter (mm) | Section Width (mm) | Net Weight of WonRay (Kg) | Net Weight of WRST (Kg) | Q'TY for 1*20 CTN (PC) |
| 5.00-8/3.00 | 466 | 127 | 18.7 | 18.7 | 1000 |
| 5.50-15/4.50 | 666 | 144 | 37.6 | 410 | |
| 6.00-9/4.00 | 533.22 | 140 | 27.6 | 27.2 | 660 |
| 6.00-15/4.50 | 694 | 148 | 42.2 | 400 | |
| 6.50-10/5.00 | 582.47 | 157.3 | 37.6 | 36.8 | 510 |
| 7.00-9/5.00(forklift) | 550 | 164 | 34.7 | 560 | |
| 7.00-9/5.00(trailer) | 550 | 164 | 35.5 | 560 | |
| 7.00-12/5.00 | 663.14 | 163.27 | 48.5 | 48.3 | 380 |
| 7.00-15/5.50/6.00 | 737.67 | 177.6 | 62 | 62 | 270 |
| 7.50-16/6.00 | 805 | 180 | 76 | 230 | |
| 8.25-12/5.00 | 732 | 202 | 72 | 230 | |
| 8.25-15/6.50 | 829.04 | 202 | 93 | 92.6 | 200 |
| 15x4 1/2-8/3.00 | 383 | 106.6 | 9.7 | 9.6 | 1800 |
| 16*5-9/4.00 | 404 | 126 | 12.8 | 1330 | |
| 16*6-8/4.33 | 416 | 156 | 17.3 | 17 | 1000 |
| 18x7-8/4.33 | 452 | 154.8 | 21.3 | 20.9 | 900 |
| 18x7-9/4.33 | 452 | 154.8 | 21.3 | 900 | |
| 21*8-9/6.00 | 523 | 180 | 35.1 | 34.5 | 540 |
| 23x9-10/6.50 | 594.68 | 211.66 | 52.2 | 51.5 | 360 |
| 23*10-12/8.00 | 592 | 230 | 52.4 | 52.2 | 340 |
| 27*10-12/8.00 | 680 | 236 | 76.5 | 75 | 260 |
| 28*9-15/7.00 | 700 | 230 | 63 | 63.8 | 260 |
| 28*12.5-15/9.75 | 706 | 300 | 87.6 | 168 | |
| 140/55-9/4.00 | 380 | 130 | 11 | 1600 | |
| 200/50-10/6.50 | 457.56 | 198.04 | 25.7 | 24.8 | 660 |
| 250-15/7.00 | 726.41 | 235 | 75 | 76.2 | 216 |
| 300-15/8.00 | 827.02 | 256 | 116 | 114 | 150 |
| 355/65-15/9.75 | 825 | 301.7 | 136 | 131.5 | 120 |
| 8.25-20/6.5/7.0 | 976 | 216.64 | 127 | 128 | 100 |
| 9.00-16/6.50/7.00 | 880 | 211.73 | 111.5 | 110 | 120 |
| 9.00-20/7.0/7.5 | 1005 | 236 | 150.5 | 145 | 90 |
| 10.00-20/7.0/7.5 | 1041 | 248 | 172 | 166 | 80 |
| 10.00-20/7.5 SM | 1041 | 248 | 177.5 | 80 | |
| 11.00-20/7.5/8.0 | 1057.9 | 270 | 195 | 186 | 80 |
| 12.00-20/8.00/8.50 | 1112 | 285 | 233 | 226 | 70 |
| 12.00-24/8.50 | 1218 | 300 | 292 | 279 | 28 |
| 14.00-24/10.00 | 1340 | 328 | 400 | 388 | 24 |
| 10x16.5(30x10-16/6.00)with hole | 788 | 250 | 85 | 85 | 150 |
| 12x16.5(33x12-20/8.00) with hole | 840 | 275 | 95 | 95 | 120 |
| 385/65-24(385/65-22.5)with hole | 1062 | 356 | 208 | 208 | 60 |
| 385/65-24(385/65-22.5)W/O hole | 1062 | 356 | 60 | ||
| 445/65-24(445/65-22.5)with hole | 1152 | 428 | 312 | 312 | 40 |
| 14.00-20/10.00 W/O hole | 1250 | 316 | 359 | 359 | 24 |
| 17.5-25/14.00 W/O hole | 1368 | 458 | 580 | 580 | 16 |
| 18.00-25/13.0(23.5-25/19.5) W/O hole | 1620 | 500 | 928 | 928 | 15 |
| 20.5-25/17.00 W/O hole | 1455 | 500 | 750 | 750 | 16 |
| 23.5-25/19.5 W/O hole | 1620 | 580 | 1075 | 1075 | 12 |
| 26.5-25/22.00 W/O hole | 1736 | 650 | 1460 | 1460 | 12 |
| 38.5×14-20 (14X17.5) (385/65D-19.5) with hole | 966 | 350 | 180 | 180 | 72 |
| 38.5×14-20(14X17.5) (385/65D-19.5) W/O hole | 966 | 350 | 224 | 224 | 72 |

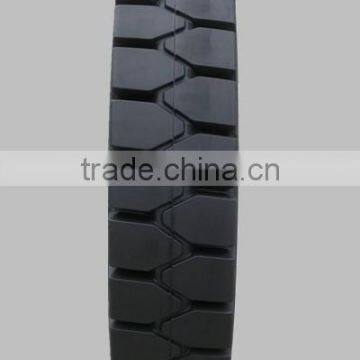

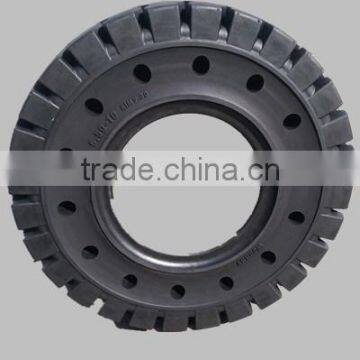

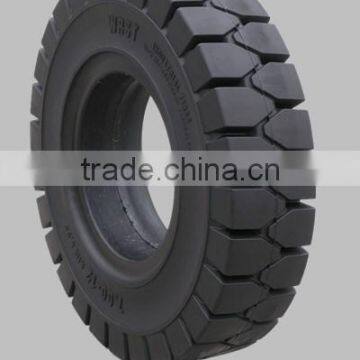

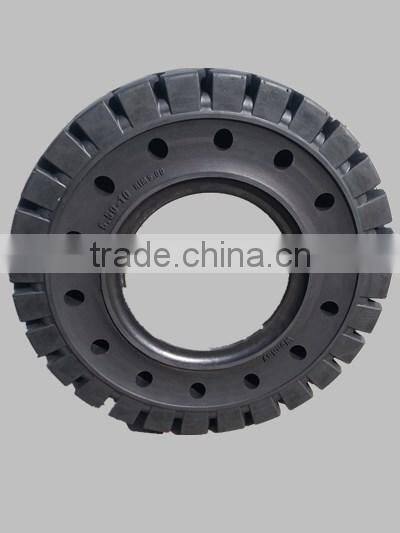

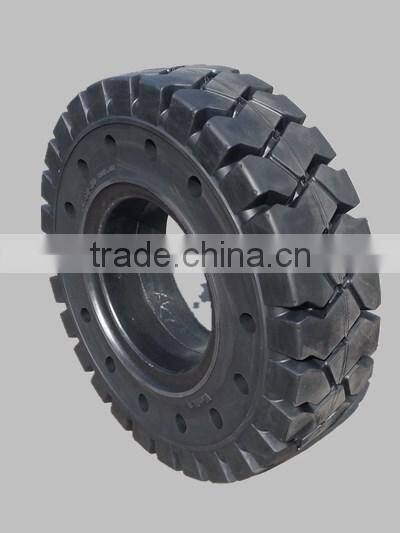

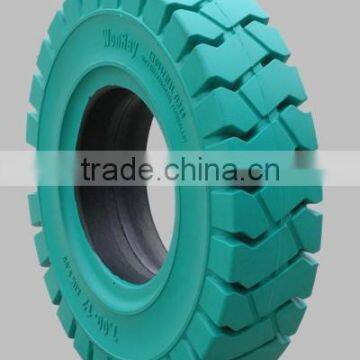

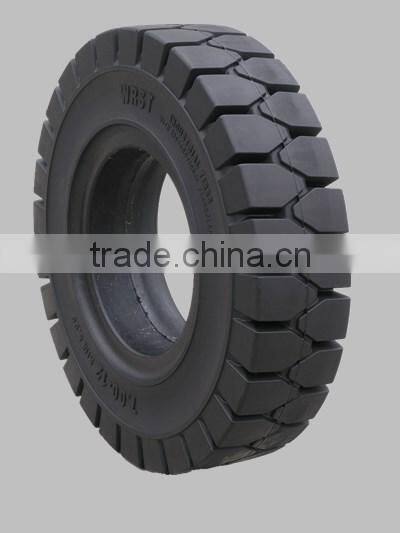

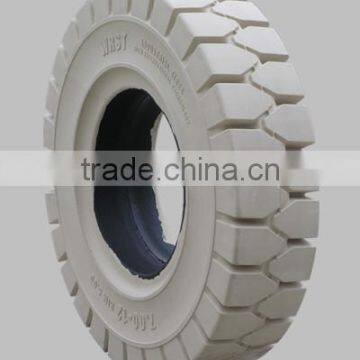

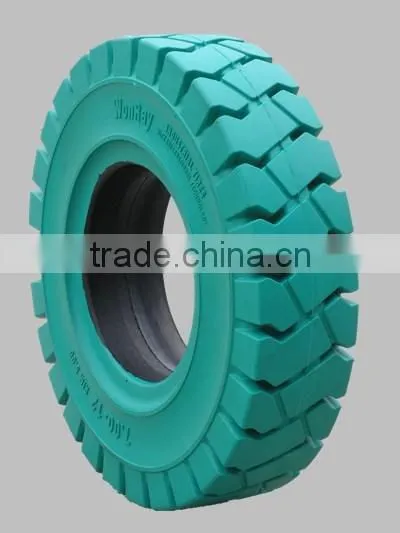

Product show:
We will pack goods exactly as per customer's requirement. Different kinds of shipping method can be chosen.
2. Warranty and claim policy to protect customer's profit.
3. If needed, we can supply the correct rims and press the rims into the tires.
Yantai Wonray Rubber Tire Co., Ltd. is a comprehensive enterprise engaged in researching, producing and selling industrial tires with high performance at low costs. Our annual production capacity is 300,000 pieces, among which 40% products are exported to oversea markets like North America, Europe, Southeast Asia, Oceania, Africa, etc. Our sales network spreads all over China, and we can provide excellent and complete after-sales services for all customers.

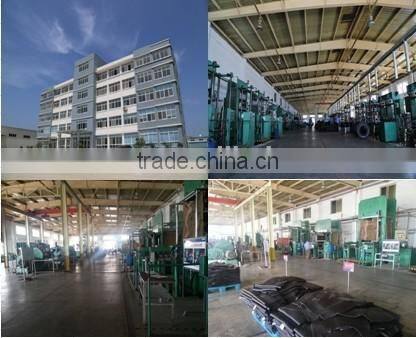

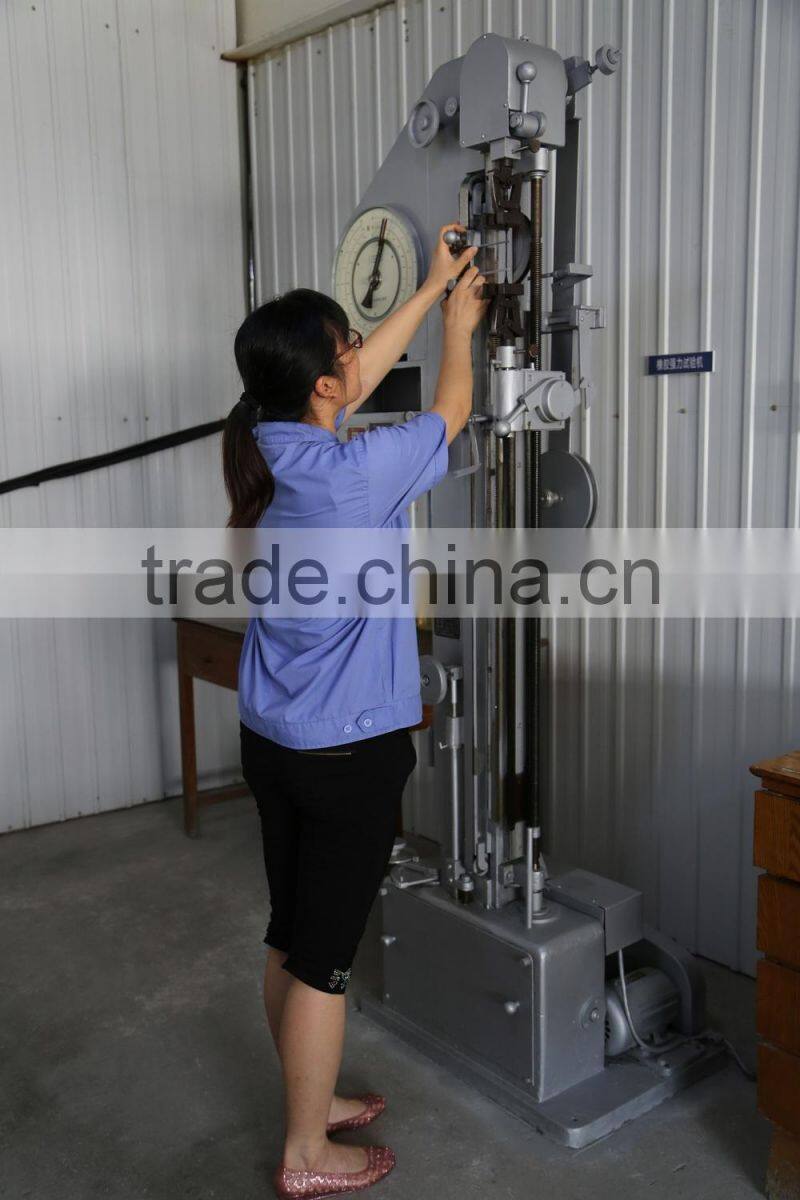

Factory show:
We are a professional solid tires manufacturer!
We can provide you with the most competitive price with the best quality.
For more information, welcome to contact with us :
TradeManager : cn1501654107
Mobile Phone: +86 15098688968
QQ & Wechat : 2954103502
Skype : lucyliu_34
