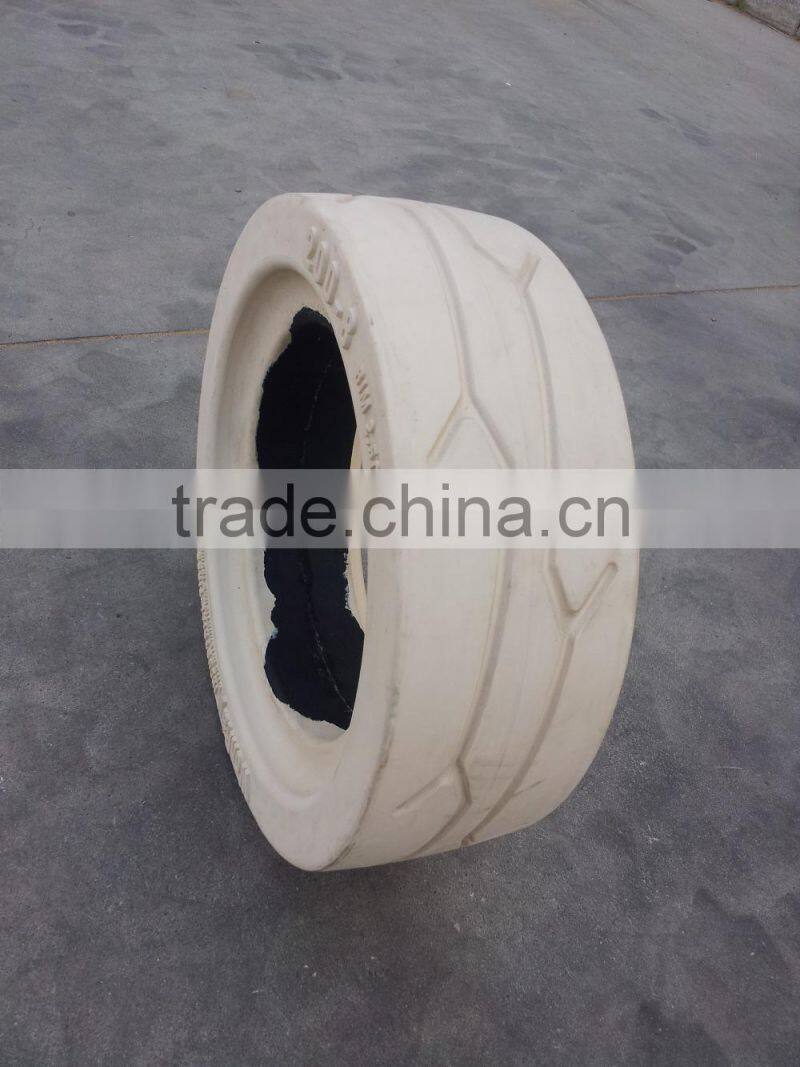

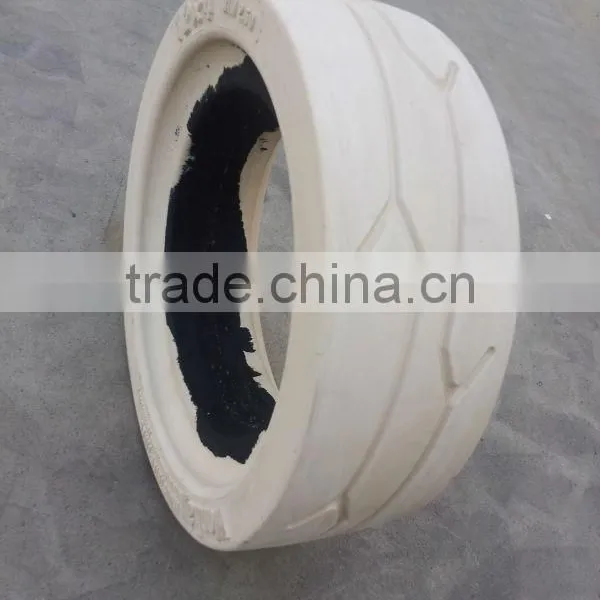

top quality fast delivery skyjack AWP tires 2.00-8 12x4, scissor lift tires and wheels 12x4 16x5x12
Specification of Solid Tires for Genie Scissor Lifts
| No. | SIZE/RIM | Pattern No. | Outside Diameter (mm) |
Section Width (mm) |
Net Weight (Kg) |
| ±5mm | ±5mm | WonRay | |||
| 1 | FB10*3(grey cast iron) | R706 | 254 | 74 | 7.5 |
| 2 | FB10*4 (with RIM) | R706 | 256 | 101.6 | 5.9 |
| 3 | 12*4 (with brake) | R707 | 310 | 100 | 7.9 |
| 4 | 12*4 (W/O brake) | R707 | 310 | 100 | 7.4 |
| 5 | FB 12*4.5(grey iron)(-2same this) | R707 | 310 | 115 | 15.3 |
| 6 | FB 12*4.5(ductile iron) | R707 | 310 | 115 | 15.3 |
| 7 | FB 14*4 1/2 | R713 | 358 | 114 | 14.3 |
| 8 | FB 15*5(grey iron) | R712 | 384 | 127 | 22.3 |
| 9 | FB 15*5(ductile iron) | R712 | 384 | 127 | 22.3 |
| 10 | FB 15*5-2(grey iron) | R712 | 384 | 127 | 21.1 |
| 11 | 16*5*12(with brake) | R706 | 406 | 125 | 15.8 |
| 12 | 16*5*12(W/O brake) | R706 | 406 | 125 | 14.6 |
| 13 | FB22*7*17 3/4 | R714 | 559 | 176 | 50 |
| 14 | FB 406*125(JLG16*5*12) | R706 | 406 | 125 | 17.7 |
| 15 | FB406*127 | R713 | 406 | 127 | 21.3 |
| 16 | FB 323*100 | R713 | 323 | 100 | 9.4 |
| 17 | 31x6x10 | R708 | 788 | 250 | 106 |
Company information:
Yantai Wonray Rubber Tire Co., Ltd. is a comprehensive enterprise engaged in researching, producing and selling industrial tires with high performance at low costs. Our annual production capacity is 300,000 pieces, among which 40% products are exported to oversea markets like North America, Europe, Southeast Asia, Oceania, Africa, etc. Our sales network spreads all over China, and we can provide excellent and complete after-sales services for all customers.
All our products meet the standards TRA in the USA, ETRTO in Europe and JATMA in Japan.

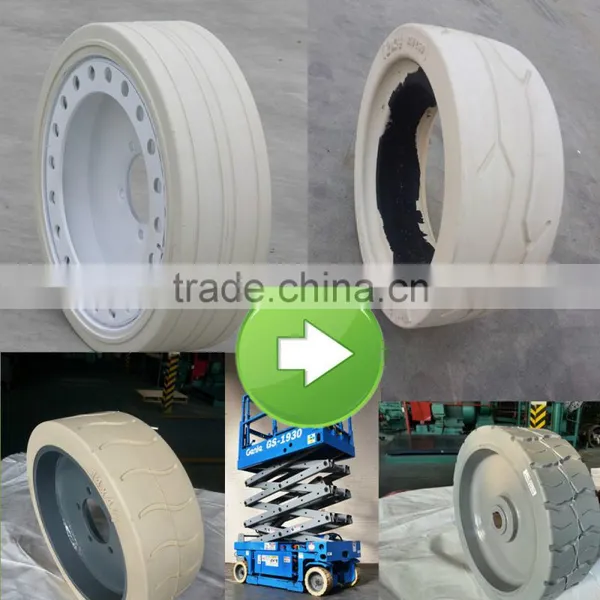

Products and factory photo show
After Sales:
1, All our solid tires are in line with GB/T10824-2008
2, If needed, we can supply the correct rims and press the rims into the tires
3, We will advise the speed limit and load capacity after sales
4, If any problem, please contact with us, we will reply in short time.
5, If quality problem, please take photos, we will be responsible for this.
6, For the need of developing new product, please offer us detailed technical requirement or mould drawing.
Attention:
We have rims with different installing bolt holes. When ordering these tires with rims, please let us know how many bolt holes your current rims have!
For additional information please call us or leave message:
Ms Kelly Ma 24 hours service phone 86 15966582360
