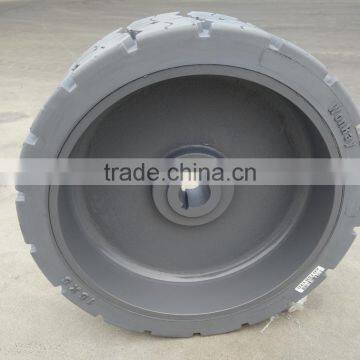

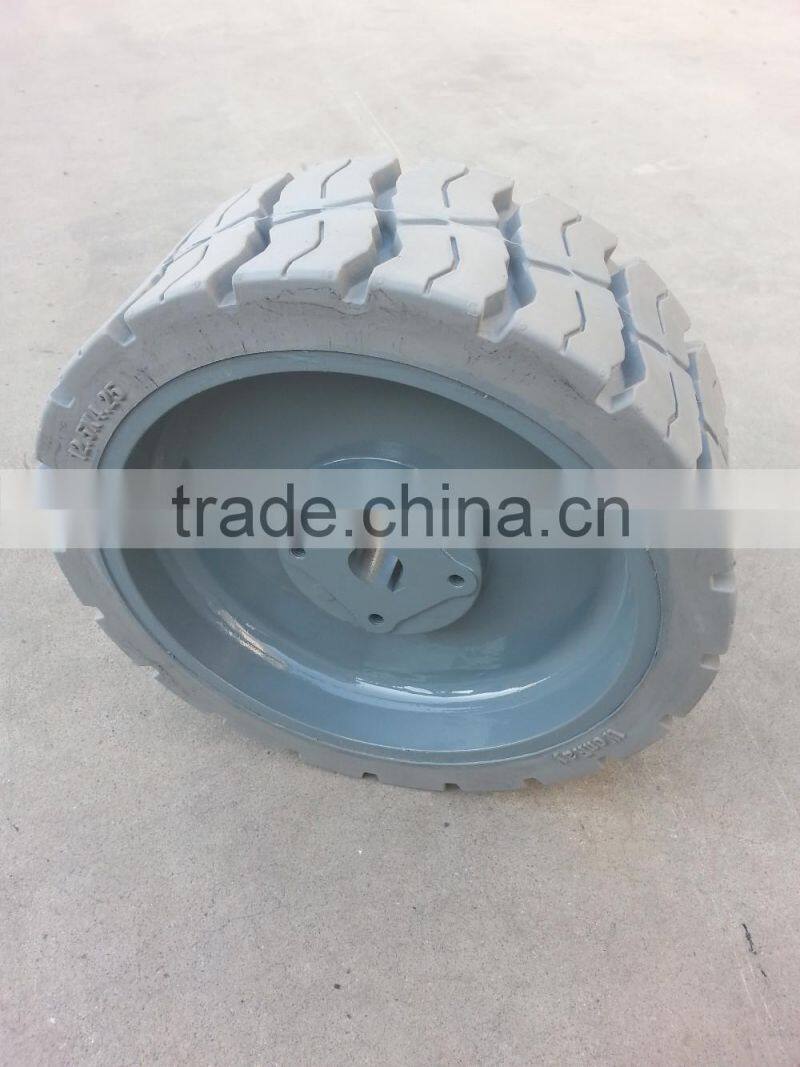

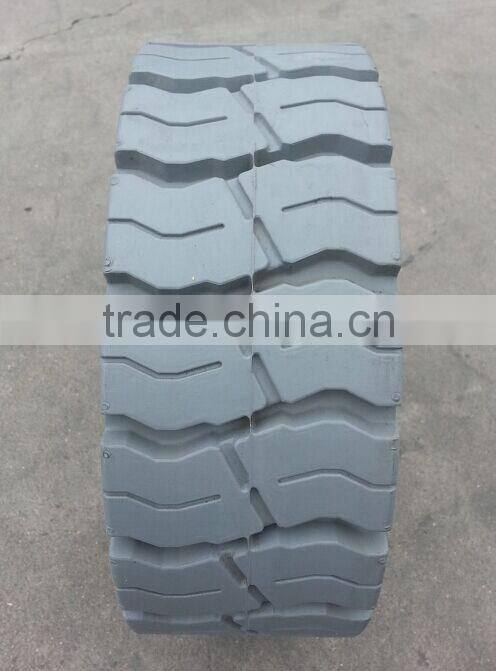

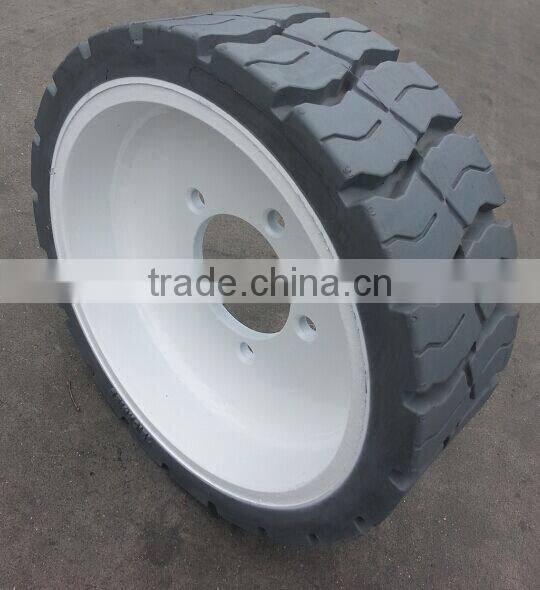

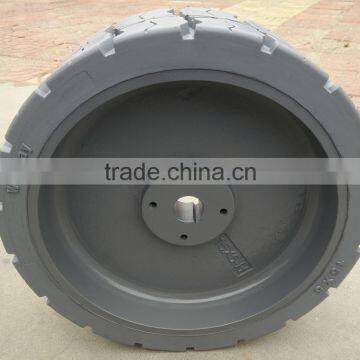

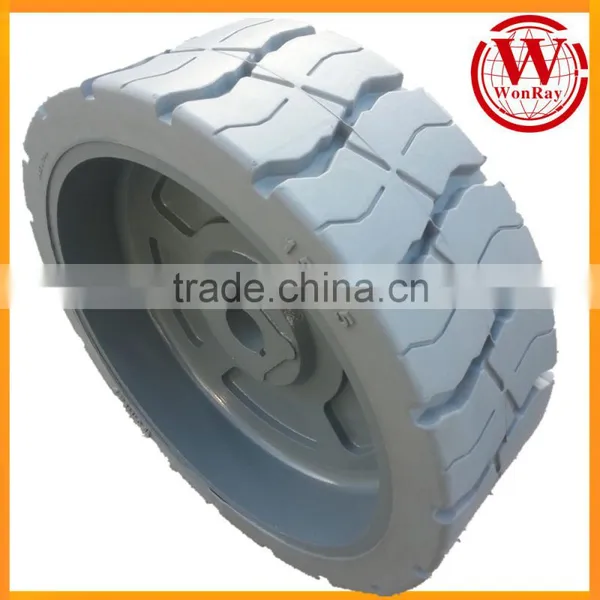

good price el 12 scissor lift solid tires 15x5 for sale
An aerial work platform (AWP), also known as an aerial device, elevating work platform (EWP), or mobile elevating work platform (MEWP) is a mechanical device used to provide temporary access for people or equipment to inaccessible areas, usually at height. There are distinct types of mechanized access platforms and the individual types may also be known as a "cherry picker" or a "scissor lift".
Specification of Solid Tires and Wheels for Scissor Lifts
| No. | SIZE/RIM | Pattern No. | Outside Diameter (mm) | Section Width (mm) | Net Weight (Kg) |
| ±5mm | ±5mm | WonRay | |||
| 1 | FB10*3(grey cast iron) | R706 | 254 | 74 | 7.5 |
| 2 | FB10*4 (with RIM) | R706 | 256 | 101.6 | 5.9 |
| 3 | 12*4 (with brake) | R707 | 310 | 100 | 7.9 |
| 4 | 12*4 (W/O brake) | R707 | 310 | 100 | 7.4 |
| 5 | FB 12*4.5(grey iron)(-2same this) | R707 | 310 | 115 | 15.3 |
| 6 | FB 12*4.5(ductile iron) | R707 | 310 | 115 | 15.3 |
| 7 | FB 14*4 1/2 | R713 | 358 | 114 | 14.3 |
| 8 | FB 15*5(grey iron) | R712 | 384 | 127 | 22.3 |
| 9 | FB 15*5(ductile iron) | R712 | 384 | 127 | 22.3 |
| 10 | FB 15*5-2(grey iron) | R712 | 384 | 127 | 21.1 |
| 11 | 16*5*12(with brake) | R706 | 406 | 125 | 15.8 |
| 12 | 16*5*12(W/O brake) | R706 | 406 | 125 | 14.6 |
| 13 | FB22*7*17 3/4 | R714 | 559 | 176 | 50 |
| 14 | FB 406*125(JLG16*5*12) | R706 | 406 | 125 | 17.7 |
| 15 | FB406*127 | R713 | 406 | 127 | 21.3 |
| 16 | FB 323*100 | R713 | 323 | 100 | 9.4 |
| 17 | 12.5x4.25 | R712 | 320 | 108 | 18 |
Yantai Wonray Rubber Tire Co., Ltd. is a comprehensive enterprise engaged in researching, producing and selling industrial tires with high performance at low costs. Our annual production capacity is 300,000 pieces, among which 40% products are exported to oversea markets like North America, Europe, Southeast Asia, Oceania, Africa, etc. Our sales network spreads all over China, and we can provide excellent and complete after-sales services for all customers.
Light weight, long lasting plastic pallets will be used. We will also use high strength packaging films for wrapping pallets.
Our Service
1, All our solid tires are in line with GB/T10824-2008
2, If needed, we can supply the correct rims and press the rims into the tires
3, We will advise the speed limit and load capacity after sales
4, If any problem, please contact with us, we will reply in short time.
5, If quality problem, please take photos, we will be responsible for this.
6, For the need of developing new product, please offer us detailed technical requirement or mould drawing.
Q1. What is your terms of packing?
A: Generally, we pack our goods plastic pallets or wood pallets. If you have legally registered patent, we can pack the goods in your branded pallets after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. How about your delivery time?
A: Generally, it will take 10-12 days for one 20 foot container. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds for you.
Q5. Do you test all your goods before delivery?
A: We have special inspection department. Our inspection group must inspect the quality and outlook of the tires before they are stocked. They must inspect again before the delivery.
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Attention:
We have rims with different installing bolt holes. When ordering these tires with rims, please let us know how many bolt holes your current rims have!
For additional information please call us or leave message in below table:
Ms Kelly Ma 24 hours service phone 86 13884937497 QQ 714268377 Wechat 714268377 Skype yueyue_72 Whatsapp +8613884937497
