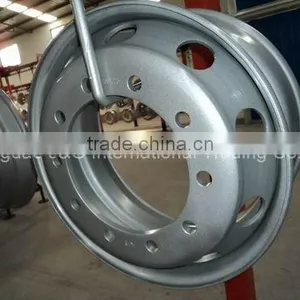

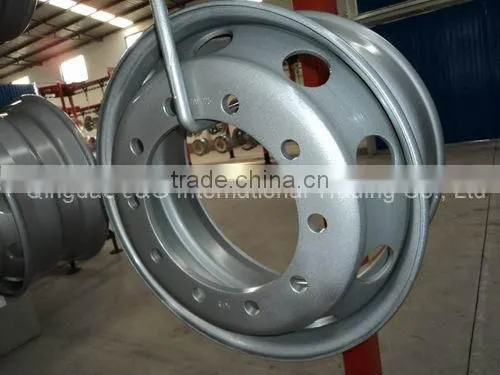

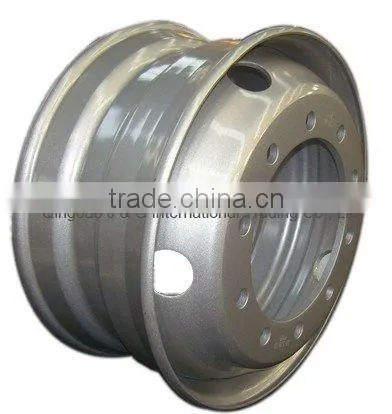

tubeless TBR rim 22.5x9.00

Specifications

Size: 22.5x9.00
Tubeless type
For tyre: 12R22.5
Parameter: 10/335/281 10/285.75/222
TUV/DOT certificate approved.

Rim size: 22.5x9.00

Fitted tyre: 12R22.5, 315/80R22.5

Certificate: DOT/TUV

Color: Silver or as customer's request

Parameters: 10/335/281 08/275/221 10/285.75/220 etc

ET: a wide range



We are able to offer tube and tubeless steel wheels of the following sizes

Tubeless steel wheel 24.5x8.25, 22.5x14.00, 22.5x13.00, 22.5x11.75  22.5x9.00  22.5x8.25  22.5x7.50  22.5x6.75; 19.5x7.50  19.5x6.75  19.5x6.00; 17.5x6.75  17.5x6.00

Tube steel wheel   5.5F-16  6.00G-16   6.50-16; 7.00-16   7.5V-20; 8.00V-20  8.5-20 10.00-20; 8.5-24 10.00-24



Inch	Description	wheels	Tyres
17.5"	15° DC	17.5X6.00HC	215/75R17.5   8R17.5 8.5R17.5 9R17.5 9.5R17.5
		17.5X6.75HC	9R17.5   10R7.5 225/75R17.5 235/75R17.5 245/70R17.5
		17.5X10.5	14-17.5
19.5"	15° DC	19.5X6.00	8R19.5
		19.5X6.75	8R19.5   9.5R19.5 245/70R19.5   235/75R19.5 265/70R19.5
		19.5X7.50	10R19.5 265/70R19.5   285/70R19.5
		19.5X8.25	285/70R19.5   305/70R19.5
		19.5x11.75	15R19.5   385/55R19.5 385/65R19.5
		19.5x12.25	15-19.5
		19.5X13.00	425/55R19.5
		19.5X14.00	425/55R19.5   435/50R19.5 445/45R19.5 445/65R19.5 18-19.5 MPT
22.5''	15° DC	22.5X6.00	8.5R22.5
		22.5X6.75	9R22.5 10R22.5 255/70R22.5
		22.5X7.50	10R22.5 11R22.5 275/70R22.5 275/80R22.5
		22.5X8.25	11R22.5 275/70R22.5 275/80R22.5 285/60R22.5 295/80R22.5 305/70R22.5 12R22.5
		22.5X9.00	12R22.5   315/80R22.5   285/60R22.5 295/60R22.5 295/80R22.5 305/60R22.5 305/70R22.5 315/60R22.5 315/70R22.5 13R22.5
		22.5X9.75	315/80R22.5
		22.5X11.25	385/70R22.5 15R22.5 385/65R22.5 350/75R22.5 365/70R22.5
		22.5X11.75	375/90R22.5 385/65R22.5 385/55R22.5   425R22.5
		22.5X12.25	425/65R22.5
		22.5X13.00	16.5R22.5 16.5/70R22.5 400/55R22.5 425/65R22.5
		22.5X13.5	15-22.5 16.5-22.5
		22.5X14.00	18R22.5 415/45R22.5   425/65R22.5 435/45R55.5   445/75R22.5
		22.5X15.00	455/45R22.5
		22.5X17.00	495/45R22.5
		22.5X16.00	500/45-22.5 500/60R22.5 500/45-22.5 550/60-22.5
		22.5X20.00	600/55-22.5   650-50-22.5
		22.5X24.00	700/40-22.5   750/45-22.5
24.5"	15° DC	24.5x8.25	12.00R24.5
		24.5x11.75
