Specifications
1.Type: TL2.Brand: Multistar
3.Pattern :IMP-01
4.Rim size: 11.00x18 5/335/291 ET.32
| Size | Ply | Tyre Application | O. D. (mm) | S. W. (mm) | TT/TL | Rim |
| 12.5/80-18 | 12/14 | Farm Implement | 38.86 | 12.13 | TL | 11.00x18 |

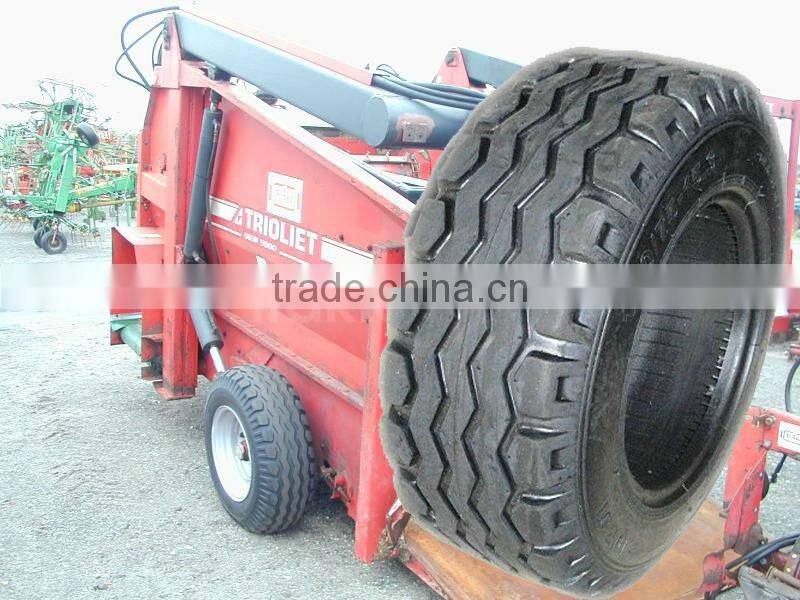

Environmentally friendly flotation tyre for large agricultural machines and trailers
1. This low-profile and sturdy tyre endures speed well, resulting in quick transportation
2. Thanks to the large contact patch, ts load-bearing capacity is good even on soft soil
3. Low ground pressure and good traction
4. Good self cleaning qualities
1.Rim Size:9.00x15.3
2.Tyre Size:10.0/75-15.3
3.Agricultural Wheel Rim Assemble Available
4.ISO Certification
5.DOT Certific
Specialized in manufacturing and exporting all kinds of tyres and wheels to all over the world. And we can supply wheel rims and tires,and are especially professional in truck wheel,agricultural wheel and assemblies and components for OTR wheel and engineering wheel with multi-pieces for earthmover.
We are specialized in the assembled wheels (tyres and rims) for farming and forestry machines and trailers. We have been supplying OEM products to Sweden, Norway,New Zealand,Australia and Canada for several years. We began to enter China's local market at the beginning of 2010. We also supply our wheels to the aftermarkets at home and abroad.
The detail of 9.00x15.3 as below,more information about this rim,welcome to contact with us.
| Wheel Size | Fitted Tyre | Bolt Hole | P.C.D | C.B.D. | Thickness | Offset | ||
| Number | Dia. | Rim | Disc | |||||
| 9.00x15.3 | 10.0/75-15.3 11.5/80-15.3 12.5/80/15.3 |
6 | Φ20.5 | Φ205 | Φ161 | 4 | 8 | 0 |
| 9.00x15.3 | 6 | Φ20.5 | Φ205 | Φ161 | 4 | 8 | -50 | |
| 9.00x15.3 | 5 | Φ18.5 | Φ140 | Φ161 | 4 | 8 | 0 | |
Except 9.00x15.3 ,all the sizes of below Implement Agricultural Wheel Rims can be supplied by us.
7.00x15
8LBx15
10LBx15
13x15
9.00x15.3
13.00x15.5
16.5x8.25
16.5x9.75
16.00x17
13.00x17
9.00x18
11.00x18
13x18
13x20
DW20x26
DW25x26
DW27x32
DW27x31
11.75x22.5
13.00x22.5
14.00x22.5
15.00x22.5
16.00x22.5
20.00x22.5
24.00x22.5
16.00x26.5
20.00x26.5
24.00X26.5
28.00x30.5
Some detail of these rims for your reference.
| Wheel Size | Fitted Tyre | Bolt Hole | P.C.D | Thickness | Offset | ||
| Number | Dia. | Rim | Disc | ||||
| 9.00x18 | 10.5/80-18 12.5/80-18 |
6 | 21.5 | 205 | 4 | 8 | 0 |
| 8 | 27 | 275 | 4 | 8 | 0 | ||
| 11.00x18 | 13.0/65-18 | 8 | 17 | 203.2 | 5 | 10 | -55 |
| 13.0/65-18 | 6 | 21.5 | 205 | 5 | 10 | 0 | |
| 13.00x18 | 15.5/60-18 405/70-18 |
6 | 21.5 | 205 | 5 | 10 | 0/-40 |
| 8 | 27 | 275 | 5 | 10 | 0/-40 | ||
| Wheel Size | Fitted Tyre | Bolt Hole | P.C.D | Thickness | Offset | ||
| Number | Dia. | Rim | Disc | ||||
| 30.5x28.00 | 800/45-30.5 | 10 | 27 | 335 | 7 | 15 | 0/-50 |
| Wheel Size | Fitted Tyre | Bolt Hole | P.C.D | Thickness | Offset | ||
| Number | Dia. | Rim | Disc | ||||
| DW27x32 | 30.5L-32 | 10 | 27 | 335 | 7 | 16 | 0/74/98 |
| DW27x31 | 24.5-32 | 10 | 27 | 335 | 7 | 16 | 0 |
We pay attention to every detail of wheel rims.
1.Excellent traction patterns to drive wheels, are suitable for on and off-the-road agricultural service on trailers, tractiors and large implements in all weather conditions.
2.Tubeless flotation tire with good self cleaning characteristics, suitable for agricultural implements, and particular, for towed vehicles. High load capacity at low inflation pressures prevent damage to fields and crops.
3.Strong nylon construction and compounds ensure long life.
Should any of these be of interest to you, or if you have any questions, pls don't hesitate to contact us.
Vivian/Qingdao J&G International Trading Co.,Ltd.
