Specifications
1.Type: TL2.Brand: Multistar
3.Pattern :IMP-05
4.Rim size: 16.00x17 06/205/161 08/275/221 ET.0
| Size | Ply | Tyre Application | O. D. (in) | S. W. (in) | TT/TL | Rim |
| 13/65-18 | 12/14/16 | Farm Implement | 35.9 | 13.22 | TL | 11.00x18 |
1.Type: TL
2.Brand: Multistar
3.Pattern :IMP-05
4.Rim size: 16.00x17 06/205/161 08/275/221 ET.0
| SIZe | Pattern | TT/TL | PR / LI | RIM | O.D / S.W | LOAD | PRESSURE | KM/H |
| 13.0/55-16 | IMP-05 | TL | 12 | 11.00X16 | 774x328mm | 2.060kg | 4.9bar | 40km/h |
| 14.0/65-16 | IMP-05 | TL | 10 | 11.00X16 | 870x353mm | 2.240kg | 3.7bar | 40km/h |
| 14.0/65-16 | IMP-05 | TL | 14 | 11.00X16 | 870x353mm | 2.900kg | 5.5bar | 40km/h |
| 15.0/55-17 | IMP-05 | TL | 14 | 13.00x17 | 850x391mm | 2.575kg | 4.9bar | 40km/h |
| 15.0/55-17 | IMP-05 | TL | 18 | 13.00x17 | 850x391mm | 3.250kg | 6.5bar | 40km/h |
| 19.0/45-17 | IMP-05 | TL | 14 | 16.00x17 | 865x453mm | 2.800kg | 3.9bar | 40km/h |
| 19.0/45-17 | IMP-05 | TL | 18 | 16.00x17 | 865x453mm | 4.000kg | 4.5bar | 40km/h |
| 500/50-17 | IMP-05/TRC-02 | TL | 14 | 16.00x17 | 935x500mm | 3.550kg | 3.6bar | 40km/h |
| 500/50-17 | IMP-05/TRC-02 | TL | 18 | 16.00x17 | 935x500mm | 4.120kg | 4.4bar | 40km/h |
| 13.0/65-18 | IMP-05 | TT/TL | 16 | 11.00x18 | 908x336mm | 2.800kg | 6.7bar | 40km/h |
Features of tyre for agriculture trailer, baler, feed mixer, implements :

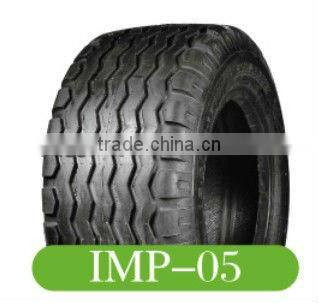

IMP-05 Pattern for your information.
Low section implement tyres and farm implement tires, offering high load capacity with minimum soil compaction.
Ideal tyres for modern faming, suitable for both on and off-the-road applications.
Environmentally friendly flotation tyre for large agricultural machines and trailers
1. This low-profile and sturdy tyre endures speed well, resulting in quick transportation
2. Thanks to the large contact patch, ts load-bearing capacity is good even on soft soil
3. Low ground pressure and good traction
4. Good self cleaning qualities
About us
We would like to introduce our company's profile as below for your reference. Our company--Qingdao J&G is specialize in flotation implement tyre and wheel.
1.Markets and OE experience: Our prducts export more than 70 countries and 60% is for OE market. Such as in Canada, New Zealand, South Africa, European etc. Our OE customers from worldwide.
2. Storage: We have big warehouse in Qingdao Port, it will be easy to provide assembly tyre and wheel and make prompt shipment.
3. Quality: We are the dealer of Trelleborg and Alliance in China. We follow their technica to improve our quality of tyres. Our quality is proven to be good!
19/45-17 with pattern IMP-05 TYRE in our warehouse waiting for assembly service with rim and packing

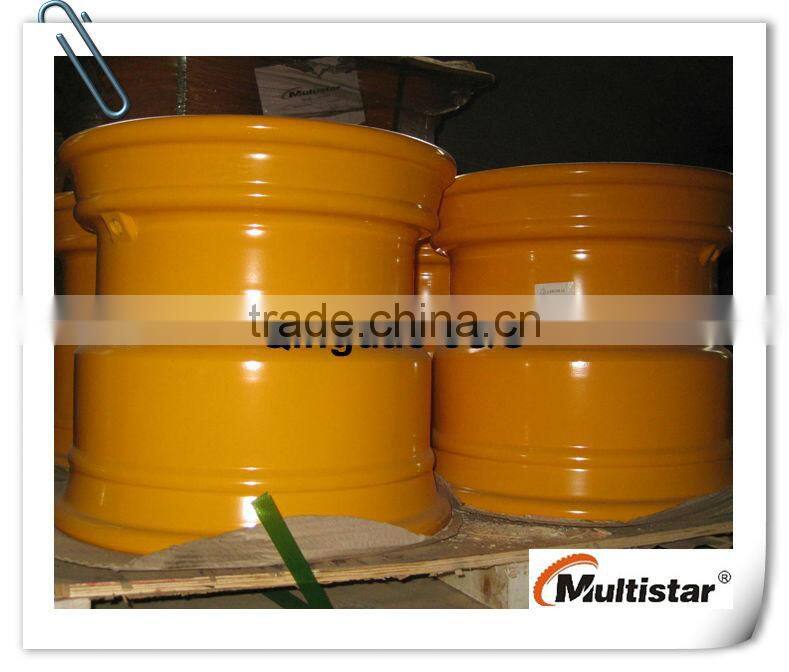

The fitted wheel rims are available for your assembly service and prompt shipment
Agricultural Wheel / Tractor Wheel Rim / WDC Wheel Rim / DW Series Steel Wheel Rim
12" : 4.00Bx12, 12X4j, , 5.00s-12, 7.00-12,
13" : 13x4 1/ 2J, 13x4J
14" : 14x4 1/ 2J
15" : 15x6J, 15x5 1/ 2J, 15x6J, 15x8JJ, 7.00T-15
15.3" : 9.00x15.3
15.5" : 13.00x15.5, 15.5x16.00
16" : 16x6 1/ 2J, 16x7J, 16x8J, 11x16
16.5": 16.5x8.25, 16.5x9.75
17": 17x7J, 17x8J, 13x17, 16x17
18": 18x8J, 18xW9, 9x18, 11x18, 13x18
19.5": 19.5x13.00, 19.5x14.00
20": 9.00x20, 11.00x20, 13.00x20, 14.00x20, 16.00x20
20.5": 20.5x14.00,
22": 8.00x22, 8.00-22
24" : 11x24, 13x24, 14x24, 16x24
25" : 12.00x25, . 14.00x25
22.5" : 22.5x11.75, 22.5x16.00, 22.5x20.00
26.5": 26.5X24.00, 26.5X20.00
W Series
20" : W7x20, 20xW7, 20xW8, 20x8J, 20xW9
22" : 22x8J
24" : 24xW7, 24xW8, 24xW10, 24xW12, 24xW15, 24xW16L, 24xW17
26" : 26xW12, 26xW13
28" : 28xW10, 28xW11, 28xW12, 28xW13, 28xW14L
30" : 30xW12, 30xW14L, 30xW14
32" : 32xW10, 32xW8
34" : 34xW15, 34xW14L
38" : 38xW11, 38xW12, 38xW15L, 38xW16L, 38xW18
48" : 48xW7
DW Series Wheel :
24": DW15Lx24
26": DW20x26, DW25X26
28" : DW15Lx28
30" : DW14x30
32": DW27x32, DW21X32
34": DW15x34, DW34x15
38": DW11x38, 38xDW11,
Some parameters of Agriculture Wheel Rims for your reference.
| Wheel Size | Fitted Tyre | Bolt Hole | P.C.D | Centre Hole Dia. | Thickness | Offset | ||
| Number | Dia. | Rim | Disc | |||||
| 26.5x16.00 | 10 | 27 | 335 | 281 | 7 | 15 | 0 | |
| 26.5x20.00 | 620/55-26.5 650/55-26.5 |
8 | 27 | 275 | 221 | 7 | 15 | 0/-50 |
| 10 | 27 | 335 | 281 | 7 | 15 | 0/-50 | ||
| 10 | 27 | 225 | 176 | 7 | 15 | 0/-50 | ||
| 26.5x24.00 | 700/50-26.5 750/45-26.5 |
8 | 27 | 275 | 221 | 7 | 15 | 0/-50 |
| 10 | 27 | 335 | 281 | 7 | 15 | 0/-50 | ||
Some photos of Agriculture Wheel Rims and OTR Wheel disc for your reference.
More details
We have wide range of products, any size you are interested, please let us know your detail inquiry.
This is Vivian from QingdaoJ & G International Trading Co., Ltd , which is the exporter of tyres and wheel rims, any size you are interested, please kindly advise, thanks.
