OHV gasoline multi-functional water pump home use

Name: OHV gasoline multi-functional water pump home use
Brand: BOON
Price: USD $54 - 123 / Set

FOB Price

USD $54 - $123 / Set

1 Set(Min.Order)

Supply Ability 25000 Set / Sets per Month
Port Chongqing Shanghai Guangzhou port
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Chongqing, China	Brand Name:	BOON	Model Number:	GGZ100-30
Theory:	Centrifugal Pump	Structure:	Single-stage Pump	Usage:	Water
Power:	Electric	Standard or Nonstandard:	Standard	Fuel:	Gasoline
Pressure:	High Pressure	Application:	Other, fire, agriculture, irrigation, flood, construction

Product Description

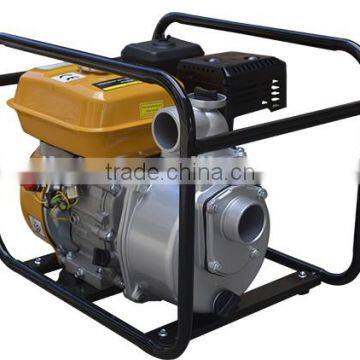

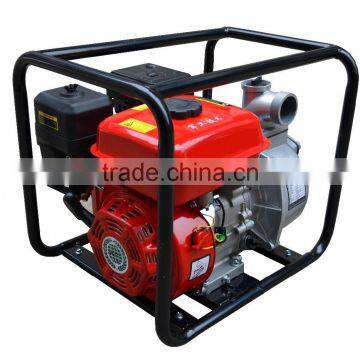

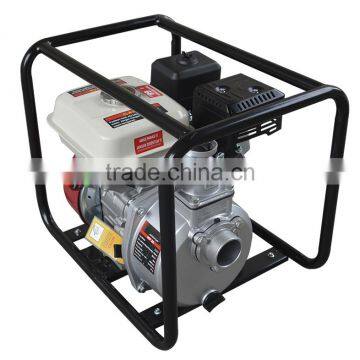

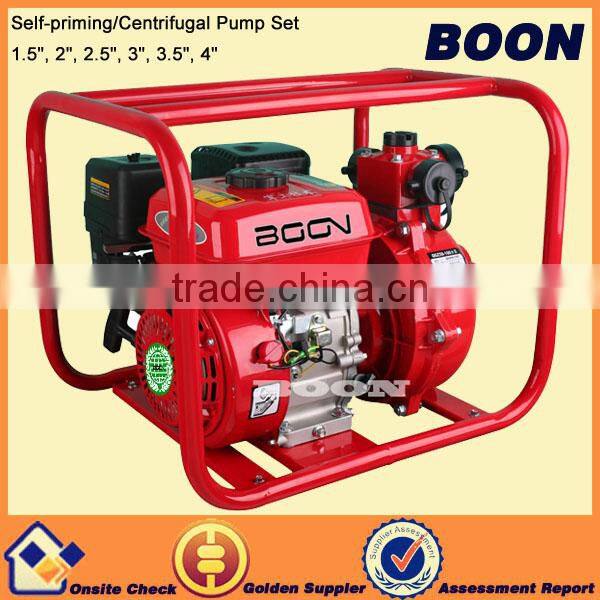

OHV gasoline multi-functional water pump home use

Product Description

Aluminum alloy and cast iron pump body-------The pump body is manufactured with light but solid aluminum alloy as well as solid durable cast iron to meet needs of all users.

Main parts

BOON OHV BN152F or BN170F gasoline engine are used for this water pump. This engine is easy to be started, reliable and durable with high working efficiency and powerful power. The water pump is equipped with pure steel camshaft, single/double impellers for a water supply of long-distance and high efficiency flow.

Application

Widely application range----Boon water pump series covers a broad application range of cities, towns, stations, docks, ports, mine areas, ships, goods warehouse, and agriculture irrigation and so on. Meanwhile, it is ideal equipment for draining flooded fields, drought resisting, rinsing, and some other water supply.

Working type	Self- Priming pump
Model	QGZ50-20	QGZ50-30	QGZ80-30	QGZ100-35	QGZ100-30
Inlet diameter	2" (50 mm)	2" (50 mm)	3" (80 mm)	4" (100 mm)	4" (100 mm)
Outlet diameter	2" (50 mm)	2" (50 mm)	3" (80 mm)	4" (100 mm)	4" (100 mm)
Max lift	20 m	30 m	30 m	35 m	30 m
Max suction	8 m
Max flow	26 m³/h	50 m³/h	28 m³/h	48 m³/h	78 m³/h
Rated revolution speed	3600 rpm
Engine model	152 F	170 F	170 F	170 F	170 F
Engine type	Single cylinder, four-stroke, overhead valve, air cooled
Starting system	Recoil start
Ignition way	Transistor ignition
Max output (KW)	1.2	5.3	5.3	5.3	5.3
*Packing size(LWH)mm*	*445335415*	*415370375*	*490395415*	*560430530*	*560430530*
NW/GW(kg)	14/16	23/25	27/29	33/35	33/35

The vertical height from the impeller central line to the surface of water source is called suction for short. The vertical height from the impeller central line to the surface of water tank is called lift for shot.
