Specifications
water pumpCast iron, Aluminum alloy pump
152F, 170F gasoline engine drive
Outlet/inlet DIA: 1", 1.5", 2", 2.5", 3", 3.5", 4"

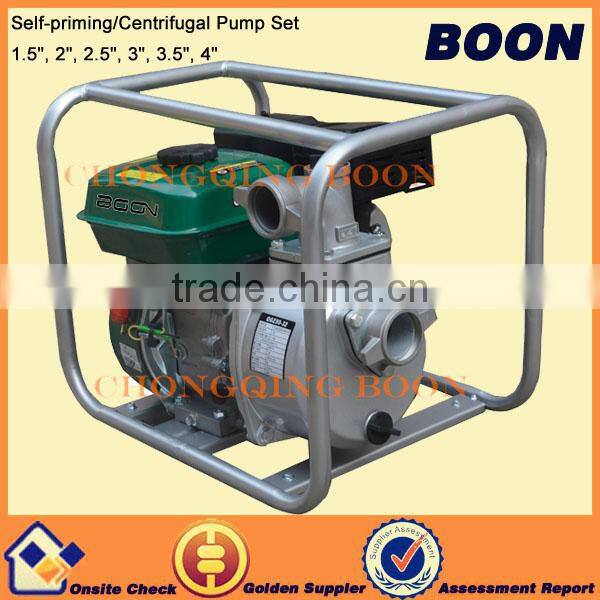

Engine drive portable with hose deep well water pump
Aluminum alloy and cast iron pump body-------The pump body is manufactured with light but solid aluminum alloy as well as solid durable cast iron to meet needs of all users.

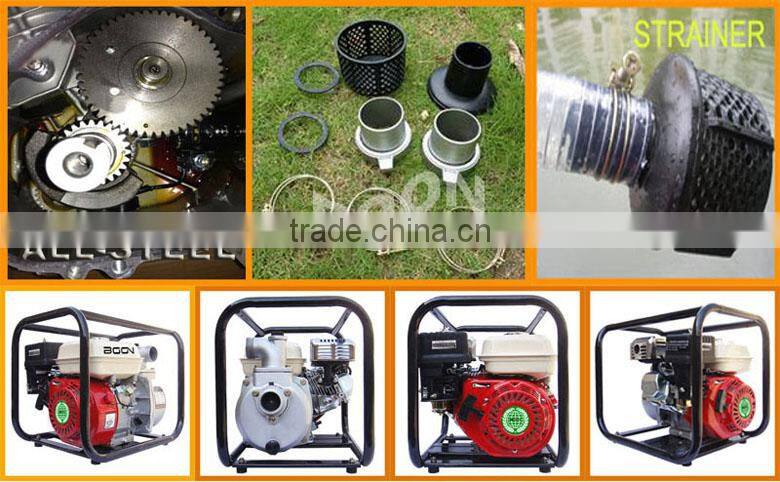

Main parts
BOON OHV BN152F or BN170F gasoline engine are used for this water pump. This engine is easy to be started, reliable and durable with high working efficiency and powerful power. The water pump is equipped with pure steel camshaft, single/double impellers for a water supply of long-distance and high efficiency flow.

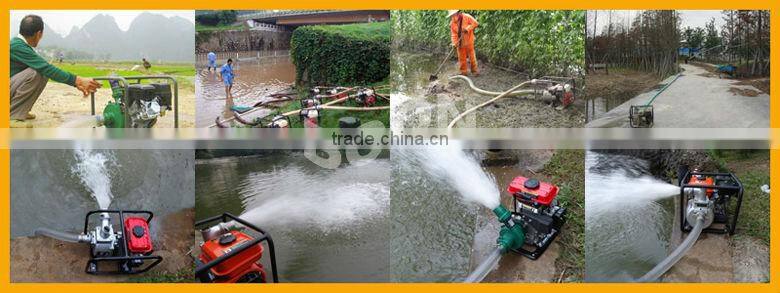

Application
Widely application range----Boon water pump series covers a broad application range of cities, towns, stations, docks, ports, mine areas, ships, goods warehouse, and agriculture irrigation and so on. Meanwhile, it is ideal equipment for draining flooded fields, drought resisting, rinsing, and some other water supply.
Working type |
Self- Priming pump |
||||
Model |
QGZ50-20 |
QGZ50-30 |
QGZ80-30 |
QGZ100-35 |
QGZ100-30 |
Inlet diameter |
2" (50 mm) |
2" (50 mm) |
3" (80 mm) |
4" (100 mm) |
4" (100 mm) |
Outlet diameter |
2" (50 mm) |
2" (50 mm) |
3" (80 mm) |
4" (100 mm) |
4" (100 mm) |
Max lift |
20 m |
30 m |
30 m |
35 m |
30 m |
Max suction |
8 m |
||||
Max flow |
26 m3/h |
50 m3/h |
28 m3/h |
48 m3/h |
78 m3/h |
Rated revolution speed |
3600 rpm |
||||
Engine model |
152 F |
170 F |
170 F |
170 F |
170 F |
Engine type |
Single cylinder, four-stroke, overhead valve, air cooled |
||||
Starting system |
Recoil start |
||||
Ignition way |
Transistor ignition |
||||
Max output (KW) |
1.2 |
5.3 |
5.3 |
5.3 |
5.3 |
Packing size(L*W*H)mm |
445*335*415 |
415*370*375 |
490*395*415 |
560*430*530 |
560*430*530 |
NW/GW(kg) |
14/16 |
23/25 |
27/29 |
33/35 |
33/35 |

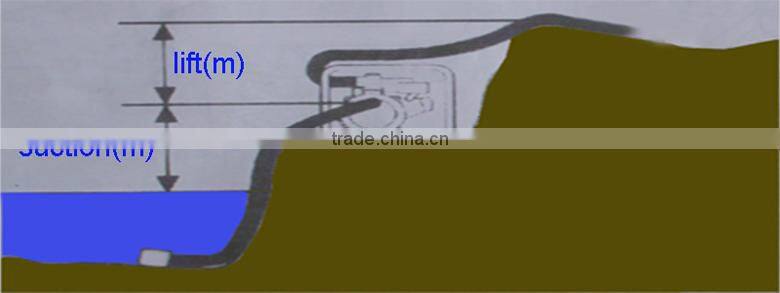

The vertical height from the impeller central line to the surface of water source is called suction for short. The vertical height from the impeller central line to the surface of water tank is called lift for shot.
Chongqing Boon Machinery Co., Ltd, which is a professional joint-stock manufacturer with factory of universal machine and farming machine, is located in the production base of farming machines and micro-machines in Shapingba District of Chongqing, China.
Products Range
Generator, power tiller, water pump, engine, concrete vibrator and related parts
Gasoline generator power range: 0.7 kw-8.0 kw
Power tiller horse power range: 5 hp-15 hp
Water pumps size range: 1.0 inch-4.0 inch
Engine horse power range: 2.5 hp-15 hp(152F-190F)
Concrete vibrator horse power range: 7 hp
Each water pump set is wrapped in poly bag, then into carton with Owners Manual in it and outsie with strapping.
Qiuck delivery time: Samples delivery in 1 or 2 days. Large quantity delivery 3-18 days.
Q1: Where is your factory?
A1: We're located in Chongqing, China.
Q2: What's your MOQ?
A2: 1 set is ok.
Q3: What's your payment terms?
A3: Paypal. T/T. Other payment is negatiable. Large quantity 30% T/T deposit in advance,the balance payment before delivery.
1. OEM is ok. We could provide oem for your brand after your authorization.
2. Spare parts will be provided per your requirements.
3. Send us your details requirements please!
