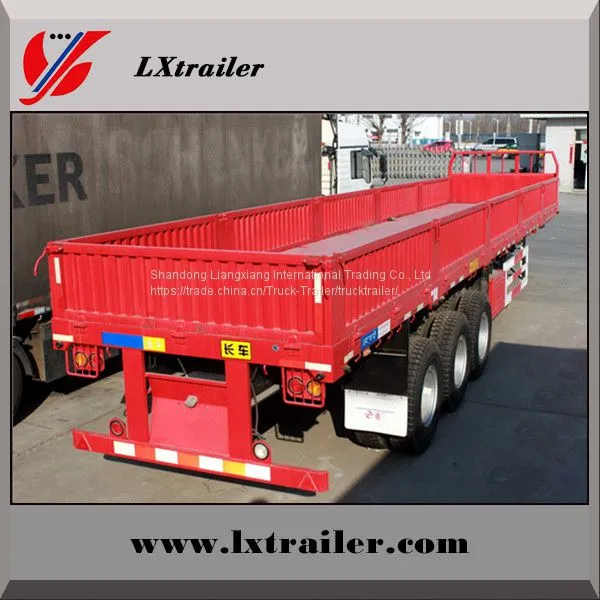

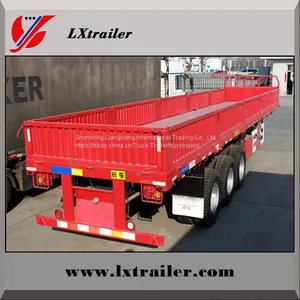

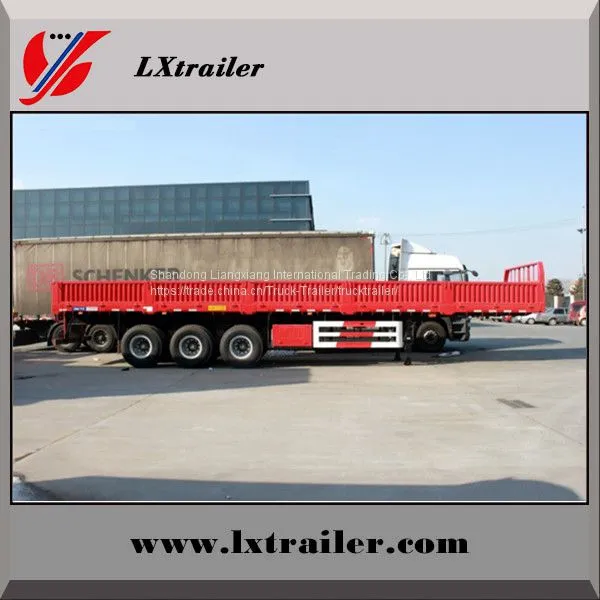

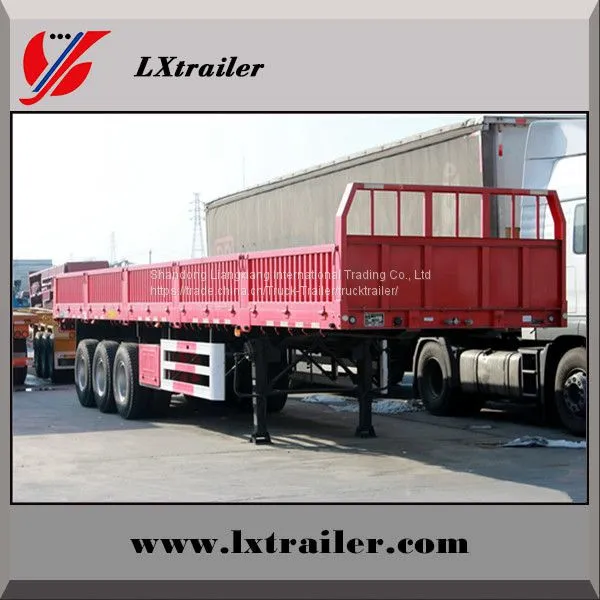

Help CenterSinotruck 3 Axles 45tons Drop Sidewall Cargo Semi Trailer
Related Products
-
Sinotruk 3 Axles Flatbed Container Semi TrailerUS$ 10000 - 11500MOQ: 1 Unit -
3 Axles 45Tons Flatbed Wood Logging Transport Semi TrailerUS$ 10000 - 11500MOQ: 1 Unit
-
3 Axles 45Tons Flatbed Box Lifting Open Semi TrailerUS$ 10000 - 11500MOQ: 1 Unit
-
3 Axles 45Tons Flatbed Side Wall Full Cargo Trailer With Container LocksUS$ 10000 - 11500MOQ: 1 Unit
-
3 Axle Sidewall Trailer Semitrailer Truck TrailerUS$ 13,800 - 15,600MOQ: 1 Unit
DESCRIPTION |
Side Wall Semi-Trailer |
|||
MAKE |
LiangXiang |
MODEL |
||
SPECIFICATIONS | ||||
PARAMETER | ||||
|
OVERALL DIMENSION (mm) |
Length |
12300 |
||
Width |
2500 |
|||
Height |
2750 |
|||
|
WEIGTH RATING (kg) |
Kerb. Weight |
7800 |
||
Payload |
45000 |
|||
Total Mass |
52800 |
|||
WHEELBASE (mm) |
6800+1310+1310 |
|||
MAIN FRAME | ||||
DESCRIPTION |
Heavy duty and extra durability designed high tensile steel Q345B, welded by automatic Submerged-Arc processes 500mm height Beam |
|||
TOP FLANGE (mm) |
14 mm Width |
|||
MIDDLE FLANGE (mm) |
8mm |
|||
BOTTOM FLANGE (mm) |
16 mm Width |
|||
PLATFORM | ||||
|
STRUCTURE (mm) |
Front & Rear |
2 |
||
Right & Left |
2 |
|||
Floor |
3 |
|||
SUSPENSION | ||||
Type |
One Couple of Tri-axle Mechanical Suspension |
|||
DESCRIPTION |
Six Sets of 10 pieces 13x100mm leaf spring |
|||
AXLE | ||||
MAKE & BRAND |
Fuwa alxe |
|||
WEIGHT RATING & TOTAL AXLE |
13000kg x 3 |
|||
KINGPIN | ||||
TYPE |
One unit of #90 SAE standard welded Kingpin |
|||
LANDING GEAR | ||||
TYPE |
28T, 2 Speed, manual operating, heavy duty landing gear |
|||
BRAKE SYSTEM | ||||
TYPE |
A system with emergency brake and parking brake; Dual line- air brake,piggyback spring on all axles;Two units of WABCO RE 4 relay valve(or equivalent); Four units of T30/30 spring brake chamber; Two units of T30 brake chamber, two units of 40L air tanks; two units of standard copper air-connector. |
|||
TIRE & RIM | ||||
RIM SIZE X NUMBERS |
8.5 -20 x 12 pieces |
|||
TYRE TYPE & SIZE X NUMBERS |
11.00R20 x 12 pieces |
|||
SPARE WHEEL CARRIER |
One set of spare wheel carrier |
|||
ELECTRICAL SYSTEM | ||||
VOLTAGE |
24 volt standard 7 pin plug SAE / ISO1185 socket, support from tractor |
|||
ELECTRICAL APPLIANCES |
Tail lamp with turning signal, brake light & reflector, Side lamp etc. One set of 6-core standard Cable |
|||
FINISHING | ||||
COATING |
Sand blasting processing on rust– proof protection. One coat of anti corrosive primer |
|||
PAINTING |
Two(2) coat of finishing paint, body color and black color flame |
|||
ACCESSORIES | ||||
STANDARD |
One tooling box with a set of standard trailer tool |
|||
Send Inquiry to This Supplier
