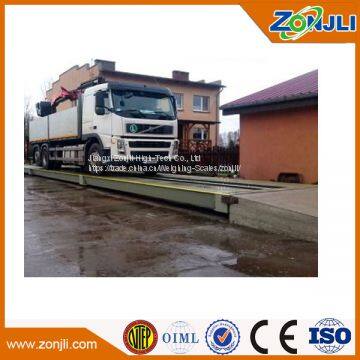

Zonjli 100t Weighbridge
Zonjli Advantages:
A. U beam designed by stress analysis software ensure good whole structure under heavy duty.
B. Strong and good carbon steel made weighing platform, designed lifespan more than 10years.
C. Good user feedback from Sartorius, Sinotec, Jiangxi Copper Corp., SINOMA, CHEMCHINA, AVIC, and etc.
D. Continuously improved quality with efforts from 50engineers and clients.
Standard Parts and accessories:
Part Name |
Key Specification |
Quantity |
Weighing platform modules |
Size options: 3X4m, 3X5m, 3X5.7m |
Depends on whole scale length |
Load cells |
Accuracy garde: OIML R60 C3 Material: steel alloy IP68 With 16m cables |
4~ 10pcs (Depends on whole scale length) |
Weighing indicator |
Digital or Analog type with embedded printer Interface: RS232C/ RS422/ RS485 External printer port Data management & records |
One piece |
Junction box |
Material: Stainless steel Connecting to 8 load cells IP68 |
One piece |
Signal Cable |
Connect Junction box to Indicator 10m RVVP 6*0.5m signal cable |
One set |
Optional accessories:
Part Name |
Key Specification |
Quantity |
Large screen display |
Showing weight to driver |
One piece |
External printer |
As per required |
One piece |
Lightning protection device |
In case Application in lightning area |
One piece |
Computer |
As per required |
One set |
UPS |
As per required |
One piece |
Weighing Management Software |
Zonjli weighing management software for data management, analysis, and recording. |
One copy |
Rail and ramp |
Guiding the driver to right place for weighing |
One set |
Signal light |
Guiding drivers weigh in queue |
One set |
Surge protector |
In case input power supply is not stable |
One piece |
Extensional Intelligent Sytem Solutions:
Product Name |
Extra parts or system |
Product Features |
Automatic Vehicle Weighing System (AVS) |
Signal lights, Barrier system, management software, ANPR camera system, computer, infrared positioning system, smart card system. |
1. Automatic weighing with fraud protection 2. Remote controlling and management of weighing data 3. Unmanned operation |
Truck Toll System |
Fee displayer, wheel identifier, control cabinet, ground sense coil, infrared vehicle separator, management software, ANPR camera system, computer, smart card system. |
1. Automatic weighing in toll booth 2. Remote controlling and management of weighing data 3. Unmanned operation |
Applications: industrial production and weighing, gas, oil, food, coal, quarry, mining, machinery, metallurgy, construction industry, and etc.
(inquiry us for explosion proof solution)

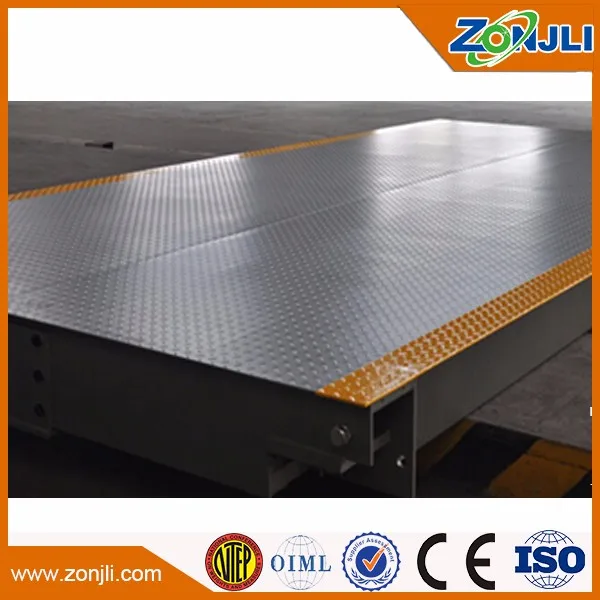

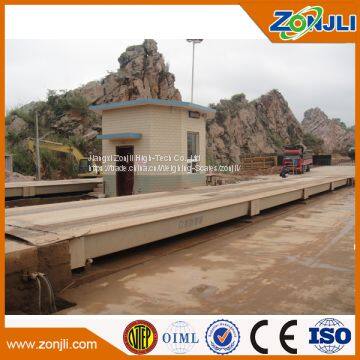

Weighing Platform:

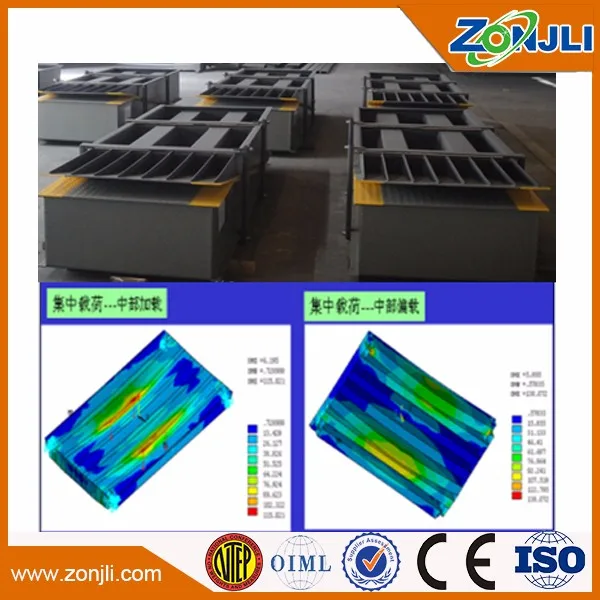

A. U-beam structure made of carbon steel is stronger after press analysis by Zonjli software.
B. Module weigh platform, easy installation, easy transportation, and saving freight by sea

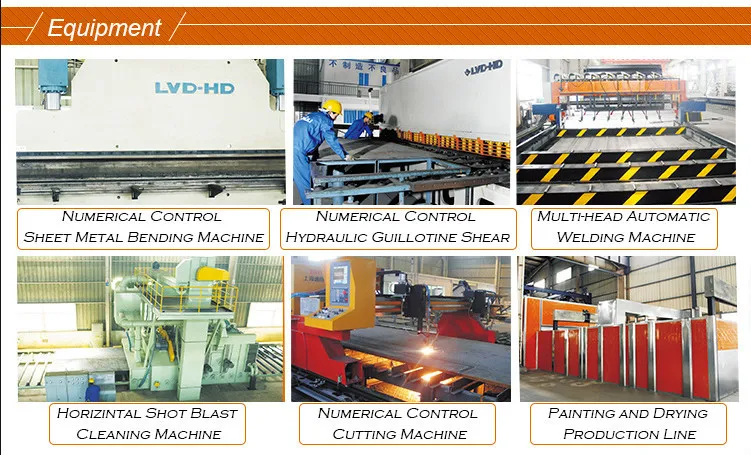

C. Advanced processing machines from LVD HD German and Zonjli self- designed machines assure high quality weigh platform
D. Multi-ways surface treatment to prevent corrosion in tough areas.
E. Anti-skid finish for safer weighing.
F. Automatic pressure transducing and reset system.

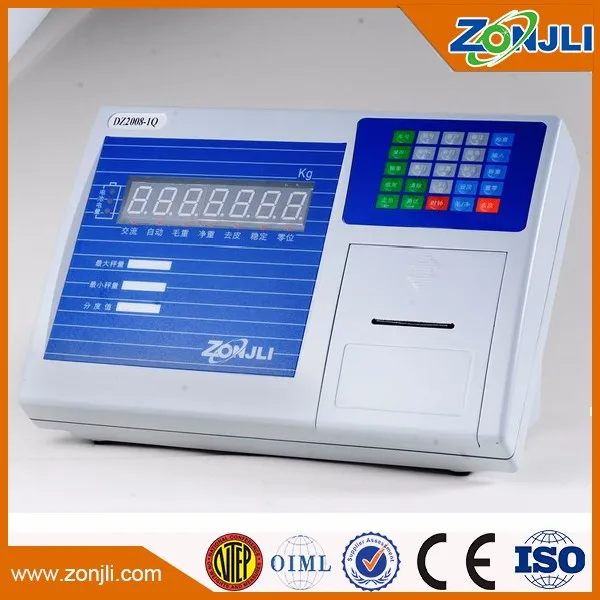

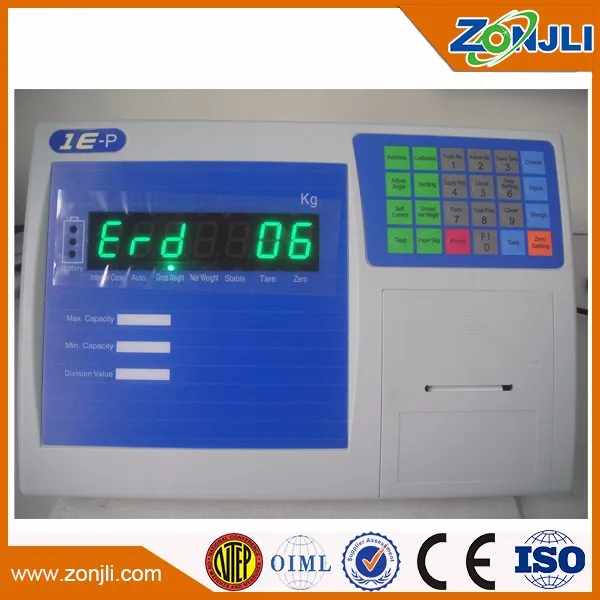

Weighing Indicator:
A. 7 bits high brightness LED displaying
B. New magnetic isolation technology Interface.
C. Protect data >5000h when power failure
D. Data Encryption
E. Ports detection
F. Keys detection
G. Calibration parameters including selections “remove tare”, store tare”, “set tare”
H. Fraud prevention
I. AC /DC compatible
J. Interface: RS232C/ RS422/ RS485
Digital type weighing indicator
Analog type weighing indicator

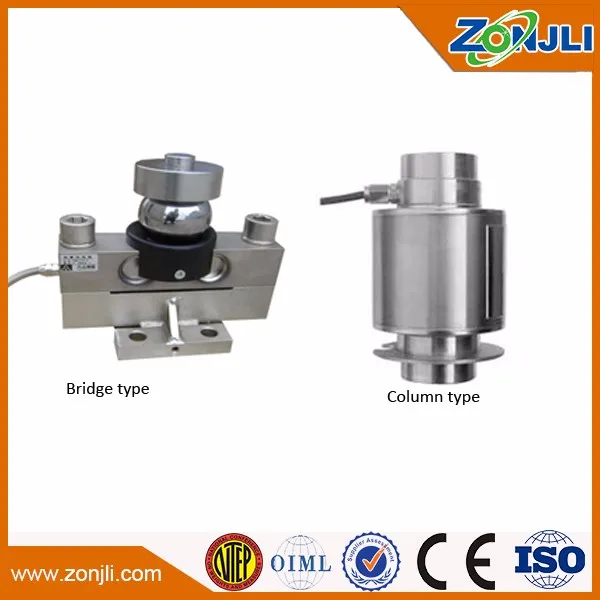

Load Cell:
A. Capacity: 5t to 50t
B. Steel ball loading, strong restoration ability
C. Easy complete installation, high weighing accuracy
D. OIML C3 certificate
E. Steel Alloy

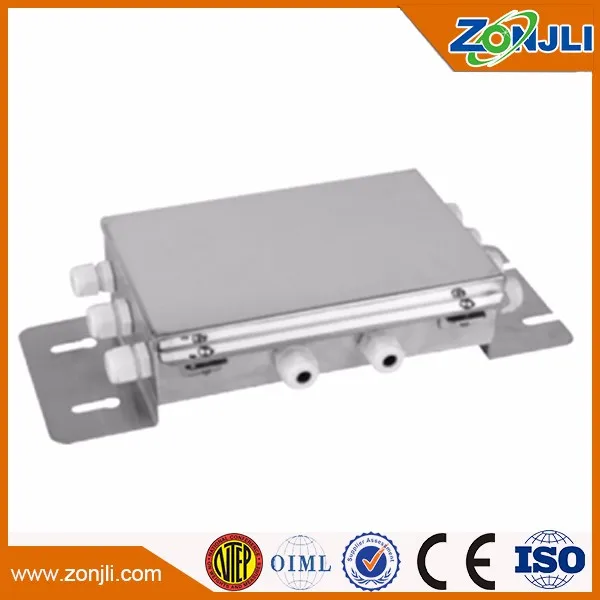

Junction Box

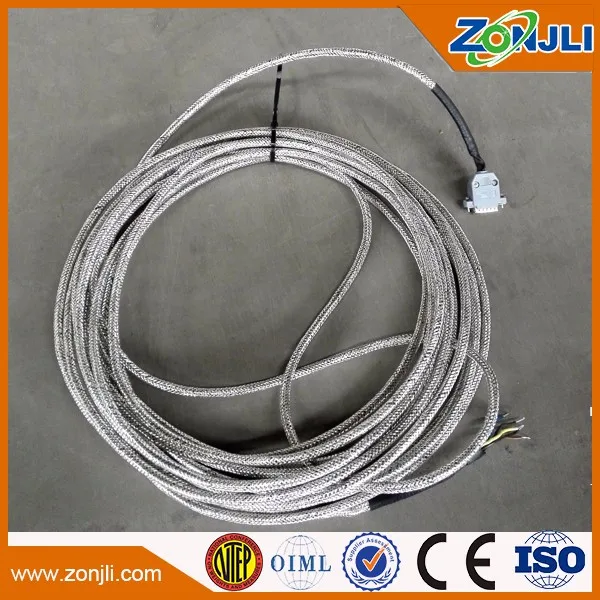

Signal Cable

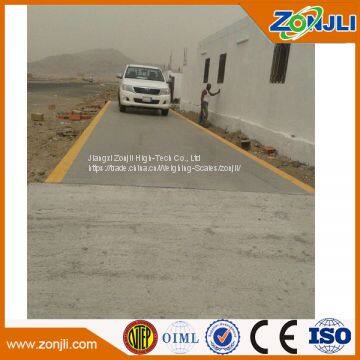

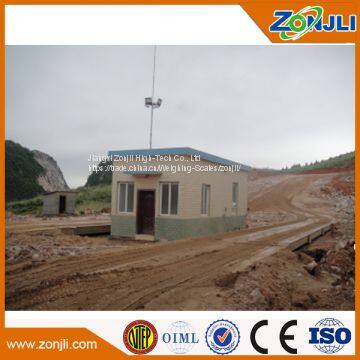

Installation way: pitless, shallow pit.
Company Profile:
Packaging:
