3D printer board control board MKS Gen V1.1 RepRap Ramps1.4 compatible module
3D printer board control board MKS Gen V1.1 RepRap Ramps1.4 compatible module
Name: 3D printer control board MKS-Gen V1.1
Send 30cm or 50cm USB cable, add 4.5 yuan to replace the 1.5-meter USB cable
For product use please refer to: /blog/static/222032041201410111204635/
Package product:
4 (double head 5) stepper motor: 42 motor with line
Limit switch 3: MKS limit switch
Motor drive 4: 4988 or 8825
Display 1: 2004 or 12864
Hot bed 1: MK3
1 set of hot bed temperature: temperature package
contain:
MKS-Gen V1.1 one;
USB cable one
Special Note:
Does not include motor drive, motor drive Please purchase separately.
Power reverse, the motor drive board will be able to burn the chip and circuit, please confirm and then power again.
Owner Tip:
1, MKS-Gen is a base for R & D personnel Ramps1.4, Megatronics V2.0 and other open source motherboard problems, in particular, to optimize the development of a product launched, especially for mass production of 3D printer manufacturers as the main control board.
2, give full consideration to stability, heat dissipation, ease of use, after continuous printing reliability test.
3, if there is a special need to contact the owner dwell.
4, matching lines can refer to: 2PIN, 3PIN, 4PIN
Features:

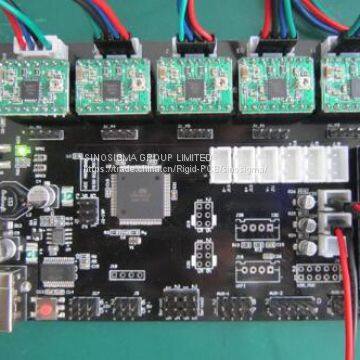

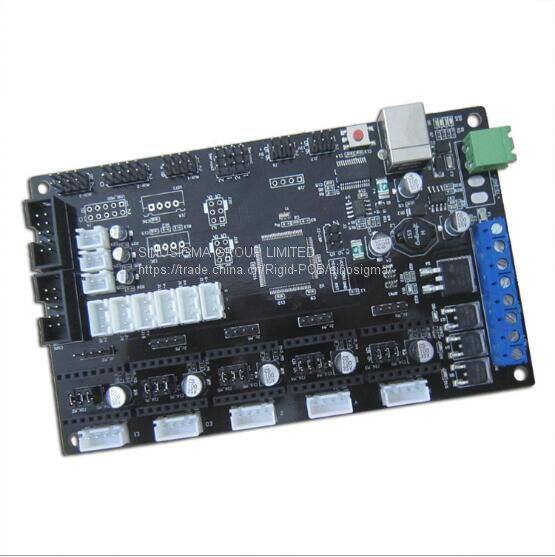

1, the 2560 and ramps1.4 set in a board, to solve the Ramps1.4 combination interface cumbersome, easy to trouble the problem.
2, replaceable motor drive, support 4988 driver and 8825 drive.
3, the circuit board with high-quality 4-layer board, and specifically for the thermal optimization; ramps is 2-layer board.
4, the use of high-quality MOSFET tube, better heat dissipation.
5, the use of dedicated power chip to support 12V-24V power input to solve the Ramps voltage conversion chip heating problem.
6, can accept 24V input, the same system power can be reduced to 1% of the hot bed current, effectively solve the problem of hot bed MOS tube heating.
7, the firmware can use open source firmware Marlin, configuration and ramps1.4 exactly the same, can directly replace Ramps1.4.
8, can be directly connected Ramps1.4, 2004LCD control panel and 12864LCD control panel.
9, set the motor pulse and the direction of the output port to facilitate external high current to external high current (such as 2A, 5A) motor drive circuit.
10, to retain Ramps1.4 Servos, AUX-1, AUX-2 interface, providing three 5V output, three 12V output interface.
