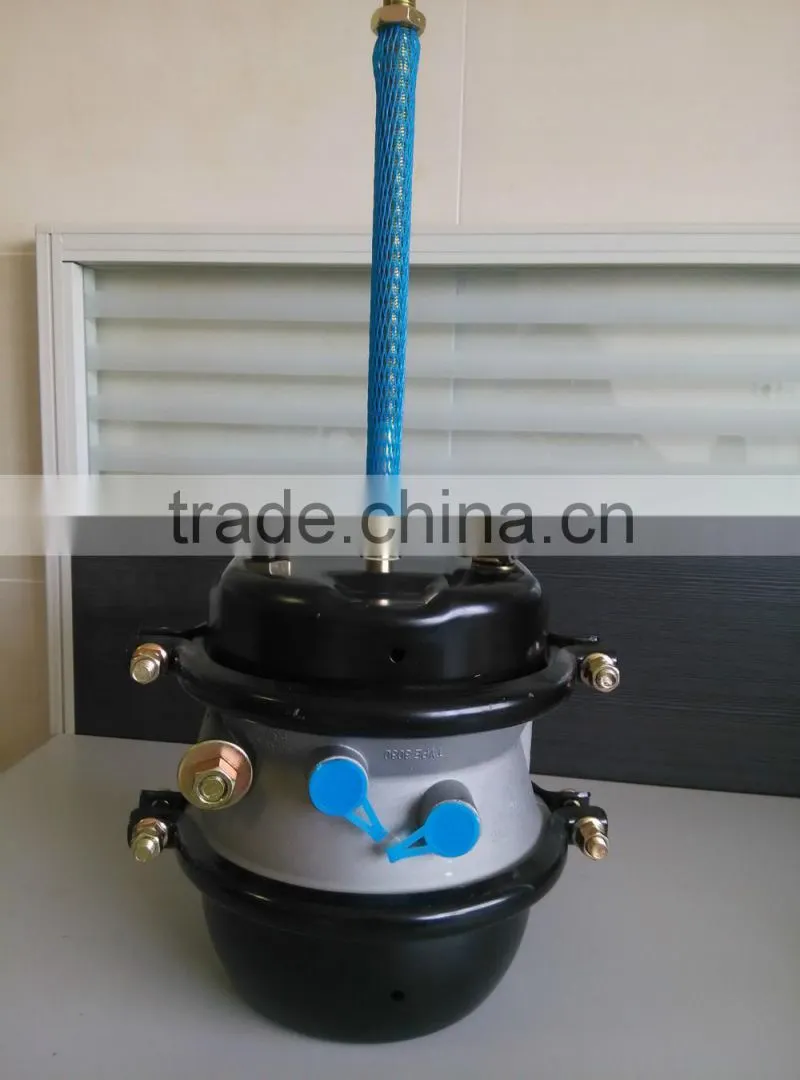

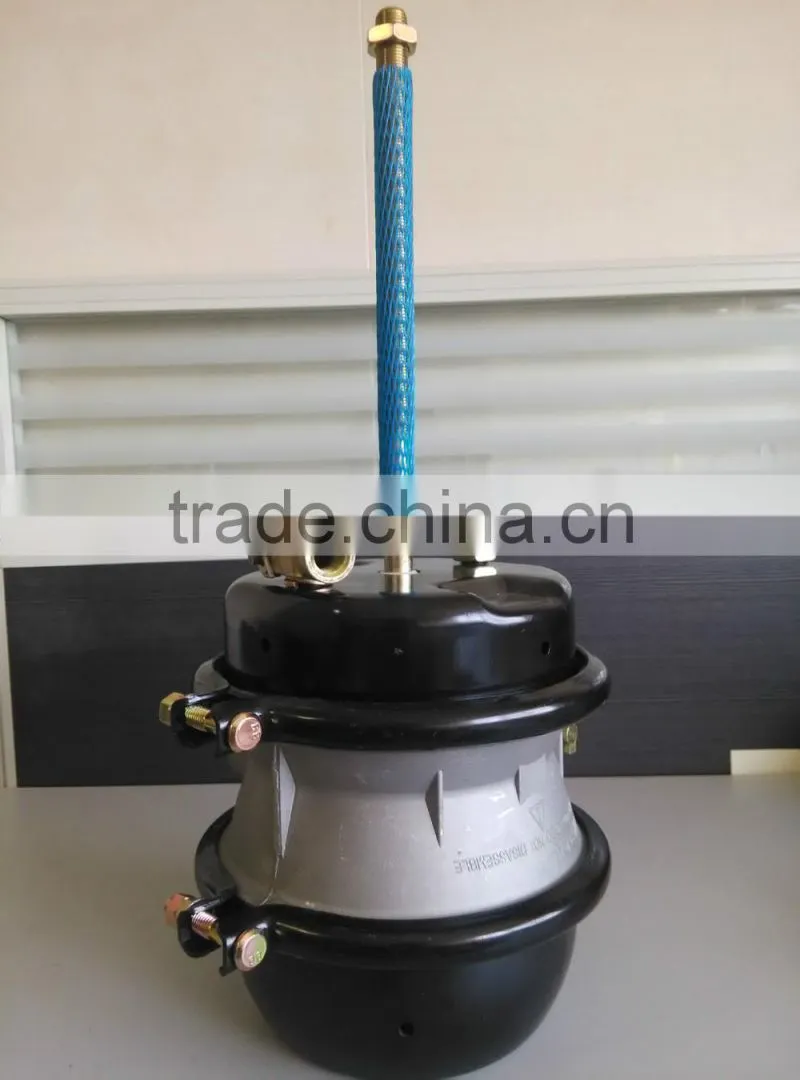

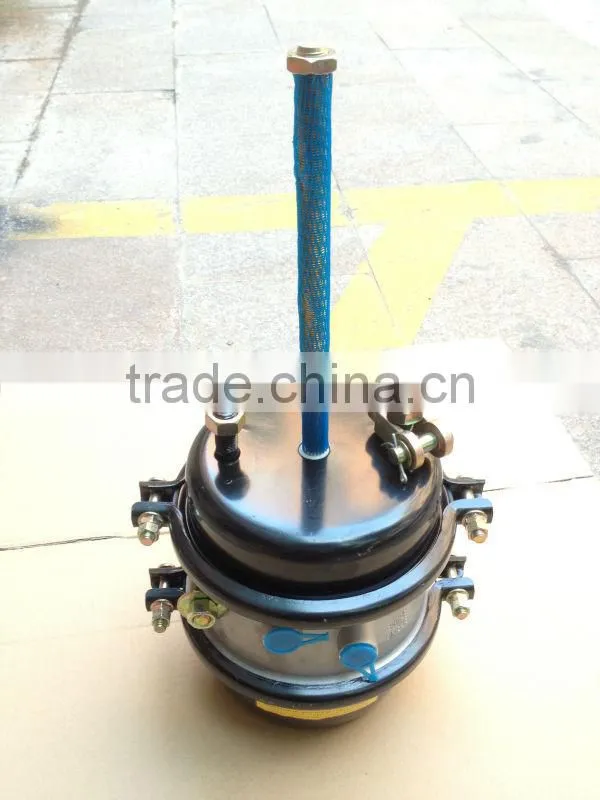

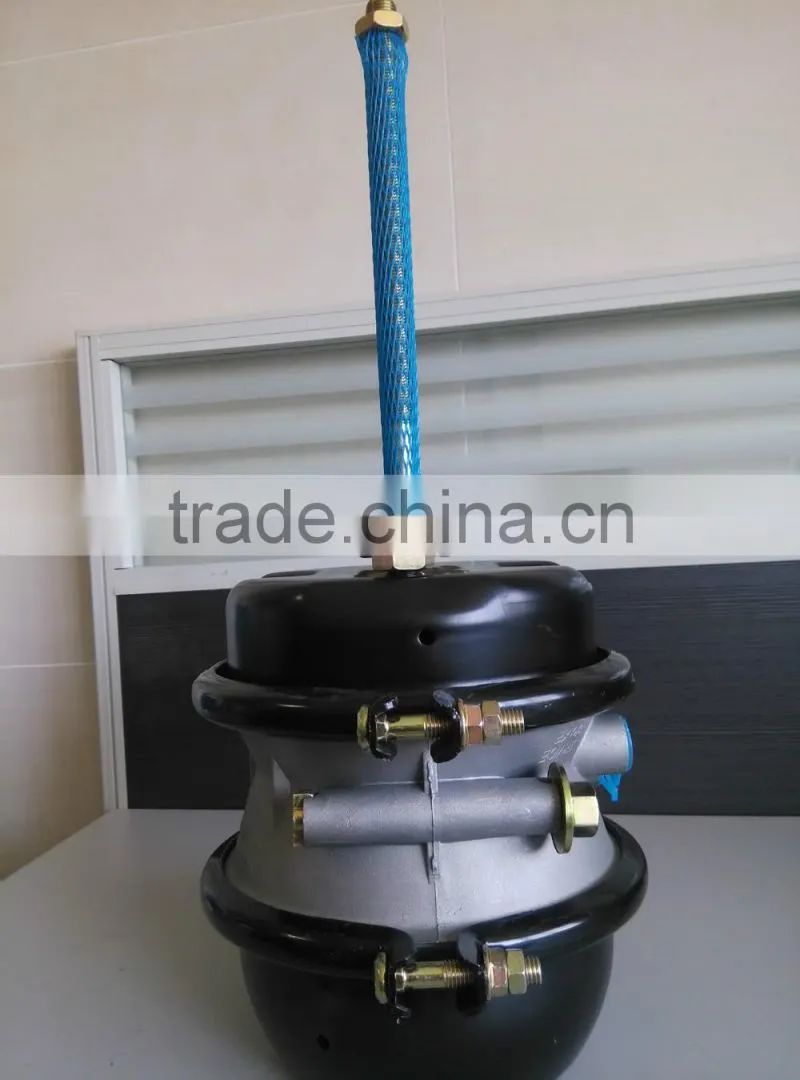

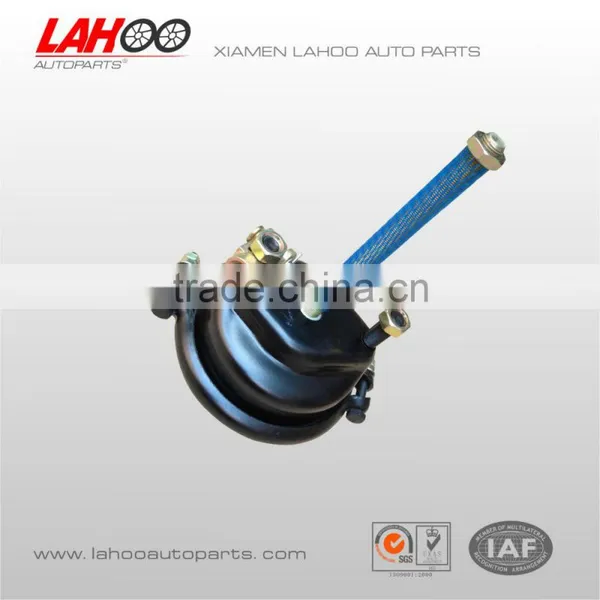

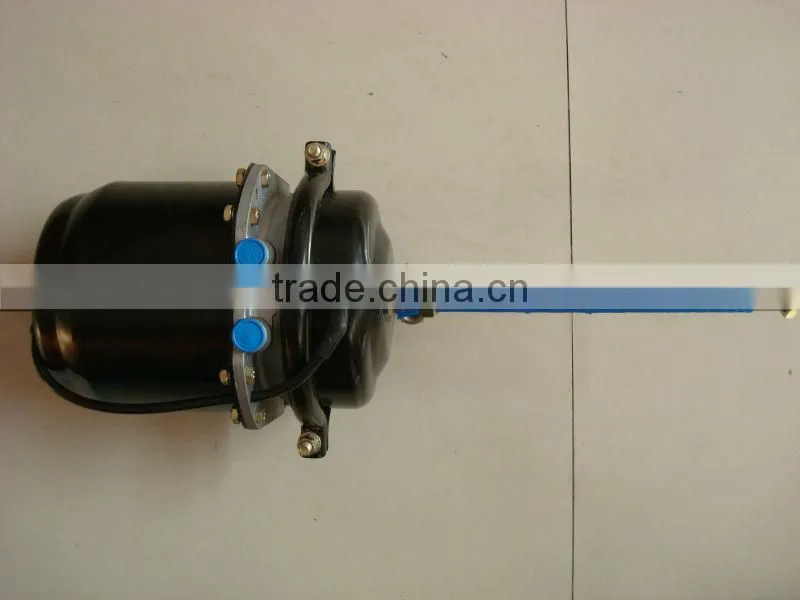

Air spring brake chamber T24
Lahoo Autoparts can supply single room & double room air brake chamber with many different sizes.
Our Brake Chamber has competitive price and good quality under ISO/TS16949 control.
Single Room Air Brake Chamber For Truck Trailer:
| Item No. | Stroke | R1 | R2 | L1 | L2 | L4 | Push Rod Thread | Air Inlet Thread | Mounting Bolt Thread | Weight |
| mm | mm | mm | kg | |||||||
| LHC-T09 | 44.5 | 87 | 68 | 104±5 | 106±5 | 130±3 | 1/2"-20UNF | 1/4"-18NPTF | 7/16"-14UNC | 1.9 |
| LHC-T12 | 44.5 | 125 | 105 | 104±5 | 160±5 | 130±3 | 1/2"-20UNF | 3/8"-18NPTF | 7/16"-14UNC | 2.3 |
| LHC-T16 | 57 | 107 | 83 | 109±3 | 163±5 | 160±3 | 1/2"-20UNF | 3/8"-18NPTF | 7/16"-14UNC | 3 |
| LHC-T20 | 57 | 110 | 88 | 84±5 | 240±5 | 200±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 4 |
| LHC-T24 | 64 | 116 | 93 | 123±5 | 240±5 | 206±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 4.1 |
| LHC-T30 | 64 | 125 | 105 | 123±5 | 285±5 | 255±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 4.8 |
Double Room Air Brake Chamber For Truck Trailer:
| Item No. | Stroke | R1 | R2 | L1 | L2 | L4 | Push Rod Thread | Air Inlet Thread | Mounting Bolt Thread | Weight |
| mm | mm | mm | kg | |||||||
| LHC-T2024 | 64 | 110 | 88 | 220±5 | 75±5 | 50±4 | M16*1.5 | M16*1.5 | M16*1.5 | 7.78 |
| LHC-T2424 | 64 | 116 | 93 | 224±5 | 240±5 | 206±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 8.1 |
| LHC-T2430 | 64 | 163 | 184 | 234±5 | 240±5 | 206±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 9.2 |
| LHC-T3030 | 64 | 125 | 105 | 238±5 | 285±5 | 255±5 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 9.5 |

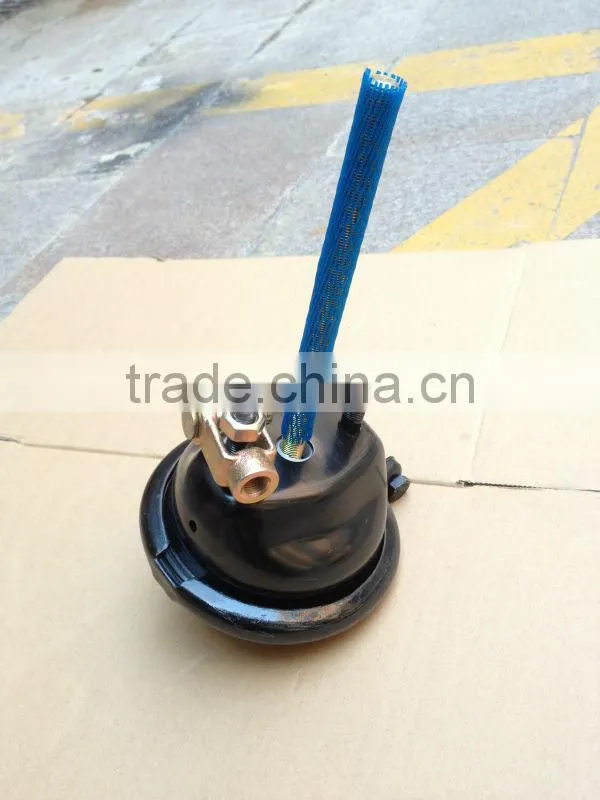

Single Room Air Brake Chamber Details:
Double Room Air Brake Chamber Details:
Axles: American type & German type with different capacity.
Mechanical suspension: 1axle, 2axle & 3axle with different steel plate thickness, German type,American type
Trailer air Suspension: 1axle, 2axle & 3axle with or without lifting
Bogie suspension: 24tons, 28tons, 32tons,drum and spoke type
Landing Gear: Gear outside & Gear inside with capacity 25tons, 28tons, 30tons and 35tons
Wheel rim: Tube type , different size for truck, semi-trailer
Leaf Spring: Conventional and parabolic type with different size.
5th wheel & King pin: 2'' & 3.5'', Forging type
Air Chamber: T14, T16, T24, T30, T24T30, T24T24, T30T30
Wheel hub and brake drum with different size.
Xiamen Lahoo Auto Parts Co., Ltd. is a leading supplier in auto parts that organized by several factories and joint-ventured manufacturers which successfully certified with TS16949 and ISO9001/2000 quality control system. We can supply full range spare parts for full trailers, semi-trailers, heavy duty trucks, light duty trucks, Our main spare parts include leaf spring, wheel rim, axle, Mechanical suspension, air suspension, boogie, turntable, fifth wheel, king pin, landing gear, air chamber, twist lock, Towing Hitches, Bearing and so on.
