Air brake Chamber T3030 T24, T24 30, T30 30
Lahoo Autoparts can supply single room & double room air brake chamber with many different sizes.
Our Brake Chamber has competitive price and good quality under ISO/TS16949 control.
Single Room Air Brake Chamber For Truck Trailer:
| Item No. | Stroke | R1 | R2 | L1 | L2 | L4 | Push Rod Thread | Air Inlet Thread | Mounting Bolt Thread | Weight |
| mm | mm | mm | kg | |||||||
| LHC-T09 | 44.5 | 87 | 68 | 104±5 | 106±5 | 130±3 | 1/2"-20UNF | 1/4"-18NPTF | 7/16"-14UNC | 1.9 |
| LHC-T12 | 44.5 | 125 | 105 | 104±5 | 160±5 | 130±3 | 1/2"-20UNF | 3/8"-18NPTF | 7/16"-14UNC | 2.3 |
| LHC-T16 | 57 | 107 | 83 | 109±3 | 163±5 | 160±3 | 1/2"-20UNF | 3/8"-18NPTF | 7/16"-14UNC | 3 |
| LHC-T20 | 57 | 110 | 88 | 84±5 | 240±5 | 200±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 4 |
| LHC-T24 | 64 | 116 | 93 | 123±5 | 240±5 | 206±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 4.1 |
| LHC-T30 | 64 | 125 | 105 | 123±5 | 285±5 | 255±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 4.8 |

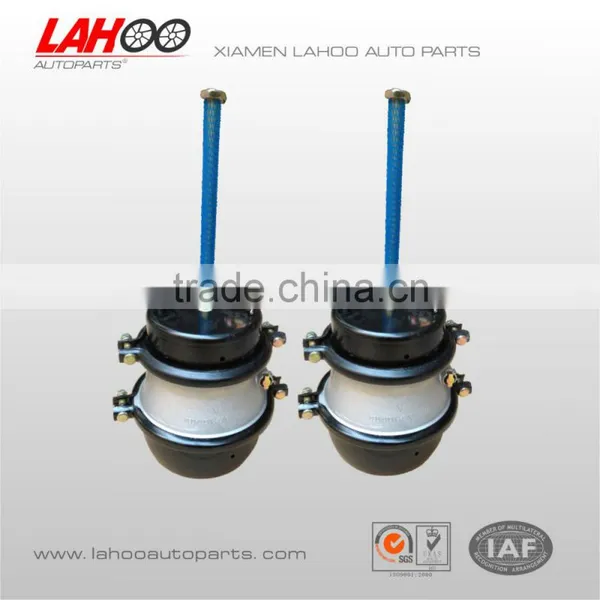

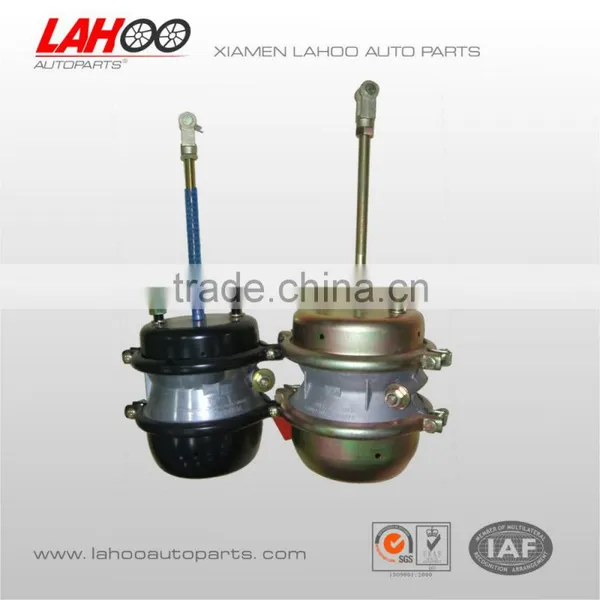

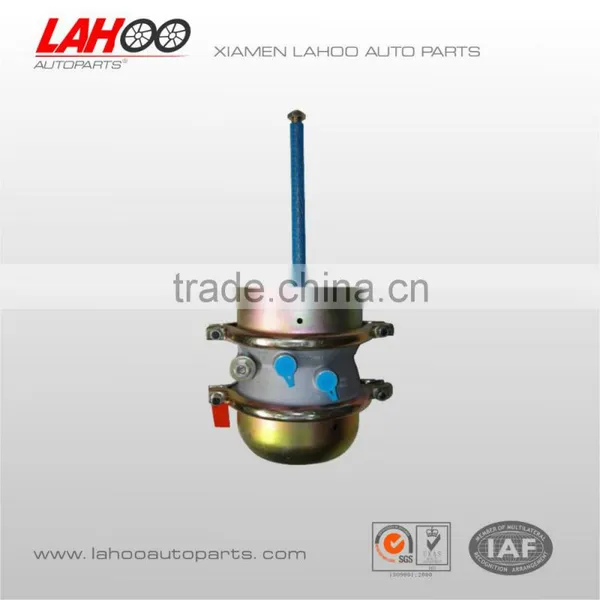

Double Room Air Brake Chamber For Truck Trailer:
| Item No. | Stroke | R1 | R2 | L1 | L2 | L4 | Push Rod Thread | Air Inlet Thread | Mounting Bolt Thread | Weight |
| mm | mm | mm | kg | |||||||
| LHC-T2024 | 64 | 110 | 88 | 220±5 | 75±5 | 50±4 | M16*1.5 | M16*1.5 | M16*1.5 | 7.78 |
| LHC-T2424 | 64 | 116 | 93 | 224±5 | 240±5 | 206±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 8.1 |
| LHC-T2430 | 64 | 163 | 184 | 234±5 | 240±5 | 206±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 9.2 |
| LHC-T3030 | 64 | 125 | 105 | 238±5 | 285±5 | 255±5 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 9.5 |
Single Room Air Brake Chamber Details:
Double Room Air Brake Chamber Details:
Xiamen Lahoo Auto Parts Co., Ltd. is a leading supplier in auto parts that organized by several factories and joint-ventured manufacturers which successfully certified with TS16949 and ISO9001/2000 quality control system. We can supply full range spare parts for full trailers, semi-trailers, heavy duty trucks, light duty trucks, Our main spare parts include leaf spring, wheel rim, axle, Mechanical suspension, air suspension, boogie, turntable, fifth wheel, king pin, landing gear, air chamber, twist lock, Towing Hitches, Bearing and so on.
