Type Of Trailer Stub Axle1.Factory price
2.Quick delivery time
3.Payment:T/T,L/C
4.Certification:ISO,TS16949

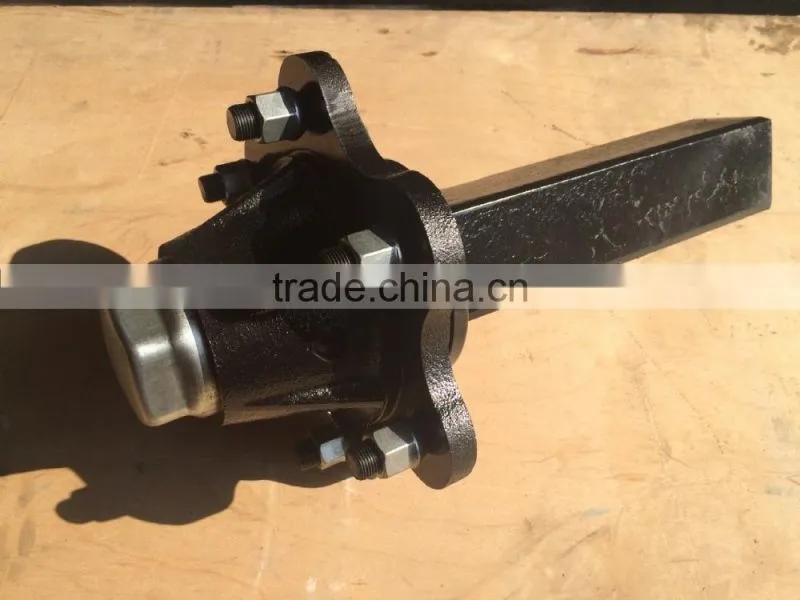

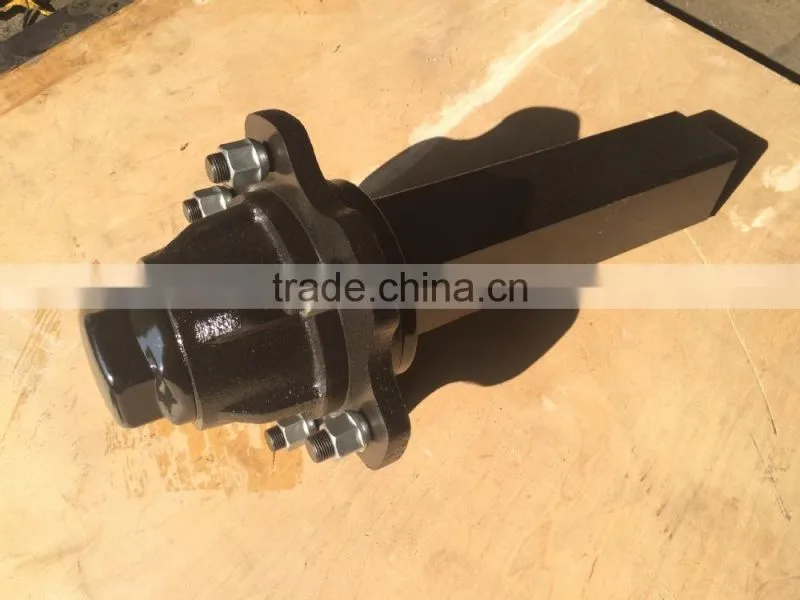

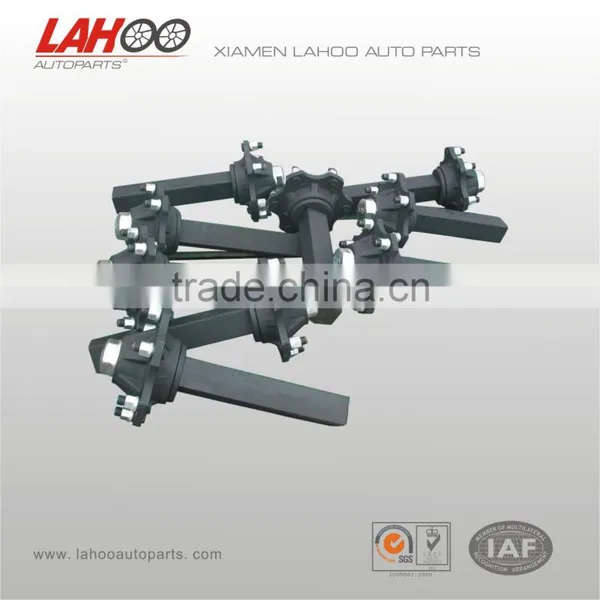

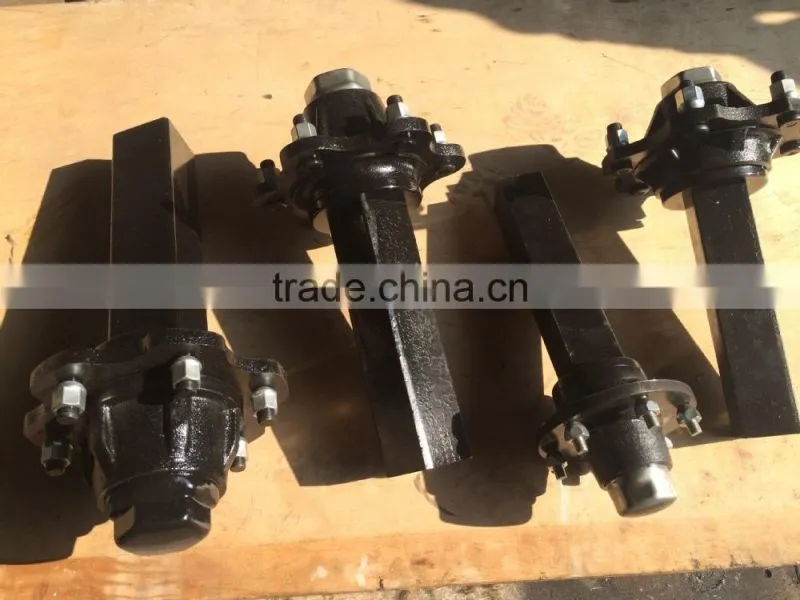

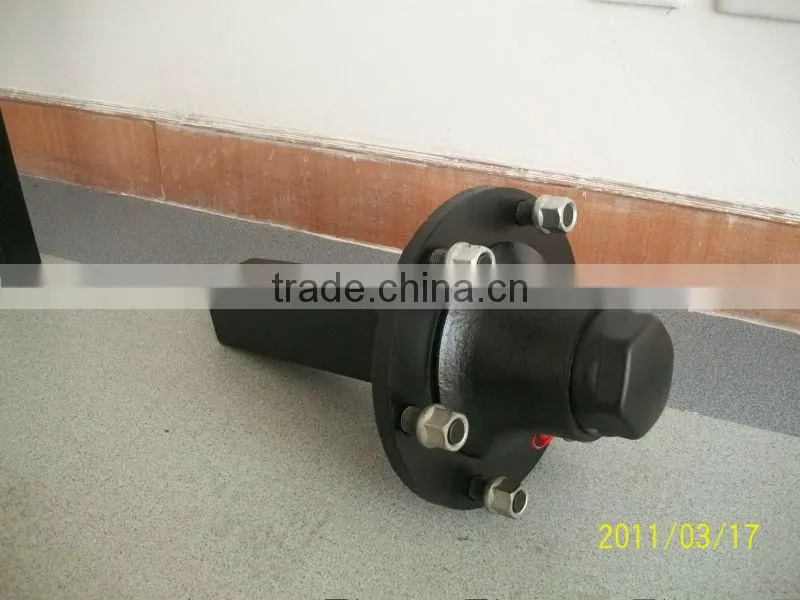

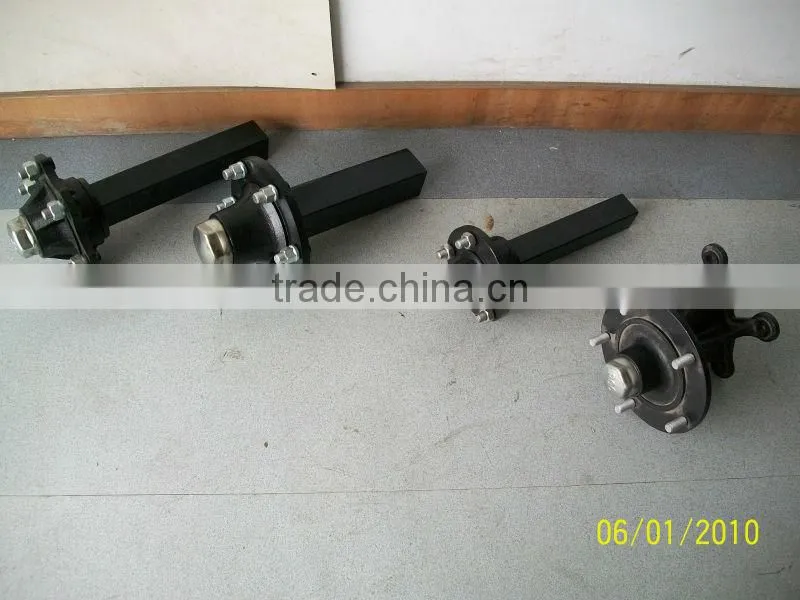

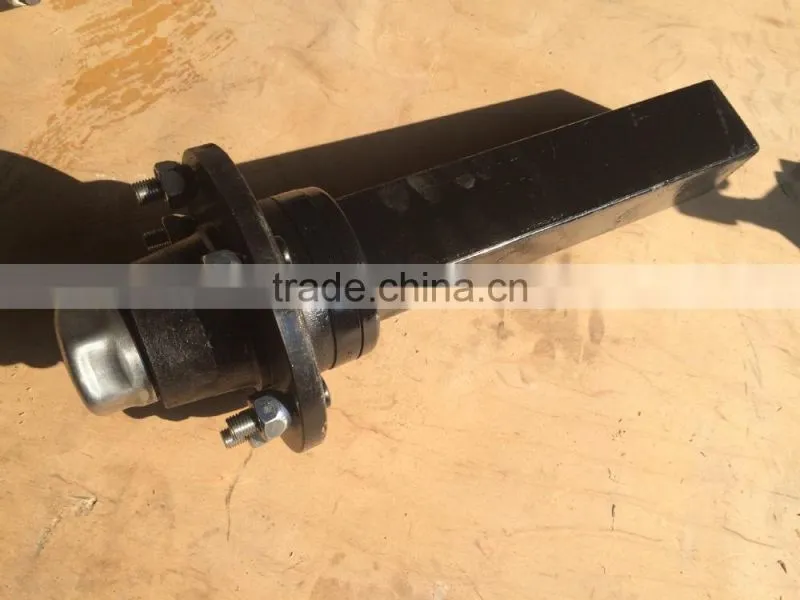

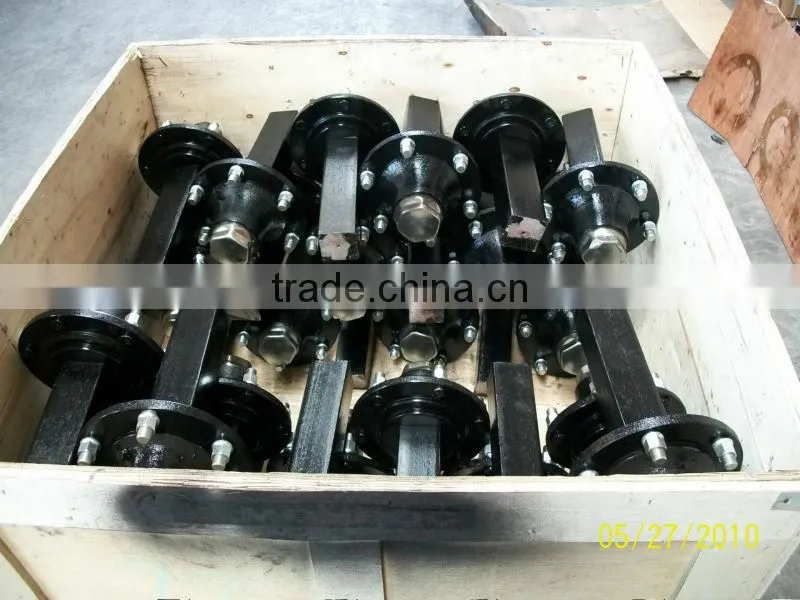

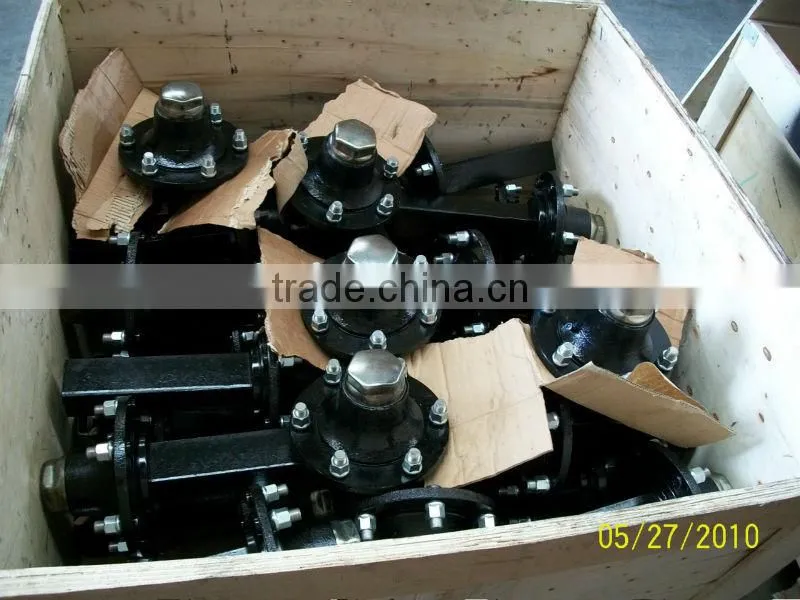

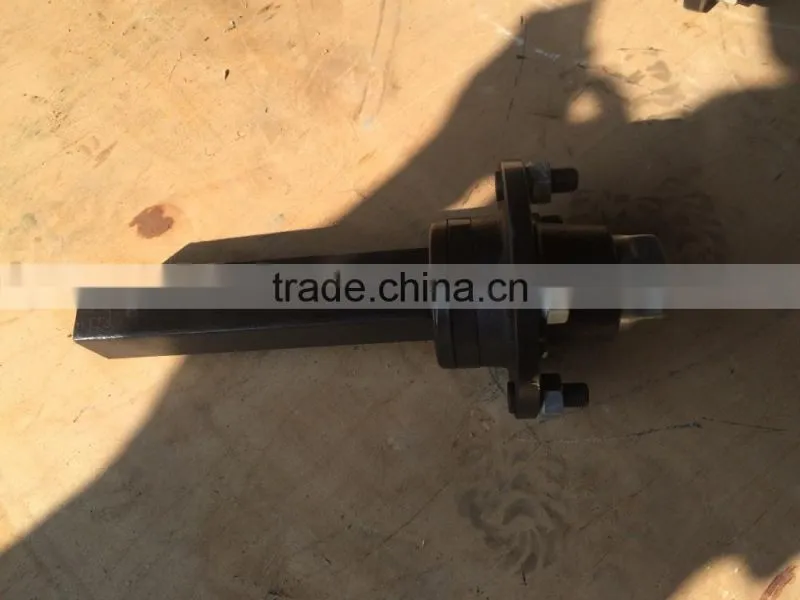

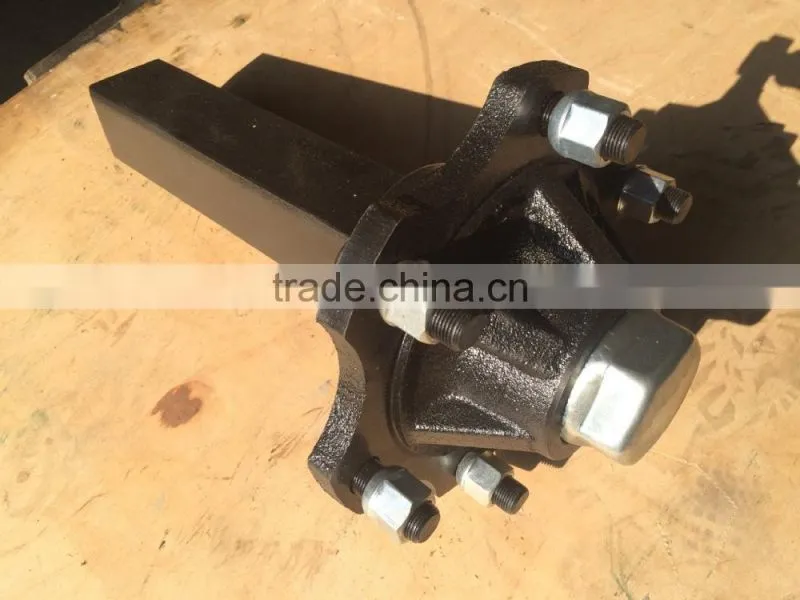

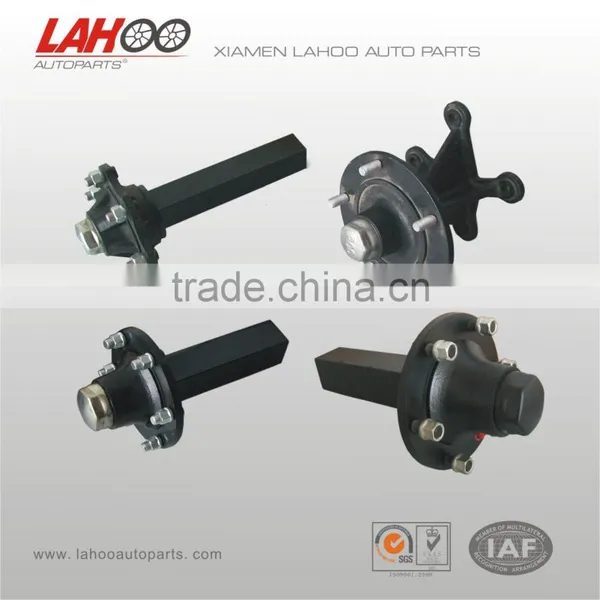

Type Of Trailer Stub Axle
Xiamen Lahoo Autoparts supplies various of agricultural axle and stub axle used in Tractors, small Trailers, Agricultural Trailers, Boat trailers etc.
1) Full axles&stub axles for agricultural equipment.
2) Track length can be met as per your request.
2) With or without brake is optional.
3) Capacity options: From 1T to 8T.
4) Axle Beam: from 40mm to 80mm, Round or Square is optional.
5) Finish: Black Painting, Galvanized.
6) Axle Factory Certificate: ISO/TS16949.
Specification:
| Item No. | Capacity (T) | Track (mm) | Axle Beam (mm) | Wheel Fixing (mm) | Bearing | Weight (Kg) |
| LHSA01-AG01 | 1 | 200 | 40 | 4×M14×Φ130×84 | 30205-20207 | 15 |
| LHSA03-AG01 | 3 | 200 | 50 | 6×M18×Φ250×160 | 30206-30209 | 20 |
| LHSA05-AG01 | 5 | 200 | 60 | 6×M18×Φ250×160 | 30207-30211 | 32 |
| LHSA06-AG01 | 6 | 200 | 70 | 6×M18×Φ250×160 | 30208-30213 | 43 |
| LHSA08-AG01 | 8 | 300 | 80 | 8×M18×Φ250×160 | 32211-30215 | 65 |
Axles: American type & German type with different capacity.
Mechanical suspension: 1axle, 2axle & 3axle with different steel plate thickness, German type,American type
Trailer air Suspension: 1axle, 2axle & 3axle with or without lifting
Bogie suspension: 24tons, 28tons, 32tons,drum and spoke type
Landing Gear: Gear outside & Gear inside with capacity 25tons, 28tons, 30tons and 35tons
Wheel rim: Tube type , different size for truck, semi-trailer
Leaf Spring: Conventional and parabolic type with different size.
5th wheel & King pin: 2'' & 3.5'', Forging type
Air Chamber: T14, T16, T24, T30, T24T30, T24T24, T30T30
Wheel hub and brake drum with different size.
Xiamen Lahoo Auto Parts Co., Ltd. is a leading supplier in auto parts that organized by several factories and joint-ventured manufacturers which successfully certified with TS16949 and ISO9001/2000 quality control system. We can supply full range spare parts for full trailers, semi-trailers, heavy duty trucks, light duty trucks, Our main spare parts include leaf spring, wheel rim, axle, Mechanical suspension, air suspension, boogie, turntable, fifth wheel, king pin, landing gear, air chamber, twist lock, Towing Hitches, Bearing and so on.
