Specifications
FR demister1.ISO certificated
2.made of Q235, 304, 304L, 316L,321,F46,NS-80 and so on
3.Convenience of installing, operatin
FR DEMISTER
The FR-demister mist eliminator is supported on, and held down by, high open area grids. When a vapor steam carrying entrained liquid droplets passes through a demister mist eliminator pad, the vapor moves freely through the knitted mesh but the inertia of the droplets causes them to contact the wire surfaces, coalesce, and ultimately drain as large droplets.
Materials
Stainless Steel(SUS201,302,304,304L,316,316L);copper wire, galv. wire, MONEL wire.
Type Demister can be devided in to four types :SP(standard type),DP(high efficiency type),HP(high permeability type),HR(shock absorption type.
HG/T21618-1998 DEMISTER
Type |
Weight capacith (kg/m³) |
Specific surface area (m² /m³) |
Porosity ε |
SP |
168 |
529.6 |
0.9788 |
HP |
128 |
403.5 |
0.9839 |
DP |
186 |
625.5 |
0.9765 |
HR |
134 |
291.6 |
0.9832 |
DP demister SP demister HP demister
Our usual specifications
|
Nominal diameter DN (mm) |
Net block Thickness H (mm) |
Standard Number |
Weight (kg) |
Nominal diameter DN (mm) |
Net block Thickness H (mm) |
Standard Number |
Weight (kg) |
300 |
100 |
HG/T21586. 01-98 |
4.1 |
300 |
150 |
HG/T21586. 29-98 |
4.6 |
400 |
100 |
HG/T21586. 02-98 |
5.9 |
400 |
150 |
HG/T21586. 30-98 |
6.85 |
500 |
100 |
HG/T21586. 03-98 |
7.9 |
500 |
150 |
HG/T21586. 31-98 |
9.4 |
600 |
100 |
HG/T21586. 04-98 |
11.2 |
600 |
150 |
HG/T21586. 32-98 |
13.3 |
700 |
100 |
HG/T21586. 05-98 |
14.8 |
700 |
150 |
HG/T21586. 33-98 |
17.7 |
800 |
100 |
HG/T21586. 06-98 |
17.3 |
800 |
150 |
HG/T21586. 34-98 |
21 |
900 |
100 |
HG/T21586. 07-98 |
23.7 |
900 |
150 |
HG/T21586. 35-98 |
28.5 |
1000 |
100 |
HG/T21586. 08-98 |
26.8 |
1000 |
150 |
HG/T21586. 36-98 |
32.7 |

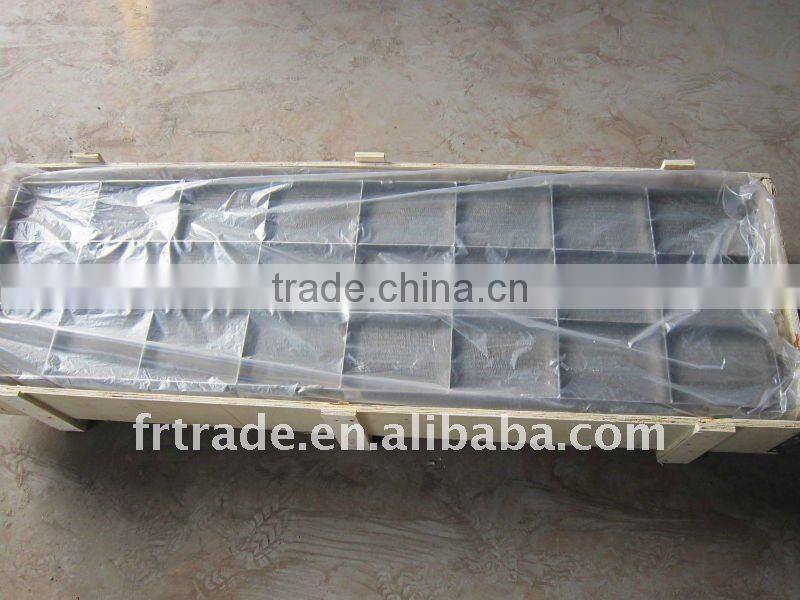

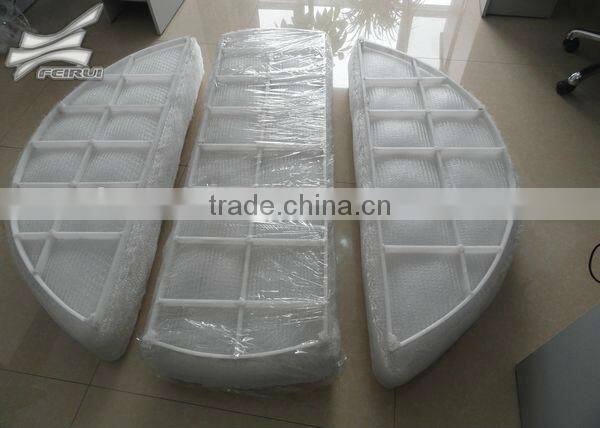

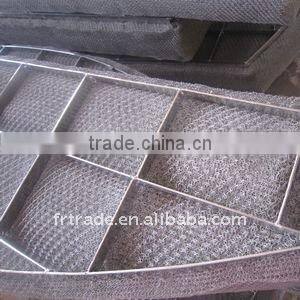

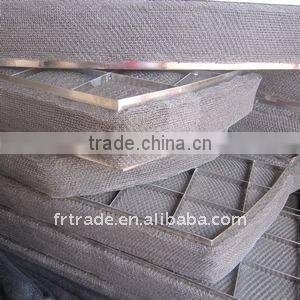

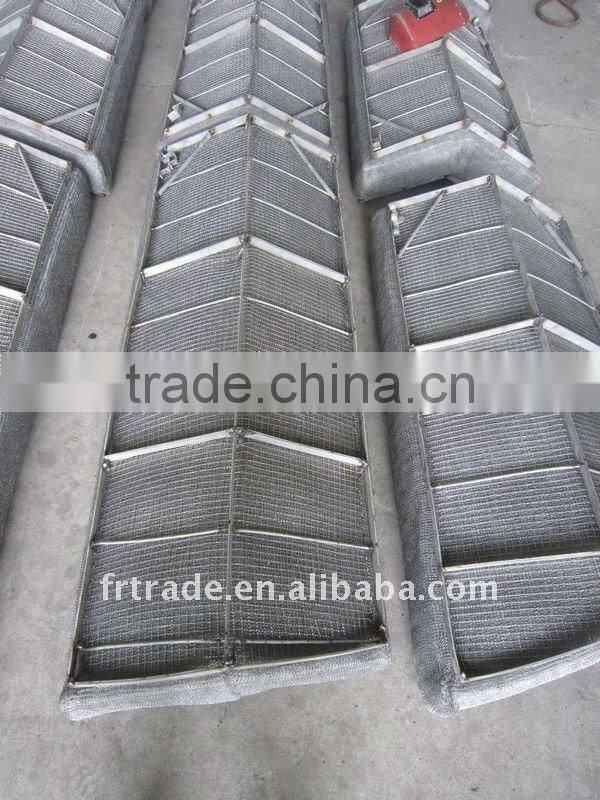

More pictures for your reference
