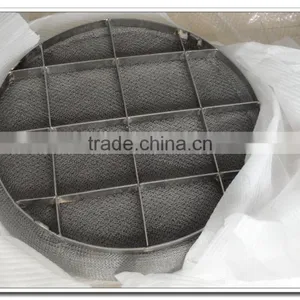

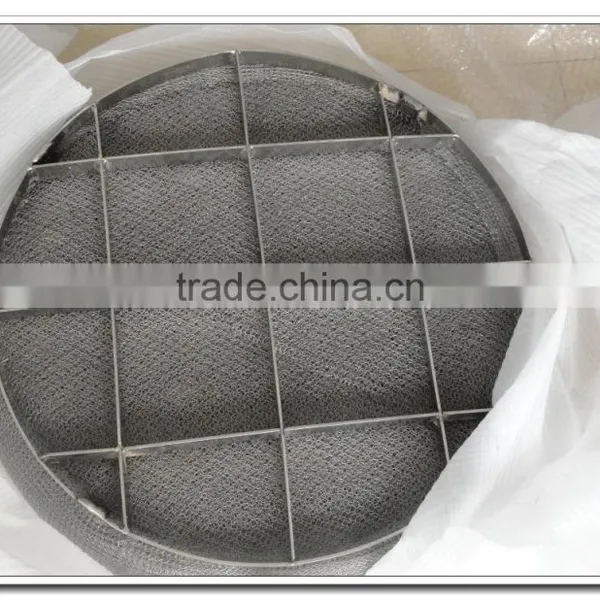

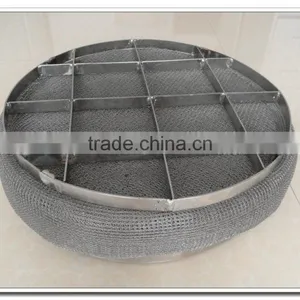

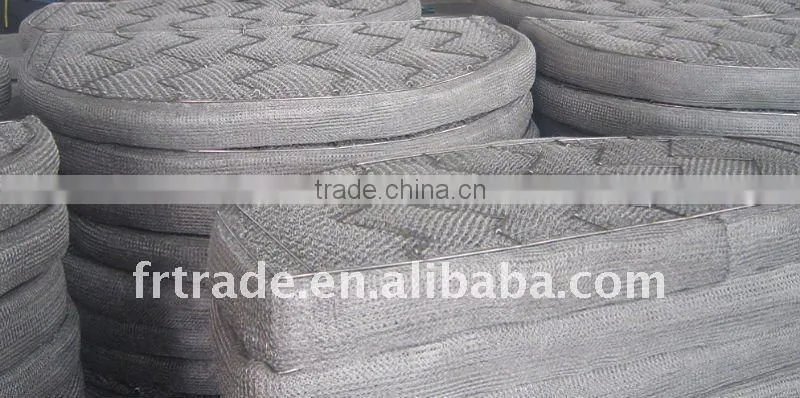

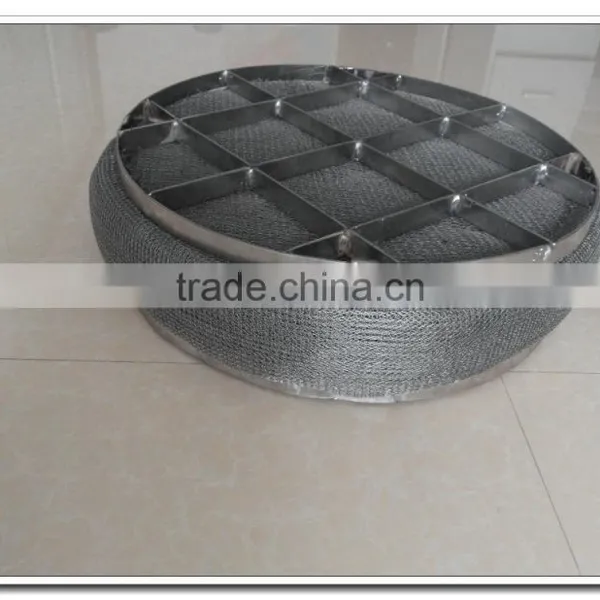

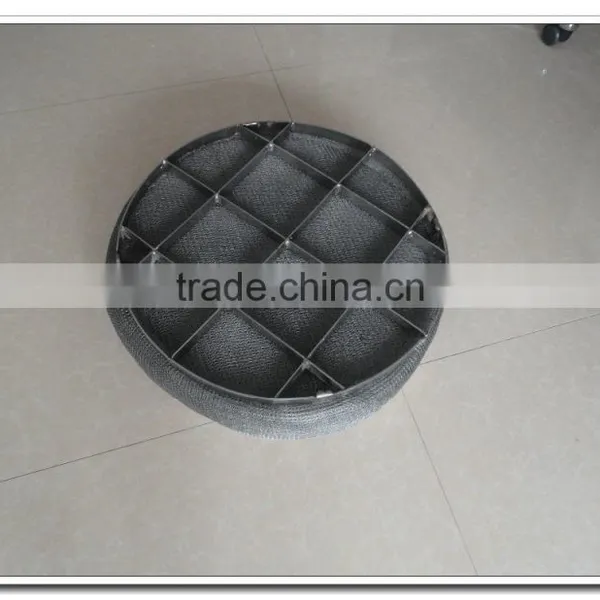

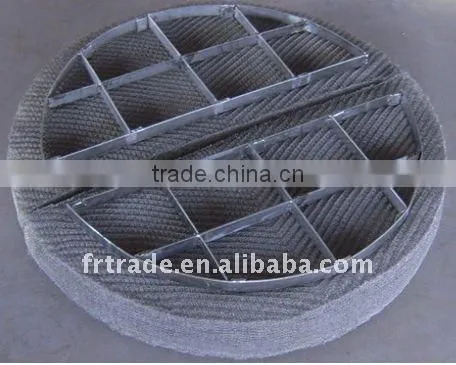

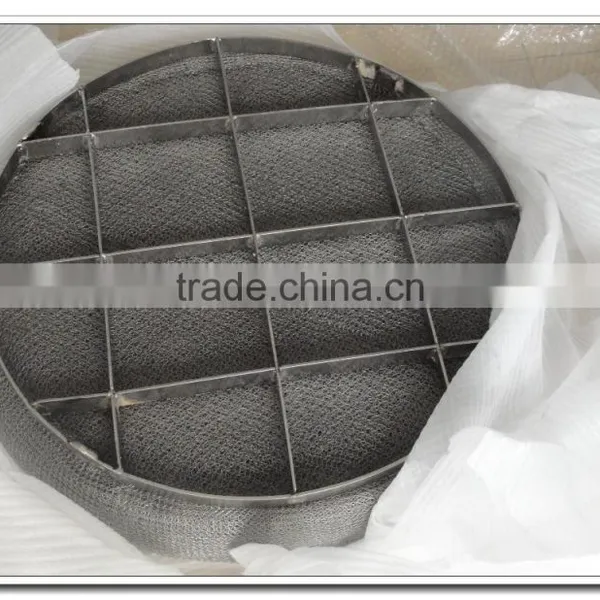

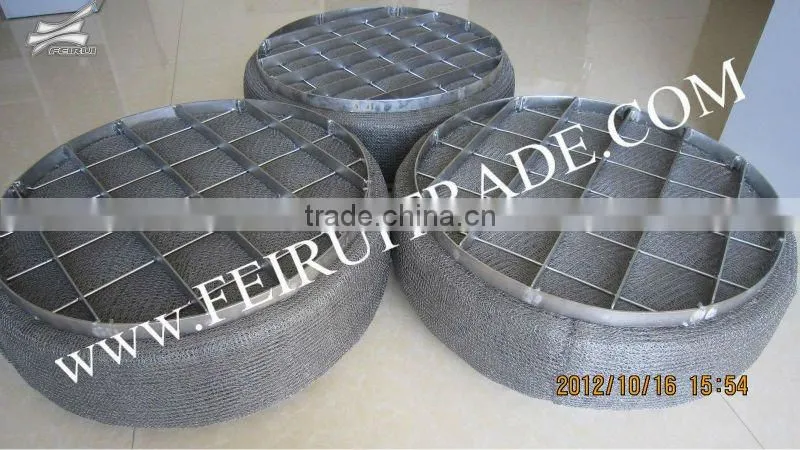

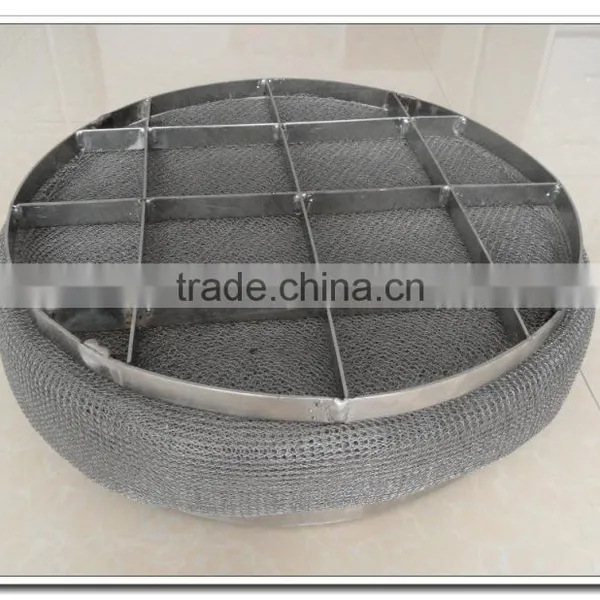

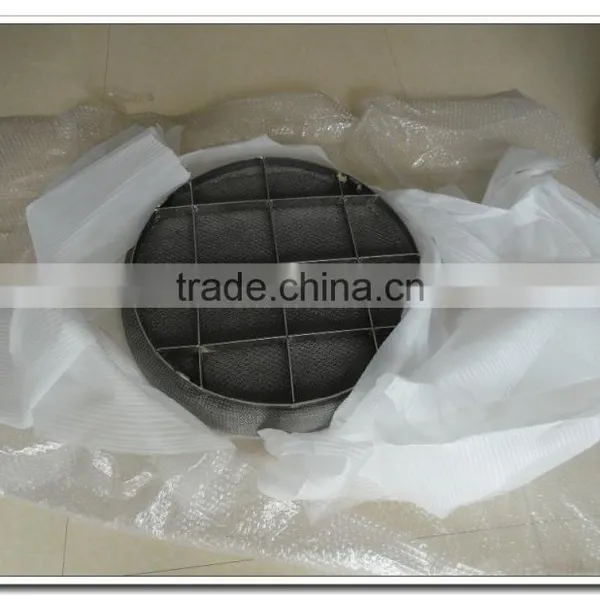

Demister pad
It is also known as mist eliminators or sprays. This is a kind of high efficiency separation devices, used throughout all kinds of process industries, to remove liquid droplets from gas or vapour streams.
Demister pad
Applications: Chemical, petroleum, sulfate, medicine, light industry, metallurgy, machine, building, construction, aviation, shipping and environment protection. Demister pad is mainly used to eliminate streams with diameter of more than 3μm to 5μm.
Demister pad
Features:1. Simple structure with light weight.
2. Less pressure drop and big surface.
3. High demisting efficiency.
4. It is convenient for installation, operation and maintenance.
5. Long service life.
Demister pad
Specifications:
| Net Block | Grid | ||||
| Material | Code | Standard NO. | Material | Code | Standard NO. |
| Q235-A | Q235-A | GB434 | Q235-A | Q235-A | GB327 |
| 20 | 20 | BG3206 | 20 | 20 | GB711 |
| 0Gr18Ni10Ti | 321 | 0Gr18Ni9 | 304 | GB423 | |
| 0Gr17Ni12Mo2 | 316 | 0Gr18Ni10Ti | 321 | ||
| 00Gr19Ni11 | 304L | 00Gr17Ni12Mo2 | 316 | ||
| 00Gr17Ni14Mo2 | 316L | 00Gr17Ni14Mo2 | 316L | ||
| RS-2 | RS-2 | Steel Grades | 00Gr17Ni14Mo2 | 316L | |
| NS-8 | NS-80 | Non-metallic materials: PTFE (F6) polyethylene, polypropylene, Nylon yarn, glass fiber and PVC and so on. Note: use other materials bearing the note when ordering |
|||
| NS-80A | NS-80A | ||||
| Brass Wire | H68, H65 | GB310 | |||
| Tin-copper Wire | QSn | GB3128 | |||
| Nickel | N4, N6, N7, N8 | GB3120 | |||
| Titanium and Titanium Alloy | TA2, TA3, TC3, TC4 | GB3623 | |||
Standard type
Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model :40-100 60-150 ,140-400
Common diameter :0.20-0 .45 mm
Form code: SP
Weight capacity: 168 Kg/m3
Specific surface area: 529.6 m2/m3
Porosity : 0.9788ε
High efficient type
Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model : 60-100 80-150 200-400 80-100 90-150
Common diameter : 0.12-0.45mm
Form code: HR
Weight capacity: 128 Kg/m3
Specific surface area: 403.5 m2/m3
Porosity : 0.9839ε
Shock absorption type
Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model : 20-40, 30-80, 40-120,50-120
Common diameter : 0.21mm
Form code: HR
Weight capacity: 168 Kg/m3
Specific surface area: 529.6 m2/m3
Porosity : 0.9788ε
