Mnufacturer of SS316 demister mesh pad

SS316 demister mesh pad

Wire Mesh Demister

Wire mesh demister, also known as a wire mesh mist eliminator, is a kind of vapor liquid separating device. It is widely used in the chemical, petroleum, medical, light, metallurgy and environmental protection industries.It is most often used to separate liquid drop with diameter of more than 3-5 μm in the separation tower.

Using: Chemical, petroleum, sulfate, medicine, light industry, metallurgy, machine, building, construction, aviation, shipping and environment protection.

standard type

Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model :40-100 60-150 ,140-400
common diameter :0.20-0 .45 mm
form code: SP
Weight capacity: 168 Kg/m³
specific surface area: 529.6 m^2/m³
porosity : 0.9788ε

High efficient type

Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model : 60-100 80-150 200-400 80-100  90-150

common diameter : 0.12-0.45mm

form code: HR

Weight capacity: 128 Kg/m³
specific surface area: 403.5  m2/m³
porosity : 0.9839ε

shock absorption type

Material: 302,304,304 L, 316,316 L, 317

Specifications are as follows:
Model : 20-40, 30-80, 40-120,50-120

common diameter : 0.21mm

form code: HR
Weight capacity: 168 Kg/m3
specific surface area: 529.6 m2/m3

porosity : 0.9788ε

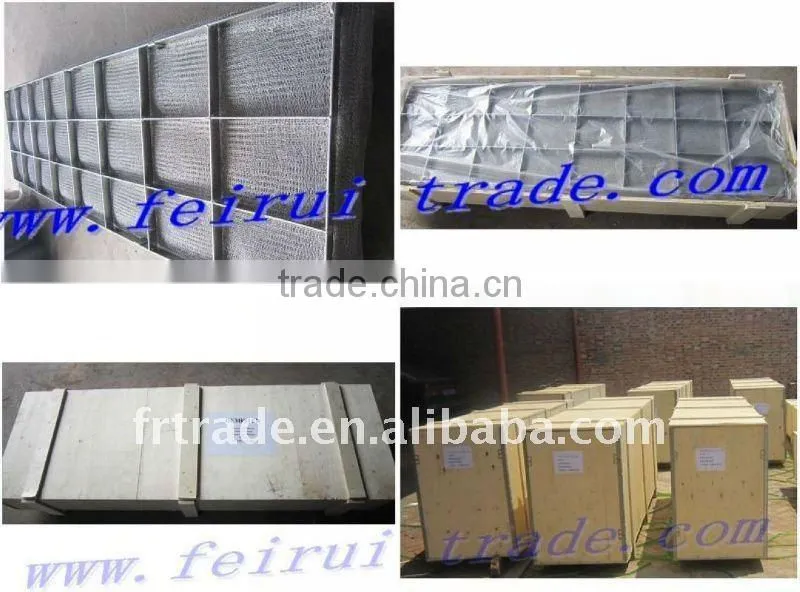

Packaging

Plastic bag inside, carton or wooden case out side
